Installation of a Sharp wall-mounted heat pump in Rosemont–La Petite-Patrie
Project in Rosemont–La Petite-Patrie: two Sharp and Gree wall-mounted heat pumps installed on brackets above a garage door. Careful finishing, respected clearances, HVAC maintenance, and grant assistance for all of Greater Montreal.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.

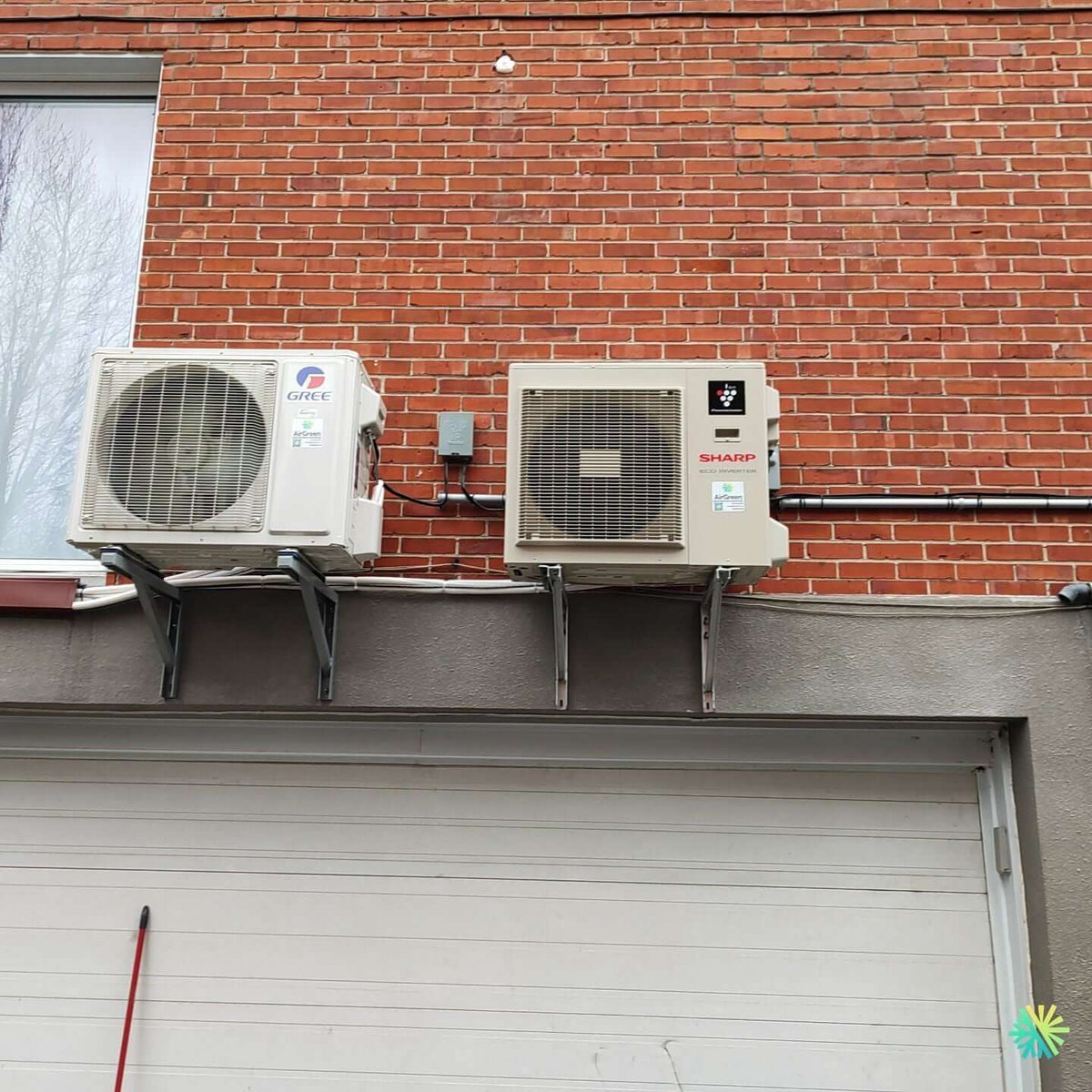

Two side condensers above a garage door: a clean, safe and quiet urban installation
In this brick building in Rosemont–La Petite-Patrie , we are working on a specific project: optimizing the comfort of two neighboring apartments without cluttering the courtyard. We are installing two compact outdoor units side by side on galvanized wall brackets , just above a garage door. One of the units is a Sharp (recent wall-mounted with R-32 refrigerant), the other a modern wall-mounted Gree . The objective: to provide efficient heating at low temperatures and stable air conditioning all summer long, with a discreet HVAC installation that respects clearances, safety regulations and co-ownership life.
Architectural context and site constraints
-
Brick facade with concrete lintel above the garage: robust support but requiring suitable mechanical anchors (expansion dowels and sealing).
-
Useful height of approximately 2.2–2.4 m above the finished parking floor: perfect for avoiding vehicle impacts and snow accumulation.
-
Limited lateral space between a window and the garage ceiling drop: we choose long brackets to clear the back of the machines and promote airflow.
-
Existing technical routes : passage of white ducts (capping) for the refrigerant lines and horizontal black electrical conduit for the power supply, connected to an external disconnect switch .
Technological choice: recent R-32 walls
Both units are modern, single-zone wall-mounted heat pumps that meet current efficiency requirements. The Sharp unit provides stable comfort at low temperatures, with an inverter compressor and smart defrost. The neighboring Gree unit offers comparable efficiency, ideal for a second unit on the same floor. This duo allows each occupant to manage their energy consumption independently, while maintaining a uniform appearance on the courtyard side.
Salient installation details
-
Supports : pairs of galvanized steel wall brackets , sized for static and dynamic load (wind), with anti-vibration mats under the sole.
-
Clearances : 30–40 cm at the rear and above, horizontal spacing between condensers to avoid recirculation of hot air in air conditioning mode and interference from defrosts in heating mode.
-
Openings : sealed wall penetrations with vapor barrier and sleeve, gravity slope towards the outside.
-
Drainage : gravity drainage prioritized; if unfavorable internal slope, silent condensate pump optional (not required here).
-
Refrigeration connections : insulated tubes of adequate gauge, nitrogen brazed, nitrogen leak test 300–400 psi, deep vacuum < 500 microns, stabilization then opening of the fluid.
-
Electricity : dedicated line from the panel, sized circuit breaker , visible disconnection box between the two condensers, compliance with clearances and routing.
-
Finish : white capping on the concrete drop, clean descent on the window side, alignment of the supports for a harmonized facade.
Why raise above a garage door?
-
Protection against impacts (vehicles, snow removal) and against blown snow .
-
Acoustics : at this height, sound propagation is towards the courtyard, limiting the nuisance for the ground floor.
-
Easy HVAC maintenance : sufficient clearance to work under the tray and direct access to the disconnection.
Measurable results, winter comfort and practical AirGreen advice
Comfort and performance in Montreal's climate
In Montreal , a good wall-mounted system must remain efficient around -20°C and handle lower cold peaks. Recent Sharp and Gree R-32 wall-mounted systems meet these criteria, with high seasonal coefficients and fine compressor modulation. Both units benefit from:
-
stable heating , limiting the use of electrical backup;
-
uniform air conditioning without drafts;
-
better controlled consumption thanks to the inverter.
Recommended maintenance
To maintain performance:
-
Cleaning the internal filters every 2 to 3 months during the season.
-
Annual inspection by our team: checking the refrigeration circuit, electrical connections, drain and defrost settings.
-
In winter, clear the front grilles in case of storms to prevent frost from exceeding normal defrost cycles.
Best practices that we systematically apply
-
Noise study and choice of location for neighbors: positioning away from bedrooms.
-
Prevention of recirculation : sufficient spacing between the two condensers and compliance with manufacturer clearances .
-
Vibration management : anti-vibration mounts and compliant tightening torque.
-
Durable finish : stainless steel screws, capping slope, polyurethane sealing.
Grants and Eligibility
Recent wall-mounted heat pumps , particularly R-32 and with certified performance, are generally eligible for assistance programs in effect in Quebec. Eligibility depends on the exact performance (heating power in extreme cold, certifications). At AirGreen , we validate serial numbers and technical data sheets to guide you and prepare the file, whether you are in Montreal, Laval, Longueuil, North Shore or South Shore .
Common mistakes to avoid (feedback)
-
Undersize the indoor unit for a high-ceilinged space: the machine will run too fast, creating temperature variations.
-
Gluing two condensers together without a gap: cross heating, increased noise, longer defrosting.
-
Forgetting the slope of the drain : droplets in spring, stains on the masonry.
-
Neglecting the external disconnection : electrical non-compliance and complicated maintenance.
What our customer appreciates after commissioning
-
Silent in night mode, even when both systems are running.
-
Fast thermal response during early morning restarts.
-
Careful aesthetics : straight lines, aligned cable ducts , neutral color that blends into the facade.
What if your building looks like this?
Whether you are in a plex in Rosemont, a condo in Ville-Marie , a townhouse in Saint-Laurent or a semi-detached in Laval , this mounting on brackets above a garage is often the most rational solution. We size the heat pump based on actual heat losses, we offer Sharp , Gree , Fujitsu or Midea according to your priorities (silence, budget, extreme cold, connectivity), then we deliver a clean, tested and guaranteed HVAC installation .
AirGreen Guarantee and Follow-up
Our facilities include:
-
registration of manufacturer warranties ;
-
an AirGreen labor guarantee ;
-
the first recommended maintenance visit , with automatic reminder;
-
tailored usage tips to reduce your electricity bill.
Next step
A consultant comes free of charge to assess the length of refrigeration lines , the optimal capping route , the location of the disconnection and the drainage strategy ( gravity or pump). We then provide a clear quote , including performance options for extreme cold and an estimate of the financial assistance applicable in Montreal, Laval, Longueuil, North Shore, South Shore .
Service keywords : heat pump , wall-mounted air conditioner , HVAC installation , HVAC maintenance , Montreal , Laval , Longueuil , North Shore , South Shore .
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
