Installation of a Sharp ZU1 wall-mounted heat pump in Côte-des-Neiges
Installation of a Sharp ZU1 in Côte-des-Neiges: an efficient, quiet, and perfectly integrated wall-mounted heat pump. AirGreen, HVAC experts in Montreal, guarantee performance and aesthetics.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A discreet and efficient interior installation for four-season comfort

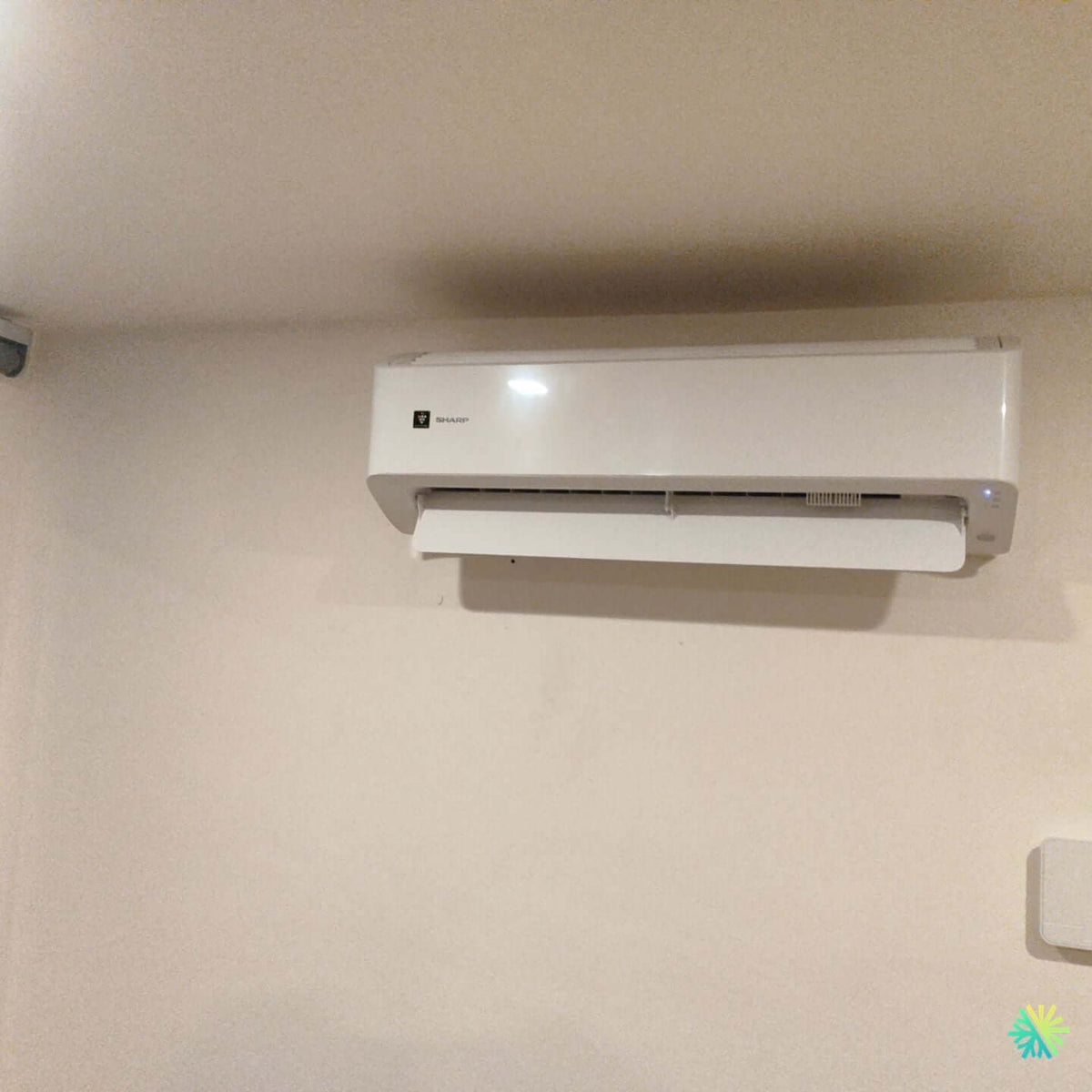

At AirGreen , we recently completed the installation of a Sharp ZU1 wall-mounted heat pump in an apartment in the Côte-des-Neiges sector of Montreal. The client's goal: to obtain a high-performance, quiet system that perfectly integrated into its interior environment without compromising the aesthetics of the room.
An ideal solution for Montreal residential spaces
The Sharp ZU1 is a wall-mounted heat pump renowned for its high energy efficiency and its ability to operate efficiently down to -25°C . This model, powered by R-32 refrigerant , ensures stable heating in winter and gentle cooling in summer, while reducing environmental impact.
Our client, who lives in a typical Côte-des-Neiges apartment with light-colored walls and medium-height ceilings, was looking above all for a discreet wall unit and consistent comfort throughout the year.
A neat installation adapted to the space
Our technicians installed the unit on a high wall , optimizing air circulation and limiting visual obstacles. The indoor unit, installed above an open space, guarantees even diffusion throughout the room.
The refrigeration wiring and electrical connection were carefully concealed in white capping , ensuring a clean and uncluttered finish. Thanks to gravity drainage , no condensate pump noise disrupts acoustic comfort – an essential aspect for urban apartments.
Key project milestones
-
Analysis of the installation site : verification of the wall support and the optimal route of the connections to the exterior.
-
Precise wall plate mounting : level adjusted for perfect airflow distribution.
-
Drilling and passing conduits : installation of a watertight and insulated hole to prevent any energy loss.
-
Refrigerant system connection : vacuum and pressure test to ensure leak-tightness.
-
Commissioning and calibration : adjustment of airflow direction, heating and air conditioning test.
Why choose the Sharp ZU1?
-
Remarkable energy efficiency : DC inverter technology reduces power consumption.
-
Quiet operation : perfect for living rooms or bedrooms.
-
Compact and elegant design : blends harmoniously into any type of interior.
-
Resistance to extreme cold : up to −25°C , ideal for Montreal winters.
-
Eligible for grants : thanks to its Energy Star certified performance.
Tailor-made comfort for the customer
Upon switching on, the customer immediately felt the difference in thermal comfort and the impressive silence of the system. The Sharp ZU1 automatically adapts to the needs of the room, adjusting its power to maintain a stable temperature without over-consumption.
AirGreen expertise at the service of each installation
Every AirGreen project is carried out according to rigorous standards : technical precision, respect for the premises, and attention to detail. Our certified installers ensure that each wall-mounted heat pump is installed in the best possible conditions to maximize the system's durability and performance.
In this specific case, the limited space of the accommodation required careful planning of the ductwork route, thus optimizing the length of the refrigerant circuit while preserving the interior aesthetics.
Conclusion
This Sharp ZU1 heat pump installation in Côte-des-Neiges perfectly illustrates our commitment to providing efficient, aesthetic and sustainable HVAC solutions . By choosing AirGreen, the customer benefits from a complete service , from the selection of equipment to commissioning, with personalized support and advice on annual maintenance.
AirGreen is local HVAC expertise serving the comfort of homes in Greater Montreal .
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What the unit delivers when it is cold
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
