Quiet and constant comfort for a Laval ground floor
At AirGreen , we transform ordinary rooms into perfectly tempered spaces thanks to a careful, methodical and sustainable HVAC installation . This project in Laval (Chomedey) highlights a new generation Sharp ZU1 wall-mounted heat pump ( R-32 refrigerant ), selected for its stable performance in cold weather, its acoustic sobriety and its visual discretion.
Home context and comfort objectives
The main room had an open volume onto the entrance hallway and the dining room. The priority requirement was uniform cooling in summer, efficient heating support in the off-season, and a significant reduction in energy bills compared to electric baseboard heaters. We proposed a Sharp ZU1 series heat pump , known for its high seasonal efficiency and capacity maintenance at low temperatures, while remaining compact and elegant.
The chosen solution: Sharp ZU1 (R-32 series)
-
Machine type: single-zone wall-mounted heat pump (mini-split).
-
Series: Sharp ZU1 with low GWP R-32 refrigerant.
-
Available capacity range: 12,000, 15,000, 18,000 and 24,000 BTU, allowing for precise sizing according to the room.
-
Key benefits: fine inverter modulation, washable multi-stage filtration, automatic restart after power cut, intelligent defrosting and very low noise level in night mode.

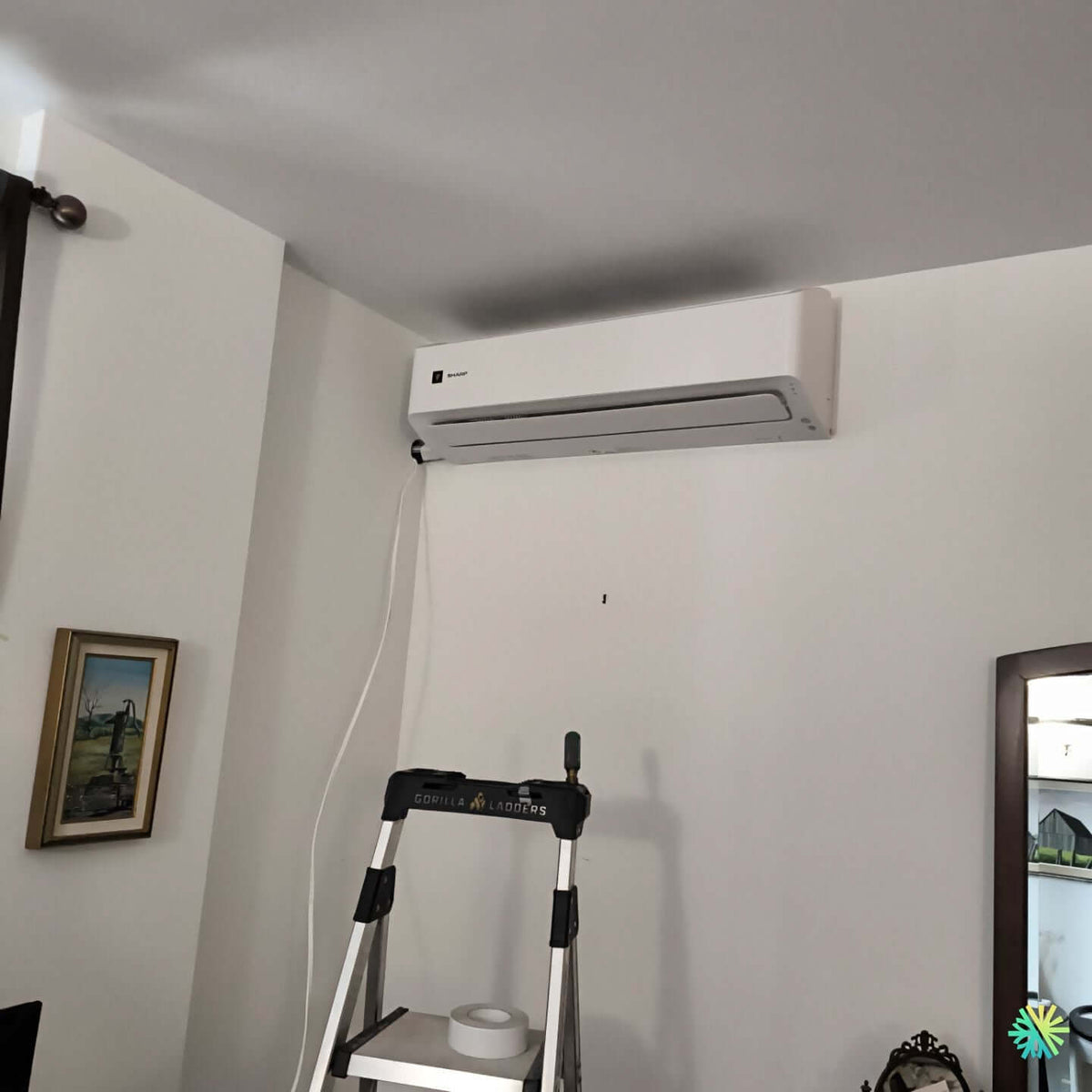

Interior head implantation and finishing
The unit was installed high up, under the ceiling , to promote natural air stratification and optimize the range of the oscillating shutter. The drilling is located on the left side of the machine, in line with the connections, for a short and clean path to the outside. The casing will be finished in white PVC sheathing matching the wall for discreet integration, without visual disruption to the existing frames.
Route of connections and management of condensates
The wall-to-wall design limits pressure losses and reduces stress points. The condensate drain is designed for gravity flow, with a constant slope, to ensure quiet, maintenance-free drainage. When a gravity slope is not possible, we integrate a condensate pump with a sealed tank; in this configuration, the geometry of the wall has allowed for a natural, simpler and more reliable drainage.
Food and communication
The power supply and communication between units are discreetly guided along the same route as the refrigeration connections, then covered. The assembly is crimped, insulated and collared to avoid any parasitic vibration and preserve the interior aesthetics. Everything respects the clearance templates around the machine to guarantee the nominal airflow and facilitate periodic HVAC maintenance .
AirGreen Installation Steps
-
Checking the support and installing the plate perfectly level.
-
Clean drilling with core drill, deburring and passage protection.
-
Pre-bending of connections, installation of continuous insulation and anti-condensation taping.
-
Installation of the head and flared fittings checked for torque .
-
Deep vacuum , leak test, then release of refrigerant.
-
Complete functional tests : hot/cold modes, oscillations, flow rates, setpoint responses.
-
Finishing touches : interior cladding, exterior sealing, end-of-site cleaning.
-
Delivery of instructions to the customer and recommended maintenance plan.
Measurable result and perceived comfort
The air distribution covers the living area without localized drafts. The noise level in low ventilation blends into the ambient noise. The temperature rises quickly on cool spring and autumn evenings, while the air conditioning reduces summer humidity, improving the feeling of comfort at higher, therefore more economical, setpoints.
Why the Sharp ZU1 series in the Laval climate
-
High seasonal efficiencies thanks to the inverter and R-32.
-
Maintains performance in negative temperatures, suitable for Greater Montreal.
-
Simplified maintenance with washable filters and front access.
-
Grant compatibility when the criteria of efficiency and cold performance are met, useful for projects in Montreal, Laval, Longueuil, North Shore, South Shore .
Good sizing practices
Our project managers perform a load calculation based on insulation, orientation, windows, and ceiling height. The ZU1 series offers several capacities, which helps avoid oversizing (short cycles, increased wear) and undersizing (inconsistent comfort). The objective remains modulated operation most of the time, ensuring efficiency and longevity.
Installation details that make the difference
-
Height and clearances respected for recovery and blowing.
-
Short, continuously insulated refrigeration lines with no pinch points.
-
Slightly sloping outward drilling for natural drainage.
-
Interior cladding aligned with the lines of the wall and frames.
-
Anti-vibration mounts and regularly spaced collars.
-
Hot and cold tests , including checking of shutters and modulation.
Maintenance and longevity
Annual HVAC maintenance maintains efficiency:
-
Washing of filters and gentle dusting of the exchanger.
-
Checking the condensate flow.
-
Checking tightening torques, insulation and condition of covers.
-
Measuring blowing temperatures and checking service codes.
This routine extends lifespan, stabilizes operating costs and preserves the manufacturer's warranty.
Usage tips for the ZU1 series
-
Maintain a stable setpoint rather than large deviations.
-
Use dehumidification mode during summer humidity peaks.
-
Prefer automatic oscillation to extend the range of treated air.
-
Keep air vents free of any obstacles (curtains, tall furniture).
What we solved in this house in Chomedey
-
Even diffusion despite an open area thanks to a high and central installation.
-
Discreet finishes with white capping and clean sealing.
-
Maintenance made easier by respected clearances and a gravity drain path.
-
Four-season preparation for consistent comfort and energy savings year-round.
AirGreen, Greater Montreal's HVAC partner
Our team operates weekly in Montreal, Laval, Longueuil, North Shore and South Shore . We are experts in the Sharp, Gree, Fujitsu, Midea and other recent brands at R-32 / R-454B . Each project follows a reproducible quality protocol to ensure a clean, efficient and durable result.
What an AirGreen installation typically includes
-
Technical visit, electrical validation and connection route.
-
Delivery, installation, vacuum, start-up and inspection.
-
Interior/exterior finishes, caulking, hoods.
-
Training in use, maintenance recommendations, warranty documentation.
-
Fast after-sales service, parts and labor covered according to the manufacturer's and our company's terms.
Points of vigilance for owners
-
Avoid obstacles in front of the machine or under the blower.
-
Schedule a maintenance reminder before the hot season.
-
Report any traces of water under the unit (drain) or abnormal noise for preventive intervention.
-
Keep invoices and technical sheets, useful for subsidies when applicable.
Conclusion
This Sharp ZU1 wall-mounted heat pump installation in Laval (Chomedey) illustrates our approach: precise diagnosis, reasonable sizing, clean execution and discreet finishes. The result combines comfort , energy efficiency and quiet operation , with a modern R-32 machine ready to face the temperature variations of Greater Montreal.
