Installation of a Sharp ZU1 wall-mounted heat pump in Villeray–Saint-Michel–Parc-Extension

Four-season comfort in a narrow corridor: HVAC integration that respects Montreal architecture

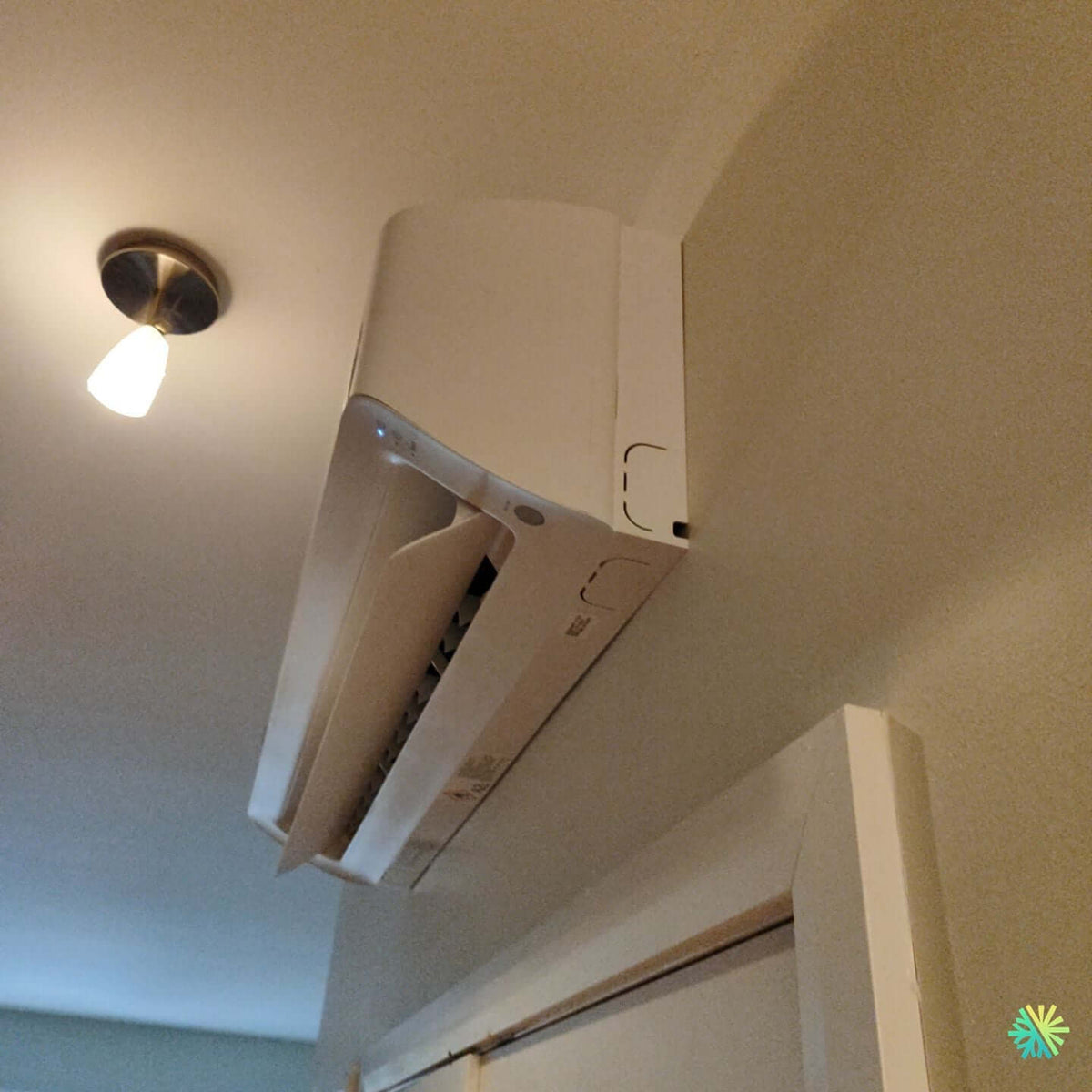

At AirGreen , we have just installed a Sharp ZU1 wall-mounted heat pump in a typical Villeray–Saint-Michel–Parc-Extension home. The indoor unit is located above a door frame , at the junction of a narrow hallway and a living room. This context requires careful planning of the routing of connections, gravity drainage and air diffusion to ensure optimal comfort without encroaching on circulation. Our intervention summarizes our approach: precise diagnosis, careful installation, measurable results .

Why Sharp's ZU1 Series for Urban Housing

The Sharp ZU1 ( R-32 refrigerant) is one of the new generation wall units preferred for Montreal plexes. It combines:

• High efficiencies (SEER2/HSPF2 compliant with the latest North American standards), guaranteeing energy savings;

• Cold weather performance down to −30°C (XLTH range), ideal for Montreal and the Laval , North Shore and South Shore crowns;

• Quiet operation and long blowing allowing it to supply a corridor while reaching adjacent rooms;

• Simplified maintenance (accessible filters, on-board diagnostics) for quick HVAC maintenance during our visits.

R-32 refrigerant reduces the required charge and improves heat exchange compared to older R-410A systems, resulting in better seasonal efficiency and a smaller environmental footprint.

Sizing and air strategy: covering the housing without creating dead zones

Before installation, our consultants perform a room-by-room load calculation (envelope, orientation, infiltration). In this project, the selected unit covers a floor space of 2 to 3 rooms connected by the corridor. To maximize the range:

• We orient the horizontal shutter to blow in the axis of the corridor , which pushes the temperate air towards the living room;

• The vertical sweep remains moderate in order to avoid a jet of air that is too strong on the occupants;

• An installation height close to the ceiling promotes controlled stratification in heating mode, then destratification by sweeping in air conditioning mode.

Result: uniform comfort and smooth movement , without visual obstacles or risk of snagging near the door frame.

Refrigeration and electricity path: clean, short and protected

The context of the corridor required a compact and discreet route . We created:

• A clean hole at the rear of the unit (controlled slope angle) to exit directly to the outside;

• An independent gravity drain , with continuous slope, avoiding the use of a condensate pump (increased silence and less maintenance);

• Continuously insulated refrigerant connections (typically 1/4″–3/8″ for this power), protected by white capping on the front;

• A dedicated power supply , protected according to the required rating, with service switch at the external condenser.

The total length of the lines was kept short (estimated between 6 and 8 m ), limiting pressure losses, improving seasonal efficiency and simplifying any future HVAC maintenance .

Fixings, vibrations and noise: peace and quiet as a priority

The indoor unit is anchored to a solid reinforcement , with homemade anti-vibration pads to avoid any resonance on the corridor partition. On the outside, the condenser is placed on wall brackets in order to:

• Raise it above the snow level;

• Preserve the ground passage;

• Reduce the risk of fouling and corrosion.

We always validate: tightening torque , alignment , fan speed and actual noise level after switching on, so that the wall-mounted air conditioner / heat pump remains discreet day and night.

Commissioning and quality controls

Each AirGreen installation follows a rigorous procedure :

1. Deep vacuum (≤ 300 microns) and nitrogen leak test before refrigerant release;

2. Checking the currents , voltages and communication between heads and condenser board;

3. ΔT measurements in cold/hot mode after stabilization;

4. Validation of drainage under load (condensate test);

5. User settings : auto speeds, night program, remote control and Wi-Fi if available.

These checks ensure the reliability and durability of the equipment, even under intensive use.

Recommended Maintenance: Maintaining Top-Notch Performance

Regular HVAC maintenance maintains efficiency and silence:

• Clean the filters every 1 to 3 months depending on the dust (circulated corridor = faster deposits);

• Gentle washing of the internal exchanger and disinfection of the tank to prevent odors;

• Annual inspection by our technicians: tightening of connections, pressure/temperature readings, checking of condenser clearance and flow;

• In winter, automatic de-icing of the controlled condenser and clearing of snow around the outdoor unit.

This routine ensures controlled electricity bills and extends the useful life of the system.

Grants and Eligibility: Maximizing Return on Investment

The Sharp ZU1 is eligible for Quebec's current subsidy programs when the configuration meets the required efficiency thresholds. Our team supports each customer to:

• Check eligibility (yields, capacity, operating temperature);

• Gather the requested installation proofs (serial numbers, before/after photos, detailed invoice);

• Submit the file for Montreal and Laval , as well as for the North Shore and the South Shore , in order to speed up obtaining the amounts.

Pitfalls to avoid in a corridor

Installing a wall-mounted heat pump in a hallway requires following a few rules:

• Sufficient lateral clearance for the shutter and air intakes;

• Ceiling height allowing maintenance (opening the hood and removing filters);

• Drain discharge outside the frost zone, with continuous slope ;

• Keep away from heat sources (recessed lighting, kitchen) which distort the probe;

• The most direct refrigeration path possible to maintain performance in both winter and summer.

Our installation in Villeray respects each of these points, which explains the temperature stability observed from the first hours of operation.

Results observed after installation

• Uniform comfort in the living room and bedrooms connected by the corridor;

• Very low noise perceived at human height, even at night;

• Responsiveness in air conditioning during heat peaks;

• Efficient heating during the first cool autumn nights;

• Controlled power consumption thanks to the high efficiency of the ZU1 series and reduced line length .

AirGreen: an HVAC partner rooted in Greater Montreal

We work every day in Montreal , Laval , Longueuil , as well as on the North Shore and the South Shore , with a simple mission: clean, durable HVAC installations adapted to Montreal buildings . Our on-site evaluation is 100% free , our prices are transparent , and you pay at the end , when everything works as expected.

For a similar project in Villeray–Saint-Michel–Parc-Extension or elsewhere in Greater Montreal, our team offers you the most relevant solution: wall-mounted heat pump , MultiZone , cassette or central systems — always with clear support on maintenance and subsidies .

Tips for getting the most out of your Sharp ZU1

• Leave the device in Auto mode with a stable setpoint (22–23°C) to avoid unnecessary starts;

• Use the Night function to maintain discreet comfort;

• Keep interior doors ajar to facilitate air circulation from the hallway to the rooms;

• Schedule annual maintenance before hot weather or winter.

With these best practices and careful AirGreen installation, your wall-mounted heat pump will deliver consistent performance season after season.
