Installation of an ELIOS R-454B central heat pump in Saint-Jean-sur-Richelieu

Methodical commissioning to ensure the reliability of a modern central system

At Saint-Jean-sur-Richelieu, we installed and commissioned an ELIOS central heat pump operating with R-454B refrigerant. This project clearly illustrates a reality that is often underestimated in the HVAC industry: a system’s quality depends not only on the equipment selected. It also relies on site preparation, outdoor-unit positioning, refrigerant-circuit tightness, moisture evacuation, and the precision of the checks performed before startup.

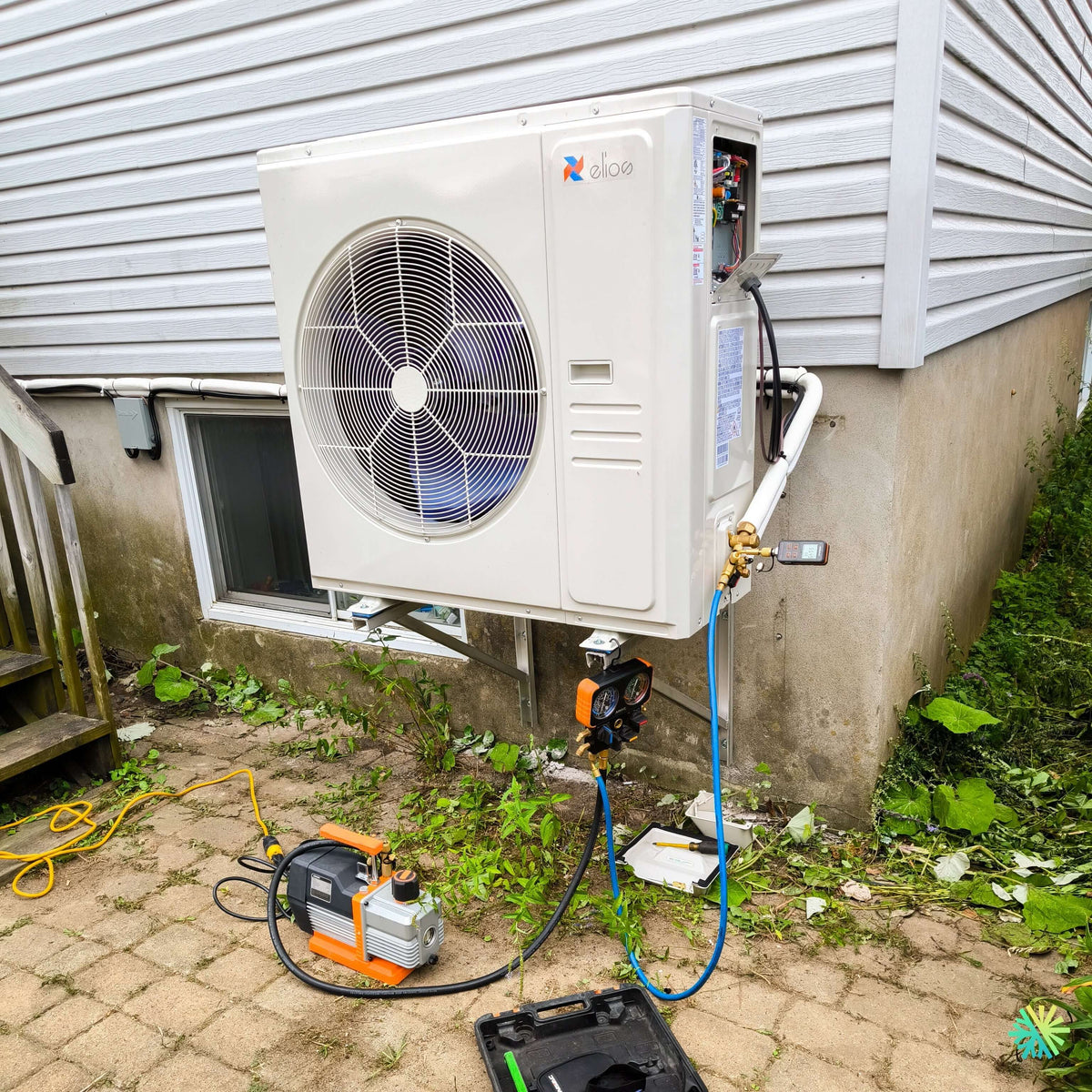

In the photo taken during our work, the outdoor unit is already securely installed on a metal wall bracket. The service panel remains temporarily open while our technicians carry out the technical steps involved in evacuating the system, checking the circuit, and validating the operating parameters. The vacuum pump, service manifold, and digital instrument connected to the valves show that the system was not simply connected and started: it underwent a structured commissioning, which is essential to protect the compressor and achieve stable performance.

This installation allows the homeowner to benefit from a central system capable of distributing heating and cooling to multiple rooms through the existing or adapted ductwork. Unlike a wall-mounted heat pump, a central heat pump treats the air at a central point before circulating it throughout the residence. It is therefore a particularly attractive option for homes already equipped with an electric furnace, an air handler, or a central ventilation system.

Why an ELIOS central heat pump was suitable for this residence

The choice of a central system must always take the building’s actual configuration into account. An undersized heat pump may run almost continuously without reaching the requested temperature. Conversely, an oversized unit can lead to frequent short cycles, reduce summer dehumidification, and accelerate wear on certain components.

Before confirming the equipment, several factors must be assessed:

• the living area;
• the home's insulation level;
• the number of floors;
• sun exposure;
• the size and condition of the ducts;
• the available electrical capacity;
• the heating capacity required during cold periods;
• compatibility with the indoor unit;
• the occupants' comfort habits.

For this project in Saint-Jean-sur-Richelieu, the goal was not simply to add an outdoor unit. We had to integrate the new ELIOS R-454B heat pump into the entire central system so that the airflow, controls, drainage, and refrigerant connections would function as one cohesive whole.

ELIOS offers solutions designed for residential heating and cooling. For this installation, the compact vertical outdoor unit made it possible to maintain reasonable clearance around the house while providing a large heat-exchange surface. The front-facing fan expels air horizontally, requiring a location free of any immediate obstructions.

R-454B: a refrigerant that requires proper installation

The designation R-454B refers to the type of refrigerant used by the system, not merely a commercial name. This refrigerant belongs to a new generation of fluids adopted in several residential systems because of their lower climate impact compared with some older refrigerants.

R-454B is classified as A2L, meaning a refrigerant with low toxicity and moderate flammability. This classification does not mean that the equipment is dangerous when installed according to the manufacturer's specifications. However, it does mean that technicians must use methods, tools, and procedures compatible with this type of fluid.

During an HVAC installation with R-454B refrigerant, we pay particular attention to the following points:

• the use of tools approved for A2L refrigerants;
• adequate ventilation of the work area;
• the absence of an ignition source near the open circuit;
• compliance with the prescribed refrigerant quantities;
• the complete inspection of seals and connections;
• the compliance of the electrical components;
• the secure closing of the service panels after testing.

The side panel visible in the image was open only during the connection and inspection work. Once commissioning is complete, this section must be closed to protect the electrical components from water, dust, insects, and accidental handling.

A wall-mounted support installation to raise the outdoor unit

The ELIOS unit was installed on a sturdy wall bracket, secured directly to a suitable structure. This method offers several advantages in an environment such as Saint-Jean-sur-Richelieu, where snow accumulation, ice, and freeze-thaw cycles can affect equipment installed too close to the ground.

The support makes it possible to:

• keep the unit above ground level;
• reduce the risk of snow obstruction;
• facilitate water drainage during defrost cycles;
• limit contact with vegetation and debris;
• improve access to the valves and technical panels;
• preserve the ground clearance around the foundation.

We also considered the proximity of a basement window, the foundation wall, the exterior siding, and the adjacent walkway. The unit could not block the window opening or create an unnecessary obstacle in the traffic area.

A central heat pump must have sufficient clearance on the sides, at the back, above, and in front of the fan. These spaces ensure adequate airflow and facilitate future HVAC maintenance. Installing a unit too close to a wall, fence, or staircase can cause discharged air to recirculate and reduce its efficiency.

The refrigerant connection: a step where precision is essential

The copper lines connecting the outdoor unit to the indoor unit carry refrigerant between the two parts of the system. They must be sized according to the manufacturer’s specifications, properly insulated, and protected against physical damage.

In this installation, the lines emerge from the foundation wall before connecting to the heat pump’s service valves. The visible white insulation around the piping helps limit heat gain and loss as well as condensation. Damaged or incomplete insulation can reduce efficiency and cause moisture to form on the lines.

We pay particular attention to:

• the total length of the lines;
• their diameter;
• the number of bends;
• the bend radius;
• the quality of the connections;
• the insulation of the suction line;
• the seal of the wall penetration;
• protection against vibration and friction.

The lines must not be crushed, sharply bent, or left unsupported. An inadequate bend radius can restrict refrigerant flow. In addition, a poorly sealed wall penetration can become an entry point for water, cold air, or insects.

The evacuation visible on the job site

The orange and gray pump placed on the floor is a vacuum pump. It is used to extract the air and moisture present in the refrigeration circuit before opening the valves containing the refrigerant charge.

This step is fundamental. Air in the lines can increase operating pressures and hinder heat exchange. Moisture, meanwhile, can react with the compressor oil, promote acid formation, and cause long-term problems.

A professional evacuation does not consist of running the pump for a few minutes at random. We must:

1. verify that the connections are complete;
2. connect the service instruments;
3. start the vacuum pump;
4. reach the required vacuum level;
5. isolate the circuit;
6. check whether the vacuum holds;
7. look for a leak if the value rises abnormally;
8. open the valves only after validation.

The digital instrument attached near the valves makes it possible to monitor the readings more precisely than a simple estimate. The manifold connected to the lines also helps control the circuit during the procedure.

This level of rigor is particularly important with an ELIOS R-454B central heat pump, since the internal cleanliness of the circuit directly affects the reliability of the compressor, expansion valve, and other refrigeration components.

The tests performed before handing the system over to the customer

After pulling a vacuum and opening the valves, we do not automatically consider the work complete. The system must be started and observed in different modes according to the outdoor conditions and the capabilities of the installation.

Our checks generally include:

• the compressor startup;
• the operation of the outdoor fan;
• the operation of the indoor fan;
• the thermostat response;
• the supply and return air temperatures;
• the circuit pressures and temperatures;
• the presence of unusual noises or vibrations;
• condensate drainage;
• electrical current;
• communication between the components;
• the absence of an error code;
• the closing of the service panels and caps.

In a central system, airflow is just as important as cooling or heating output. A heat pump may function perfectly from a refrigeration standpoint yet provide poor comfort if the filter is too restrictive, the ducts are undersized, or the indoor fan speed is improperly configured.

We therefore check that air is circulating properly throughout the main areas of the home. Depending on the configuration, adjustments may be required to the registers, ducts, fan, or thermostat.

What this installation offers homeowners in Saint-Jean-sur-Richelieu

One system for heating and cooling

One of the main advantages of a central heat pump is its ability to perform two functions with a single system: cool the home in summer and provide a significant portion of the heating during the cold season.

In cooling mode, the system removes heat and humidity from the indoor air before distributing the cooled air through the ducts. In heating mode, the cycle is reversed to capture heat from outside and transfer it indoors.

This centralized distribution provides a more even temperature than several independent units, provided that the duct network is properly designed and balanced.

More discreet integration into living spaces

With a central heat pump, no wall-mounted unit is needed in the living room, kitchen, or bedrooms. Only the supply and return air grilles remain visible. This configuration is particularly suitable for homeowners who want to preserve their interior design or use an existing duct network.

The ELIOS outdoor unit remains installed outside, while the indoor unit is generally located in the basement, a mechanical room, or a utility space.

Better preparation for Quebec winters

In Saint-Jean-sur-Richelieu, a heat pump must be installed with consideration for snow and the water produced during defrost cycles. The wall bracket shown in the photo keeps the bottom of the unit clear and helps prevent ice from forming around the heat exchanger.

The ground beneath the unit must also allow water to drain away. It is not recommended to pile objects, wood, leaves, or snow against the unit. Even a high-performance unit will lose efficiency if its outdoor coil is obstructed.

Common mistakes to avoid with a central heat pump

A poorly planned central installation can result in unnecessary expenses and comfort problems. Some of the most common mistakes we encounter include:

Choosing the capacity based solely on square footage

Two homes of the same size can have very different needs depending on their insulation, windows, orientation, and airtightness. An assessment based solely on square footage remains insufficient.

Neglecting the ductwork

Replacing an old heat pump without checking the ductwork can limit the performance of the new unit. Ducts that are too small, leaky, or poorly balanced can cause noise, poor airflow, and temperature differences between rooms.

Failing to perform a complete evacuation

The refrigeration circuit must never be evacuated by simply purging it. Improper circuit preparation can shorten the compressor’s service life.

Installing the unit too close to the ground

An outdoor unit located just a few centimeters above the ground may be buried by snow or surrounded by ice. A suitable support improves protection and accessibility.

Using tools that are not compatible with R-454B

The transition to A2L refrigerants requires appropriate equipment and practices. The instruments, vacuum pump, recovery procedures, and detection methods must be suitable for the refrigerant being used.

Closing the worksite without checking the drainage

In cooling mode, the indoor unit produces condensation. An improperly installed drain can cause water damage, moisture buildup, or system shutdown.

Maintenance tips after installation

To maintain the performance of this ELIOS central heat pump, the owner must perform a few simple checks and schedule periodic professional maintenance.

The indoor filter should be inspected regularly. The replacement frequency depends on the filter type, the presence of pets, work being done in the house, and the amount of dust. A clogged filter reduces airflow and increases the load on the fan.

Outside, the fan and coil must be kept free of leaves, grass, snow, and debris. The unit must not be completely wrapped during the winter. A watertight cover can trap moisture and prevent operation if the heat pump is used for heating.

During professional HVAC maintenance, we can check:

• the condition of the outdoor coil;
• the cleanliness of the indoor evaporator;
• electrical connections;
• the condensate drain;
• operating temperatures;
• refrigerant pressures, when required;
• the filters;
• the fan motor;
• recorded error codes;
• thermostat and auxiliary heating operation.

The AirGreen approach to central system installations

At AirGreen, we work on central heat pump projects in Montreal, Laval, Longueuil, the North Shore, the South Shore, and several municipalities in Montérégie, including Saint-Jean-sur-Richelieu.

Our work is not limited to placing an appliance in front of the house. We assess the existing system, the building's constraints, the electrical panel, ductwork, piping, drainage, site access, and outdoor location. We then allow the necessary time for evacuation, testing, and adjustments.

The photo of this ELIOS installation shows this technical phase precisely. The unit is secured, the lines are connected, and the instruments are still in place. This is when the quality of the work is confirmed. A properly selected and commissioned central system provides more stable operation, better air distribution, and a longer service life.

For a homeowner comparing several heating and cooling options in Saint-Jean-sur-Richelieu, it is important to ask not only about the equipment's price and brand, but also about the planned installation method. Sizing, clearances, evacuation, leak testing, airflow adjustments, and electrical connection compliance should all be part of the project.

This ELIOS R-454B central heat pump installation is a good example of how we work: an installation adapted to the building, an elevated outdoor unit, protected connections, and commissioning carried out with specialized instruments. The result is a central system ready to meet the home's heating and cooling needs year-round.
