In Chambly, a MIDEA 28 installation where outdoor-unit placement made all the difference
At this Chambly residence, our work did not simply consist of connecting a MIDEA 28 dual-zone heat pump and starting up the system. One of the project’s most important elements was visible even before we opened our toolbox: we had to choose an outdoor location capable of balancing performance, clearance, future access, winter protection, and clean integration with the façade.

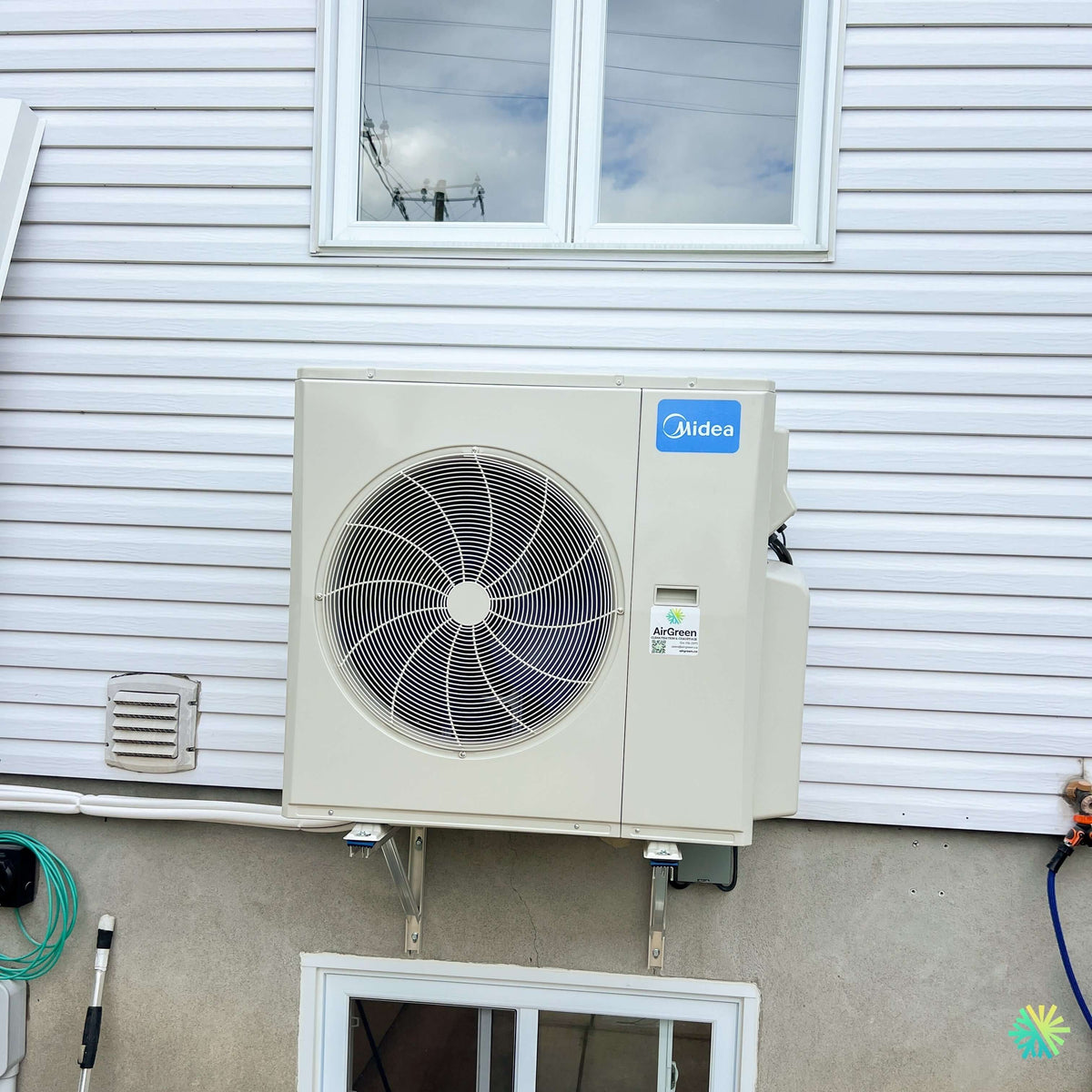

The photo taken after the installation shows the result. The MIDEA outdoor unit is mounted on sturdy metal wall brackets, above a basement window, in front of a concrete foundation section, and below a ground-floor window. The heat pump is therefore neither placed on the ground nor installed on a slab. It is deliberately elevated, with substantial clearance beneath the unit.
This detail is particularly relevant in Quebec.
In Chambly, as in Montreal, Laval, Longueuil, the South Shore, or the North Shore, a heat pump intended to make a serious contribution to heating must be installed with snow, ice, and the water produced during defrost cycles in mind.
Here, we used the building’s architecture to our advantage rather than treating the façade as a simple surface on which to mount an outdoor unit.
Why a dual-zone heat pump was a good fit for this residence
The principle of a multi-zone system is simple, but its implications are very interesting in a home: a single outdoor unit can power several indoor units, each of which can be adjusted individually.
MIDEA describes its multi-zone system as an architecture that allows a single outdoor unit to heat or cool several rooms, with individual temperature and scheduling control for each indoor unit.
For this Chambly project, choosing a dual-zone configuration therefore means that two distinct areas of the residence can be served without having to install two independent outdoor units on the façade.
This is a particularly tangible advantage when a homeowner wants to:
- control two floors separately;
- cool an open-concept area and a bedroom zone;
- correct a temperature difference between two parts of the house;
- reduce the number of outdoor units;
- preserve more space around the property;
- achieve more targeted operation than with a system having only one zone.
MIDEA also emphasizes that each indoor unit can be controlled independently, allowing the spaces actually in use to be heated or cooled rather than treating the entire house uniformly.
A white façade where finishing quality remains highly visible
This installation presents another challenge we often encounter with homes featuring light-colored vinyl siding: every finishing flaw is immediately visible.
The heat pump is located at the center of a particularly unobstructed white façade. The brackets, lines, and positioning of the unit therefore cannot be improvised.
We sought to maintain clean geometry:
- outdoor unit installed level;
- vertically aligned brackets;
- sufficient clearance beneath the unit;
- condenser positioned without encroaching on the upper window;
- lines kept close to the façade rather than left suspended.
On the left side of the image, the lines are grouped horizontally along the junction between the siding and the foundation. This route keeps much of the façade clear while directing the lines toward the equipment.
A successful HVAC installation must function properly, but it should also look as though it was planned.
Why we raised the outdoor unit
A heat pump operating in heating mode extracts energy from the outdoor air. When conditions promote frost formation on the heat exchanger, the system must periodically perform a defrost cycle.
This operation produces water.
During a winter in Chambly, this water can quickly turn to ice if it accumulates beneath the unit.
The wall-mounted bracket installation shown in the photo creates precisely the space we need to better manage these winter conditions. It helps keep the outdoor unit above:
- normal snow accumulation;
- ice that could form at ground level;
- splashes and constant moisture;
- certain obstacles that could reduce airflow.
However, the basement window made positioning more challenging: we had to achieve the desired height without installing the unit unnecessarily high and without obstructing the building’s openings.
Wall brackets are not merely an accessory
A multi-zone outdoor unit represents a considerable weight.
The MIDEA brochure shows, for example, that several outdoor units in this range operate at 208/230 V single-phase, 60 Hz, with dimensions and weights that increase according to capacity.
As a technical reference, the 27,000 BTU/h Extreme Heat model presented by MIDEA measures approximately 37 1/4 in × 16 1/8 in × 31 7/8 in and weighs approximately 168 lb net.
We cannot determine the exact capacity of the unit installed in Chambly from the photo alone, since its nameplate is not legible. However, this comparison shows why the choice of supports and their anchoring are an integral part of the installation, rather than merely an aesthetic detail.
The loads include not only the static weight of the machine, but also the normal vibrations of the compressor and fan, as well as stresses associated with the outdoor climate.
Pads under the unit for a neater installation
The photo also makes it possible to observe separation elements between the heat pump's base and its supports.
This type of mounting helps provide a solid base and limit the direct transmission of mechanical vibrations to the structure.
When a unit is mounted on the wall of a residence rather than placed on an independent slab, we pay particular attention to vibrations.
The homeowner should not replace the outdoor noise of an old installation with a noticeable vibration indoors simply because a support was poorly selected or improperly secured.
The fan had to remain completely unobstructed
The large front fan visible in the photo is not something that can be surrounded by obstacles without consequences.
The outdoor unit must be able to draw in and discharge a significant amount of air.
In the multi-zone range presented by MIDEA, outdoor airflow rates vary according to capacity. For example, the 27,000 BTU/h Extreme Heat model shown in the documentation reaches a maximum airflow of 2,148 CFM, with a published sound level of 61 dB(A) for this reference configuration.
At our Chambly installation, the front of the unit remains completely open.
That is exactly what we look for: ensuring that a balcony, fence, dense hedge, shed, or another obstacle is not directly in the fan's airflow.
A heat pump does not just need a place to be installed. It needs truly available air volume.
Why the MIDEA 28 Is Interesting in a Multi-Zone Configuration
The multi-zone platform presented by MIDEA is not limited to a single type of indoor unit. The manufacturer offers wall-mounted units, consoles, cassettes, ducted units, and air-handling units. The range is designed to combine different types of terminals according to the building's needs.
This flexibility is particularly useful during a renovation.
A house is not always made up of identical rooms. A large open-plan area may require a different strategy from a bedroom. A basement may have a different thermal load. An attic floor may require specific treatment.
The right approach is therefore not necessarily to install two identical indoor units simply because it is a two-zone system.
We size each area according to its needs.
Inverter technology: capacity adapts to demand
Inverter technology is another important element of how the MIDEA multi-zone system operates.
According to the manufacturer's documentation, the system can adjust its capacity as the temperature changes by modulating the operation of the compressor and fan motors. When not all zones need to operate at full demand, the unit can run at partial load with reduced energy consumption.
In a two-zone home, this behavior makes particular sense.
Suppose one indoor unit serves the living area and the other serves a bedroom area. The needs are not necessarily the same at 3 p.m., 10 p.m., and 6 a.m.
The system's value therefore lies not only in distributing air to two areas. It also allows comfort management that better reflects how the house is actually occupied.
The “12,000 + 18,000 = 30,000 BTU” trap
When a homeowner compares multi-zone heat pumps, one of the most common mistakes is simply adding up the rated capacity of the indoor units and treating that total as capacity that is always available.
A multi-zone system does not work exactly this way.
MIDEA specifies that when the total load of the indoor units exceeds the outdoor unit's rated capacity, the capacity actually available to each unit may be reduced, particularly in heating mode.
That is why we must analyze the complete combination:
Outdoor unit
It determines the overall available capacity and the connection options.
Indoor units
Their sizing must correspond to the actual zones, not an estimate based solely on floor area.
Approved combination
The MIDEA tables specify certain combinations of capacities and types of indoor units. The brochure notably shows several configurations in 6K, 9K, 12K, 18K, and 24K, depending on the outdoor unit used.
This step is essential to avoid a technically overloaded or poorly balanced system.
What this Chambly installation shows about a properly integrated two-zone heat pump
The distinctive feature of this project is not a spectacular element hidden behind the heat pump. Rather, it lies in all the small decisions that make the installation logical once completed.
No ground-mounted unit in front of the basement window
We could have looked for a lower solution, but that would have brought the equipment closer to the snow and could have obstructed the window area further.
The wall-mounted installation leaves the ground virtually clear.
For a homeowner, this can make it easier to:
- snow removal;
- exterior maintenance;
- access to the window;
- monitoring winter drainage;
- cleaning around the unit.
The ground-floor window remains unobstructed
The unit was positioned low enough not to obstruct the window above.
It is a simple but important detail.
In some installations carried out without planning, the condenser ends up too close to an opening, creating a visually unbalanced façade or complicating certain future work.
Here, the building openings and the heat pump remain clearly separated.
The lines naturally follow the house
The visible white line on the left of the unit remains close to the junction between the siding and the concrete.
This choice reduces the visual impact on the white siding.
When a homeowner asks us for a heat pump installation in Chambly, we discuss both the route of the lines and the location of the unit itself, particularly when the lines must cross several metres of façade.
SynchroConnect technology provides additional safety for multi-zone systems
Multi-zone installations involve more correspondences between refrigerant circuits and electrical connections than a single-zone system.
MIDEA integrates SynchroConnect technology, which can check the connection status between the indoor units and the condenser and help match the refrigerant lines with the wiring.
For our technicians, this technology is an additional tool during commissioning.
It does not replace good practices for making connections, pulling a vacuum, checking connections, and testing the system. Rather, it helps secure an architecture in which several indoor units share the same outdoor unit.
Performance: the exact AHRI combination must always be verified
The MIDEA documentation contains several AHRI references for the Extreme Heat range.
As an example, the reference combination using the MO4HX-H27B-2A condenser is associated with the number AHRI 215471460.
For this specific combination, MIDEA indicates a cooling/heating capacity of 27,000/27,000 BTU/h, a SEER2 of 23, an EER2 of 12.5, and a heating performance rating listed as 10.5 in the table.
These data show why we should never automatically advertise the same SEER2 for all heat pumps bearing the name MIDEA 28.
Performance depends on the exact certified combination.
The same logic applies to a potential subsidy.
The MIDEA brochure provides AHRI references and technical data, but it does not by itself confirm that this particular installation is eligible for a Quebec financial assistance program. For a LogisVert application, for example, the exact installed combination and the program criteria applicable at the time of application must be verified.
The mistakes we seek to avoid on this type of job
Installing the condenser too close to the ground
What seems suitable in July can become problematic after several snowfalls.
Blocking the front discharge
A heat pump should not blow directly toward an obstacle placed nearby.
Neglecting the strength of the support
A multi-zone outdoor unit can be heavy. Its support and anchoring must be suitable for the installation.
Choosing BTUs based solely on floor area
Two rooms of the same size can have different heating and cooling needs depending on their windows, exposure, and insulation.
Forgetting about future maintenance
You need to consider access to the panels, connections, and heat exchanger before the first service intervention is needed.
Confusing indoor capacity with outdoor capacity
Multi-zone combinations require a consistent technical selection. Adding the rated capacities listed for two wall-mounted units does not automatically represent the power available simultaneously.
An installation prepared for Chambly’s climate
Chambly is located on the South Shore of Montreal, in an environment where a heat pump must withstand real winter conditions.
So we look at an installation like this with two seasons in mind.
In summer, we want:
- good air circulation;
- unobstructed heat discharge;
- a stable installation;
- effective cooling for both zones.
In winter, we also want:
- keep the unit above accumulated snow;
- leave room for defrost water;
- prevent ice from blocking the bottom of the condenser;
- keep the lines protected;
- maintain reasonable access for servicing.
The wall bracket visible in this project addresses several of these concerns through a single installation decision.
A dual-zone heat pump is only advantageous if the two zones are well planned
We often emphasize this point to our clients.
The number of zones is not an objective in itself.
Two properly sized indoor units can deliver excellent results when they serve two coherent areas of the home. Conversely, adding zones without analyzing the natural airflow can unnecessarily complicate the system.
We assess, among other things:
- where occupants spend the most time;
- which rooms regularly have their doors closed;
- where the stairs are located;
- which spaces overheat in the sun;
- which areas become colder in winter;
- how air can circulate from one room to another.
This analysis makes it possible to fully benefit from the individual control that MIDEA provides for its multi-zone architecture.
An AirGreen project representative of the way we work
This MIDEA 28 dual-zone heat pump installation in Chambly clearly demonstrates our approach at AirGreen.
We do not view the installation as a simple succession of mechanical steps.
We must simultaneously consider the equipment, the building, the climate, and how the owner will use the system in the years to come.
Here, the façade presented an interesting combination: vinyl siding, a concrete foundation, a basement window, an upper window, and relatively precise available space for the outdoor unit.
Our solution was to place the heat pump on sturdy wall brackets, in a well-cleared area at the front and high enough to better withstand winter conditions.
The result is a compact installation that uses a single condenser for two comfort zones, while preserving the ground space around the residence.
It is this same care that we bring to our heat pump, wall-mounted air conditioner, and HVAC system projects in Chambly, Longueuil, Montreal, Laval, the South Shore, and the North Shore: serious technical selection, thoughtful placement, and an installation that remains sound long after our team has left.
