A Multi-Zone Wall-Mounted Installation Designed to Maximize Comfort in a Montreal Property
In many residential buildings in Montreal, modernizing indoor comfort requires a much more precise approach than simply installing a wall-mounted heat pump. Spaces are often spread across several rooms, sometimes on different levels, with brick walls, duct passage constraints, close-set windows, old equipment already in place, and significant aesthetic requirements. It is precisely in this type of context that our AirGreen team carried out this HVAC installation of a GREE FREE MATCH R32 Quad-Zone heat pump, designed to power 4 wall-mounted units from a single outdoor unit.
This installation in Montreal clearly illustrates the benefit of a well-planned multi-zone system: instead of installing multiple outdoor units on an already occupied facade, we integrated a solution capable of serving multiple indoor zones while limiting outdoor clutter. The project photo clearly shows the new GREE outdoor unit installed on wall brackets, near an old Fujitsu unit still present on the facade. This configuration required particular attention to ensure adequate clearance, clean routing of refrigerant lines, solid fastening, and an exterior finish consistent with the building.
At AirGreen, we know that a Quad-Zone heat pump project is not just about choosing the brand or the number of heads. Success primarily depends on analyzing the building, the layout of the rooms, the length of the lines, the location of the drains, the protection of the ducts, and the coordination between performance, noise, aesthetics, and accessibility for future HVAC maintenance.
Why choose a GREE FREE MATCH R32 Quad-Zone for a property in Montreal
The GREE FREE MATCH R32 range is particularly appealing to homeowners who want a flexible system capable of cooling and heating multiple zones without unnecessarily multiplying outdoor units. In this installation, the client needed a solution to cover several rooms with independent zone control. Choosing a 4-Zone – 4-Head system allows for adjusting the temperature of each space according to its actual use: living room, bedrooms, office, living area, or distinct floor.
The major advantage of a multi-zone heat pump lies in its ability to offer personalized comfort. A sun-exposed bedroom does not have the same needs as a room located on the shaded side. An office used during the day does not have the same demand as a bedroom occupied at night. With a GREE FREE MATCH R32, each indoor unit can be controlled separately, reducing temperature discrepancies and avoiding overheating or overcooling rooms that do not need it.
The R32 refrigerant is also an important element of this project. Increasingly present in modern HVAC equipment, it provides good energy performance with a more current approach than some older generation refrigerants. For a homeowner in Montreal, where seasons impose large temperature variations, choosing a system that performs well in both heating and cooling becomes essential.
A Typical Montreal Brick Facade: Constraints and Solutions

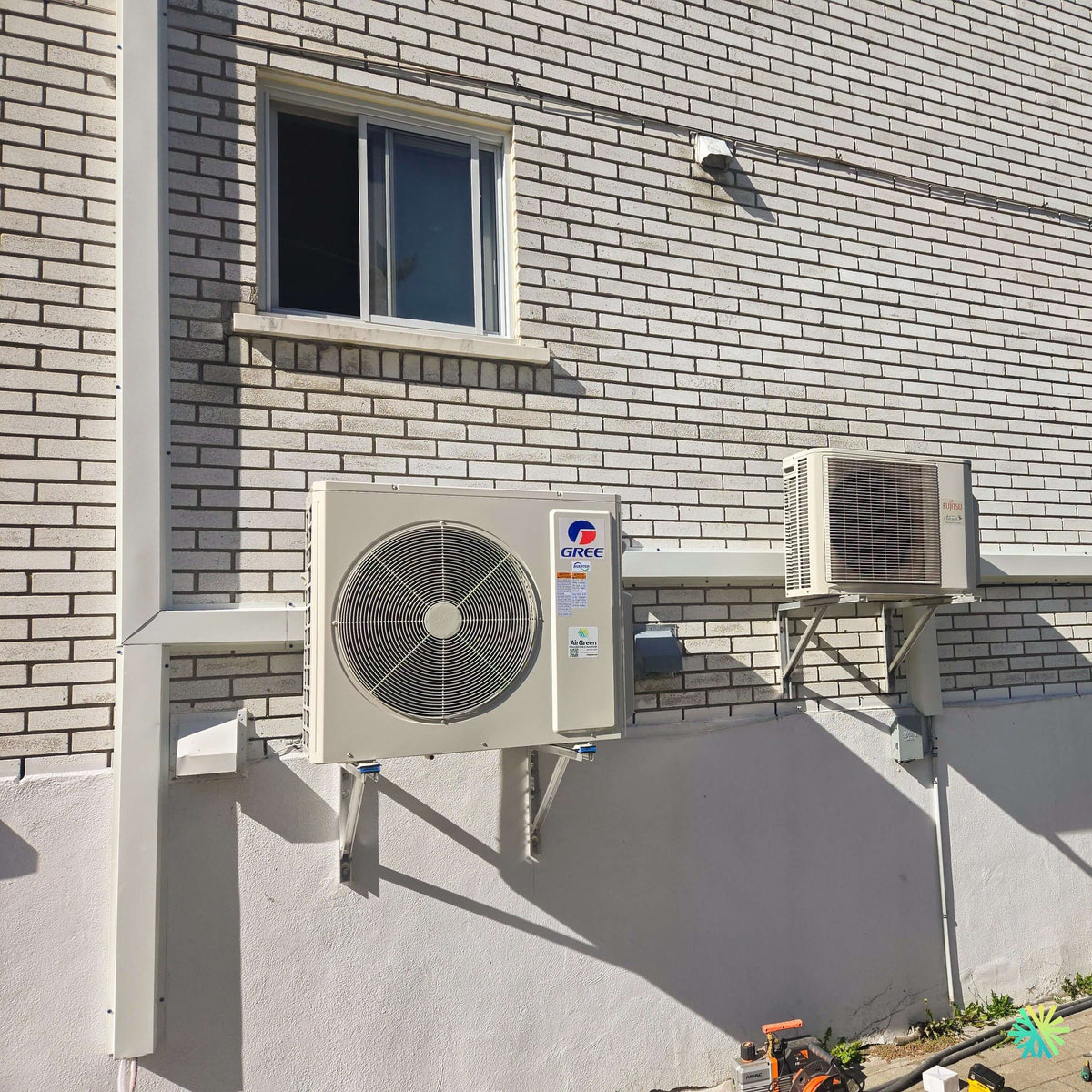

The photo shows a light brick facade, with a window, conduits protected by exterior covers, an old wall system, and the new GREE unit installed on a clear section of the wall. This type of facade is common in Montreal, both in duplexes, triplexes, small apartment buildings, and some condominiums. For us, this configuration requires rigorous preparation even before taking out the tools.
One of the first challenges is to determine the ideal location for the outdoor unit. Several factors must be considered:
- the distance between the outdoor unit and the 4 indoor wall units;
- the wall's capacity to support robust brackets;
- airflow around the outdoor heat exchanger;
- future access for HVAC maintenance;
- vibration management;
- the final appearance of the installation;
- existing constraints, such as old lines, electrical boxes, windows, downspouts, and already installed conduits.
In this project, the outdoor unit was mounted on metal wall brackets, above ground level. This choice keeps the unit clear of snow accumulation, facilitates drainage, and protects the equipment from certain winter constraints. In Montreal, this detail is far from minor: an outdoor unit placed too low or poorly cleared can be exposed to snow, ice, splashing, and insufficient ventilation.
Clean Exterior Integration Despite the Presence of an Old System
A particularly interesting point of this installation is its coexistence with an old outdoor unit visible to the right of the new unit. In several AirGreen projects, we intervene in properties where an existing system needs to be replaced, supplemented, or temporarily kept. This requires careful coordination to avoid a visually cluttered result.
Here, our team worked to integrate the new GREE FREE MATCH R32 system into an already equipped facade. Refrigerant lines and cables were protected in white exterior covers, aligned with the facade to limit visual impact. Passages were organized to maintain a neat appearance, without unnecessarily exposed cables or improvised routes.
This step is often underestimated by clients when comparing quotes. However, in an HVAC installation in Montreal, Laval, Longueuil, on the North Shore, or the South Shore, the exterior finish makes a big difference. A poorly planned installation can create a tangle of lines, inefficient drainage slopes, unnecessary perforations, and difficult access for service. Conversely, a well-thought-out installation remains clean, durable, and easier to maintain.
Planning the 4 Indoor Units: The Heart of the Project
A Quad-Zone heat pump requires precise indoor planning. Each head must be positioned to provide good air distribution without causing discomfort. It is important to avoid blowing directly onto a bed, a sofa, a workstation, or a dining table. Provisions must also be made for condensate drainage, the path of refrigerant lines, and the routing of communication cables.
For this project in Montreal, our approach was to analyze each zone as a distinct space, then connect the whole within a common logic. The goal was not merely to install four wall-mounted units, but to create a coherent system capable of maintaining stable comfort throughout the property.
In a multi-zone installation, piping lengths must also be evaluated. GREE FREE MATCH R32 systems allow for great flexibility, but each project must comply with maximum permissible lengths, height differences, refrigerant charge requirements, and manufacturer recommendations. Our technicians check these elements before commissioning to ensure reliable performance.
An Electrical and Refrigeration Installation Performed According to Best Practices
A high-performance wall-mounted heat pump can only deliver its full potential if the electrical and refrigeration installation is carried out correctly. On a 4-Zone system, the outdoor unit becomes the distribution center for heating and cooling to several indoor units. Connections must therefore be rigorous.
Our technicians paid particular attention to the following elements:
- solid fastening of the outdoor unit on suitable supports;
- leveling of the unit to ensure stable operation;
- clean routing of refrigerant lines;
- protection of conduits against weather;
- compliant electrical connections;
- careful insulation of lines to limit losses;
- checking condensate drains;
- leak test;
- vacuuming the circuit;
- startup and validation of heating and cooling modes.
These steps are essential for the longevity of the system. Poor vacuuming, incomplete insulation, or a neglected drainage slope can lead to performance problems, noise, water leaks, or reliability issues. At AirGreen, we insist on these details because they make the difference between an installation that simply works at the start and one that remains reliable for years.
Multi-Zone Comfort: A Concrete Everyday Advantage
After commissioning, the client benefits from much more precise control over their indoor comfort. Each zone can be adjusted according to its needs. In a Montreal house or dwelling with multiple rooms, this advantage is very concrete: some areas can be air-conditioned in summer while others remain at a moderate temperature; in winter, occupied rooms can be heated quickly without having to impose the same temperature everywhere.
A GREE FREE MATCH R32 Quad-Zone heat pump can also contribute to better energy consumption management, especially when occupants use zones intelligently. Rather than asking a single central system to condition the entire property uniformly, the multi-zone system allows comfort to be adapted room by room.
For families, home workers, duplex owners, or occupants of partially open-plan dwellings, this flexibility becomes a major asset. It reduces temperature conflicts between occupants and improves comfort without multiplying outdoor equipment.
Practical Lessons from This AirGreen Installation in Montreal
What Homeowners Should Check Before Installing a 4-Zone Heat Pump
Before choosing a Quad-Zone heat pump, it's important not to limit yourself to the number of heads. A 4-head system must be sized according to the real needs of each room. A common mistake is to choose capacities that are too high or too low for certain zones. An oversized unit can operate in short cycles, reduce comfort, and impair dehumidification. An undersized unit can struggle on very hot or very cold days.
Here are the points we recommend evaluating:
- area and volume of each room;
- insulation level;
- sun orientation;
- number of windows;
- ceiling height;
- natural air circulation;
- presence of stairs or open areas;
- actual use of each zone;
- line passage constraints;
- condominium rules or building requirements.
In Montreal, these elements vary enormously from one building to another. A century-old triplex, a recent condo, a semi-detached house, and a renovated apartment do not have the same needs. That's why our team always favors a personalized assessment before recommending a model.
Mistakes to Avoid with a Multi-Zone Installation
A multi-zone HVAC installation involves more variables than a simple wall-mounted system. Several errors can reduce the quality of the result:
Installing the outdoor unit without considering future access
The unit must remain accessible for service, cleaning, inspections, and eventual repairs. An installation too tight against an obstacle or too difficult to access can complicate HVAC maintenance.
Neglecting the finish of exterior conduits
Refrigerant lines must be properly protected. Exterior covers are not just for appearance; they also protect the lines from UV rays, shocks, and weather.
Poor drain management
Each indoor unit produces condensation in cooling mode. If the slope is insufficient or the drain path is poorly designed, water leaks can appear indoors. On a 4-head system, this check is even more important.
Choosing interior locations too quickly
A head installed in the wrong place can create an uncomfortable draft, a cold spot, a hot spot, or more noticeable noise. Positioning must be carefully decided.
Only comparing the final price
Price is important, but it should not overshadow the quality of the installation. Supports, lines, covers, drainage, finish, tests, warranty, after-sales service, and technical expertise must be taken into account.
The Importance of an HVAC Contractor Familiar with Montreal Buildings
AirGreen regularly carries out installations of wall-mounted heat pumps, wall-mounted air conditioners, multi-zone systems, and heating solutions in the greater Montreal area, including Laval, Longueuil, the North Shore, and the South Shore. This local experience is extremely important, as buildings in the region have their own peculiarities: brick walls, narrow back access, alleys, balconies, condominiums, visible facades, building codes, electrical constraints, and aesthetic requirements.
In this project, our knowledge of wall-mounted installations on brick facades allowed for a clean, stable, and functional installation. The GREE FREE MATCH R32 system was integrated with particular attention to line protection, exterior placement, and the overall durability of the installation.
Subsidies and Eligibility: A Point to Validate Before the Project
Several homeowners considering a heat pump in Montreal want to know if their project is eligible for subsidy programs, such as those related to energy efficiency. Eligibility depends on the exact model, capacity, applicable certifications, current criteria, and the program available at the time of installation.
In the case of a GREE FREE MATCH R32 system, it is important to verify the precise combination installed, including the outdoor unit and indoor heads. At AirGreen, we help our clients understand the necessary documents, including the invoice, model numbers, and technical information to retain for a subsidy application when the system is eligible.
A clean, durable result tailored to the client's needs
This installation in Montreal demonstrates the advantage of a professional approach for a Quad-Zone system. The GREE outdoor unit is securely fixed, the conduits are protected, the visual integration is neat, and the system now allows for more precise management of multiple indoor zones.
Beyond the equipment, the client primarily benefits from a solution better adapted to their daily life: more control, fewer compromises between rooms, better comfort distribution, and an installation designed to last. For a Montreal property where outdoor space is limited and indoor needs are varied, a 4-head GREE FREE MATCH R32 heat pump is a very relevant option when properly sized and installed by an experienced team.
At AirGreen, our priority is to deliver an HVAC installation that meets the actual needs of the building, not just a technical specification. Every detail counts: the placement of the heads, the routing of the lines, the fastening of the outdoor unit, the finish, the commissioning tests, and the clarity of the advice given to the client after installation.
Why choose AirGreen for a multi-zone heat pump
A multi-zone system like the GREE FREE MATCH R32 requires advanced technical coordination. Our teams regularly work on similar projects in Montreal, Laval, Longueuil, on the North Shore and the South Shore, with an approach focused on reliability, cleanliness of installation, and long-term satisfaction.
We support clients at every stage:
- needs assessment by zone;
- model and capacity selection;
- placement planning;
- installation of indoor heads;
- installation of the outdoor unit;
- refrigerant and electrical connections;
- line protection;
- full commissioning;
- operation explanation;
- advice for use and HVAC maintenance.
This approach helps avoid improvised decisions and ensures a high-performing, discreet system that is consistent with the building. For homeowners comparing several options for a wall-mounted heat pump or wall-mounted air conditioner in the Montreal area, a technical visit with AirGreen clarifies the real possibilities and helps choose a solution that matches the budget, desired comfort, and building constraints.
