Installation of a CanAir wall-mounted heat pump in Rosemont–La Petite-Patrie
AirGreen installed a CanAir wall-mounted heat pump in Rosemont–La Petite-Patrie, offering 4-season comfort, energy efficiency and careful integration into an urban environment.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Careful integration into a Montreal brick plex
At AirGreen , we know that installing a wall-mounted heat pump in a Montreal plex requires careful attention to architectural details. Here, in the Rosemont–La Petite-Patrie neighborhood, we took charge of installing a compact CanAir unit, perfectly suited to the comfort needs of an urban home.
The context of the installation
The client wanted an efficient solution to provide both heating and air conditioning in their apartment located on the upper floor of a typical red brick building, with metal balconies overlooking the backyard. This type of environment often imposes space, noise, and security constraints, which we know how to anticipate and resolve.
Choosing the CanAir wall-mounted heat pump
The CanAir brand is renowned for its reliability and excellent value. The unit chosen here has a capacity suitable for an average-sized home, with good energy efficiency and stable performance in cold weather. This type of equipment is often eligible for provincial subsidies when it is Energy Star certified, thus offering the customer additional savings in the long term.
Installation Challenges and Solutions
Several constraints were present:
-

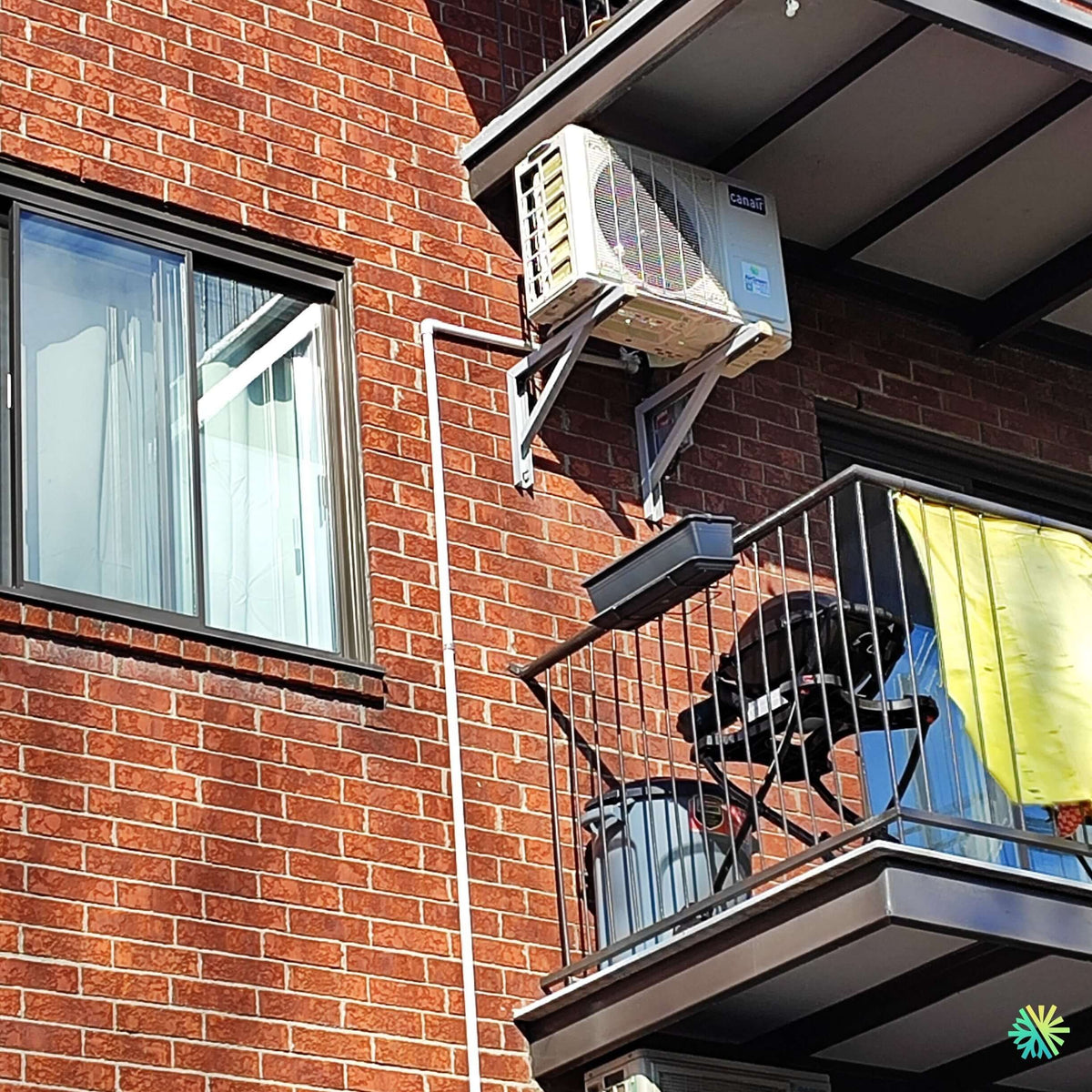

Working height : the outdoor unit had to be fixed to the wall, under the upper balcony, requiring the use of sturdy brackets and reinforced anchoring to support the weight and limit vibrations.
-
Wiring and piping : discreet white capping was installed, running along the brick facade, to protect the refrigerant pipes and ensure a harmonious aesthetic.
-
Drainage management : the installation was carried out in gravity mode, thus avoiding the use of a condensate pump, which reduces the risk of breakdown and simplifies maintenance.
-
Restricted access : The presence of a balcony and a barbecue limited the work space, but our technicians were able to maneuver carefully to ensure safe and efficient installation.
Benefits for the customer
Thanks to this installation, the customer now benefits from:
-
4-season comfort (heating in winter, air conditioning in summer).
-
Reduced energy consumption , compared to traditional electrical systems.
-
Aesthetically integrated , with well-aligned capping and a securely fixed outdoor unit.
-
Peace of mind thanks to the AirGreen guarantee and simplified maintenance.
AirGreen expertise: our added value
Installing a wall-mounted heat pump in Montreal , particularly in plexes with limited space, requires technical expertise that our team has mastered perfectly. We know how to choose the right supports, anticipate water flow, optimize pipe routing, and ensure compliance with safety standards.
Conclusion
This installation in Rosemont–La Petite-Patrie perfectly illustrates our expertise: combining comfort, energy efficiency and respect for Montreal's urban architecture. With AirGreen, each project is designed to last and offer the customer an optimal residential HVAC experience.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
