Installation of a FORESTAIR E24 wall-mounted heat pump in Pointe-Fortune
AirGreen installs a FORESTAIR E24 wall-mounted heat pump in Pointe-Fortune with an optimized outdoor bracket, professional HVAC installation, and a solution adapted to Quebec’s climate.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A FORESTAIR E24 installation designed to provide four-season comfort in a Pointe-Fortune home
At AirGreen, every wall-mounted heat pump installation is adapted to the building's layout, the available space, and the occupants' specific needs. This project in Pointe-Fortune demonstrates the importance of a well-planned HVAC installation, particularly when the outdoor unit must be positioned in a limited space while maintaining optimal airflow.
For this project, our team installed a FORESTAIR E24 wall-mounted heat pump, a system designed to provide efficient heating during Quebec's cold periods and comfortable cooling throughout the summer season.
The installation shown in the photos features several important technical elements: an outdoor unit installed on a sturdy wall bracket, sufficient overhead clearance for proper ventilation, proximity to an exterior door requiring secure fastening, and particular attention to the routing of the refrigerant lines.
In Pointe-Fortune, as in many areas of the North Shore, homes may present various constraints: different exterior claddings, limited space around walls, patios, verandas, or existing structures. A professional installation must therefore take all these factors into account before the work even begins.
A FORESTAIR E24 heat pump adapted to the residential needs of Quebec
The FORESTAIR E24 is a wall-mounted ductless mini-split heat pump that combines cooling and heating in a single unit. This type of system is especially appreciated by homeowners who want to improve their comfort without undertaking the complete installation of a duct network.
Unlike a simple wall-mounted air conditioner, a wall-mounted heat pump can reverse its refrigeration cycle to transfer outdoor heat into the home during the cooler seasons.
Technical specifications of the FORESTAIR E24 installed in Pointe-Fortune
- Brand: FORESTAIR
- Model: E24
- Type: wall-mounted ductless mini-split heat pump
- Capacity: approximately 12,000 BTU/h
- Refrigerant: R-454B
- Main function: heating and cooling
- Technology: variable-speed compressor (depending on configuration)
- Application: single-family home, condo, or small residential building
The choice of this model generally meets the needs of homeowners looking for:
- a more stable temperature throughout the home;
- reduced use of the primary electric heating system;
- effective air conditioning on hot days;
- a discreet and energy-efficient unit.
For a residence in Pointe-Fortune, a properly sized heat pump can significantly improve indoor comfort while also contributing to better energy consumption management.
Professional HVAC installation adapted to a particular outdoor location

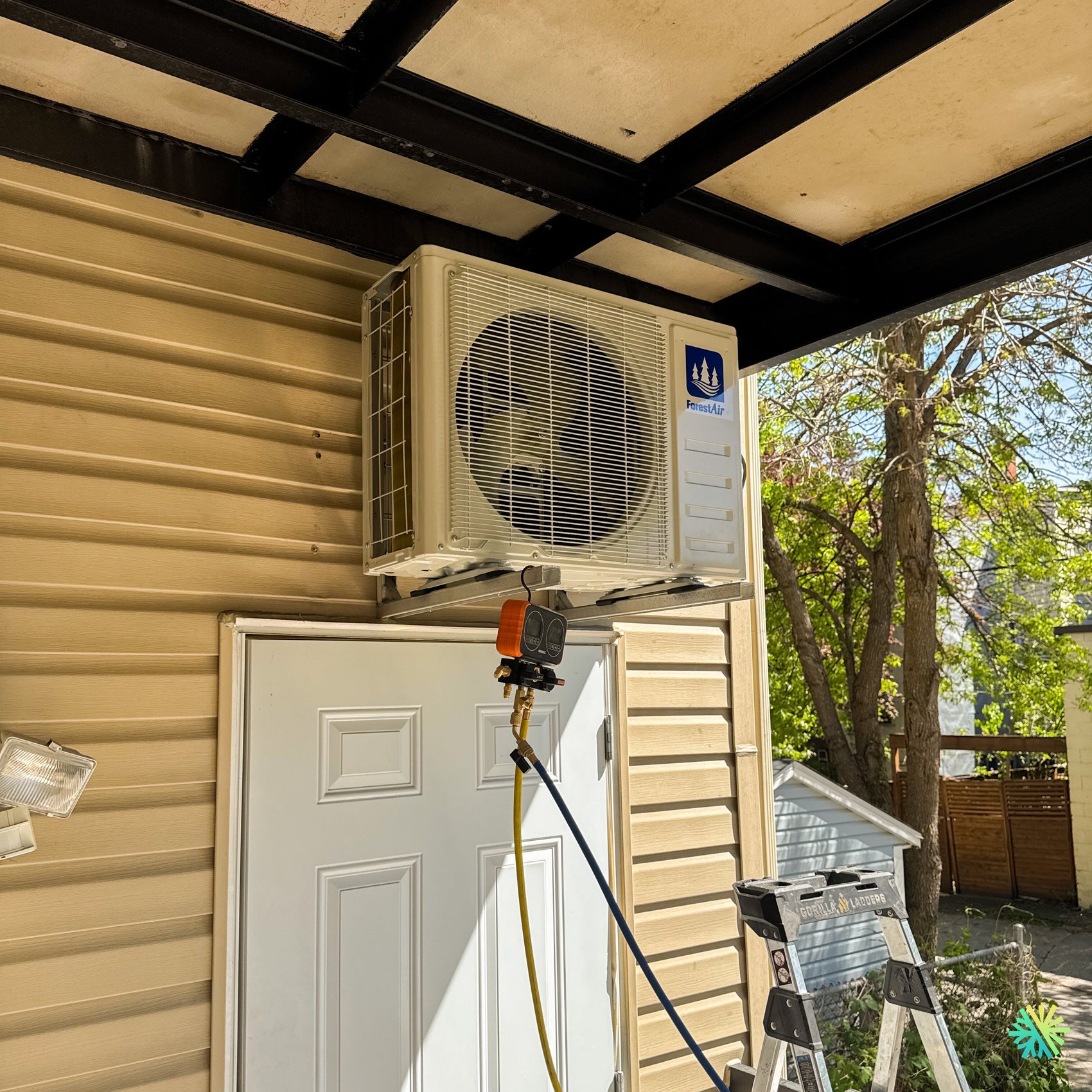

Installation of the outdoor unit on a wall-mounted bracket
One of the most visible aspects of this installation is the positioning of the FORESTAIR outdoor unit above an exterior door.
This configuration requires particular attention because the bracket must be strong enough to support the weight of the unit while limiting vibration transmission to the building structure.
Our team installed the unit on a wall-mounted bracket designed to:
- keep the heat pump level;
- ensure adequate clearance beneath the unit;
- protect the equipment from snow accumulation;
- facilitate water drainage during defrost cycles;
- allow convenient access for future maintenance.
The clearance around an outdoor unit is often underestimated. However, a heat pump needs to draw in and discharge a large amount of air to operate efficiently.
A unit installed too close to an obstacle may lose efficiency, run longer, and experience premature wear.
Particular attention to the exterior cladding and building structure
When a heat pump is installed on an exterior wall with vinyl or similar siding, the fastening method must be adapted.
A common mistake is to simply attach the brackets without checking the structure behind the cladding. A durable installation requires locating the appropriate anchoring points to ensure secure fastening.
At AirGreen, we always analyze:
- the wall structure;
- the position of the studs;
- the strength of the support;
- the location of the lines;
- the installation’s visual impact.
The goal is to achieve a clean, functional, and durable installation.
Drainage management and winter defrost cycles
In Quebec, a heat pump must be able to operate in demanding winter conditions.
During heating, the outdoor unit sometimes accumulates frost. It then automatically performs a defrost cycle that produces water.
Improper installation can cause:
- ice accumulation beneath the unit;
- fan blockage;
- reduced performance;
- unnecessary work.
Positioning the unit on a wall bracket, as in this installation in Pointe-Fortune, offers an important advantage by keeping the unit off the ground.
The steps carried out by AirGreen for this heat pump installation in Pointe-Fortune
Project analysis and preparation
Before installation, our team evaluates several parameters:
- area to be cooled and heated;
- home insulation;
- ideal location for the indoor unit;
- distance between the two units;
- refrigerant line routing;
- available electrical power.
This analysis makes it possible to select a suitable configuration rather than simply installing a unit based on the available space.
Installation and connection of the heat pump
The installation of a FORESTAIR E24 wall-mounted heat pump includes several technical steps:
- Installation of the outdoor bracket.
- Placement of the outdoor unit.
- Installation of the indoor unit.
- Routing of the refrigerant lines.
- Electrical connection.
- Installation of the condensate drain.
- Evacuation of the refrigerant circuit.
- Complete operation check.
Each step directly affects the system's lifespan and efficiency.
Poor evacuation, an improperly executed refrigerant connection, or inadequate drainage management can lead to problems after a few months of use.
Final tests before handing the system over to the owner
Once the work is complete, our technicians perform a series of checks:
- operation in cooling mode;
- operation in heating mode;
- temperature control;
- checking for unusual noises;
- inspection of the connections;
- general installation inspection.
This step confirms that the unit is operating according to the specified parameters.
Why choose a wall-mounted heat pump for a home in Pointe-Fortune?
A practical solution without a duct network
Many homes in Quebec do not have a central system with ventilation ducts.
In these situations, a wall-mounted heat pump is often an effective solution because it does not require major work on the walls or ceilings.
It provides:
- additional heating in winter;
- effective cooling in summer;
- independent temperature control;
- quick installation compared with a central system.
An interesting technology for reducing energy costs
The principle of a heat pump is to move heat rather than simply produce it.
In heating mode, it captures thermal energy from the outdoor air to heat the home.
This technology generally provides higher efficiency than traditional electric resistance heating during many periods of the year.
Actual savings, however, depend on several factors:
- outdoor temperature;
- building insulation;
- occupant habits;
- system settings;
- maintenance completed.
HVAC maintenance: maintaining the performance of your FORESTAIR E24
Even a modern heat pump requires regular maintenance.
Professional HVAC maintenance includes, among other things:
- filter cleaning;
- indoor unit inspection;
- heat exchanger cleaning;
- drainage inspection;
- general operation check.
A clean unit consumes less energy and maintains its heating and cooling capacity more effectively.
At AirGreen, we recommend that homeowners schedule periodic maintenance to maximize their equipment’s lifespan.
Mistakes to avoid when installing a wall-mounted heat pump
Choosing a location based solely on aesthetics
An outdoor unit should be discreet, but performance must remain the priority.
A location that is too enclosed or poorly ventilated can reduce system efficiency.
Neglecting proper sizing
A heat pump must be selected according to the building’s actual needs.
An undersized unit could run constantly without achieving the desired comfort level. An oversized unit could have inefficient cycles.
Entrusting the installation to a non-specialized installer
A heat pump is a complex piece of equipment that combines:
- refrigeration;
- electrical work;
- electronic controls;
- air circulation;
- defrost management.
Professional installation is essential to ensure system reliability.
AirGreen: wall-mounted heat pump installation in Pointe-Fortune, Montreal, Laval, Longueuil, and throughout the surrounding area
This installation of a FORESTAIR E24 wall-mounted heat pump in Pointe-Fortune demonstrates the importance of an approach tailored to each building.
The equipment selection, outdoor unit placement, quality of the connections, and final checks all play a role in long-term performance.
At AirGreen, we assist homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore with their heating, ventilation, and air conditioning projects.
A properly executed HVAC installation provides stable comfort, reliable operation, and a system designed to meet the particular conditions of Quebec’s climate.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
Useful pages for what comes next
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Tell us about your house. We come and see it for free.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
