Strategic Installation in a Confined Space: Maximum Performance Without Aesthetic Compromise
In this project completed in Pointe-Claire, in West Montreal, our AirGreen team tackled a typical challenge for existing homes: integrating a FUJITSU ORION XLTH 12,000 BTU wall-mounted heat pump into a confined space, without compromising either performance or aesthetics.
The client wanted to improve thermal comfort in a multi-functional area including a laundry room and a passageway to the outside. The objective was clear: to achieve efficient heating in winter and reliable air conditioning in summer, while optimizing the available space.
Site Analysis and Location Choice
On-site Constraints Observed
During our initial visit to Pointe-Claire, several factors influenced the installation strategy:
- Presence of an exterior door directly below the installation area
- Limited ceiling height
- Wall partially covered with ceramic (hard surface requiring specific fixings)
- Proximity of equipment (washer/dryer, integrated storage)
- Frequent traffic in the room
AirGreen Solution

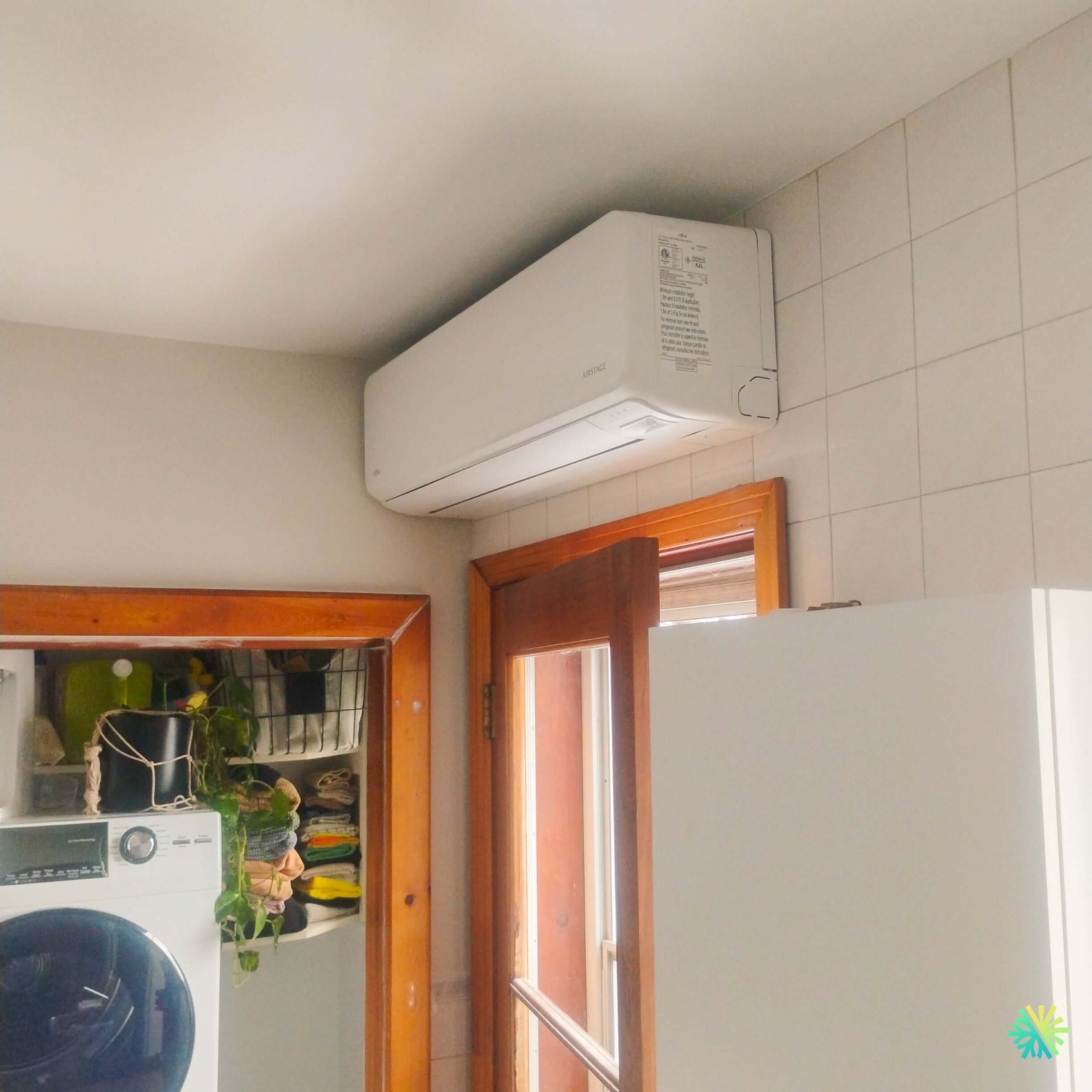

We recommended a high installation, directly above the door, which offers several advantages:
- Optimal air distribution into the house
- Maximization of available space
- Avoidance of physical obstacles (furniture, appliances)
- Reduction of air flow blockage risk
This type of positioning is often underestimated, but in compact environments like this one, it proves to be extremely effective when well executed.
Technical Details of the Installed Heat Pump
Model: FUJITSU ORION XLTH KZAH R-32 | 12,000 BTU
Here are the key features of this HVAC installation in Pointe-Claire:
- Cooling Capacity: 12,000 BTU
- Heating capacity down to -26 °C
- Refrigerant: R-32 (eco-friendly and efficient)
- SEER2: 30.5
- HSPF2: 12.7
- Certification: ENERGY STAR® and Cold Climate
- Indoor Sound Level: 23 dB(A)
- Integrated Wi-Fi
This heat pump is perfectly suited to the climatic conditions of Greater Montreal, particularly in areas like Pointe-Claire, Laval, Longueuil, North Shore, and South Shore.
Challenges Encountered During Installation
1. Fixing on Ceramic Surface
Since the right wall was covered with ceramic, we had to:
- Use specialized drill bits to prevent cracks
- Install robust anchors suitable for hard surfaces
- Ensure perfect stability of the indoor unit
2. Space Management Above the Door
The space between the ceiling and the door frame was limited. We:
- Measured precisely to meet the required clearances
- Adjusted the position to ensure good air intake
- Checked the diffusion angle to avoid direct airflow towards the door
3. Routing Refrigerant Lines
In this type of installation, discretion is essential. We:
- Routed the conduits behind the wall where possible
- Used minimalist line covers for a clean finish
- Complied with 1/4 - 3/8 piping standards
Full Installation Process
Here are the steps carried out by our certified refrigeration technicians:
- Thermal assessment of the room
- Verification of required capacity (12,000 BTU confirmed)
- Installation of the reinforced wall bracket
- Precise drilling for conduit passage
- Installation of the FUJITSU indoor unit
- Placement of the outdoor unit (not visible in photo)
- Connection of refrigerant lines
- Complete vacuum pull
- Pressure test and leak verification
- Commissioning and calibration
Each step was executed according to strict HVAC industry standards.
Final Result for the Client
After installation, the benefits were immediate:
Improved Thermal Comfort
- Stable temperature throughout the zone
- Efficient heating even in very cold weather
- Rapid cooling during summer
Remarkable Quietness
- The indoor unit is virtually inaudible
- No sound impact in an already occupied room
Refined Aesthetics
- Discrete installation despite a complex space
- Harmonious integration into the existing decor
Why Choose the FUJITSU ORION XLTH in West Montreal
In areas like Pointe-Claire, where homes can have varied configurations (bungalows, renovated houses, condos), this model offers exceptional flexibility.
Concrete Advantages:
- Reliable performance down to -26°C
- Reduced energy consumption
- Compatible with LogisVert subsidies ($1,200)
- Ideal for electric baseboard replacement
Practical Advice for this Type of Installation
To Prioritize:
- Install high for better diffusion
- Maintain clearance around the unit
- Clean filters regularly
To Avoid:
- Installing too close to the ceiling without air circulation space
- Blocking the unit with furniture
- Neglecting annual maintenance
AirGreen Expertise in HVAC Installation in Montreal and Surrounding Areas
At AirGreen, we work daily in Montreal, Laval, Longueuil, the North Shore, and the South Shore. This project in Pointe-Claire perfectly illustrates our ability to:
- Adapt each installation to on-site realities
- Work in complex spaces
- Offer durable and efficient solutions
Our teams are trained to manage all types of configurations, even the most demanding ones.
Conclusion: Optimized Installation in a Smart Space
This FUJITSU ORION XLTH 12,000 BTU wall-mounted heat pump installation in Pointe-Claire demonstrates that a confined space is never a limitation when well utilized.
Thanks to rigorous planning, precise execution, and suitable equipment selection, the client now benefits from a system that is:
- Energy-efficient
- Quiet
- Durable
- Perfectly integrated into its environment
At AirGreen, every project is treated with the same level of exacting standards, whether it's an urban condo in Montreal or a family home in Pointe-Claire.
The job tools
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
How the job unfolds
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What we check on a job like this one
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Good habits, once the unit is in place
Six simple habits that keep the unit going. Your list stays on this device.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
The right pages, at the right time
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
