Installation of a FUJITSU ORION XLTH+ 12,000 BTU wall-mounted heat pump in an attic apartment in Rosemont–La Petite-Patrie, Montreal

A FUJITSU wall-mounted installation designed for a high room with a sloped ceiling

In Rosemont–La Petite-Patrie, many Montreal homes have high rooms, sloped-ceiling bedrooms, upstairs offices, or attic spaces where heat quickly accumulates. It's precisely in this type of context that our AirGreen team installed a FUJITSU ORION XLTH+ 12,000 BTU wall-mounted heat pump, a mini split system designed to provide stable, quiet, and efficient comfort in a space where the positioning of the indoor unit required particular attention.

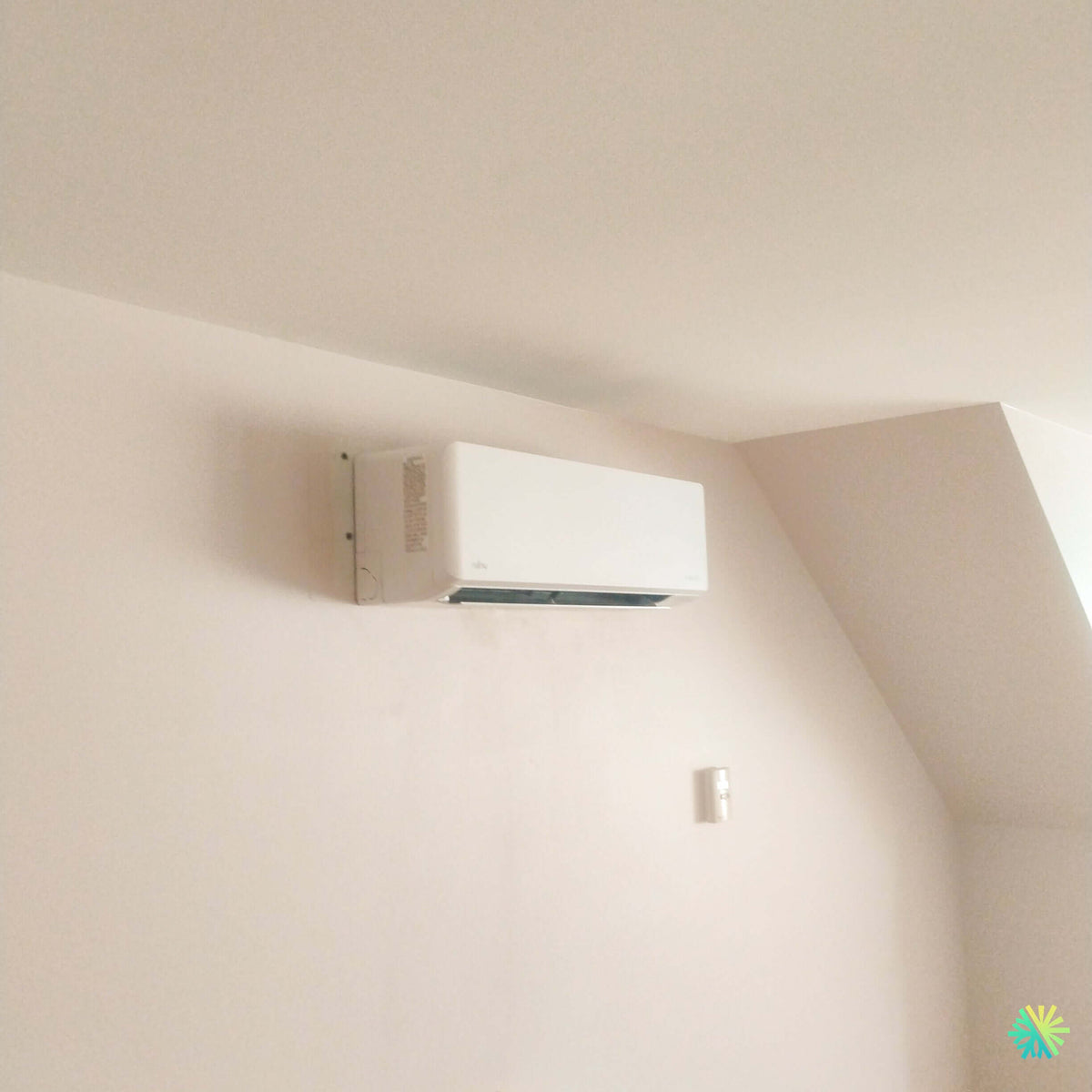

The photo of this installation clearly shows a very specific environment: a wall-mounted unit installed high up, near a sloped ceiling, in a room with pale walls and an atypical geometry. This kind of space poses real challenges in HVAC installation. Hot air naturally tends to rise and get trapped under sloped ceilings, which can make certain rooms uncomfortable during the summer, even when the rest of the dwelling remains relatively temperate. In winter, the same configuration can also create temperature differences between the lower and upper parts of the room.

Our objective was therefore clear: to install a heat pump capable of effectively treating this space, while respecting the physical limitations of the wall, the slope of the ceiling, the aesthetics of the room, and the sound comfort expected by the client.

A typical project for Montreal housing with architectural constraints

Buildings in Rosemont–La Petite-Patrie often feature a wide variety of configurations: converted plexes, renovated dwellings, added floors, attic bedrooms, rooftop offices, small corridors, and load-bearing walls that limit installation options. In this project, the indoor unit's placement could not be chosen randomly. We had to consider the ceiling slope, the required clearance around the unit, the direction of airflow, and the routing of conduits to the exterior.

The FUJITSU ORION XLTH+ 12,000 BTU wall-mounted heat pump was installed in a high position, on a wall allowing good air diffusion into the main volume of the room. The unit needed to remain accessible for filter cleaning, while being high enough not to interfere with interior design. The image clearly illustrates this approach: the appliance is discreetly integrated, with a subtle visual presence, without overload or unnecessary apparent tracing in the visible area.

In this type of room, poor placement can create several problems: direct drafts on the bed or desk, poor circulation in corners, too short a cycle, hot air accumulation at the ceiling, or difficulty of access for HVAC maintenance. Our team therefore evaluated the airflow path before finalizing the installation.

Why the FUJITSU ORION XLTH+ 12,000 BTU was a logical choice

The choice of a wall-mounted heat pump is never made solely based on area. In a sloped-ceiling or upstairs room, sun exposure, roof insulation, variable ceiling height, and air circulation strongly influence the system's actual performance. For this project in Montreal, the FUJITSU ORION XLTH+ 12,000 BTU offered a capacity well suited to the client's needs.

With its 12,000 BTU, this unit is very well suited for a good-sized room or an open residential area, especially when the goal is to quickly control accumulated heat upstairs. Its inverter technology allows the appliance to modulate its operation instead of only running by abrupt stops and starts. This modulation improves comfort, reduces temperature variations, and contributes to more reasonable energy consumption.

The desired advantages in this project were precise:

• effective air conditioning in a room where heat accumulates;
• efficient auxiliary heating during cold periods;
• quiet operation suitable for a resting or working space;
• a discreet and well-integrated indoor unit;
• a reliable solution for a Montreal residential building;
• an installation compatible with the realities of housing in Montreal, Laval, Longueuil, the North Shore, and the South Shore.

The client wanted to avoid an overly imposing or ill-suited solution for the room. An excessively sized unit could have cooled quickly without managing humidity well, while an underpowered unit would have run too long without providing the expected comfort. The 12,000 BTU format represented a relevant technical balance here.

A meticulous installation in an attic space: precision, alignment, and airflow

Installing a mini-split wall-mounted heat pump in an attic room requires more precision than a standard installation on a perfectly clear wall. The sloped ceiling limits maneuvering space. The unit must be clear enough to correctly draw in and blow out air, but also positioned well enough to allow the front panel to open and for regular filter cleaning.

Indoor location analysis

Before fixing the FUJITSU unit, our technicians checked several elements:

• the solidity of the supporting wall;
• the available height under the sloped ceiling;
• the necessary space above and around the unit;
• the optimal direction of airflow;
• the feasibility of routing refrigerant lines;
• the slope of the condensate drain;
• future access for maintenance;
• the visual impact in the room.

The indoor unit was placed to ensure effective air distribution towards the center of the room. In a configuration like the one shown in the photo, installation height is crucial. Too low, the appliance could have hampered the layout and blown directly onto occupants. Too high or too close to the slope, it might have lacked clearance to operate optimally. The right compromise lies in precise positioning.

Interior finish and aesthetic respect

In a renovated or well-maintained dwelling, the finish is as important as the performance. The white FUJITSU unit integrates naturally with the pale wall, making the overall appearance visually discreet. The installation was carried out with particular attention to horizontal alignment, clean routing of technical elements, and the reduction of visible marks.

At AirGreen, we believe that a good HVAC installation must be technically sound, but also clean and respectful of the interior decor. A heat pump can be very efficient and still disappoint if installed carelessly. In this project, the goal was to achieve a sober, stable, and easy-to-live-with result every day.

Management of the drain and refrigerant lines

Condensate drain management is a critical point in any wall-mounted air conditioner or wall-mounted heat pump installation. In a high room, an incorrectly calculated slope can cause water backup, unpleasant noises, or humidity problems. We therefore planned the drain routing to ensure reliable flow.

The refrigerant lines were also carefully installed to adhere to industry best practices. Proper installation of the lines contributes to the system's durability and performance. Connection, insulation, vacuuming, and final checks are all steps that our technicians meticulously handle on every project.

Commissioning and post-installation checks

Once the unit was installed, our team proceeded with the complete commissioning of the system. This step confirms that the FUJITSU ORION XLTH+ 12,000 BTU heat pump operates correctly in both cooling and heating modes.

The checks performed included:

• the startup of the indoor unit;
• the operation of the outdoor unit;
• the stability of the airflow;
• the remote control's response;
• proper condensate drainage;
• the absence of unusual vibration;
• the quality of the connections;
• the overall performance of the system in the room.

The client also received usage advice tailored to their space. In an attic room, it is often preferable to let the unit maintain a stable temperature rather than operating it only when the heat becomes excessive. The FUJITSU's inverter technology precisely allows for this type of more regular and comfortable use.

The particular challenges of a sloped-ceiling room

Attic rooms react differently to temperature variations. In summer, they can become the hottest areas of a dwelling. In winter, they can be sensitive to heat loss if insulation is not optimal. A well-selected wall-mounted heat pump helps correct these discomforts, but it must be installed according to the logic of the room.

In this project, the main challenges were:

Heat accumulation near the ceiling

The sloped ceiling promotes the accumulation of hot air at height. The unit therefore had to be placed in a way that effectively captured and redistributed air in the occupied zone.

Limited clearance

The space between the top of the unit and the slope had to remain sufficient not to impede air intake. This detail directly influences performance.

Interior aesthetics

Since the room is visible and regularly used, the installation had to remain clean, discreet, and well-aligned.

Access for maintenance

Even when installed at height, the unit must remain accessible for filter cleaning and future interventions. This is an element that many owners underestimate when choosing a location.

Practical advice for homeowners in Rosemont–La Petite-Patrie

Homeowners considering a wall-mounted heat pump installation in Montreal in a similar room should pay attention to several aspects before choosing their appliance.

It is recommended not to base the choice solely on the area. A sloped-ceiling bedroom exposed to the sun may require a different approach than a living room located on the ground floor. Insulation, orientation, the number of windows, and ceiling height directly influence comfort.

It is also important to avoid choosing the location based solely on appearance. The unit must look good, but above all, it must blow and draw air well, and allow for easy maintenance. An installation too close to a sloped ceiling can hinder operation. An installation too far from the area to be treated can reduce comfort.

Finally, it is preferable to entrust this type of work to a team accustomed to Montreal buildings. Installations in central districts are not always similar to new suburban home installations. Walls, access, external constraints, piping distances, and aesthetic expectations require real field experience.

The importance of HVAC maintenance after installation

Once the FUJITSU wall-mounted heat pump is installed, maintenance plays an important role in long-term performance. The indoor unit's filters should be cleaned regularly, especially if the appliance is used often during the summer. A clogged filter reduces airflow, increases system effort, and can affect comfort.

The outdoor unit must also remain clear, particularly after snow or leaf accumulation. In urban areas like Rosemont–La Petite-Patrie, dust, pollen, and debris can accumulate more quickly depending on the location. Periodic HVAC maintenance helps preserve efficiency, reduce the risk of breakdowns, and extend the equipment's lifespan.

Subsidies and energy efficiency

Choosing an efficient heat pump is often linked to the possibility of obtaining financial aid when the appliance and installation meet the applicable criteria. Grant programs can vary depending on models, dates, eligibility conditions, and administrative requirements. For this reason, we always recommend verifying the information at the time of purchase and keeping all necessary documents.

At AirGreen, we support our clients in this step by providing them with useful information on the installed equipment, the invoice, and the required documents. For owners in Montreal, Laval, Longueuil, the North Shore, and the South Shore, this assistance can greatly simplify the process.

An installation that reflects the AirGreen approach

This project in Rosemont–La Petite-Patrie perfectly illustrates our approach: each installation must be adapted to the building, the actual use of the room, and the client's expectations. We do not install a wall-mounted heat pump mechanically. We analyze the space, constraints, airflow, access, and desired finish.

The FUJITSU ORION XLTH+ 12,000 BTU installed in this attic room now offers an effective, discreet, and durable comfort solution. The indoor unit is cleanly integrated into the wall, its positioning respects the geometry of the sloped ceiling, and the system meets the needs of a space where temperature could previously become difficult to control.

For an owner looking for a reliable, well-executed HVAC installation in Montreal adapted to the specificities of an urban dwelling, this type of project demonstrates the importance of working with an experienced team. A good heat pump deserves an installation that lives up to its capabilities.
