A compact and clean installation in a restricted outdoor space in Montreal
At AirGreen, we recently completed the installation of a FUJITSU ORION XLTH 15,000 BTU wall-mounted heat pump in a residential building in Montreal, with a particularly interesting outdoor configuration: the condenser unit had to be installed on a narrow, elevated balcony, while respecting pedestrian traffic, the aesthetics of the building, and the solidity of the wall anchor.
This type of project perfectly represents the reality of HVAC installations in urban Montreal: brick walls, compact balconies, proximity to neighbors, limited access, the need for visual discretion, and the importance of a durable installation despite the physical constraints of the building.
Why the FUJITSU ORION XLTH 15,000 BTU was perfect for this project
The FUJITSU ORION XLTH 15,000 BTU is an excellent choice for homeowners looking for a reliable, high-performance wall-mounted heat pump that is well-suited to the Quebec climate. Its compact size allows it to be integrated into tighter spaces, while offering sufficient capacity to ensure efficient comfort in an average-sized Montreal home.
A heat pump designed for Quebec winters
The ORION XLTH model is designed to maintain good heating performance even when temperatures drop significantly. For a customer located in Montreal, where winters can be long and variable, this heating capacity is essential.
A FUJITSU mini-split in this category typically reduces reliance on more energy-intensive heating systems, while also providing efficient air conditioning during the summer. This is a particularly popular solution in apartments, condos, duplexes, and multiplexes in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
A popular choice for its reliability
FUJITSU remains one of the strongest brands in the field of wall-mounted heat pumps. For AirGreen, this type of equipment is often recommended when the customer wants to prioritize durability, comfort, and parts availability. In an urban context, where replacement or repair can sometimes be more complex due to building access, choosing a reliable machine from the outset becomes even more important.
A discreet, yet well-positioned unit

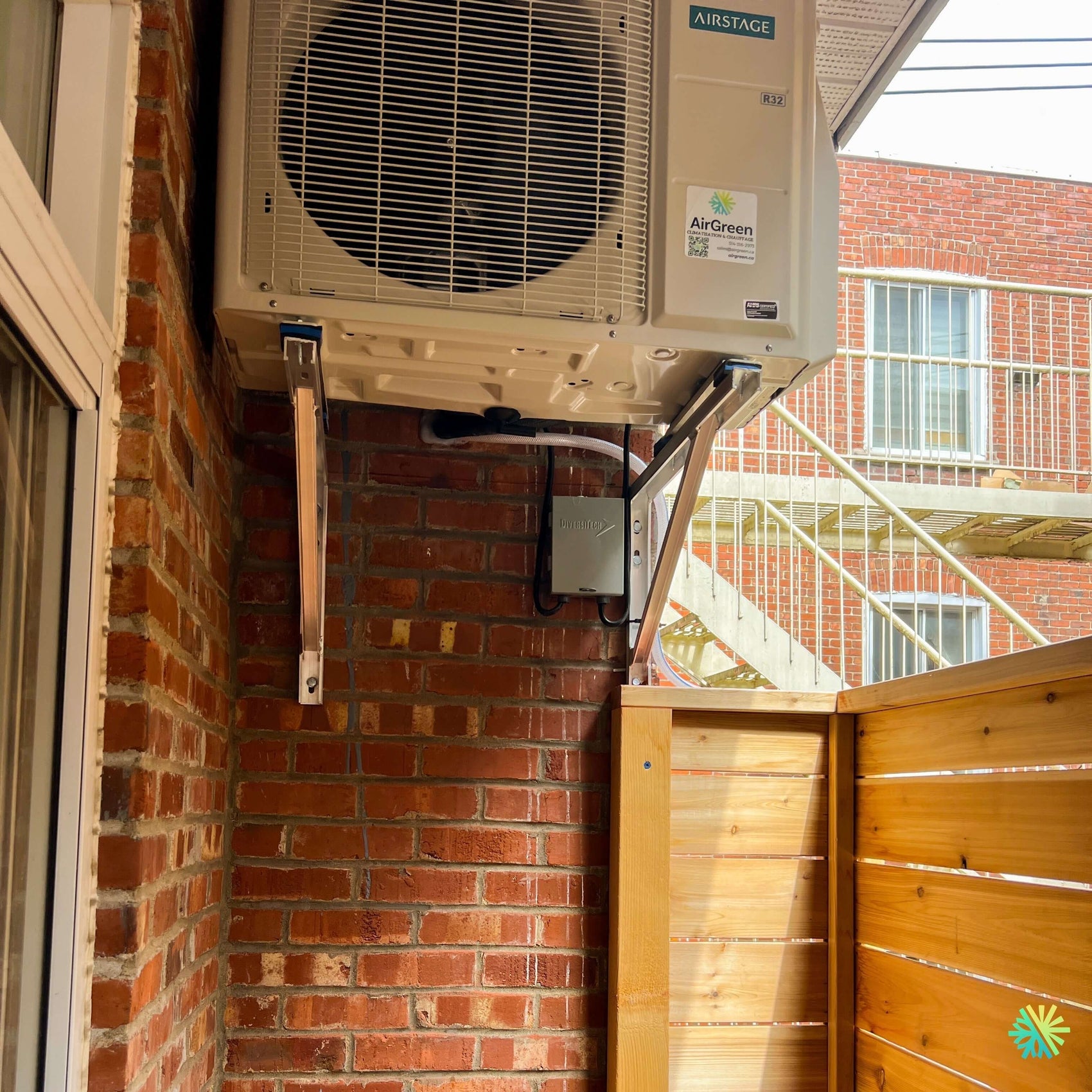

The project photo shows that the outdoor unit was installed above the balcony area, firmly attached to the brick wall with robust metal brackets. This approach frees up floor space, avoids cluttering the balcony, and protects the unit from certain impacts or obstacles.
Wall-mounted installation is often preferable when:
- the balcony is small;
- floor space must remain clear;
- the building does not allow ground installation;
- occupant circulation must remain safe;
- the unit must be protected from snow accumulation;
- the co-ownership or owner desires a tidier installation.
Technical challenges encountered on this Montreal balcony
A brick wall requiring precise anchoring
One of the most important elements of this HVAC installation in Montreal was securing the outdoor unit to a brick wall. Poor fastening can lead to vibrations, noise, premature wear, or even long-term safety risks.
Our technicians therefore paid particular attention to:
- the selection of anchor points;
- the distribution of the machine's weight;
- the alignment of the supports;
- the stability of the unit;
- the reduction of vibrations transmitted to the building;
- the clearance space around the condenser.
In old buildings in Montreal, brick can sometimes be irregular, friable, or less uniform than it appears at first glance. This is why a careful inspection of the wall is always necessary before proceeding with the installation.
Careful management of refrigerant lines and drainage
Below the outdoor unit, you can see the passage of connections and conduits. This detail is essential: a well-installed wall-mounted heat pump does not only depend on the quality of the machine, but also on how the refrigerant lines, wiring, and drainage are organized.
For this project, our goal was to maintain a clean, functional, and durable installation. The conduits had to be well-oriented, protected, and positioned to limit unnecessary exposure while allowing future access for HVAC maintenance.
A common mistake in this type of installation is neglecting drainage. Poor drainage can cause water marks, ice in winter, or humidity problems. At AirGreen, we always consider drainage a critical point, especially on balconies where water can accumulate near doors, railings, or wooden structures.
Respecting outdoor living space
The balcony visible in the photo includes a wooden structure and a relatively limited space. The installation therefore had to allow the customer to continue using their balcony without feeling encroached upon by the equipment.
This is where field experience makes all the difference. An outdoor unit can be technically well installed, but poorly positioned from a daily use perspective. In this specific case, we chose an arrangement that preserves maximum usable space while ensuring good ventilation around the condenser.
Considering the ventilation of the outdoor unit
An outdoor mini-split unit needs to breathe properly. Even when space is restricted, it should not be installed too close to a wall, railing, ceiling, or obstacle that could hinder air exhaust.
The positioning of this FUJITSU ORION XLTH 15,000 BTU was therefore designed to promote good airflow, reduce the risk of overheating in summer, and preserve heating performance in winter.
What this project shows about a good HVAC installation
The machine matters, but the installation matters just as much
An excellent appliance poorly installed will never perform at its best. Conversely, a well-sized and well-installed FUJITSU heat pump can provide remarkable comfort for many years.
For this installation in Montreal, several details were handled with care:
- choice of a solid location;
- stable wall installation;
- adequate clearance around the unit;
- clean routing of conduits;
- respect for balcony space;
- neat exterior finish;
- accessibility for future maintenance.
These elements may seem simple, but they directly determine performance, noise level, durability, and customer satisfaction.
An ideal solution for condos, multiplexes, and apartments
The FUJITSU ORION XLTH 15,000 BTU wall-mounted heat pump is very suitable for residential realities in Montreal. In many buildings, owners do not have access to a yard, a roof, or a dedicated mechanical space. The balcony then becomes the most logical option.
However, a balcony installation requires more thought than a ground installation. One must consider the structure, access, noise, neighborhood, aesthetics, and sometimes co-ownership or borough rules.
At AirGreen, we have carried out numerous similar installations in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, in buildings where every inch counts. This experience allows us to offer concrete, realistic solutions adapted to each property.
Practical tips before installing a wall-mounted heat pump on a balcony
Check available space
Before choosing a mini-split, you must check if the outdoor unit can be installed with the necessary clearances. A balcony that is too enclosed or too cluttered can reduce the system's efficiency.
Consider noise and vibrations
Even if FUJITSU models are known for their quiet operation, poor fastening can amplify vibrations. Solid supports, level installation, and professional installation are essential.
Plan for future maintenance
A unit installed too high, too close to an obstacle, or in a hard-to-reach corner can complicate HVAC maintenance. One must always think of the technicians who will need to clean, inspect, or repair the unit in the years to come.
Do not neglect water drainage
Drainage is a detail that can become a major problem if poorly planned. On a balcony, water must be directed correctly to avoid accumulation, stains, and the risk of ice in winter.
Choose an appropriate capacity
A 15,000 BTU wall-mounted heat pump can be suitable for many residential configurations, but proper sizing depends on numerous factors: area, insulation, solar orientation, number of rooms, ceiling height, and usage habits.
An AirGreen installation, designed to last
This project perfectly demonstrates our approach: installing a FUJITSU ORION XLTH 15,000 BTU wall-mounted heat pump with rigor, cleanliness, and attention to detail. The objective was not merely to install a machine on a wall, but to create a durable, safe, and well-integrated HVAC solution for the client's environment.
The outdoor unit, fixed on solid supports, frees up balcony space while ensuring good air circulation. Connections are neatly organized, access remains possible for maintenance, and the entire system blends naturally into the building.
For homeowners in Montreal, Laval, Longueuil, on the North Shore, or the South Shore, this type of installation is an excellent example of what to look for: a reliable machine, a well-thought-out location, and an HVAC team capable of adapting its work to the real constraints of the building.
At AirGreen, we know that a good installation is not only measured on the day it's commissioned. It is measured after several seasons of heating and cooling, when the client still enjoys a stable, efficient, quiet, and well-maintained system.
The job tools
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
How the job unfolds
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What we check on a job like this one
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Good habits, once the unit is in place
Six simple habits that keep the unit going. Your list stays on this device.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
The right pages, at the right time
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
