Installation of a Fujitsu Orion XLTH KZAH R-32 12,000 BTU wall-mounted heat pump in Ahuntsic-Cartierville
HVAC installation of a Fujitsu Orion XLTH 12,000 BTU wall-mounted heat pump in Ahuntsic-Cartierville. Performance, quietness, and energy efficiency at the heart of Montreal and its surroundings.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A Discreet and Strategic HVAC Installation in an Ahuntsic-Cartierville Residential Space
In the sought-after sector of Ahuntsic-Cartierville, our AirGreen teams recently completed a full HVAC installation of a Fujitsu Orion XLTH 12,000 BTU wall-mounted heat pump in a residential apartment requiring both thermal performance and visual discretion. This project perfectly illustrates our approach: combining technical precision, understanding of the existing building, and optimizing four-season comfort.
From the first visit, several elements caught our attention. The indoor unit had to be installed in a confined, elevated space, near a curtain rod, and in a corner where every centimeter counts. The configuration therefore required a particularly clean, compact, and aesthetic installation, without compromising performance.
A Technological Choice Adapted to Greater Montreal's Harsh Winters
Why the Fujitsu Orion XLTH 12,000 BTU?
The choice of this Fujitsu wall-mounted heat pump is never left to chance. In this specific case, several criteria guided our recommendation:
- Heating capacity down to -26°C, essential for Montreal winters
- High energy performance (SEER2 30.5 / HSPF2 12.7)
- ENERGY STAR® Cold Climate certification
- R-32 refrigerant, more efficient and ecological
- Ultra-quiet operation (23 dB indoors)
For a dwelling located in Ahuntsic-Cartierville, where temperature variations can be significant between seasons, this model offers a reliable, stable, and economical solution.
Perfectly Adapted Power
With its 12,000 BTU, this unit was perfectly sized for the space to be air-conditioned and heated. A common mistake in the HVAC field is oversizing or undersizing. In this project, we performed a complete thermal analysis:
- Actual area
- Wall insulation
- Solar orientation
- Room distribution
Result: a capacity of 12,000 BTU providing an optimal balance between performance and energy efficiency.
Technical Challenges Encountered During Installation
Corner Installation Near the Ceiling: Space Constraints

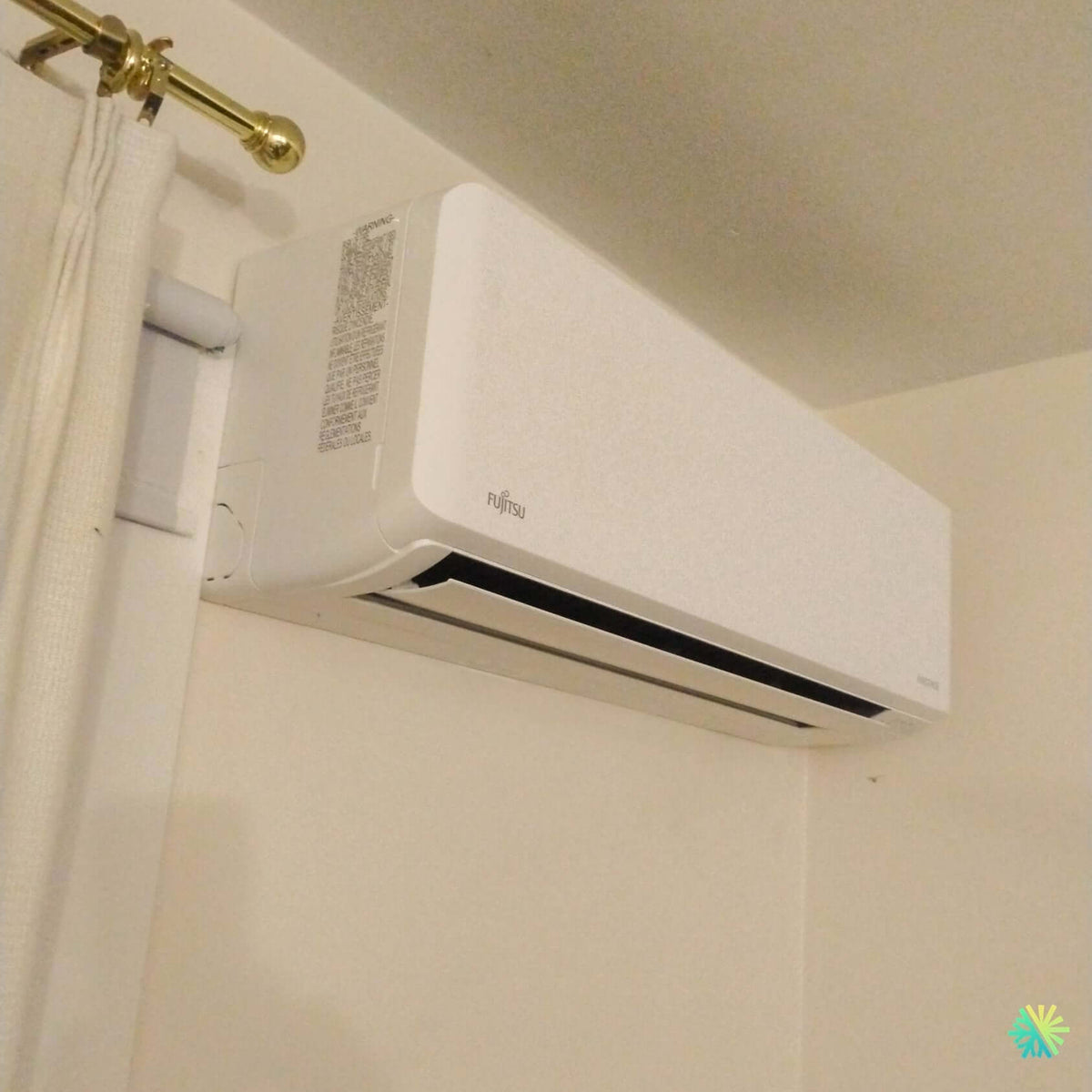

As visible in the project, the indoor unit was installed very close to the ceiling and a side wall, in a corner. This configuration presents several challenges:
- Maintaining sufficient clearance for air circulation
- Ensuring future access for maintenance
- Avoiding any interference with curtains
Our team carefully positioned the unit to:
- Maximize air distribution in the room
- Minimize visual impact
- Ensure optimal operation of the louvers
Piping Installation and Aesthetics
The installation of the 1/4 - 3/8 piping was carried out with precision. In this type of installation:
- We prioritize short and efficient routes
- We use discreet pipe covers when necessary
- We ensure perfect drainage
An essential step at AirGreen is to concretely test the drainage. After installation, we systematically check the flow under real conditions to avoid any future problems.
High-Altitude Drainage Management
In this specific case, the height of the installation required particular attention to drainage. We adjusted the inclination of the conduits to ensure natural flow without water accumulation.
AirGreen's Complete Installation Process
Steps Carried Out on This Project
Here's how the installation unfolded:
- Initial inspection and technical validation
- Precise positioning of the indoor unit
- Controlled drilling of the exterior wall
- Installation of supports and unit fastening
- Installation of refrigerant and electrical lines
- Complete vacuum pull (elimination of moisture and air)
- Pressurization and leak check
- Commissioning and calibration
Each step is essential to ensure the durability and performance of the HVAC system.
Rigorous Commissioning
Once the installation was completed, we proceeded with a series of tests:
- Temperature verification
- Airflow validation
- Heating and cooling mode test
- Wi-Fi configuration
This step ensures that the client immediately benefits from a functional and optimized system.
Tangible Results for the Client
Improved Thermal Comfort
After installation, the client observed:
- A stable temperature throughout the room
- A reduction in cold spots
- Constant comfort even during intense cold periods
Noise Reduction
Thanks to the quiet operation of the Fujitsu Orion XLTH:
- No disturbing noise at night
- Ideal for a living space or bedroom
Energy Savings
Compared to a traditional electric heating system:
- Reduced consumption
- Better energy efficiency
- Accelerated return on investment
LogisVert Subsidy: A Significant Financial Advantage
This model is eligible for the LogisVert subsidy of $1,200 (according to current criteria). For this Ahuntsic-Cartierville client, this represents:
- An immediate reduction in installation cost
- A more financially accessible project
- An advantageous energy transition
At AirGreen, we support our clients through all the procedures to maximize these aids.
Practical Tips for Wall-Mounted Installations in Confined Spaces
What to Absolutely Avoid
- Installing too close to the ceiling without checking airflow
- Neglecting access for maintenance
- Ignoring drainage management
Recommended Best Practices
- Always analyze air circulation in the room
- Prefer a central location when possible
- Ensure a perfectly level installation
Why Choose AirGreen for Your HVAC Installation in Montreal and Surroundings
Recognized Local Expertise
We operate daily in:
- Montreal
- Laval
- Longueuil
- North Shore
- South Shore
Each project is treated with a personalized approach.
Compromise-Free Installation
At AirGreen:
- No approximate work
- No price surprises
- Payment only at the end
An Experienced Team
Our refrigeration technicians master:
- Complex installations
- Atypical configurations
- High-performance systems like Fujitsu
Conclusion: A Perfectly Executed HVAC Installation in Ahuntsic-Cartierville
This project demonstrates that a Fujitsu Orion XLTH 12,000 BTU wall-mounted heat pump installation can be performed with precision even under challenging conditions. Thanks to rigorous planning and expert execution, we delivered a system that is:
- High-performing
- Quiet
- Durable
- Aesthetically pleasing
For any HVAC installation project in Montreal, Laval, Longueuil, the North Shore, or the South Shore, our AirGreen team is ready to assist you with the same level of demanding standards.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What the unit delivers when it is cold
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Fujitsu Orion XLTH 9 000 | 7,500 | 15,400 | −30 °C: 11,400 | 2.26 | 33.1 | 13.3 | – |
| Fujitsu Orion XLTH 12 000 | 10,000 | 16,600 | −30 °C: 12,200 | 2.16 | 30.5 | 12.7 | $1,200 |
| Fujitsu Orion XLTH 15 000 | 11,400 | 21,000 | −30 °C: 16,400 | 2.1 | 27.5 | 12.7 | $1,368 |
| Fujitsu Orion XLTH 18 000 | 13,600 | 24,800 | −30 °C: 19,110 | 2.08 | 25.5 | 12.5 | $1,632 |
| Fujitsu Orion XLTH 24 000 | 15,900 | 25,200 | −30 °C: 19,110 | 2.14 | 24.0 | 11.9 | $1,908 |
According to NEEP, it delivers up to 11,400 BTU/h at −26 °C (−15 °F), more than its 9,000 BTU cooling rating. Its efficiency there is still 1.70.
According to NEEP, its COP at −15 °C is 2.26: the highest of the Orion XLTH line, which ranges from 2.08 to 2.16 at that temperature.
At 8 °C, its certified maximum capacity reaches 23,000 BTU/h, more than double its nominal size.
According to NEEP, it delivers up to 12,200 BTU/h at −26 °C (−15 °F), more than its 12,000 BTU cooling rating. Its efficiency there is still 1.81.
At 8 °C, its certified maximum capacity reaches 23,600 BTU/h, 97% more than its nominal 12,000 BTU size.
At −26 °C, its certified minimum capacity is 1,400 BTU/h (3,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, it delivers up to 16,400 BTU/h at −26 °C (−15 °F), more than its 15,000 BTU cooling rating. Its efficiency there is still 1.92.
According to NEEP, its COP at −26 °C is 1.92: the highest of the Orion XLTH line, which ranges from 1.65 to 1.81 at that temperature.
At 8 °C, its certified maximum capacity reaches 25,000 BTU/h, 67% more than its nominal 15,000 BTU size.
According to NEEP, it delivers up to 19,110 BTU/h at −26 °C (−15 °F), more than its 18,000 BTU cooling rating. Its efficiency there is still 1.65.
At 8 °C, its certified maximum capacity reaches 31,800 BTU/h, 77% more than its nominal 18,000 BTU size.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 24,800 BTU/h, 138% of its nominal 18,000 BTU size. Its COP there is 2.08.
According to NEEP, its certified maximum capacity at −26 °C (−15 °F) is 19,110 BTU/h, 80% of its nominal 24,000 BTU size.
At 8 °C, its certified maximum capacity reaches 36,800 BTU/h, 53% more than its nominal 24,000 BTU size.
At −26 °C, its certified minimum capacity is 3,540 BTU/h (8,200 at 8 °C). It slows down instead of cycling on and off.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.A dash in the aid column: amount to be confirmed for this model.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
