An HVAC installation in Sainte-Dorothée where the precision of the exterior route made all the difference
In this project carried out in Sainte-Dorothée, a sought-after residential area of Laval, our AirGreen team installed a GREE CROSSOVER R32 wall-mounted heat pump, a mini split system designed to offer both efficient air conditioning, effective heating, and stable indoor comfort. The installation presented a very real challenge: integrating the outdoor unit and the path of the refrigerant lines on a high brick facade, while maintaining a clean, durable, and visually coherent finish.

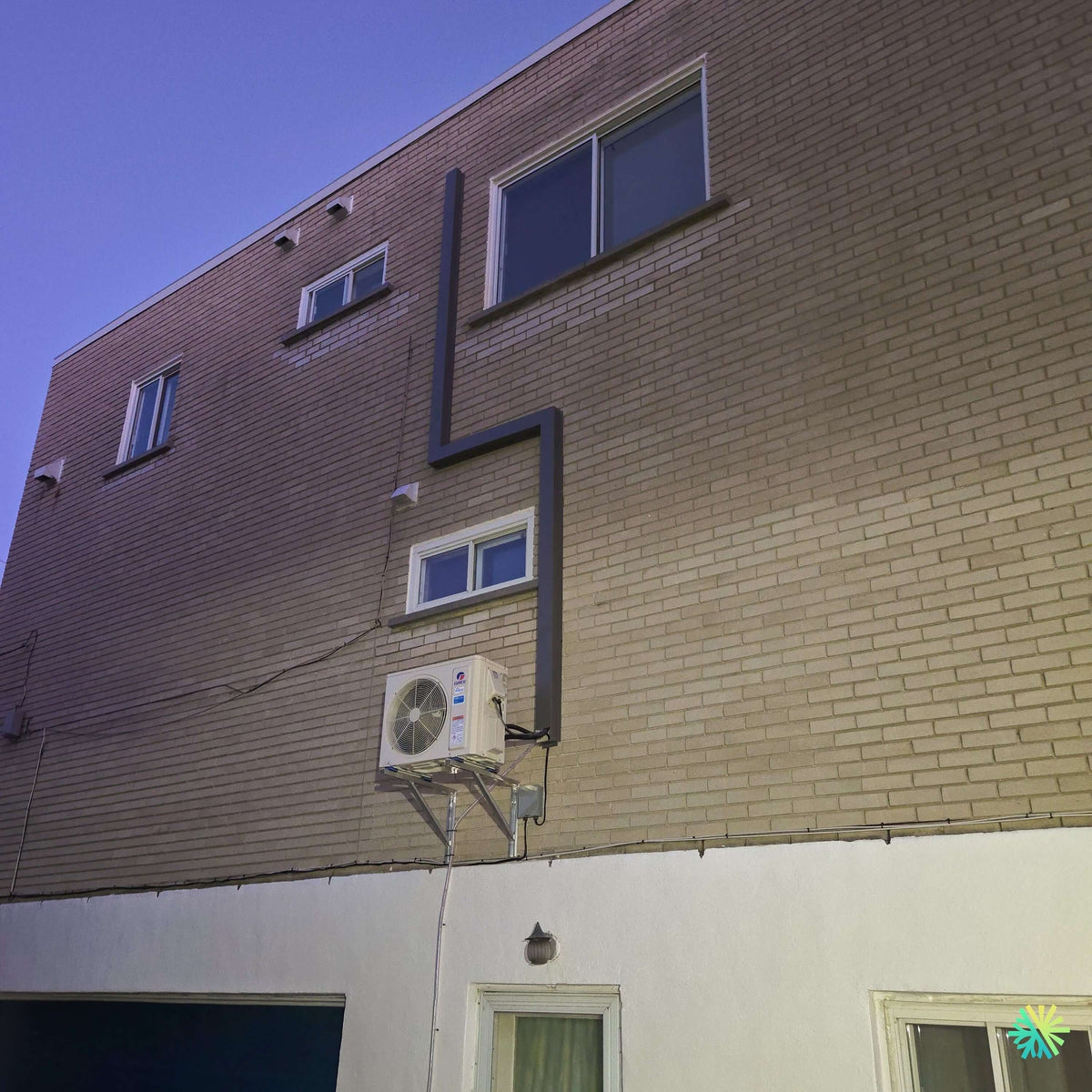

The photo clearly shows one of the most important aspects of this project: the exterior route in black ducting, installed vertically and then horizontally with sharp angles. This configuration was not chosen at random. On this building, the optimal location of the indoor unit did not directly correspond to a simple outlet behind the outdoor unit. Therefore, a longer, but perfectly controlled, path had to be planned to connect the system without compromising the appearance of the facade or the performance of the heat pump.
The GREE outdoor unit was installed on a robust wall bracket, at a height that better protects it against snow, standing water, and ground obstacles. For an installation in Sainte-Dorothée, where properties may have brick facades, restricted side access, and exterior layout constraints, this type of installation requires good field experience. At AirGreen, we regularly carry out this type of HVAC installation in Montreal, Laval, Longueuil, on the North Shore and the South Shore, but each building imposes its own technical decisions.
Why the GREE CROSSOVER R32 was a suitable choice for this residence
The GREE CROSSOVER R32 is a very interesting solution for owners who want to combine the advantages of an efficient wall-mounted air conditioner with those of a wall-mounted heat pump capable of providing heating for a large part of the year. Thanks to its Inverter technology, the appliance adjusts its operation according to actual demand, instead of only operating in sudden on and off cycles. This modulation improves comfort, reduces temperature variations, and contributes to more controlled energy consumption.
The R32 refrigerant is also one of the features that make this generation of GREE systems particularly relevant. It is used in several modern appliances because it allows for good heat transfer efficiency and is integrated into newer designs of residential systems. For a client investing in a new mini-split heat pump, this detail matters: it's not just about buying an appliance for the summer, but about choosing a solution capable of offering reliable performance over several seasons.
In this residence in Sainte-Dorothée, the client's needs were clear: improve indoor comfort, obtain stable air conditioning during hot weather, benefit from efficient auxiliary heating, and limit the visual impact of the outdoor installation. The GREE CROSSOVER R32 met these criteria well, especially with a careful installation and a well-protected duct path.
A brick facade that requires a structured installation
Installing a wall-mounted heat pump on a brick facade requires more rigor than on a simpler surface. Drilling, anchoring, duct installation, support alignment, and vibration management must be carried out with precision. A poorly drilled brick or inadequate anchors can create problems in the medium term, especially with the freeze-thaw cycles typical of the Quebec climate.
On this site, the outdoor unit was fixed to a well-sized metal wall bracket. This bracket allows the unit to be kept away from the wall, promoting air circulation and clearing the space under the unit. The objective is twofold: protect the system and facilitate future interventions during HVAC maintenance.
The positioning of the outdoor unit under the window, but with adequate clearance, was carefully considered to avoid unnecessary nuisances. A poorly placed unit can cause vibrations, obstruct a window, complicate access, or detract from the building's aesthetics. Here, the unit remains accessible while being installed stably and functionally.
The black duct route: a technical and aesthetic solution
The most distinctive element of this installation is undoubtedly the black exterior duct. It starts from the outdoor unit, goes up vertically along the wall, makes a horizontal detour, then goes up again to the upper passage point. This angled path was designed to reach the planned interior location while respecting the existing structure of the building.
This type of path may seem simple once completed, but it requires careful planning. Refrigerant lines must not be excessively bent, slopes must be controlled when drainage is concerned, and the duct must protect all components against weather, UV rays, and accidental impacts.
The black color of the duct creates a deliberate contrast with the brick. In some projects, a white duct may be preferable; in this one, the choice of a dark duct allowed for a neater and more architectural appearance of the exterior route. The final result is clean, organized, and much more professional than exposed or poorly grouped lines.
The challenges of a long exterior route on a residential building
A longer exterior route requires particular attention. The more complex the path between the indoor and outdoor units, the more rigorous the execution must be. On this project in Sainte-Dorothée, our team paid special attention to the following points:
- maintaining a clean and stable path on the facade;
- complete protection of refrigerant lines;
In several wall-mounted air conditioner installations in Laval, the challenge comes not only from the choice of appliance, but from how it is integrated into the building. This is particularly true for multi-story houses, plexes, condominiums, and facades where direct outlets are not possible.
An installation that takes into account Laval winters
A heat pump installed in Quebec must be designed for winter. Even when an appliance is chosen primarily for air conditioning, its outdoor unit remains exposed to cold, snow, ice, and humidity cycles. This is why installation height, clearance around the appliance, and line protection are so important.
In this project, wall mounting helps reduce the risks associated with snow accumulation around the unit. The metal bracket provides a stable base and frees up ground space. This approach is often advantageous in the residential sectors of Sainte-Dorothée, Laval and the North Shore, where outdoor space may be limited or already occupied by amenities, passages, fences, or traffic areas.
An outdoor unit must be able to properly exhaust air. If it is too close to an obstacle, too low, or installed in a poorly ventilated corner, its performance may decrease. Our role is to avoid these errors even before work begins.
An AirGreen method focused on real comfort, reliability, and quality finish
Every AirGreen installation begins with an analysis of the client's needs and the building's constraints. In this case, the goal was not simply to install a GREE CROSSOVER R32 heat pump, but to do so in a way that respects the building, the client's expectations, and the system's technical requirements.
Building analysis and location selection
Before drilling, fastening, or connecting, our technicians evaluate the entire project. For an HVAC installation in Sainte-Dorothée, this step is essential, as houses can present very different configurations: brick walls, distant electrical entrances, indoor units located upstairs, limited access for ladders, or neighborhood constraints.
We analyzed:
- the ideal indoor location for good air diffusion;
- the most logical path for the refrigerant lines;
- the height of the outdoor unit;
- available anchor points on the facade;
- the best way to protect the conduits;
- future access for maintenance;
- the visual impact of the completed installation.
This step avoids costly compromises. A too-rapid installation may work initially, but become problematic after a few seasons: detached duct, poorly protected lines, vibrations, inadequate drainage, or difficult-to-maintain equipment.
Installation of the outdoor unit on a wall bracket
The outdoor unit was fixed using a bracket adapted to the weight and dimensions of the appliance. This bracket must be perfectly aligned and solidly anchored. The goal is to create a stable base that limits vibrations and ensures a good lifespan for the system.
We also pay attention to the rear and side clearance of the unit. The fan must be able to effectively exhaust air, without excessive recirculation. Poor air circulation can increase the compressor's effort and reduce the overall efficiency of the wall-mounted heat pump.
In this case, the wall installation offered a good compromise between protection, accessibility, and discretion. The appliance is visible, but its positioning remains orderly relative to the facade and the duct path.
Refrigerant connections and vacuuming
Refrigerant connections are at the heart of a mini split system's performance. Even the best appliance will not perform at its peak if the lines are poorly prepared, loosely tightened, or contaminated by moisture. After routing the conduits and making the connections, our technicians perform a vacuum to remove air and moisture from the circuit before commissioning.
This step protects the compressor and contributes to the system's reliability. It is part of the best practices we apply to our installations in Montreal, Laval, Longueuil, on the North Shore and the South Shore.
We then proceed with operational checks:
- indoor unit startup;
- communication between indoor and outdoor units;
- air conditioning test;
- heating test;
- noise and vibration check;
- condensate drainage control;
- validation of basic settings;
- explanation of use to the client.
Usage tips to maximize comfort
Once the GREE CROSSOVER R32 heat pump is installed, we explain to the client how to get the best performance from it. Many owners use their appliance as a simple air conditioner, whereas a wall-mounted heat pump can also contribute to heating and dehumidification.
To maintain good performance, we recommend in particular:
- regularly cleaning the indoor unit filters;
- avoiding extreme programmed temperature changes;
- allowing air to circulate freely in front of the indoor unit;
- checking that the outdoor unit remains clear;
- not obstructing the air outlet with objects, furniture, or curtains;
- scheduling HVAC maintenance when the appliance shows a decrease in performance.
These tips are simple, but they have a real impact on the system's lifespan and energy savings.
Subsidies and energy efficiency: an important factor for homeowners
Homeowners in Sainte-Dorothée, Laval, and Greater Montreal are increasingly interested in available subsidies for eligible wall-mounted heat pumps. Depending on the exact model installed, its capacity, certifications, and applicable criteria, some appliances may allow for an application to applicable programs.
For the GREE CROSSOVER R32, eligibility must always be validated according to the precise model information and the lists in force at the time of the project. At AirGreen, we help our clients understand the necessary documents, including the invoice, the system's technical information, and the general application steps.
This support is appreciated, as a subsidy can reduce the net cost of an installation while encouraging the choice of a more efficient appliance. For many families, this is a decisive factor in the decision to invest in a quality HVAC installation.
Common mistakes to avoid in a similar installation
A project like this clearly shows why it is important to entrust the installation to an experienced team. The most frequent errors on this type of site are often related to the exterior route, fastening, or choice of location.
Leaving exposed refrigerant lines
Poorly protected lines age faster and give an impression of unfinished work. The black duct installed here protects the conduits and significantly improves the finish.
Installing the unit too close to the ground
In Quebec, an outdoor unit that is too low can quickly be exposed to snow and ice. The wall mounting used in this project improves protection and facilitates air circulation.
Underestimating vibrations
A poorly fixed outdoor unit can transmit vibrations to the wall. We use appropriate supports and an installation method aimed at reducing this risk.
Choosing a duct path without thought
The path must respect the technical constraints of the lines and the appearance of the building. Here, the routing was planned to remain clean, logical, and durable.
Neglecting future access
An appliance must be maintainable. An installation that is too difficult to access can complicate inspections, cleanings, and service interventions.
Local expertise useful in Sainte-Dorothée and throughout Laval
AirGreen regularly works in Sainte-Dorothée, in other sectors of Laval, as well as in Montreal, Longueuil, on the North Shore and the South Shore. This local experience allows us to adapt our installations to the realities of Quebec buildings: brick walls, high facades, restricted access, co-ownerships, exterior appearance requirements, and significant climatic variations.
We know that clients are not just looking for an appliance. They want a complete, correctly installed solution that will work reliably and remain visually clean over the years. This is precisely what we delivered in this project.
The result: a well-integrated and performance-ready GREE wall-mounted heat pump
This installation of a GREE CROSSOVER R32 wall-mounted heat pump in Sainte-Dorothée highlights several important aspects of professional work: a well-positioned outdoor unit, a solid wall bracket, carefully installed protective ducting, a controlled outdoor path, and real attention paid to the final appearance.
For the client, the result translates into improved comfort, efficient air conditioning during hot days, practical auxiliary heating during cold periods, and an installation that respects the building's architecture. For AirGreen, this project represents exactly the type of HVAC installation we strive to achieve: technical, clean, durable, and adapted to the site's reality.
