AirGreen installs a GREE LIVO R32 wall-mounted heat pump in Chomedey, Laval: discreet mini split, efficient air conditioning, careful installation, and HVAC expertise for Montreal, Laval, Longueuil, North Shore, and South Shore.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A GREE LIVO R32 wall installation perfectly adapted to a bright residential space in Chomedey
In Chomedey, in a residential area of Laval where houses and condos often have very varied interior layouts, our AirGreen team installed a GREE LIVO R32 wall-mounted heat pump, also used as a mini split wall air conditioner. The project had a simple but very concrete goal: to improve the thermal comfort of a main room without cluttering the space, without encroaching on existing openings, and without creating a visually intrusive installation.

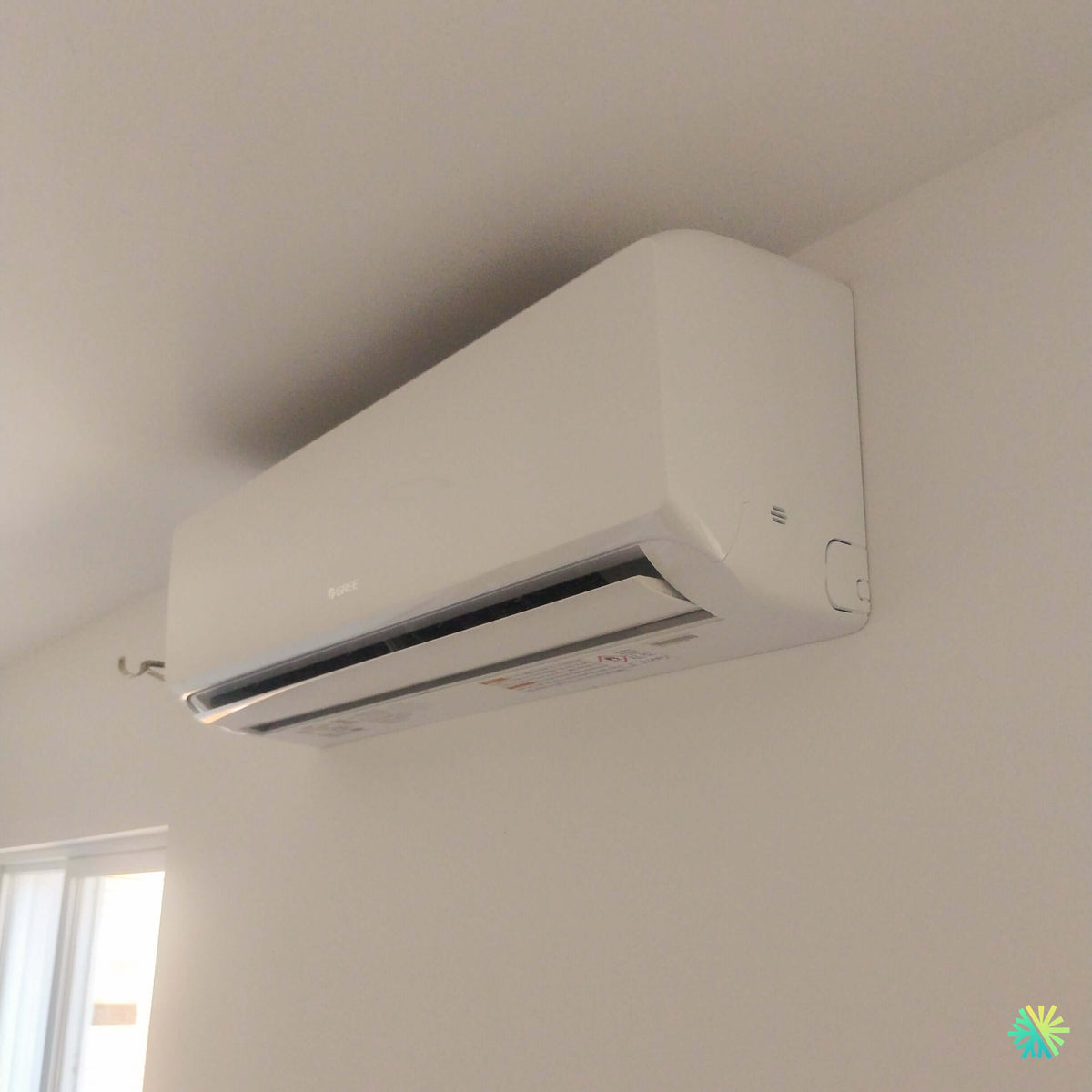

The image of this project clearly shows the spirit of the project: a white GREE indoor unit, installed high on a light wall, near the ceiling, in a sober and bright environment. The presence of a nearby window required special consideration of the airflow direction, shutter orientation, distance from the ceiling, and the overall integration of the device. In a room where natural light enters directly, the wall-mounted heat pump must compensate for heat gains in summer while maintaining comfortable and stable diffusion.
At AirGreen, this type of installation is never treated as a simple mechanical setup. Every HVAC (heating, ventilation, and air conditioning) project must take into account the building’s reality: room dimensions, ceiling height, location of openings, air circulation, occupant habits, maintenance accessibility, and technical constraints related to refrigerant line routing.
Why the GREE LIVO R32 model was a relevant choice for this installation
The GREE LIVO R32 is a wall-mounted solution appreciated for residential projects where a compact, efficient, and easy-to-use device is sought. In this case in Chomedey, the system met several important needs: cooling during hot periods, supporting heating during intermediate seasons, improving humidity control, and offering a more flexible solution than a window unit or a portable system.
The refrigerant R32 also represents an important advantage in recent equipment. It is used in several new generations of wall systems and allows a more current design in terms of energy efficiency and environmental impact compared to some older refrigerants. For owners, this means a modern unit, better suited to current market expectations for the wall-mounted heat pump.
The GREE LIVO R32 series is notably distinguished by:
- a compact and discreet wall-mounted design;
- operation in cooling mode and in heating mode;
- air distribution adjustable by motorized louvers;
- a use adapted to main rooms, bedrooms, condos, and residential spaces;
- a sober appearance, easy to integrate into a light decor;
- a technology designed for simple daily use;
- an interesting solution for owners looking for a good balance between budget, comfort, and reliability.
The exact BTU capacity must always be validated according to the actual project configuration. The same room may require a different capacity depending on its sun exposure, insulation, ceiling height, windows, and its opening to other spaces. In this installation, the chosen location allowed maximizing the efficiency of the mini split while keeping the indoor unit in a logical and discreet place.
A location near the ceiling that required great precision
The indoor unit was installed very high on the wall, near the ceiling. This choice is common for a wall-mounted heat pump, but it must be done carefully. A unit placed too close to the ceiling can hinder air intake and reduce the unit's efficiency. Conversely, a unit placed too low can be less aesthetic, more exposed to impacts, and less effective at distributing air in certain configurations.
In this room in Chomedey, our team made sure to respect the necessary clearances to allow air to circulate properly around the unit. The goal was to achieve a stable, clean, and functional installation while keeping the unit visually aligned with the lines of the wall and ceiling.
Several checks were made before the final fixing:
- Wall strength and quality of support.
- Exact level of the mounting plate.
- Available upper clearance.
- Position of the diffusion louvers.
- Air orientation relative to the window.
- Possible passage for refrigerant lines.
- Condensation drainage.
- Accessibility for filter cleaning.
- Visual aspect from the room entrance.
- No direct obstacle in front of the air outlet.
The photo shows a well-integrated unit, installed in a minimalist space where the finish matters a lot. On a pale wall, the slightest tilt or irregularity becomes visible. That’s why alignment is an essential part of the work.
The importance of airflow in a room with a window
The window visible in the photo brings in natural light, but it can also influence the indoor temperature. In summer, sunlight can quickly increase the perceived heat, especially if the room faces a very exposed area. In winter or cold seasons, proximity to a window can also create a cooler sensation if the insulation or glazing is not optimal.
The GREE LIVO R32 was therefore installed to promote uniform air distribution, without directing the airflow directly toward an uncomfortable area. The unit’s louvers allow adjustment of the direction, but the initial positioning remains crucial. A good HVAC installation always starts with understanding the natural movement of air in the room.
In a home in Laval, particularly in Chomedey where there are many condos, duplexes, semi-detached houses, and compact buildings, this detail can make a big difference. A well-placed system can improve comfort throughout the room. A poorly oriented system can create zones that are too cold, unpleasant drafts, or an uneven temperature sensation.
A clean, simple, and easy-to-maintain installation
One of the great advantages of a mini split wall heat pump is its discretion when properly installed. In this project, the white casing of the GREE LIVO R32 naturally blends into the wall. The result is clean, without visual overload, which suited the space very well.
To ensure this quality of finish, our team paid attention to several details:
- straight and solid mounting of the indoor unit;
- careful drilling for pipe passage;
- surface protection during work;
- checking the condensate drain;
- complete commissioning after installation;
- checking the operation of main modes;
- explanation of controls to the customer;
- filter maintenance advice.
A successful installation is not judged only when the unit starts. It must remain practical for many years. Filters must be accessible, the unit must be easy to clean, the drain must work properly, and the system must be installed to minimize unnecessary interventions.
Technical decisions that ensure performance, durability, and comfort in Laval
Proper sizing: a step never to be overlooked
In wall-mounted heat pump projects in Chomedey, a common mistake is to choose a unit solely based on the room’s area. This method is too simplified. Sizing a wall air conditioner or a mini split must take several factors into account.
A very sunny room may require a different capacity than a room on the shaded side. A higher ceiling increases the air volume to be treated. Poor insulation can cause greater heat loss or heat gain. A room open to a corridor or another area can also change the distribution strategy.
At AirGreen, we evaluate these elements before recommending a model:
- actual area;
- air volume;
- insulation;
- solar orientation;
- number and size of windows;
- type of occupancy;
- number of electrical devices generating heat;
- heating expectations;
- air conditioning expectations;
- desired noise level;
- possibility to install the outdoor unit in a suitable location.
For the GREE LIVO R32, as with any other heat pump, this analysis helps select a capacity consistent with actual use. A unit that is too small risks running continuously on hot days. A unit that is too large can quickly reach the setpoint but manages humidity less effectively and creates short cycles. Comfort comes from balance, not just nominal power.
Vacuum sealing and refrigeration connections: an invisible but essential job
In the photo, you mostly see the indoor unit. Yet, a large part of the quality of an HVAC installation lies in what is not visible: the refrigerant connections, vacuuming, sealing, drainage, and electrical connection.
With a system using R32, installation rigor is essential. The lines must be properly connected, the flares must be well made, the circuit must be vacuumed according to best practices, and the necessary tests must be performed before commissioning. Neglect at this stage can lead to performance loss, leaks, premature wear, or avoidable service calls.
This is one of the reasons why AirGreen never treats the installation of a mini split as just equipment placement. The professionalism of the team is measured by the precision of the technical steps, even those the customer doesn’t see once the work is finished.
Drainage: a detail that prevents many problems
A wall-mounted heat pump produces condensation in cooling and dehumidification modes. This water must drain naturally, without backflow, stagnation, or risk of running down the interior wall. In a high installation like this, the drain must be carefully planned.
Poor drainage can cause:
- water leakage under the unit;
- marks on the wall;
- musty odors;
- gurgling noise;
- water accumulation in the tray;
- unnecessary service calls;
- discomfort for the customer.
During this project in Chomedey, the drain slope and condensation outlet were carefully checked. This kind of detail protects both the building and the reputation of the installed system.
Subsidies and energy efficiency: carefully check the exact model
Customers from Montreal, Laval, Longueuil, the North Shore, and the South Shore often ask questions about the subsidies available for wall-mounted heat pumps. Programs like Hydro-Québec’s LogisVert can offer significant financial assistance, but eligibility always depends on the exact combination installed: indoor unit, outdoor unit, capacity, efficiency, and applicable reference number.
For a GREE LIVO R32, it is important to verify the exact system information before confirming a subsidy amount. At AirGreen, we assist customers in this verification to avoid misunderstandings. The invoice, model numbers, and technical documents must be consistent with program requirements at the time of application.
This approach is especially useful for customers comparing several brands and models. The installation price should not be analyzed alone. Efficiency, warranty, potential eligibility for financial aid, installation quality, and after-sales service must also be considered.
Mistakes to avoid when installing a wall unit in a condo or house in Chomedey
In this Laval area, we often work in homes where space is limited and installation constraints are many. Here are the most common mistakes we see when an installation has not been well planned.
Installing the indoor unit without considering the furniture
A unit may seem well placed on an empty wall but become problematic if a bed, sofa, or desk is directly in the airflow. Real comfort depends on the occupants' position.
Placing the unit too close to the ceiling
Insufficient space above the unit can hinder air circulation and complicate maintenance.
Neglecting the location of the outdoor unit
The outdoor unit must be installed in a stable, accessible location and comply with applicable regulations. Noise, clearance, snow, ice, and access for maintenance must be considered.
Choosing based on price alone
A cheaper installation can become costly if it causes drainage, vibration, performance, or service issues.
Forgetting regular maintenance
A wall system must be maintained. Filters need to be cleaned and periodic HVAC maintenance helps preserve the device's performance.
Usage tips to extend the lifespan of the GREE LIVO R32
After installation, we always recommend some good practices to the client. They are simple but very effective.
It is preferable to maintain a stable temperature rather than constantly turning the device off and on. In summer, a reasonable setting allows air conditioning while improving dehumidification. In heating mode, a gradual temperature increase is often more comfortable than an excessive and sudden demand.
Filters must be cleaned regularly. In a bright room, near a window or a frequently used space, dust can accumulate faster than expected. A clean filter allows better air circulation, reduces system effort, and improves comfort.
It is also important to avoid blocking the air outlet with curtains, tall furniture, or decorative objects. The wall heat pump works better when air can circulate freely.
An installation representative of AirGreen's expertise in Laval
This installation of a GREE LIVO R32 wall heat pump in Chomedey well represents our approach: selecting a smart location, respecting technical constraints, protecting interior aesthetics, and delivering a system ready to provide reliable comfort.
AirGreen regularly serves Laval, Montreal, Longueuil, the North Shore and the South Shore for projects involving wall air conditioning, heat pumps, mini splits, residential installation, and HVAC maintenance. Each project is different, but our method remains the same: understand the space, recommend a coherent solution, and install with precision.
In Chomedey, this GREE LIVO R32 discreetly fits into a bright and functional room. The client gets an effective comfort solution without cluttering the space, with a clean installation adapted to the building's reality. This is exactly what a good HVAC installation should offer: a well-chosen device, placed in the right spot, with durable finishing and stable daily operation.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What the unit delivers when it is cold
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Gree Livo R32 9 000 (115 V) | 10,000 | 7,600 | −25 °C: 5,700 | 1.86 | 20.5 | 8.8 | – |
| Gree Livo R32 9 000 | 9,600 | 7,600 | −25 °C: 5,500 | 1.94 | 20.5 | 8.8 | – |
| Gree Livo R32 12 000 (115 V) | 9,700 | 8,500 | −25 °C: 6,500 | 1.75 | 19.0 | 8.5 | – |
| Gree Livo R32 12 000 | 9,700 | 9,100 | −25 °C: 6,500 | 1.8 | 19.0 | 8.5 | $1,164 |
| Gree Livo R32 18 000 | 15,300 | 12,100 | −25 °C: 10,200 | 1.85 | 20.0 | 8.5 | $1,836 |
| Gree Livo R32 24 000 | 19,200 | 15,700 | −25 °C: 10,500 | 1.75 | 19.0 | 8.5 | $2,304 |
| Gree Livo R32 30 000 | 24,000 | 23,000 | −25 °C: 16,900 | 1.8 | 22.0 | 9.0 | $2,880 |
| Gree Livo R32 36 000 | 27,400 | 24,600 | −25 °C: 21,000 | 1.8 | 21.0 | 8.5 | $3,288 |
According to NEEP, it delivers 10,000 BTU/h at −8 °C (17 °F), as much as at 8 °C. It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −25 °C (−13 °F) is 5,700 BTU/h, 63% of its nominal 9,000 BTU size.
At 8 °C, its certified maximum capacity reaches 13,300 BTU/h, 48% more than its nominal 9,000 BTU size.
According to NEEP, its COP at −15 °C is 1.94: the highest of the Livo R32 line, which ranges from 1.75 to 1.86 at that temperature.
According to NEEP, its certified maximum capacity at −25 °C (−13 °F) is 5,500 BTU/h, 61% of its nominal 9,000 BTU size.
At 8 °C, its certified maximum capacity reaches 13,136 BTU/h, 46% more than its nominal 9,000 BTU size.
According to NEEP, it delivers 8,500 BTU/h at −15 °C, against 9,100 for the Gree Livo R32 12 000.
At −25 °C, its certified minimum capacity is 1,800 BTU/h (3,070 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 8,500 BTU/h, 71% of its nominal 12,000 BTU size. Its COP there is 1.75.
According to NEEP, it delivers 9,100 BTU/h at −15 °C, against 8,500 for the Gree Livo R32 12 000 (115 V).
At −25 °C, its certified minimum capacity is 1,800 BTU/h (3,070 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 9,100 BTU/h, 76% of its nominal 12,000 BTU size. Its COP there is 1.80.
At 8 °C, its certified maximum capacity reaches 22,500 BTU/h, 25% more than its nominal 18,000 BTU size.
According to NEEP, its certified minimum capacity is at least 7,000 BTU/h at every temperature. In a small, well-insulated room it will cycle on and off more often: size it carefully.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 12,100 BTU/h, 67% of its nominal 18,000 BTU size. Its COP there is 1.85.
At −25 °C, its certified minimum capacity is 3,100 BTU/h (5,800 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 15,700 BTU/h, 65% of its nominal 24,000 BTU size. Its COP there is 1.75.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 23,000 BTU/h, 77% of its nominal 30,000 BTU size. Its COP there is 1.80.
According to NEEP, its COP at −25 °C is 1.54: the highest of the Livo R32 line, which ranges from 1.30 to 1.52 at that temperature.
At −25 °C, its certified minimum capacity is 7,000 BTU/h (10,000 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 24,600 BTU/h, 68% of its nominal 36,000 BTU size. Its COP there is 1.80.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.A dash in the aid column: amount to be confirmed for this model.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
Useful pages for what comes next
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Tell us about your house. We come and see it for free.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
