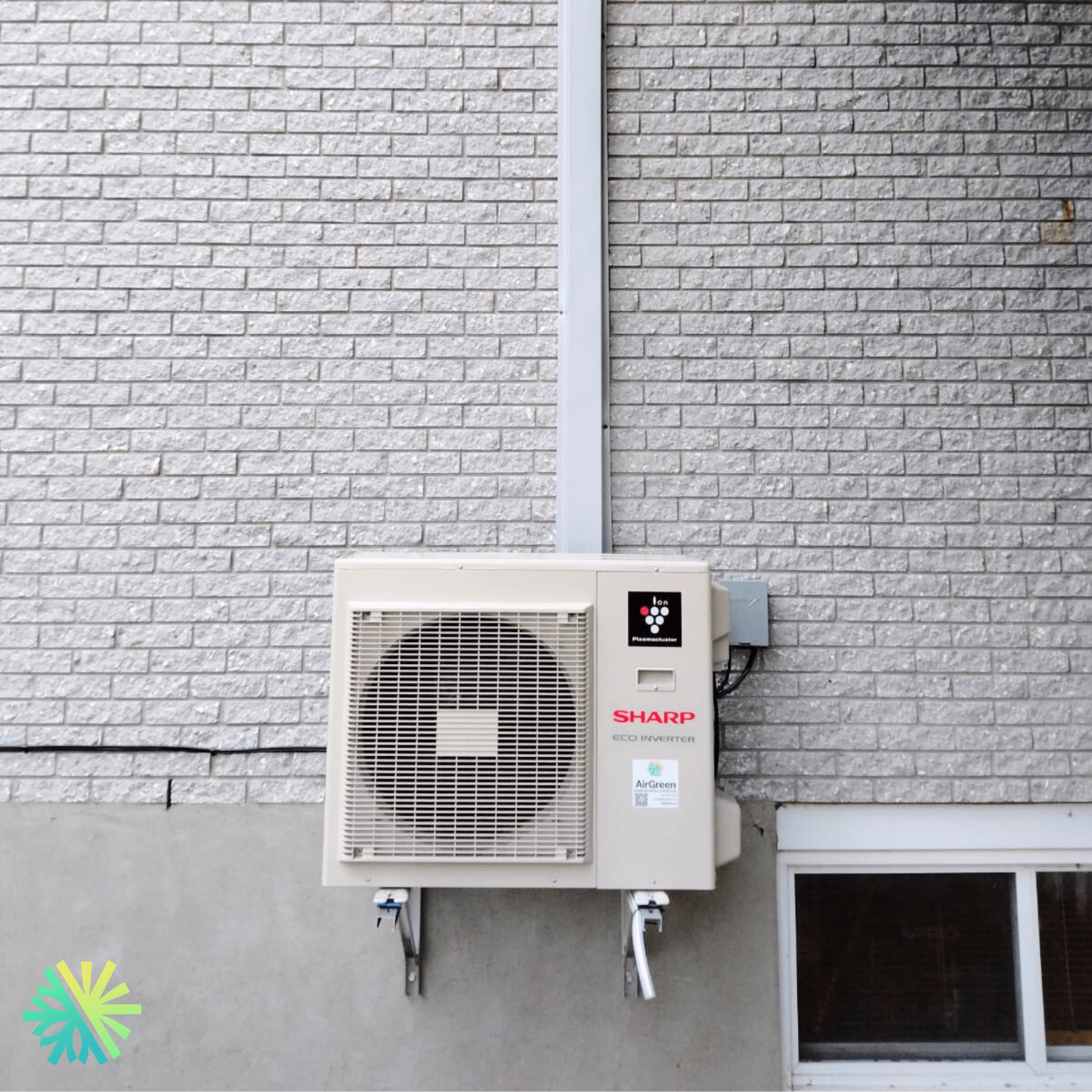

Installation of a SHARP ZU1 Mini Split Heat Pump in Boucherville
Learn why the SHARP ZU1 mini split heat pump installation by AirGreen in Boucherville is a top choice for efficient, eco-friendly home comfort.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Why This Installation Stands Out in Boucherville's Climate
In the heart of Boucherville, nestled among the historic streets and vibrant neighborhoods, our team at AirGreen recently completed the installation of a SHARP ZU1 24,000 BTU mini split heat pump. This isn’t just another HVAC installation—this SHARP ZU1 model represents the latest in climate control technology, designed to meet the specific needs of homes in Quebec's unique weather conditions. With its sleek design and powerful features, it promises homeowners efficient heating even in the harshest winters, with an impressive capacity to handle temperatures down to -27°C. Let's dive into the specifics of this installation and why this model is ideal for homes in the Boucherville area.
About the SHARP ZU1 Mini Split Heat Pump
The SHARP ZU1 24,000 BTU mini split heat pump is not only a powerhouse in terms of heating and cooling but also a model recognized for its energy efficiency and eco-friendly features. Utilizing the R-32 refrigerant, it has a lower environmental impact and maximizes energy use, which is a win for homeowners who are environmentally conscious. This model also includes WiFi capabilities, allowing homeowners to adjust settings from their smartphone, providing ultimate control over their indoor environment no matter where they are.
Moreover, the SHARP ZU1’s Plasmacluster technology purifies the air, neutralizing viruses, mold, and allergens, ensuring the air you breathe is as clean as possible. This technology is particularly beneficial for those with allergies or respiratory sensitivities.
Key Specifications
- Cooling Capacity: 24,000 BTU
- Heating Capacity: Effective down to -27°C
- Dimensions (Interior): 41.42 x 9.80 x 12.44 inches
- Dimensions (Exterior): 33.47 x 13 x 27.94 inches
- Efficiency: 22.0 SEER rating
- Sound Pressure Level: Interior 25-49 dB(A), Exterior 53 dB(A)
- Warranty: 10 years on compressor, parts, and labor
Installation Process in Detail
This particular installation in Boucherville was carefully planned and executed to ensure optimal efficiency and performance. Given the specific layout of the home and the seasonal challenges posed by Quebec's climate, our technicians selected the perfect location for both the interior and exterior units. The interior unit was mounted strategically to allow the Coanda effect, which circulates warm or cool air evenly throughout the space without blowing directly on the occupants. This feature, coupled with the unit’s spot cooling/heating mode, allows residents to adjust the airflow direction to specific zones, providing customized comfort year-round.
The exterior unit was installed with adequate clearance to ensure proper ventilation and minimize noise impact, thanks to its ultra-quiet design. Additionally, we took care to connect the pipes and electrical components securely and discreetly, preserving the aesthetic appeal of the property.
The LogisVert Grant Advantage
One standout aspect of this installation is the eligibility for the LogisVert Grant offered by Hydro-Québec. The SHARP ZU1 qualifies for a $2,688 grant under this program—the highest amount available in the 18,000 BTU category. This grant makes the SHARP ZU1 an even more attractive option for homeowners looking to balance upfront costs with long-term savings. Not only does the unit lower monthly energy bills, but it also comes with substantial financial support, reducing the initial investment significantly.
Benefits of SHARP’s Plasmacluster Technology
One of the unique features of the SHARP ZU1 model is its Plasmacluster ion technology, which provides an additional layer of air purification. By releasing both positive and negative ions, this technology helps to break down airborne contaminants such as mold, viruses, and allergens. Here are some of the main benefits:
- Odor Elimination: Removes stubborn odors, including those from tobacco or pets.
- Bacteria and Virus Neutralization: Helps reduce airborne bacteria and viruses, making indoor air healthier.
- Reduced Mold Growth: The Plasmacluster ions minimize mold spores in the air, which is especially helpful in humid conditions.
- Enhanced Air Quality: Ideal for households with members who suffer from asthma or allergies.
Energy Efficiency and Environmental Responsibility
In today's world, energy efficiency and environmental impact are top priorities for many homeowners. The SHARP ZU1 is equipped with R-32 refrigerant, a next-generation refrigerant known for its low global warming potential (GWP) and high efficiency. This refrigerant not only improves the unit’s performance but also aligns with Quebec's commitment to reducing environmental impact. With its 22.0 SEER rating, the SHARP ZU1 is among the most energy-efficient models available, offering significant energy savings compared to older systems.
Noise Control and Comfort
Another reason why the SHARP ZU1 is perfect for residential installations is its low sound pressure levels. The interior unit operates as quietly as 25 dB(A), about the same noise level as a soft whisper, ensuring that it won’t disrupt daily life. The exterior unit, operating at 53 dB(A), is similarly quiet, allowing for peaceful outdoor spaces.
Advanced Features for Optimal Comfort
This model is packed with advanced features that cater to modern lifestyles:
- WiFi Control: Easily manage your system from your phone, whether you’re on the couch or halfway across the world.
- Energy Monitoring: The SHARP ZU1 tracks daily and monthly energy consumption, allowing homeowners to optimize their usage.
- Automatic Restart: In case of a power outage, the unit automatically resumes operation with the previous settings, so you don’t have to worry about adjusting it manually.
- Self-Cleaning Operation: The unit’s interior remains free of mold and bacteria buildup, thanks to the Plasmacluster ions that minimize microbial growth.
Customer Satisfaction and Feedback
Our client in Boucherville was thrilled with the installation, particularly the quiet operation and energy efficiency of the SHARP ZU1. They appreciated our team’s professionalism and attention to detail, from selecting the optimal location for each unit to ensuring seamless integration with the home’s existing aesthetics.
Conclusion: A Top Choice for Boucherville Homeowners
For homeowners in Boucherville and beyond, the SHARP ZU1 mini split heat pump offers unparalleled benefits. From its powerful heating capacity down to -27°C to its air-purifying technology, this unit is an excellent investment for those looking to enhance home comfort while keeping energy costs low. With Hydro-Québec’s LogisVert Grant, it’s also a financially sound choice, as homeowners can take advantage of substantial rebates.
Whether you're seeking a solution for frigid winters or simply want to enjoy cleaner indoor air, the SHARP ZU1 is an HVAC system that delivers on every front. Contact us at AirGreen to learn more about how we can help bring the comfort of this advanced mini split heat pump into your home.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
