Installation of a SHARP ZU1 Mini Split Heat Pump in Candiac
Explore our latest SHARP ZU1 heat pump installation in Candiac! Efficient, eco-friendly, and powerful down to -27°C—learn why this HVAC solution is perfect for Quebec’s climate.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Elevating Home Comfort with a Sharp ZU1 Mini Split Heat Pump Installation in Candiac
When it comes to year-round comfort, AirGreen is dedicated to providing the best HVAC solutions across Montreal, Laval, Longueuil, North Shore, and South Shore. Recently, we completed an installation of a Sharp ZU1 18,000 BTU Mini Split Heat Pump in the beautiful town of Candiac. This installation not only delivers efficient heating and cooling but also offers our customer the highest LogisVert Grant available in its category, a remarkable $2,640 from Hydro-Québec. Here’s a detailed look into the installation and why this particular model is an excellent choice for local climate needs.
Why Choose the Sharp ZU1 18,000 BTU Mini Split Heat Pump?
The Sharp ZU1 is engineered for high performance in extreme weather conditions, making it ideal for Quebec’s cold winters and warm summers. With a cooling capacity of 18,000 BTU and a heating capacity that remains effective down to -27°C, this model ensures reliable comfort throughout the year. The Sharp ZU1 is equipped with R-32 refrigerant, an environmentally-friendly alternative that enhances efficiency while reducing its ecological footprint. Additionally, it features Plasmacluster Ion Technology for cleaner, healthier air, making it especially beneficial for homes with allergy sufferers.
Key Specifications
- Cooling Capacity: 18,000 BTU
- Heating Capacity: Effective up to -27°C
- Efficiency: 24.0 SEER rating
- Energy Star® Certified: Yes
- Noise Levels: 52.0 dB(A) (Exterior), 25-49 dB(A) (Interior)
- WiFi Connectivity: Included for remote control
- Warranty: 10 years on compressor, parts, and labor
Installation Details

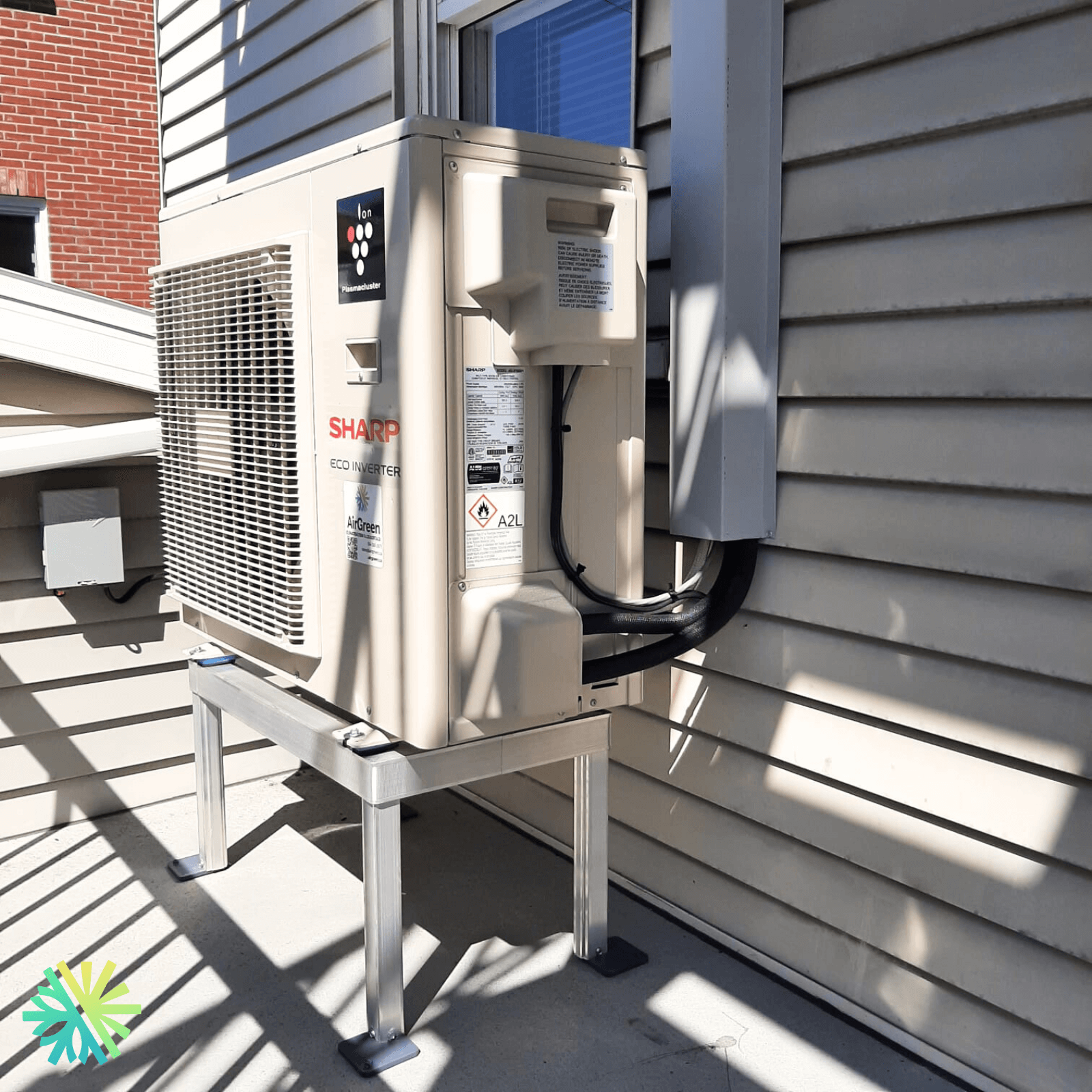

Our team performed the installation on the exterior wall, where the outdoor unit was securely mounted on an elevated stand. This setup ensures optimal airflow and protects the unit from potential snow buildup during winter. The sleek design of the indoor unit complements the home’s interior, offering an unobtrusive yet powerful source of comfort. We carefully routed the refrigerant pipes and electrical connections to ensure a clean and professional look, which is an essential part of our commitment to quality.
The Benefits of Plasmacluster Ion Technology
One of the standout features of the Sharp ZU1 heat pump is the Plasmacluster Ion Technology. This unique technology releases positive and negative ions into the air, which neutralize airborne contaminants such as bacteria, viruses, and mold spores. For homeowners, this means improved air quality, reduced allergens, and a fresher indoor environment. Additionally, Plasmacluster technology helps in odor elimination, making it ideal for households with pets or smokers.
Enhanced Comfort with Smart WiFi Control
With the built-in WiFi functionality, the Sharp ZU1 offers ultimate convenience. Homeowners can adjust settings, monitor energy usage, and even schedule the unit’s operation through a smartphone app. This remote access feature ensures that the home is always at the perfect temperature when returning from work or errands, adding an extra layer of comfort and efficiency.
Why AirGreen?
At AirGreen, we pride ourselves on delivering top-notch installations backed by unmatched customer service. Our team is trained to handle every aspect of the HVAC installation process with precision and professionalism. We also assist our clients in navigating available grants and rebates, like the $2,640 LogisVert Grant in this case, ensuring they get the most value from their investment.
Benefits of Choosing a High-Efficiency Heat Pump
Opting for a high-efficiency heat pump like the Sharp ZU1 translates to significant energy savings. With an impressive 24.0 SEER rating, this model uses less energy compared to traditional heating systems, resulting in lower monthly utility bills. Additionally, by using R-32 refrigerant, this unit contributes to a reduction in greenhouse gas emissions, supporting a more sustainable future.
Final Thoughts
The installation of the Sharp ZU1 18,000 BTU Mini Split Heat Pump in Candiac represents our commitment to offering cutting-edge HVAC solutions that meet the specific needs of Quebec’s climate. From efficient heating and cooling capabilities to advanced air purification and remote control, this model is a fantastic addition to any home seeking comfort, convenience, and environmental responsibility. We are excited to continue delivering high-quality HVAC services across Montreal, Laval, Longueuil, North Shore, and South Shore, and we look forward to helping more homeowners experience the benefits of modern heating and cooling technology.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
