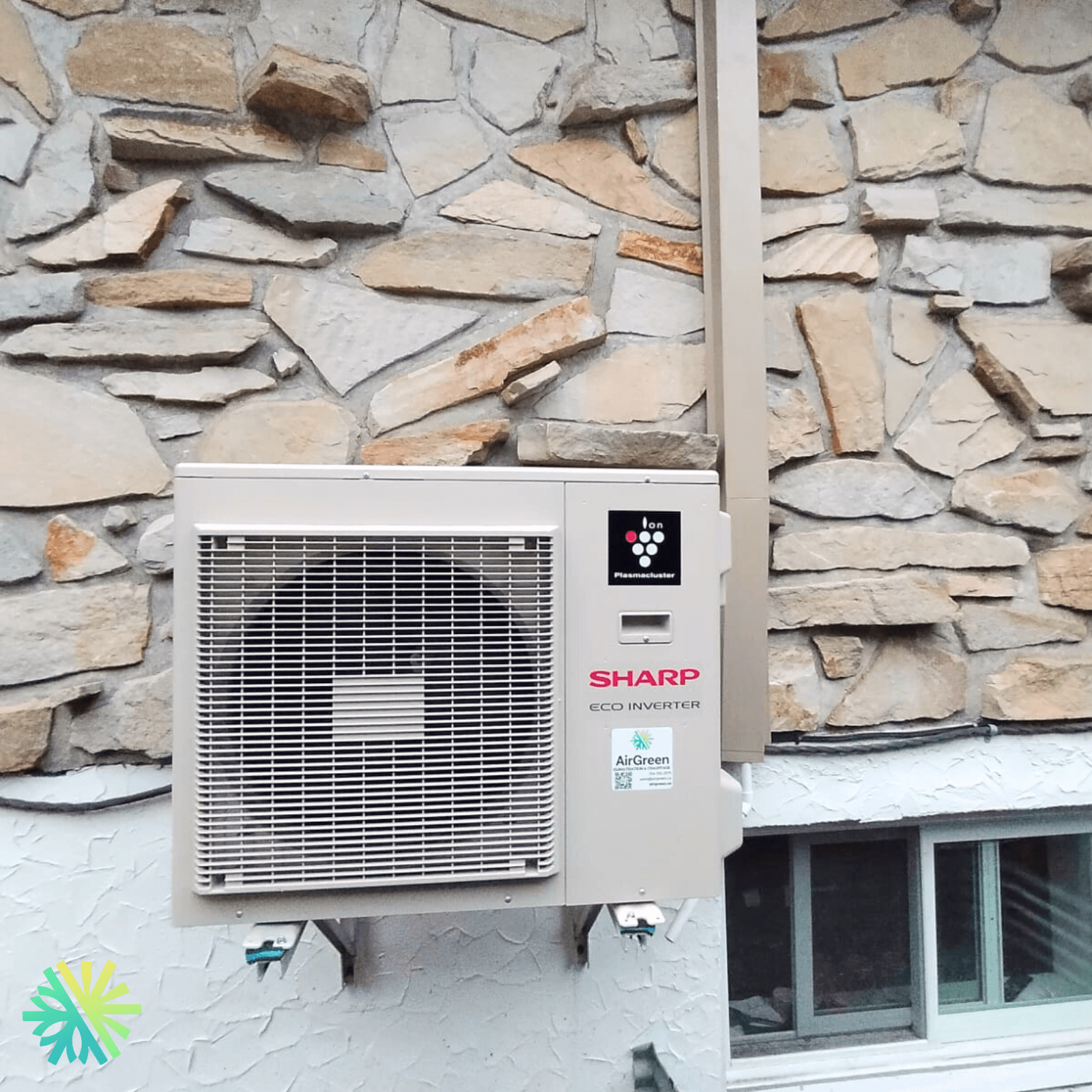

Installation of a SHARP ZU1 Ductless Wall-Mounted Heat Pump in Brossard
Discover our SHARP ZU1 installation in Brossard – an energy-efficient heat pump that offers powerful heating to -27°C and advanced air purification. Eligible for a $2,688 Hydro-Québec grant!
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Efficient Comfort with Cutting-Edge Technology: The SHARP ZU1 in Brossard
At AirGreen, we’re dedicated to delivering top-tier HVAC solutions to our customers across Montreal, Laval, Longueuil, and both the North and South Shores. Recently, we had the pleasure of completing an installation in Brossard that perfectly showcases our commitment to energy efficiency, performance, and customer satisfaction. This time, we installed a 24,000 BTU SHARP ZU1 ductless mini-split heat pump, an Energy Star® rated machine designed for both heating and cooling. With its sleek design, powerful capacity, and impressive technology, the SHARP ZU1 is a fantastic choice for homeowners looking to keep their homes comfortable year-round.
Why the SHARP ZU1 is the Perfect Choice for Harsh Canadian Winters and Hot Summers
The SHARP ZU1 is an advanced wall-mounted heat pump designed to handle the unique climate demands of Canada. With a cooling capacity of 24,000 BTU and a heating capacity capable of operating efficiently down to -27°C, this system ensures consistent comfort regardless of the season. This is particularly valuable in the cold winter months, where temperatures often drop well below freezing in Brossard and surrounding areas.
Key Features of the SHARP ZU1 Installation in Brossard
- Location: Brossard, a vibrant and expanding suburb of Montreal.
- Type of Machine: Wall-mounted mini split; also known as a ductless heat pump.
- Brand and Model: SHARP ZU1, renowned for its reliable performance and energy-saving features.
- Capacity: 24,000 BTU – suitable for medium to large-sized rooms, ensuring effective climate control.
- Grant Eligibility: This model qualifies for the highest LogisVert Grant from Hydro-Québec, allowing homeowners to receive up to $2,688 in financial assistance.
Energy Efficiency and Environmental Benefits
The SHARP ZU1 goes beyond just heating and cooling; it’s designed with the environment in mind. Using R-32 refrigerant, it offers a low Global Warming Potential (GWP) compared to other refrigerants like R-410A. This means the SHARP ZU1 not only provides energy-efficient performance but also minimizes its impact on the environment, aligning with sustainable practices that are increasingly important to homeowners.
- SEER Rating: With a 22.0 SEER rating, this heat pump is highly energy efficient, meaning lower electricity bills and a reduced carbon footprint.
- Wi-Fi Enabled: The SHARP ZU1 offers smart technology integration, allowing users to control the unit from their smartphone or other devices, maximizing convenience and enabling efficient energy management.
- Noise Levels: The unit operates quietly, with an exterior sound pressure level of 53.0 dB(A) and interior sound pressure levels ranging from 25 to 49 dB(A), ensuring minimal disruption to your daily activities.
Benefits of Choosing the SHARP ZU1 for Your Home
Choosing the SHARP ZU1 means opting for a balance of comfort, control, and cost savings. Here’s a closer look at what this machine offers:
- Dual Heating and Cooling Functions: Perfect for the fluctuating Canadian climate, providing both cooling during the sweltering summer months and reliable heating in the frigid winters.
- Advanced Plasmacluster Ion Technology: Unique to SHARP, this technology neutralizes airborne contaminants, including bacteria, viruses, and mold spores, improving indoor air quality. It’s an ideal feature for families concerned about health and wellness.
- Extended Warranty: The SHARP ZU1 offers a robust 10-year warranty on the compressor, parts, and labor, giving homeowners peace of mind and ensuring long-term investment protection.
Technical Specifications
The SHARP ZU1 offers impressive technical details that make it a great fit for modern homes:
- Interior Unit Dimensions: 41.42 x 9.80 x 12.44 inches
- Exterior Unit Dimensions: 33.47 x 13 x 27.94 inches
- AHRI Certified: AHRI Certification #213246054, ensuring it meets industry standards for efficiency and performance.
- Power Requirements: 220V, which is standard for high-capacity units.
A Smooth and Efficient Installation Process by AirGreen
When it comes to installations, we at AirGreen are committed to precision, quality, and customer satisfaction. Our team of experienced technicians handled every aspect of this project in Brossard, from selecting the best location for optimal airflow to ensuring all components were securely mounted and properly connected. By the end of the installation, we conducted a thorough test to guarantee that the unit was functioning at peak performance, meeting our high standards and exceeding customer expectations.
This installation wasn’t just about getting the unit up and running; it was about providing a tailored solution that would serve the customer’s needs for years to come. The SHARP ZU1’s quiet operation, efficient performance, and remote accessibility made it a perfect choice for the homeowner, who appreciated the blend of convenience, eco-friendliness, and superior air quality.
Why AirGreen is the Top Choice for HVAC Installations in Brossard
With years of experience in the HVAC industry, AirGreen has become a trusted name in Montreal, Laval, Longueuil, and surrounding areas. Our team understands the complexities of installing high-efficiency units like the SHARP ZU1, and we pride ourselves on delivering installations that are both meticulous and timely. By choosing AirGreen, you’re choosing a team that values:
- Professional Expertise: Our technicians are skilled in handling a wide range of HVAC systems, including the latest models with advanced features.
- Customer-Centric Approach: We work closely with each client to understand their unique needs and preferences, ensuring a personalized installation experience.
- Post-Installation Support: Our commitment doesn’t end with the installation. We provide ongoing support, including maintenance services and guidance on maximizing energy efficiency.
Maximizing Your Investment with the Hydro-Québec LogisVert Grant
One of the standout aspects of this installation is the eligibility of the SHARP ZU1 for the Hydro-Québec LogisVert Grant. This grant provides significant financial support to homeowners installing energy-efficient HVAC systems, making high-performance units like the SHARP ZU1 more accessible. With a potential rebate of $2,688, the SHARP ZU1 becomes an even more attractive investment, offering long-term savings in both energy costs and upfront installation expenses.
Contact AirGreen for Your HVAC Needs
If you’re considering an upgrade to your heating and cooling system or want to learn more about energy-efficient options like the SHARP ZU1, don’t hesitate to contact us at AirGreen. We’re here to answer your questions, provide expert advice, and deliver the high-quality HVAC solutions that keep homes comfortable, efficient, and environmentally friendly.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
