Installation of a Sharp wall-mounted heat pump in Rosemont–La Petite-Patrie
Discover this Sharp ZU1 wall-mounted heat pump installation by AirGreen in Rosemont–La Petite-Patrie, a high-performance and aesthetically pleasing solution for residential comfort in Montreal.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
At AirGreen , we install wall-mounted heat pumps every week, tailored to the very specific realities of Montreal homes. This recent installation in Rosemont–La Petite-Patrie perfectly illustrates our approach: precise, clean, and discreet work, designed as much for energy efficiency as for aesthetic integration into a typical Montreal residential interior.
A wall-mounted heat pump perfectly suited to the urban context of Rosemont
The Rosemont–La Petite-Patrie area is characterized by high residential density, multi-unit buildings, and rooms with sometimes complex layouts. In this type of environment, the wall-mounted heat pump remains one of the most efficient solutions for providing both winter heating and summer cooling, without major renovations.
For this project, we installed a Sharp wall-mounted heat pump , a brand known for its reliability, quiet operation and energy efficiency in northern climates.
Type of system installed
-
Machine type : Wall-mounted heat pump (mini-split)
-
Brand : Sharp
-
Installed model : Sharp ZU1 (R-32 series, high efficiency)
The Sharp ZU1 model is particularly well-suited to Montreal homes. It offers excellent energy efficiency, uniform air distribution, and technology designed to maintain consistent comfort even during the coldest winter months.
Visible installation details and technical choices

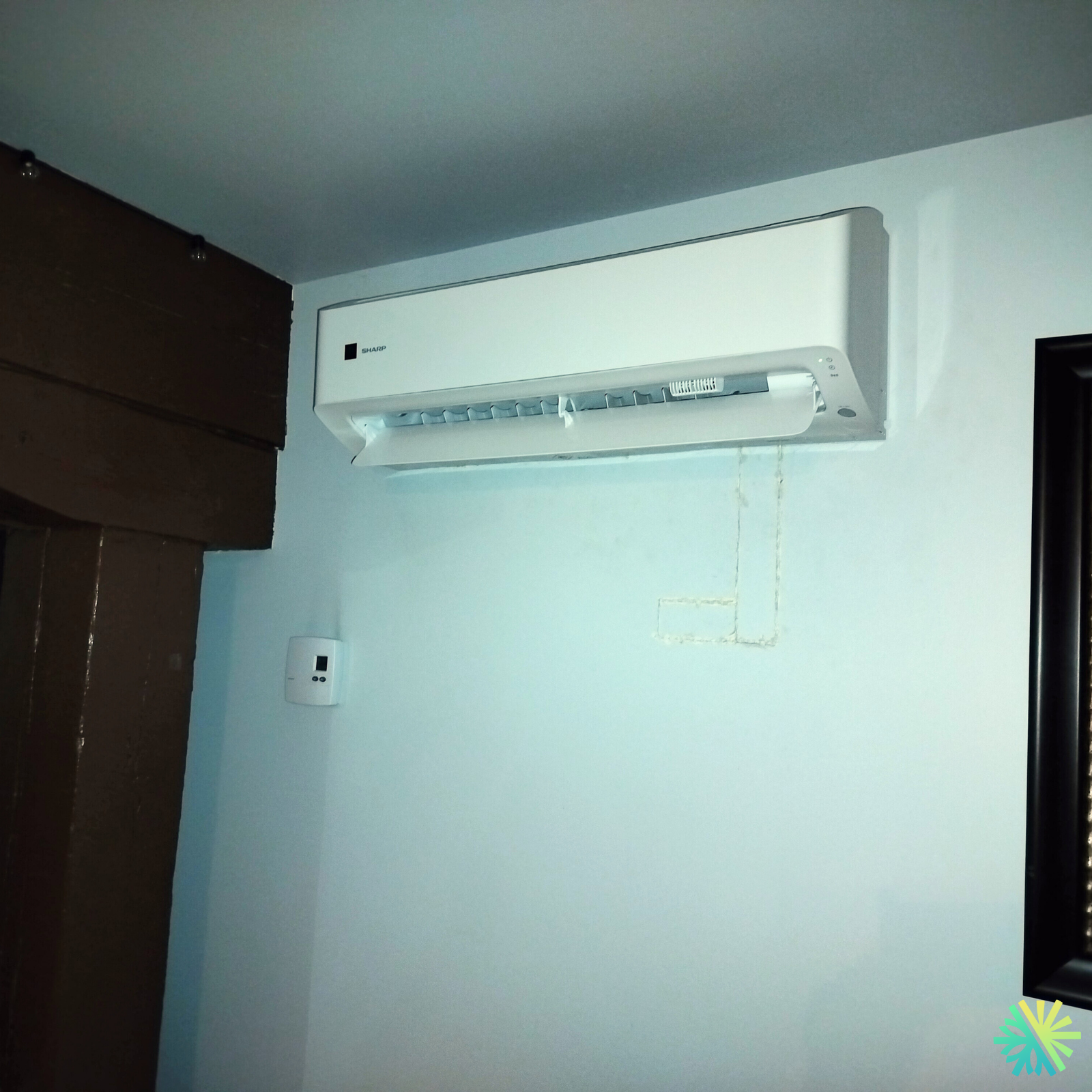

Positioning of the indoor unit
The wall unit was installed high up on a clear interior wall, which allows:
-
optimal air distribution in the room,
-
silent operation
-
a discreet visual integration, without compromising the interior design.
The sleek design of the Sharp wall head blends easily with modern or more classic decors, very common in Rosemont.
Pipe routing
The refrigerant lines and drainage were carefully concealed within the wall, resulting in a clean and minimal finish. This type of detail is essential in urban dwellings where interior aesthetics are just as important as system performance.
Building constraints
In this area of Montreal, we often have to deal with:
-
load-bearing masonry walls,
-
confined spaces,
-
rules of co-ownership or neighborhood.
Our AirGreen team planned the installation to minimize the impact on the existing structure , while respecting the electrical and HVAC standards in force in Quebec.
Why choose a Sharp wall-mounted heat pump in Montreal?
Sharp wall-mounted heat pumps stand out due to several key advantages:
-
Excellent energy efficiency , ideal for reducing heating and cooling costs.
-
Silent operation , a major advantage in dense urban environments.
-
R-32 technology , more environmentally friendly.
-
Four-season comfort , capable of responding to the temperature variations typical of the Quebec climate.
The Sharp ZU1 model is particularly appreciated for its performance stability and longevity, two essential criteria for our residential customers in Montreal.
An installation by AirGreen
At AirGreen , every wall-mounted heat pump installation is carried out according to a rigorous process:
-
Analysis of the dwelling and the volume to be air-conditioned/heated
-
Choosing a model adapted to the customer's actual needs
-
Clean, safe and compliant installation
-
Complete functional check and explanation to the customer
Our goal is not just to install a device, but to offer a sustainable HVAC solution , perfectly integrated into your daily life.
Enhanced comfort all year round in Rosemont–La Petite-Patrie
Thanks to this new Sharp wall-mounted heat pump, the occupants now benefit from:
-
efficient heating in winter , even during periods of intense cold,
-
comfortable air conditioning in summer ,
-
a better quality of life, without compromising on interior aesthetics.
This type of project represents exactly what we do at AirGreen: adapting high-performance technologies to the concrete realities of housing in Greater Montreal.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
Useful pages for what comes next
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Tell us about your house. We come and see it for free.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
