Installation of a Sharp wall-mounted heat pump in Rosemont–La Petite-Patrie (Montreal)

In this bright condo in Rosemont–La Petite-Patrie, our team installed aSharp wall-mounted heat pump to provide year-round comfort perfectly suited to Montreal's climate. This project perfectly illustrates what we love to achieve at AirGreen: discreet, high-performance integration designed with both energy efficiency and interior aesthetics in mind.

Context: a city condo that needed four-season comfort

The client lives in a typical Rosemont–La Petite-Patrie condo: relatively high ceilings, very clean white walls, and an open-plan main living area. The main challenge was twofold:

• To effectively cool the home during the intense summer heat, particularly at the end of the day when the sun is beating down on the facade.

• To heat economically during the off-season and enhance comfort in winter, in addition to the existing system.

The client wanted a solution:

• silent;

• compact;

• with low visual impact on the main wall of the living room;

• using a more modern refrigerant that has less impact on the environment.

This is what led us to choose a Sharp ZU1 wall-mounted heat pump of approximately 12,000 BTU , operating on R-32 refrigerant (A2L classification) .

Why a Sharp ZU1 wall-mounted heat pump?

The Sharp ZU1 series is a line of R-32 wall-mounted heat pumps very well suited to the realities of Greater Montreal. For this project, it ticked all the boxes:

1. Performance and energy efficiency

• Ideal capacity for a medium-sized condo with an open concept layout.

• Inverter technology to modulate power according to actual needs.

• Excellent performance coefficients, allowing for reduced electricity consumption compared to a simple air conditioner or purely resistive heating.

2. Modern R-32 (A2L) Refrigerant

In the photo, the A2L marking is clearly visible on the lower part of the wall-mounted unit. This indicates the use of a new generation refrigerant.

• Global warming potential (GWP) significantly reduced compared to R-410A.

• Optimized charging, with a lower overall environmental impact.

• Compliance with safety and ventilation standards related to A2L refrigerants.

3. Acoustic comfort

The Sharp wall-mounted unit is designed for low noise operation, which is essential in a condo where the living area, dining area, and sometimes a home office are all located in the same room. The fan and outdoor compressor work together to provide very quiet operation, even in the evening or at night.

Interior installation details: a clean integration on a white wall

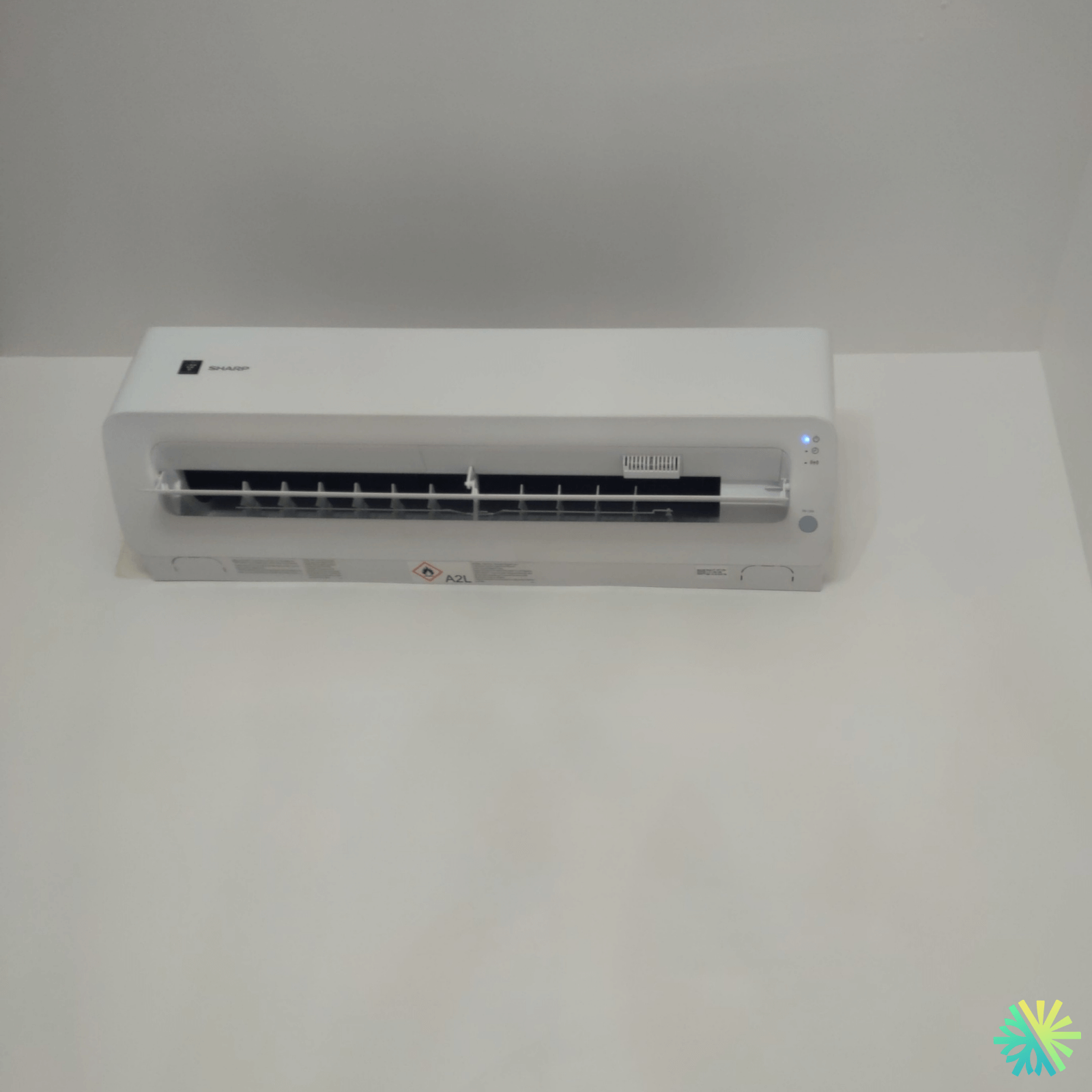

The photo shows an installation perfectly aligned with the wall , placed high up, a few centimeters from the ceiling. This position is not accidental:

• It allows for better air circulation , with fresh or warm air naturally descending into the room.

• It leaves the wall free for furniture, picture frames, or a television.

• It facilitates uniform diffusion in the open area.

A minimalist wall line

The Sharp heat pump stands out for its very understated design : a white casing with rounded corners, a smooth front panel, and a discreet air vent. We have:

• Centered the wall head on the most unobstructed section of wall.

• Ensure that the access hatch and the area for writing safety instructions remain visible for maintenance.

The horizontal louvers visible in the photo allow for precise control of the airflow, whether it be:

• towards the lounge area in air conditioning mode;

• towards the dining area or circulation in heating mode.

Outdoor installation details: performance and winter protection

Even though the outdoor unit isn't visible in the photo, it's an integral part of the project. In this Rosemont–La Petite-Patrie condo, we installed the Sharp compressor:

• on sturdy wall brackets , at a sufficient height for snow removal;

• with anti-vibration pads to minimize noise transmission;

• while respecting the necessary clearances for air circulation and access to the service.

We also have:

• sized and insulated the refrigeration lines according to the manufacturer's specifications;

• protected the wiring and piping with a decorative cover on the outside;

• adequate drainage of condensate is planned, essential in air conditioning mode as well as in defrosting mode in winter.

Managing condo constraints: silence, security and compliance

Installing a wall-mounted heat pump in a condo requires taking into account:

• the condominium regulations;

• the immediate neighbors;

• structural constraints (slab, load-bearing walls, facade).

Our team has:

• validated the locations to avoid noise disturbances for the neighbors;

• chose a refrigerant line passage that limits penetrations while maintaining an interior aesthetic without visible ducts in the living room;

• complied with current electrical standards, with a dedicated circuit breaker and compliant wiring.

The result for the customer: year-round comfort in Rosemont–La Petite-Patrie

In use, the Sharp wall-mounted heat pump offers several immediate benefits:

Summer: controlled coolness, reduced humidity

• Rapid cooling of open areas, even during Montreal heat waves.

• Dehumidification function that improves comfort without overcooling.

• Simple programming via remote control, with the option of a silent night mode.

Winter: stable and economical heat

• The heat pump provides gentle and constant heat , particularly pleasant in a condo with large glass surfaces.

• The customer can reduce the load on their electric auxiliary heater , thereby lowering their energy bill.

• The defrost cycles are optimized to limit the loss of comfort, even in very cold weather.

Mid-season: maximum flexibility

In spring and autumn, the heat pump allows you to:

• Heat it up slightly in the morning;

• Cool down a little in the afternoon if the sun is making the room too hot.

All this with very moderate electricity consumption .

Sharp Heat Pump Maintenance and Durability

To maximize the lifespan of the device, we provided the client with a simple plan:

• Regular cleaning of the wall head filters ;

• Annual check of the outdoor unit (accumulation of leaves, snow, ice);

• Periodic professional maintenance , recommended every 2–3 years, to check the refrigerant charge, the condition of electrical connections and overall performance.

Sharp heat pumps are designed to last for many years in a harsh climate like Montreal's, provided they are properly maintained.

Why choose AirGreen for your Sharp wall-mounted heat pump in Montreal?

As a company specializing in residential HVAC in Greater Montreal , we support our clients at every stage:

• Needs analysis and sizing : choosing the right capacity (BTU) based on surface area, orientation and insulation.

• Selection of the most suitable Sharp range (ZU1, ZHU1, TU, THU, multi-zone, etc.).

• Careful installation respecting Quebec standards, manufacturer requirements and condominium rules.

• Support for applicable financial assistance programs when relevant.

• After-sales service and maintenance to ensure the longevity of the system.

This installation in Rosemont–La Petite-Patrie perfectly illustrates our approach: four-season comfort , a minimal visual footprint and modern technology, all designed by Sharp and implemented by AirGreen.
