Installation of a SHARP ZU1 12,000 BTU Wall-Mounted Heat Pump in Blainville (North Shore)
Wall-mounted SHARP ZU1 12,000 BTU heat pump installed by AirGreen in Blainville. Performs at -27°C, Plasmacluster air purification, LogisVert grant eligible. Year-round HVAC comfort with professional service.
- City
- Region
- Equipment
- Brand
- Challenges
- Published
The job on one screen
The unit’s data sheet
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The article, chapter by chapter
A HVAC installation perfectly suited to Quebec's harsh climate
At AirGreen, we recently completed the installation of a SHARP ZU1 12,000 BTU wall-mounted heat pump in a residence located in Blainville, in the heart of the North Shore of Montreal. This installation reflects our ongoing commitment to providing our clients with reliable, efficient, and durable HVAC solutions capable of withstanding the harshest winters while optimizing comfort and energy efficiency.
This family property had previously relied on a traditional electric heating system, which was inefficient and particularly energy-consuming during the coldest months. Our experts recommended a SHARP ZU1 wall-mounted heat pump, a strategic choice both for energy efficiency and reliability in extreme climates.
Why the SHARP ZU1 12,000 BTU is ideal for the North Shore
The model installed in Blainville belongs to the SHARP ZU1 series, known for its precise Japanese technology, sleek design, and adaptability to North American climatic conditions. With optimal operation down to -27°C, the SHARP ZU1 is one of the few wall-mounted heat pumps on the market capable of maintaining consistent warmth even during the polar episodes typical of the Greater Montreal area.
Key technical specifications:
-
Cooling capacity: 12,000 BTU/h
-
Heating capacity: 14,000 BTU/h
-
Performance at -27°C: 7,200 BTU/h
-
SEER: 21 / HSPF (IV): 12.5
-
Refrigerant: R-32, environmentally friendly
-
Technology: SHARP exclusive Plasmacluster (integrated air purification)
-
Indoor unit noise level: as low as 23 dB
-
Built-in Wi-Fi for smart control
-
Warranty: up to 10 years on compressor, parts, and labor
Installation steps: precision and efficiency
The installation was completed in one day, despite subzero temperatures and snow-covered ground, typical of February in Blainville.
Here are the main steps:
-
Site inspection: checking insulation and optimal placement.
-
Installation of the indoor wall unit: positioned to maximize air distribution.
-

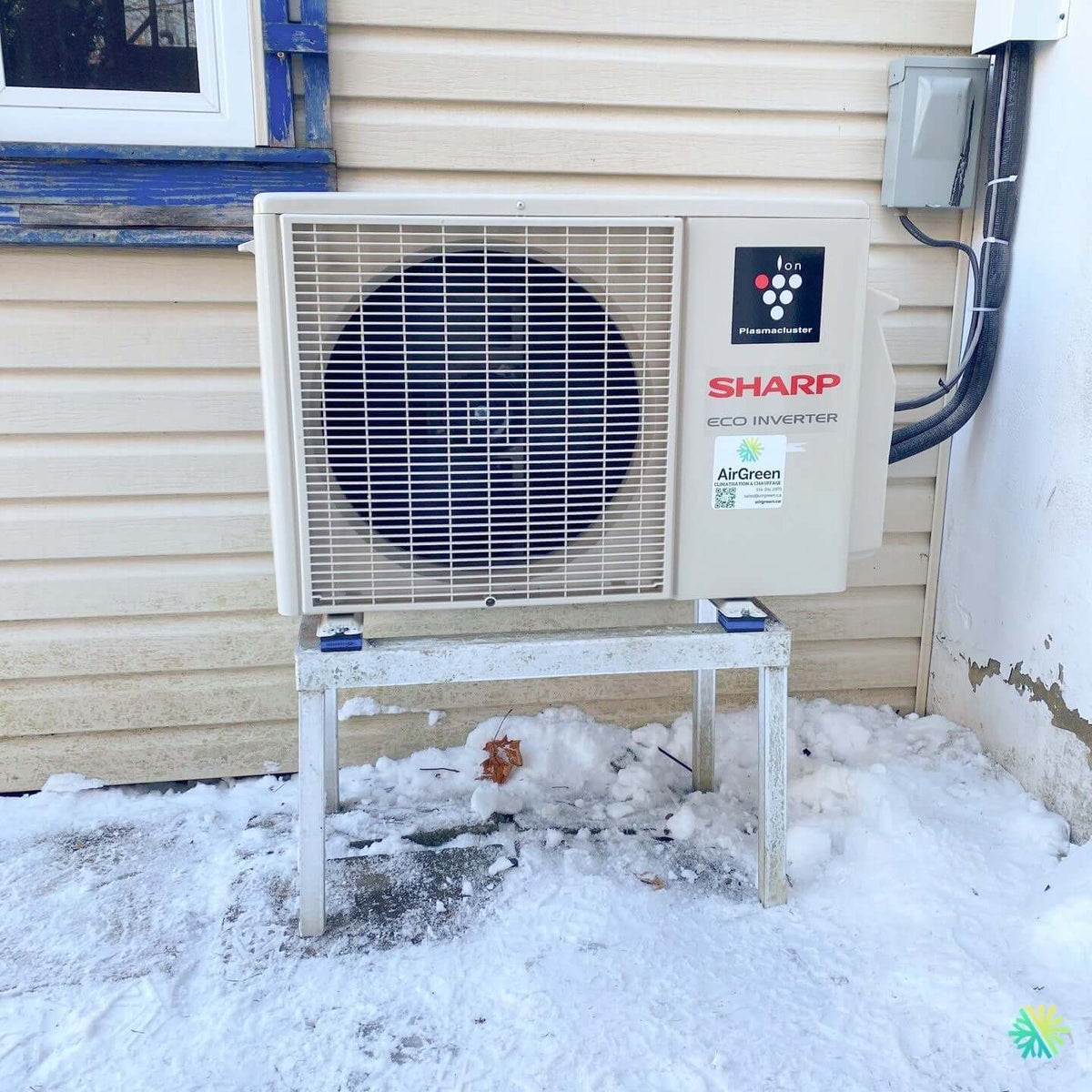

Mounting the outdoor unit on a galvanized steel bracket: elevated to avoid direct contact with snow.
-
Professional electrical connection: with dedicated circuit breaker and waterproof junction box.
-
Commissioning tests: verifying heating mode efficiency.
The outdoor unit, installed on an elevated base, allows for efficient condensate drainage even during frost periods, thanks to the multiple drainage holes designed by SHARP.
Challenges encountered and solutions provided
The installation required specific adaptation:
-
Old exterior wall with vinyl siding: we used adjustable spacers to ensure the perfect alignment of the wall unit.
-
Limited space between the house and the fence: the choice of the compact yet efficient SHARP ZU1 model proved ideal.
We also took care to properly insulate the refrigerant lines and use a UV-resistant rigid conduit to ensure maximum durability despite Quebec's harsh winters.
Immediate comfort and long-term savings
From the moment it was turned on, the SHARP ZU1 heat pump provided gentle and stable warmth throughout the living space, thanks to its Coanda diffusion technology and its wide louvers with manual (horizontal) and automatic (vertical) orientation.
The owner confirmed a noticeable reduction in energy consumption compared to the previous system, and above all a constant thermal comfort, even at -20°C.
A subsidized and smart investment
This model is eligible for Hydro-Québec's LogisVert subsidies, thanks to its high energy efficiency and its ability to maintain heating down to -27°C. We assisted the client in their application to maximize their return on investment.
AirGreen expertise serving North Shore families
This project in Blainville perfectly illustrates our ability to support homeowners in their energy renovation projects, with quality products, skilled labor, and rigorous after-sales service.
We select our products based on building configuration, household energy needs, and local climatic conditions. This is how we guarantee personalized, durable, and cost-effective installations.
Advice for future SHARP wall-mounted heat pump owners
-
Choose a model designed for Quebec's climate, such as the ZU1 series.
-
Check subsidy eligibility before purchase.
-
Ensure professional installation with pipe insulation and proper unit positioning.
-
Plan annual HVAC maintenance to preserve your system's efficiency.
Why choose AirGreen for your HVAC project?
✔ Certified installer for trusted brands like SHARP
✔ Field expertise throughout the North Shore, including Blainville, Boisbriand, Sainte-Thérèse, and more
✔ Comprehensive administrative support for subsidies and financing
✔ Local, fast, and reliable after-sales service
Conclusion
The installation of this SHARP ZU1 12,000 BTU wall-mounted heat pump in Blainville once again demonstrates our ability to provide four-season comfort, exceptional performance even at -27°C, and a high-quality installation designed for modern Quebec households.
The job tools
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
How the job unfolds
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What we check on a job like this one
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Good habits, once the unit is in place
Six simple habits that keep the unit going. Your list stays on this device.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
The right pages, at the right time
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
