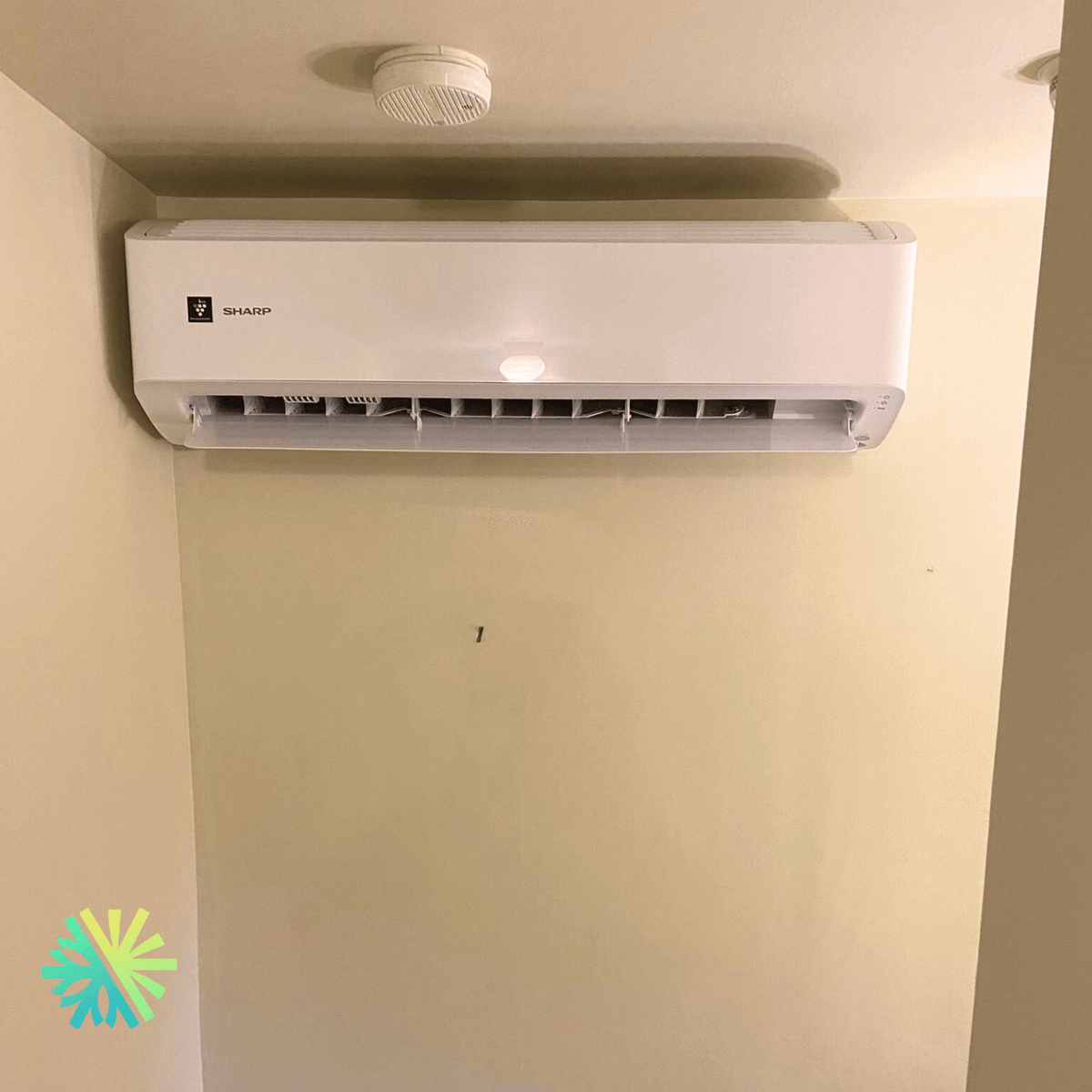

Installation of a Sharp ZU1 15,000 BTU Wall-Mounted Heat Pump in Dollard-des-Ormeaux
Experience unparalleled comfort with the Sharp ZU1 15,000 BTU heat pump. Installed in Dollard-des-Ormeaux, it offers top-tier efficiency, air purification, and grants up to $2,172!
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Efficient Comfort Meets Cutting-Edge Technology in DDO
At AirGreen, we are proud to highlight our latest HVAC project in Dollard-des-Ormeaux (DDO): the installation of a Sharp ZU1 15,000 BTU wall-mounted heat pump. This state-of-the-art system not only brings advanced heating and cooling performance to Quebec homes but also delivers unmatched air purification and energy efficiency. Here's everything you need to know about this exciting installation and why the Sharp ZU1 stands out as the ultimate choice for homeowners.
A Tailored HVAC Solution for DDO Homeowners
The homeowners in Dollard-des-Ormeaux were seeking a solution that could handle the extreme temperature fluctuations we experience here in Quebec—from blistering summers to harsh winters with temperatures plunging as low as -27°C. They wanted a system that would provide consistent comfort while being energy-efficient and environmentally friendly. After a thorough consultation, we recommended the Sharp ZU1, a model known for its 24.0 SEER efficiency, R-32 refrigerant, and Plasmacluster air purification technology.
Key Details of the Installation
Advanced System Features:
- Heating Capacity: Operational at temperatures as low as -27°C.
- Cooling Capacity: 15,000 BTU, ideal for mid-sized homes or individual zones.
- Energy Efficiency: Boasts an impressive 24.0 SEER, reducing energy costs year-round.
- Refrigerant: Uses environmentally-friendly R-32, cutting greenhouse gas emissions by 10% compared to older models.
- WiFi Connectivity: Allows seamless control via a smartphone app.
- Silent Operation: Interior sound pressure levels as low as 23 dB(A) ensure a peaceful home environment.
Technical Specifications:
- Interior Unit Dimensions: 41.42" x 9.80" x 12.44"
- Exterior Unit Dimensions: 30.72" x 10.59" x 21.25"
- Voltage: 220V for optimal performance in Quebec’s climate.
- Serial Numbers: Interior - AY-XP15ZU1; Exterior - AE-X15ZU1.
Eligibility for Hydro-Québec Grants:
This Sharp ZU1 model qualifies for the $2,172 LogisVert Grant, making it the most lucrative rebate for any 15,000 BTU heat pump in Quebec. This incentive further underscores its efficiency and eco-friendliness.
Why Choose the Sharp ZU1 for Your Home?
Exceptional Air Purification with Plasmacluster Technology
One of the standout features of the Sharp ZU1 is its Plasmacluster air purification system. This unique technology releases ions into the air, neutralizing viruses, bacteria, mold, and allergens. The result? Cleaner, healthier indoor air for you and your family. Homeowners in DDO with pets or allergies will particularly appreciate this feature, as it ensures a noticeable improvement in air quality.
Enhanced Comfort with Coanda Airflow Control
Traditional HVAC systems often struggle with maintaining uniform temperatures throughout the home. The Sharp ZU1 solves this with its Coanda airflow mechanism, which directs air along walls and ceilings to ensure even distribution. This eliminates cold spots in winter and hot zones in summer, creating a perfectly balanced environment.
Built for Quebec Winters
With Hot Gas Pipe technology, this heat pump can operate efficiently even during Quebec's harshest winters. The system prevents the outdoor unit from freezing and shortens defrost cycles by 60%, ensuring uninterrupted heating when you need it most.
Installation Highlights
The installation process in DDO was smooth and precise, thanks to our experienced AirGreen technicians. Here's how we executed the project:
-
Site Assessment and Preparation: We carefully evaluated the home’s layout to determine the best placement for the indoor and outdoor units. The interior unit was strategically installed in a central location to maximize airflow efficiency.
-
Outdoor Unit Placement: The compact exterior unit was mounted on a sturdy stand, ensuring it remains elevated and protected from snow accumulation during winter.
-
Piping and Connectivity: We used high-quality 1/4" - 3/8" piping to connect the indoor and outdoor units, ensuring efficient refrigerant flow. The system was also seamlessly integrated with the home’s WiFi for remote control.
-
Performance Testing: After installation, we conducted rigorous testing to verify the system’s cooling and heating capabilities, airflow distribution, and energy efficiency.
Customer Benefits and Feedback
The homeowners were thrilled with their new heat pump, praising its quiet operation, energy savings, and ability to maintain consistent temperatures throughout their home. They were particularly impressed with the air purification system, which provided an immediate improvement in indoor air quality.
Why Choose AirGreen for Your HVAC Needs?
At AirGreen, we don’t just install HVAC systems—we deliver customized comfort solutions. Here’s what sets us apart:
- Expertise in Advanced Systems: We stay updated on the latest technologies, ensuring our clients receive cutting-edge solutions like the Sharp ZU1.
- Commitment to Sustainability: We prioritize energy-efficient and eco-friendly systems that reduce your carbon footprint.
- Seamless Grant Assistance: Navigating government rebates can be complicated. We simplify the process, ensuring you get the maximum incentives available.
- Exceptional Customer Service: From consultation to installation and maintenance, we’re with you every step of the way.
Take Advantage of the $2,172 LogisVert Grant Today
The Sharp ZU1 15,000 BTU heat pump isn’t just a system—it’s an investment in your home’s comfort, health, and energy efficiency. And with the LogisVert Grant, there’s never been a better time to upgrade your HVAC system. Contact AirGreen today to schedule your consultation and discover how we can transform your home into a haven of comfort.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
