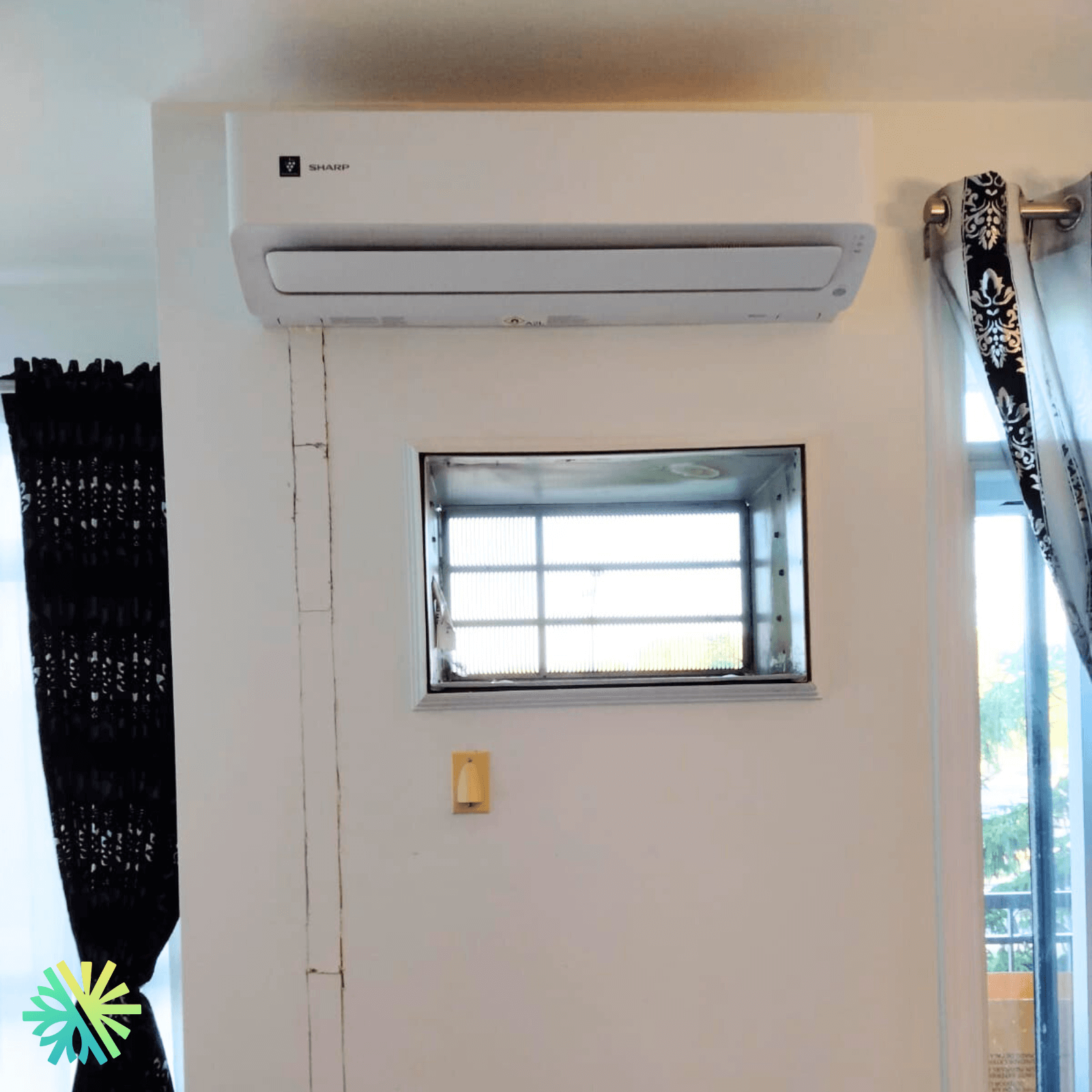

Installation of a Sharp ZU1 Mini Split Heat Pump in Île-Bizard–Sainte-Geneviève
Explore our latest Sharp ZU1 Mini Split installation—experience whisper-quiet comfort, eco-friendly heating at -27°C, and exclusive energy-saving features.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A Seamless Integration for Unmatched Comfort
At AirGreen, we pride ourselves on providing top-notch HVAC solutions tailored to our clients' specific needs. Recently, we completed the installation of a Sharp ZU1 Mini Split Heat Pump in the beautiful area of Île-Bizard–Sainte-Geneviève, and we’re thrilled to share the story behind this project. This isn’t just any heat pump installation—it’s a remarkable transformation in home comfort that showcases the precision and reliability that Sharp brings to the table.
Project Overview
Our client reached out with a simple request: improve indoor air quality and maintain a consistent, efficient climate year-round. Given the area's cold winters and warm summers, we recommended the Sharp ZU1 Mini Split Heat Pump. Known for its efficiency and robust performance, this model boasts a cooling capacity of 18,000 BTU and a heating capacity that functions seamlessly at temperatures as low as -27°C.
Key Installation Details:
- Type: Ductless Mini Split Heat Pump
- Location: Île-Bizard–Sainte-Geneviève
- Brand: Sharp
- Model: ZU1 (Energy Star® Certified)
- Efficiency: 24.0 SEER, setting the benchmark for energy-saving capabilities
- Admissible Grant: Eligible for the highest LogisVert Grant of $2,640, making it an excellent choice for homeowners looking to maximize their investment while benefiting from eco-friendly heating and cooling.
Why We Chose the Sharp ZU1 for This Installation
The Sharp ZU1 Mini Split is not only a top-tier choice for efficiency but also a quiet champion for comfort. With an interior sound pressure level ranging from 25 to 49 dB(A), it operates so quietly that you might forget it’s there—except when you feel the perfect temperature it provides.
Advanced Technology for Modern Living
Sharp’s signature Plasmacluster Ion Technology stands out in the ZU1 model. This groundbreaking feature releases ions to purify the air, neutralizing allergens, viruses, and odors. It’s a game-changer for homes with sensitive occupants or anyone who values pristine indoor air quality.
- Cooling Mode: Distributes fresh, cool air with precision, avoiding the discomfort of direct airflow.
- Heating Performance: When temperatures plunge to -27°C, the heat pump continues to deliver consistent warmth. The advanced “Hot Gas Pipe” system ensures reliable defrosting, keeping the unit ice-free and efficient.
Installation Challenges and Solutions
No installation is without its challenges, and this project presented unique obstacles. The location’s structural layout required careful planning to ensure optimal unit placement and airflow distribution. The indoor unit, with its sleek design and compact dimensions (41.42 x 9.80 x 12.44 inches), was mounted securely to blend effortlessly into the room. The exterior unit was strategically installed to minimize exposure to harsh weather while ensuring easy access for future maintenance.
We also faced the task of routing the refrigerant lines efficiently. Using high-quality pipes of 1/4 and 3/8 inches, we secured the lines to prevent potential leaks and optimize performance. The unit’s R-32 refrigerant was another eco-conscious choice, reducing environmental impact while enhancing cooling and heating efficiency.
The Benefits of Choosing AirGreen for Your HVAC Needs
When it comes to HVAC installations, our expertise goes beyond simple setups. We focus on meticulous planning, precision execution, and post-installation support. Here’s why partnering with us makes a difference:
- Expert Knowledge: Our team understands the intricacies of modern HVAC technology. We ensure every component is installed to maximize efficiency and lifespan.
- Commitment to Quality: We use only the best materials, ensuring durability and reliability. From the Sound Pressure Level Optimization to seamless WiFi integration, every aspect of the Sharp ZU1 was carefully calibrated.
- Customer-Centric Approach: We work closely with homeowners to choose solutions that fit their needs and budgets. Our installations are not only functional but also visually appealing, enhancing the overall aesthetic of the home.
What Sets the Sharp ZU1 Apart?
Energy Efficiency and Cost Savings
One of the biggest advantages of the Sharp ZU1 is its inverter technology. Unlike traditional systems that power on and off, the inverter modulates the compressor speed, reducing energy consumption once the desired temperature is reached. Homeowners can enjoy a comfortable home environment while witnessing a significant reduction in their energy bills.
Whisper-Quiet Operation
Gone are the days of noisy HVAC units disrupting your peace. The Sharp ZU1’s interior sound pressure level starts at a whisper-quiet 25 dB(A), making it perfect for bedrooms, living areas, or any space where silence is golden.
Unmatched Warranty for Peace of Mind
We understand that investing in a high-quality heat pump is a big decision. That’s why the Sharp ZU1 comes with a 10-10-10 warranty: 10 years on the compressor, 10 years on parts, and 10 years on labor. This comprehensive warranty reflects the confidence we—and Sharp—have in this product's durability and performance.
Final Thoughts
Our latest installation in Île-Bizard–Sainte-Geneviève exemplifies AirGreen's commitment to excellence and innovation. The Sharp ZU1 Mini Split Heat Pump is more than just a climate control system; it’s a sophisticated, eco-friendly solution that enhances indoor living. If you’re considering upgrading your home’s heating and cooling, let us guide you through the process and transform your comfort experience.
Ready to enjoy the comfort and savings of a Sharp ZU1 Mini Split? Contact AirGreen today for a consultation. We’re here to make your home the perfect haven, no matter the weather.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
