Installation of a Sharp ZU1 wall-mounted heat pump in Rosemont–La Petite-Patrie
Discover this residential installation of a Sharp wall-mounted heat pump in Rosemont–La Petite-Patrie: unit installed high up, discreet casing, optimized air diffusion and reliable comfort for both summer and Montreal winter.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
In a typical Rosemont–La Petite-Patrie apartment, the requirements are almost always the same: quick, quiet comfort and a clean installation that doesn't detract from the rooms' aesthetics. The photo shows a Sharp wall-mounted unit installed high up, near the ceiling, in a corner , with the pipe outlet discreetly concealed to the right. This is exactly the kind of configuration we at AirGreen prefer when the goal is twofold: performance and aesthetic integration .
This article explains what this type of installation entails, why aSharp wall-mounted heat pump is an excellent choice for Montreal, and what to check to ensure lasting efficiency — summer and winter.
A Sharp wall-mounted heat pump: the logical choice for 4-season comfort in Montreal

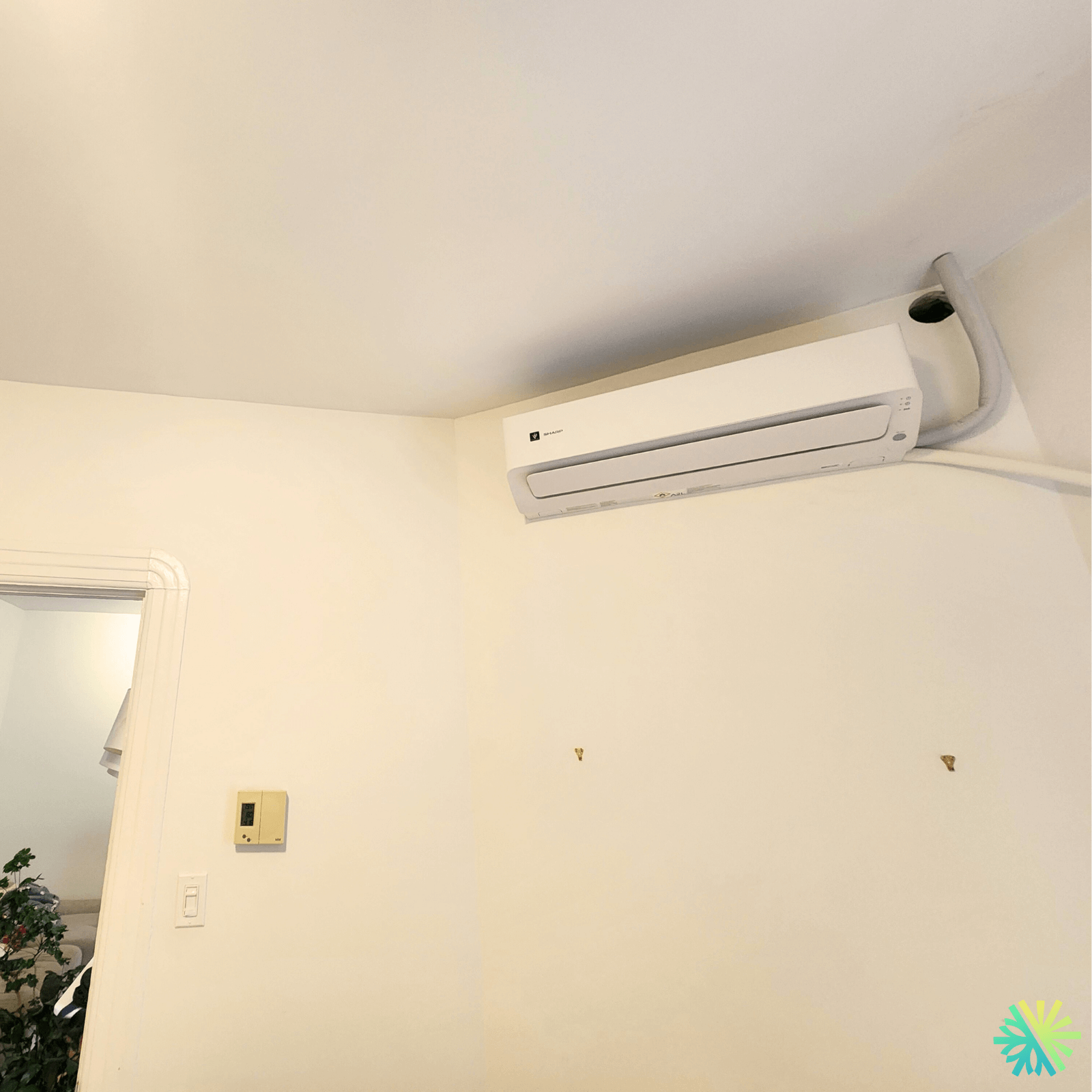

The system shown in the photo is a wall-mounted heat pump (mini-split) : a compact indoor unit, mounted high on the wall, that distributes air evenly, without ductwork. It's a very popular solution in Montreal because it perfectly meets local needs.
-
Humid heat in summer : efficient, stable, pleasant air conditioning.
-
Unpredictable intermediate seasons (autumn/spring): rapid heating without overconsumption.
-
Quebec winter : maintaining comfort thanks to a heat pump designed to work in cold conditions, with intelligent temperature management.
For this project, the brand is Sharp (to be used as a reference). And in terms of model, the unit aligns very well with a wall-mounted heat pump from the Sharp ZU1 series (a consistent model frequently installed in Greater Montreal residences).
Why is the location (high up, near the ceiling) so important?
In the photo, the wall unit is installed very high , almost on the ceiling, and near a corner . This position was not chosen at random:
-
Improved air circulation
-
At a higher level, the treated air (hot or cold) mixes better with the volume of the room.
-
We avoid “dead zones” where air stagnates.
-
-
Comfort without harsh drafts
-
The orientation of the flap and the angle of the blowing allow for natural circulation, rather than blowing directly on the occupants.
-
-
Space saving and aesthetics
-
We free up the “useful” walls (furniture, frames, TV, storage).
-
The result is visually cleaner, especially in a bright interior like that of Rosemont.
-
Visible installation details: a clean finish, designed to last
Several visual elements indicate a meticulous installation:
1) Discreet pipe cover to the right
A cover (gutter) is clearly visible, protecting and concealing the refrigerant lines and the drain line. This is essential for:
-
protect the pipes,
-
to facilitate maintenance,
-
maintain a clean look (especially on a white wall).
2) Passage of lines near the ceiling
The route is optimized: the more direct and well-planned it is, the more we limit:
-
performance losses,
-
the risks of vibration,
-
the “improvised” finishes that age poorly.
3) Positioning away from obstacles
Note that the unit is not attached to a door frame: this is important because:
-
maintain good air intake/exhaust clearance
-
avoid resonance noise,
-
simplify access for maintenance (cleaning, filters, inspection).
Performance and efficiency: what the Sharp range brings to everyday life
A properly sized and installed Sharp wall-mounted heat pump makes a real difference in everyday life:
-
Stable temperature : no more “too hot / too cold” fluctuations.
-
Quiet comfort : ideal for bedroom, living room, home office.
-
Precise control : quick adjustments according to sunlight, occupancy, cooking, etc.
-
Energy efficiency : consumption is better controlled than with an auxiliary electric heater used “continuously”.
In neighborhoods like Rosemont–La Petite-Patrie, where there are many multi-story homes, duplexes, triplexes, and condo units, a Sharp mural offers an excellent balance between performance and simplicity .
What we systematically check at AirGreen on this type of project
A clean installation starts even before drilling into the wall. For this type of interior setup, here are our usual checkpoints:
-
Location selection : air circulation, distance from corners, living areas, aesthetic constraints.
-
Pipe routing : as short and logical as possible, while protecting the finishes.
-
Condensate drainage : correct slope, reliable drainage, prevention of backflow.
-
Level and fixing : stable support, vibration reduction.
-
Waterproofing and testing : rigorous control to ensure performance and longevity.
-
Commissioning : validation of operation, modes, temperature, blowing, instructions.
Our goal: that the client has an efficient , discreet system, without any unpleasant surprises after a few weeks of use.
Rosemont–La Petite-Patrie: a neighbourhood where the wall-mounted heat pump makes perfect sense
Rosemont is an excellent example of a Montreal neighbourhood where a wall-mounted heat pump is often the best option:
-
The rooms can be closed or semi-open : a well-placed wall effectively covers a large area.
-
Buildings sometimes have varying levels of insulation depending on their age: the heat pump helps to stabilize comfort.
-
Several occupants want to avoid major work : here, there is no network of pipes to redo — the aim is efficiency with a controlled intervention.
And if the residence has several comfort zones (e.g., upper floor + ground floor), multi-unit or multi-zone strategies can also be considered — but in many cases, a well-chosen Sharp mural is already a huge gain.
Maintenance: the simple step that protects your investment
Even an excellent heat pump needs maintenance. To maintain high efficiency and healthy air quality:
-
Filter cleaning : regular (depending on use, pets, dust).
-
Deep cleaning : recommended periodically to prevent internal fouling.
-
Drainage inspection : preventing odors, leaks, blockages.
-
General check : noise, airflow, temperature stability, connection status.
At AirGreen, we offer maintenance visits tailored to residential properties throughout Greater Montreal (Montreal, Laval, North Shore, South Shore), with a simple approach: performance + cleanliness + peace of mind .
Conclusion: a clean, efficient, and perfectly integrated Sharp installation
This installation in Rosemont–La Petite-Patrie perfectly illustrates what we love to deliver: a Sharp wall-mounted heat pump ( Sharp ZU1 model), installed in the right location, with discreet piping and a clean finish. The result: year-round comfort, improved energy efficiency, and an aesthetically pleasing integration that respects the space.
If you are in Montreal (or Laval / North Shore / South Shore) and you want an installation of the same level, AirGreen takes care of the project from A to Z: recommendation, sizing, installation, commissioning, and maintenance.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What the unit delivers when it is cold
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
