Installation of a Sharp ZU1 wall-mounted heat pump in Rosemont–La Petite-Patrie (Montreal)
AirGreen completed the installation of a Sharp wall-mounted heat pump in Rosemont–La Petite-Patrie , with a neat finish (clean duct), optimized air distribution and reliable comfort for heating and air conditioning in Montreal.
- City
- Region
- Equipment
- Brand
- Challenges
- Published
The job on one screen
The unit’s data sheet
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The article, chapter by chapter
In a neighbourhood like Rosemont–La Petite-Patrie , comfort isn't a luxury; it's a necessity. Between dry winters, unpredictable thaws, summer heat waves, and the humidity fluctuations typical of Montreal, an HVAC system must be reliable , quiet , and efficient . At AirGreen , we recently installed aSharp wall-mounted heat pump in a residential unit in the area—a configuration very representative of Montreal homes: well-defined rooms, finished walls, a refined aesthetic, and the need for a discreet unit that blends in without disrupting the décor.

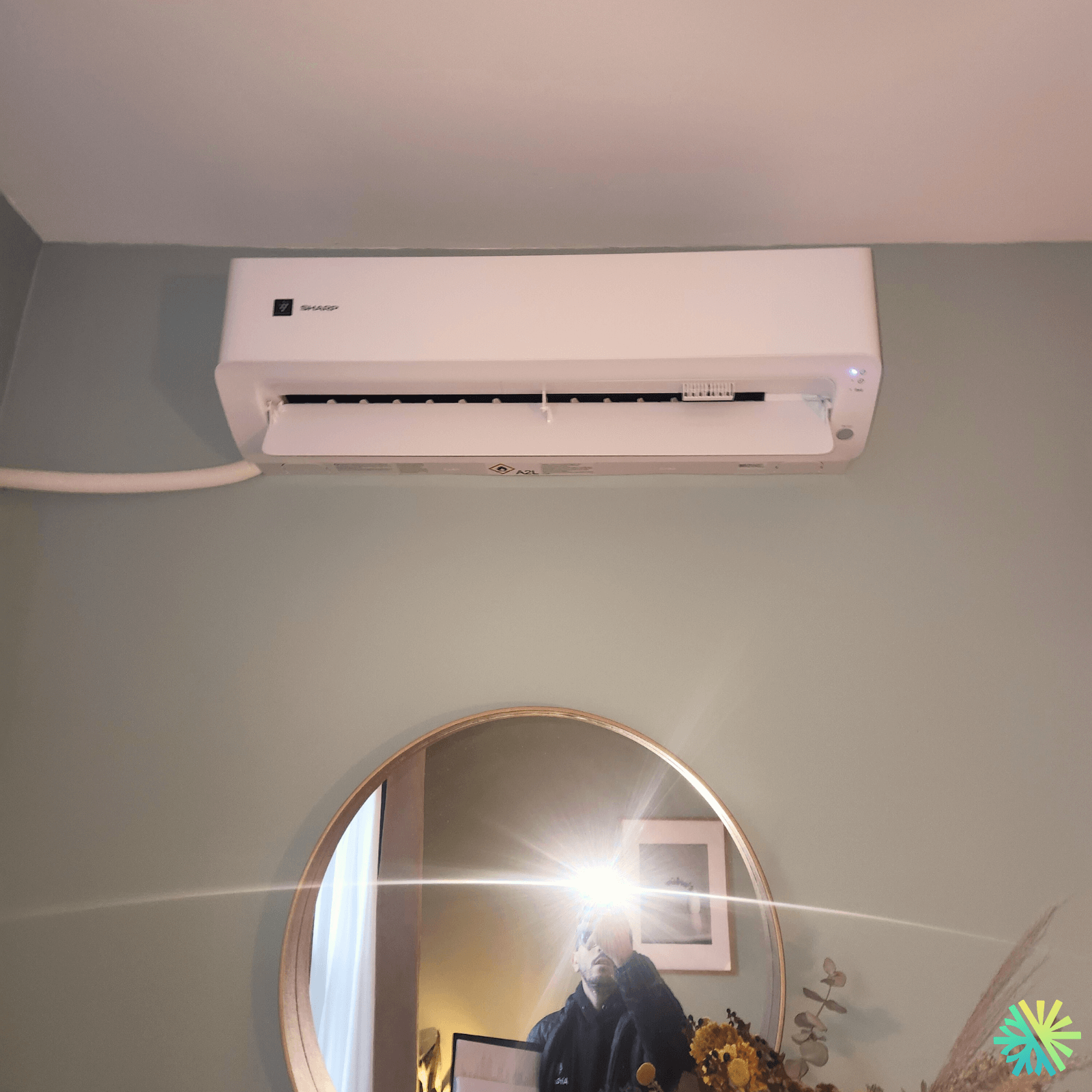

The photo perfectly illustrates this type of project: a wall-mounted indoor unit , installed high up, with a clean white channel for the piping and wiring, and a layout designed to offer stable air diffusion, without unpleasant drafts.
Why a Sharp wall-mounted heat pump is an excellent choice in Montreal
Wall-mounted heat pumps (mini-split) remain one of the most popular solutions in Montreal for one simple reason: they offer heating + air conditioning with very good energy efficiency, without having to redo an entire distribution of ducts.
With a brand like Sharp , the aim is generally:
-
stable heating operation during cool periods;
-
a responsive air conditioning mode for hot and humid days;
-
superior acoustic comfort (very important in condo, bedroom or living room);
-
improved filtration and air quality (depending on the range and options).
In the context of Rosemont, where many homes have closed rooms and varying insulation depending on the year of construction, the wall-mounted heat pump allows for precise targeting of the main comfort zone (living room, open area, large bedroom, etc.), while controlling consumption.
The installed system: Sharp wall-mounted heat pump (consistent model: Sharp ZU1 )
Based on the format of the visible indoor unit (compact wall head, understated design, standard residential installation), the most consistent choice in the Sharp range for this type of project is a Sharp ZU1 ( R-32 wall range, often used in residential settings).
Without overloading the article with unnecessary figures, this type of installation very often corresponds to capacities like 12,000 BTU or 18,000 BTU , depending on:
-
the surface area of the main area,
-
sunshine,
-
insulation,
-
the height of the ceilings,
-
and the presence (or absence) of an open area.
At AirGreen, sizing always aims for a balance: performance + comfort + efficiency , without unnecessarily oversizing.
Prominent installation details that can be observed (and why they matter)
1) Install at a height, in the right place
The indoor unit is installed near the ceiling , which is ideal for:
-
improved airflow projection ,
-
a more even distribution throughout the room,
-
a reduction in the sensation of “direct wind” on the occupants.
This height also allows for usable wall space below (mirror, furniture, decor), which is exactly what is sought after in Montreal interiors where every square foot counts.
2) Clean finishing trunking (piping + wiring)
We can clearly see a white channel leading to the left: it's a detail that seems simple, but makes all the difference.
A properly installed cable tray is:
-
an aesthetically pleasing finish (especially in a well-maintained space),
-
mechanical protection of the refrigeration connection,
-
an installation that is easier to maintain (clear path, logical access),
-
a “clean” finish that avoids the impression of a DIY job.
3) Optimized airflow and ventilation
The clearance in front of the unit is good: nothing is blocking the air outlet. As a result, the air circulates better, the unit works less hard, and the room reaches the set temperature more quickly.
This is a crucial point, because a poorly positioned wall-mounted head can create:
-
hot/cold zones,
-
a feeling of discomfort,
-
more frequent cycles,
-
and higher consumption.
Our AirGreen approach: an installation designed to last
A wall-mounted heat pump is not simply a matter of “hanging a unit on the wall”. To ensure the system performs well and is reliable in the long term, we apply a rigorous method at every stage.
Step 1 — Preparing and protecting the space
In a finished interior (painted walls, decor, furniture), cleanliness and protection are non-negotiable:
-
surface protection,
-
Dust control,
-
management of perforations with a clean finish,
-
Complete cleaning at the end of the work.
Step 2 — Secure and vibration-resistant mounting
The unit must be perfectly stable, securely anchored, and installed in such a way as to minimize:
-
micro-vibrations,
-
background noise,
-
movements of chutes or pipes.
In an urban dwelling like Rosemont, sound comfort is often a major criterion: you want a heat pump that you forget about , not an appliance that you hear.
Step 3 — Refrigeration connections, drain and sealing
A reliable installation requires:
-
a properly sized refrigeration connection,
-
a properly installed condensate drain,
-
careful sealing at the point of penetration,
-
a logical path (hence the importance of a clean and well-aligned chute).
Step 4 — Commissioning and checks
The commissioning includes, in particular:
-
functional tests (heating and air conditioning),
-
checking the stability of the blowing,
-
drainage control,
-
validation of basic settings,
-
explanations to the customer on optimal use.
Everyday comfort: what the customer feels after installation
With a properly installed Sharp wall-mounted heat pump, the benefits are immediate:
-
Stable temperature : no more heat "roller coaster" fluctuations.
-
Efficient heating in mid-season: autumn and spring become much more comfortable.
-
Rapid air conditioning in summer: lower humidity and more pleasant air, especially at night.
-
Silence : a crucial point in rest areas and adjoining dwellings.
-
Simple control : modes, settings, ventilation, directions… everything becomes more intuitive.
And most importantly: when the installation is done properly, the device blends into the decor without attracting attention — exactly as seen here.
Maintenance tips (simple, but essential)
To maintain the performance of a wall-mounted heat pump, we recommend:
-
Light cleaning of the filters (regular, depending on usage and dust).
-
Keep the area uncluttered (curtains, tall furniture, objects).
-
Avoid drastically varying the setpoint (better efficiency in stability).
-
Plan for more comprehensive periodic maintenance : coils, turbine, drainage, general checks.
At AirGreen, you can schedule maintenance that extends the life of the system and helps maintain optimal performance, especially in an urban environment where dust and fine particles can accumulate more quickly.
Why choose AirGreen to install a Sharp heat pump in Rosemont?
In Montreal, the difference between “a decent device” and “exceptional comfort” often comes down to the quality of the installation .
By choosing AirGreen you get:
-
a clean and neat installation,
-
a genuine concern for aesthetics (cable trays, alignment, finishes),
-
an approach focused on comfort and durability ,
-
a team accustomed to the constraints of Montreal housing (finished walls, limited spaces, acoustic requirements).
Conclusion: a discreet, high-performing installation, perfectly suited to Rosemont
This Sharp wall-mounted heat pump installation (Sharp ZU1 type) in Rosemont–La Petite-Patrie represents exactly what we aim for at AirGreen: an efficient , quiet system, well integrated into the space, and ready to face both the humid summer and the Quebec winter.
If you live in Montreal (Rosemont, Villeray, Plateau, Ahuntsic, Verdun, Ville-Marie, etc.) and are looking for a reliable year-round comfort solution, a well-sized and well-installed wall-mounted heat pump remains one of the best possible HVAC investments.
The job tools
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
How the job unfolds
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What we check on a job like this one
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Good habits, once the unit is in place
Six simple habits that keep the unit going. Your list stays on this device.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
The right pages, at the right time
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
An on-site estimate, the right capacity, the right equipment.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
