Installation of a SHARP ZU1 Wall-Mounted Heat Pump in Le Sud-Ouest, Montréal
Discover how the SHARP ZU1 heat pump installation in Le Sud-Ouest brings advanced cooling, heating, and air purification to Montreal homes, backed by a $2,640 Hydro-Québec grant!
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Maximizing Comfort with Advanced Technology: The Installation of an 18,000 BTU SHARP ZU1 Mini Split in Montréal’s South-West
At AirGreen, we take pride in delivering state-of-the-art HVAC solutions across Montréal, Laval, Longueuil, North Shore, and South Shore. Our recent installation of an 18,000 BTU SHARP ZU1 wall-mounted heat pump in Le Sud-Ouest, Montréal, exemplifies our commitment to quality, efficiency, and comfort. This project didn’t just bring in another heat pump; it brought the pinnacle of Japanese technology, reliability, and winter resilience right into our customer’s living space.
The Need: A High-Efficiency System for Montreal’s Varied Climate
Montreal’s climate poses unique challenges with its hot, humid summers and brutally cold winters. Our client, located in Le Sud-Ouest area, sought an HVAC solution that could not only provide reliable cooling in summer but also perform optimally in winter. After assessing the needs, the SHARP ZU1 model was a clear choice due to its -27°C heating capability—a significant feature that makes it well-suited for extreme cold conditions.
Why the SHARP ZU1? A Closer Look at Its Features
This 18,000 BTU SHARP ZU1 wall-mounted mini split is packed with features designed to deliver optimal performance and comfort all year round. Here are some highlights that make it a standout:
- Energy Efficiency: With an impressive 24.0 SEER rating, the ZU1 minimizes energy consumption while maximizing output, leading to significant savings on utility bills.
- Quiet Operation: Designed to operate quietly, the interior unit emits as low as 25 dB(A), providing a peaceful environment inside the home.
- Plasmacluster™ Ion Technology: SHARP’s unique Plasmacluster Ion Technology purifies the air by neutralizing airborne bacteria, viruses, and allergens, ensuring healthier air quality.
- Extended Warranty: Comes with an extended 10-year warranty on compressor, parts, and labor, guaranteeing peace of mind for the long haul.
- WiFi-Enabled: The built-in WiFi capability allows for remote control and easy programming through SHARP’s app, enhancing convenience.
Installation Process: Ensuring Precision and Care
Installing an HVAC unit, especially one as sophisticated as the SHARP ZU1, requires meticulous planning and expert handling. Our team of certified professionals at AirGreen undertook the project with great attention to detail:
- Site Assessment and Preparation: Before installation, our technicians conducted a thorough site survey to determine the best placement for both the indoor and outdoor units. Proper positioning is crucial to ensure optimal airflow and energy efficiency.

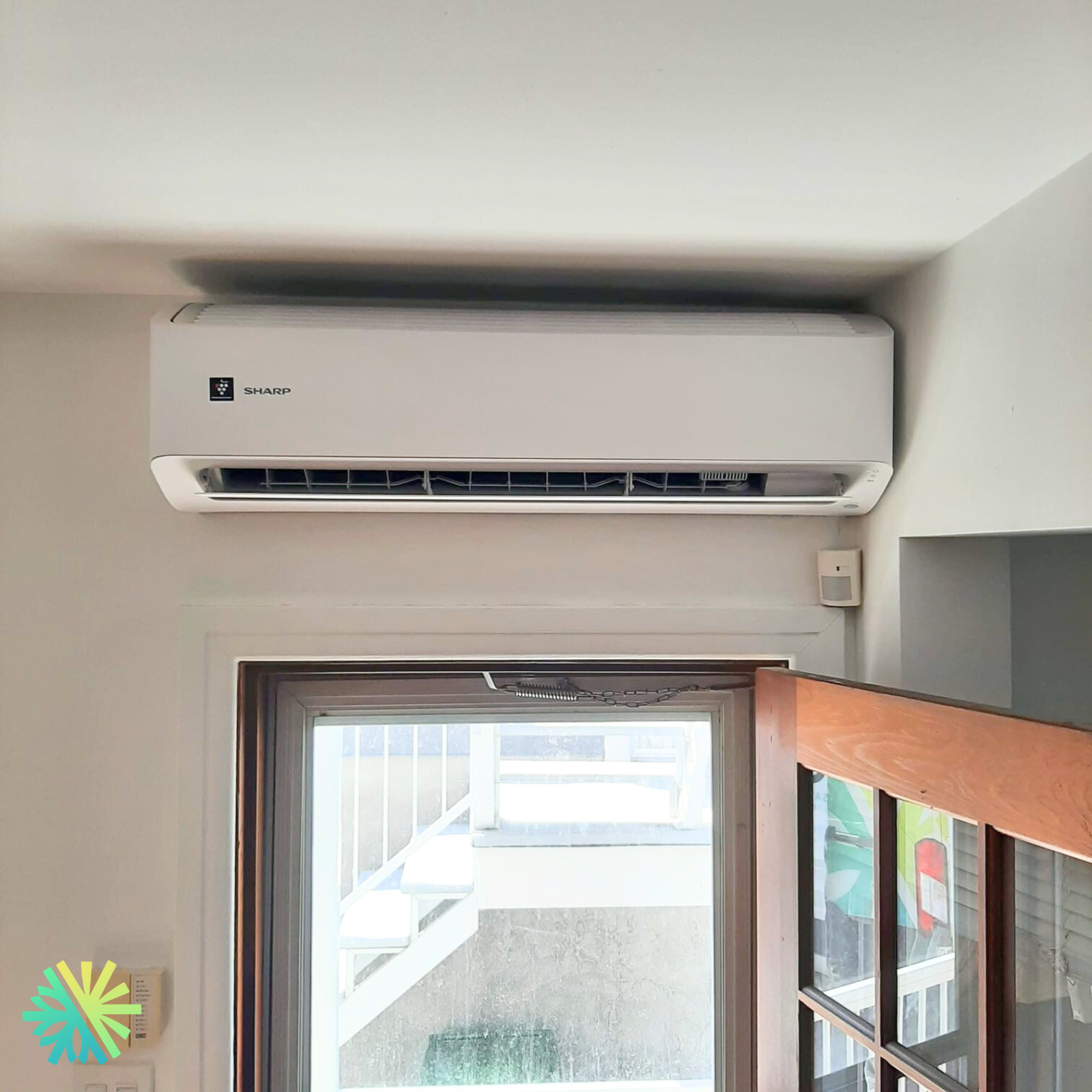

- Mounting the Indoor Unit: The indoor unit, measuring 41.42 x 9.80 x 12.44 inches, was installed above the entryway to maintain unobstructed airflow while complementing the room’s layout. This model’s sleek design integrates seamlessly into modern home interiors.
- Outdoor Unit Placement: The exterior unit (33.47 x 13 x 27.94 inches) was securely mounted to withstand harsh weather, ensuring longevity and optimal performance even in temperatures as low as -27°C.
- Piping and Wiring: Precision was key when laying the refrigerant piping and wiring connections. Using R-32 refrigerant, known for its low environmental impact, aligns with our commitment to eco-friendly solutions.
- System Testing and Calibration: After installation, we thoroughly tested and calibrated the system to ensure it delivered the expected performance metrics, including sound levels, energy efficiency, and heating capacity.
Eligible for Hydro-Québec’s Highest LogisVert Grant
One of the notable advantages of the SHARP ZU1 installation is its eligibility for Hydro-Québec’s LogisVert Grant, a rebate of $2,640—the highest amount offered for heat pumps in the 18,000 BTU category. This grant reflects Hydro-Québec’s recognition of high-efficiency systems that contribute to energy savings, making it an attractive option for homeowners looking to reduce their upfront costs.
Customer Satisfaction: A Testament to AirGreen’s Quality
After the installation, our client was delighted with the efficiency, quiet operation, and air quality improvements brought by the SHARP ZU1. The advanced Plasmacluster™ Ion Technology was a particular favorite, as it made a noticeable difference in air freshness and purity. The easy-to-use app-based controls added an extra layer of convenience, allowing them to adjust settings remotely and view energy consumption insights.
Key Benefits of the SHARP ZU1 for Montreal Homes
Installing a SHARP ZU1 heat pump in Montreal brings multiple benefits for homeowners, especially given the city’s climate demands:
- Year-Round Comfort: With the ability to handle extreme temperatures, the SHARP ZU1 provides cooling in summer and reliable heating even during frigid winters.
- Lower Carbon Footprint: Thanks to its R-32 refrigerant and high SEER rating, this unit minimizes environmental impact while reducing energy bills.
- Smart Features: The WiFi-enabled functionality allows for remote monitoring and control, making it an ideal choice for tech-savvy homeowners.
- Healthier Indoor Air: SHARP’s Plasmacluster Ion Technology not only purifies the air but also reduces odors and static electricity, creating a more comfortable living environment.
Choosing AirGreen for Your HVAC Needs
At AirGreen, we believe in more than just installation; we’re committed to providing exceptional customer experiences, from consultation to post-installation support. Our team of skilled HVAC professionals ensures that each installation is tailored to meet the unique needs of every client. With years of expertise, we specialize in installing reliable, energy-efficient systems that guarantee comfort and peace of mind.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
