Installation of a GREE FREE MATCH R32 TripleZone heat pump in Sainte-Dorothée, Laval – 3-zone system, 3 wall units for a house with space constraints

A multi-zone installation in Sainte-Dorothée where the precision of the location made all the difference

In Sainte-Dorothée, in the west of Laval, our AirGreen team completed the installation of a TripleZone heat pump GREE FREE MATCH R32, consisting of 3 zones and 3 wall units. This type of project is particularly interesting when a house has several spaces to cool or heat separately, but the available walls, openings, windows, electrical panels, and decorative elements limit installation possibilities.

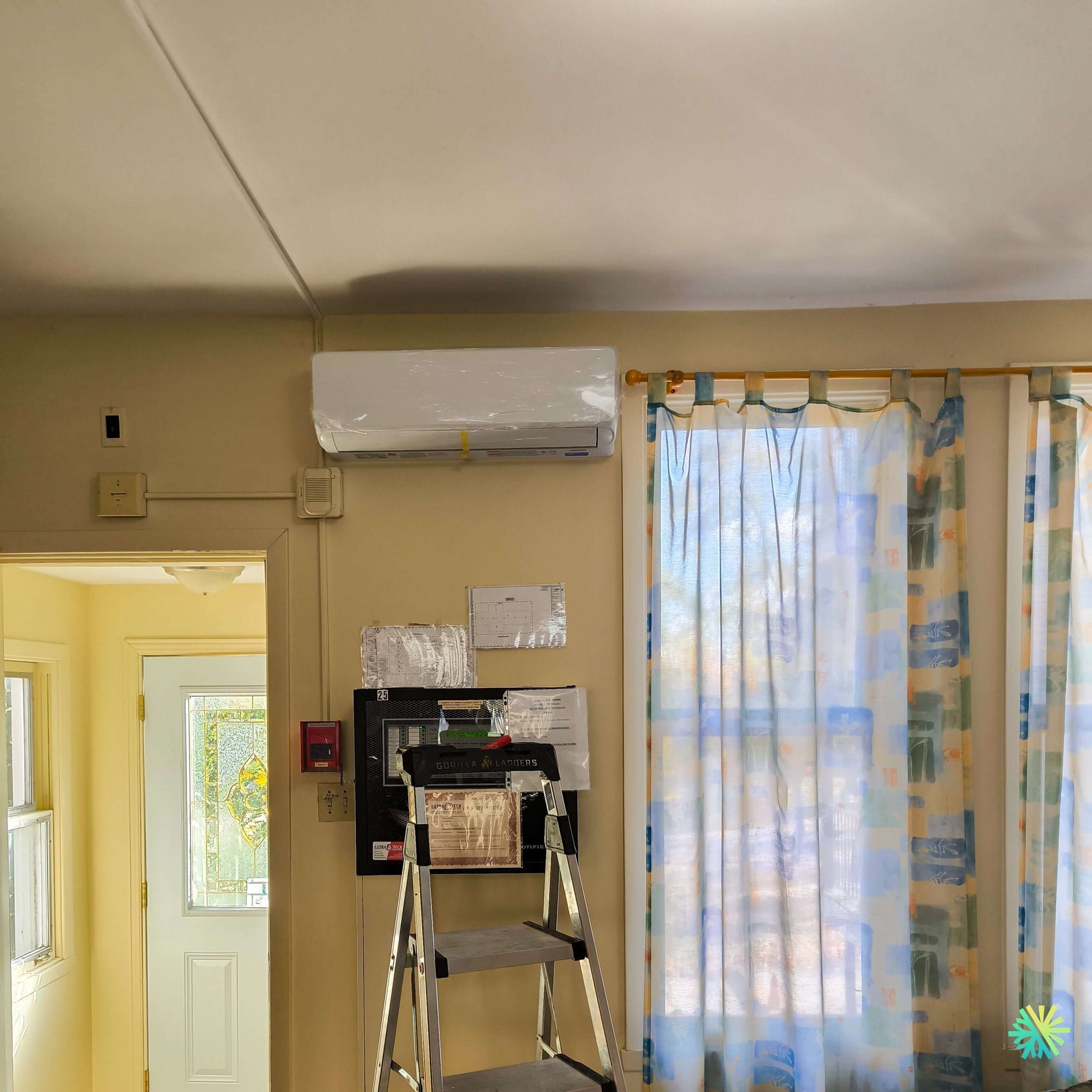

The photo of this installation shows one of the GREE wall units installed high up, above an electrical panel, near a large window with curtains, and close to an entry corridor. The unit is still protected by its transparent film, indicating that the photo was taken during or just after the finishing stages. We also notice the work ladder in the center of the scene, the temporarily protected documents on the panel, and the visible ducts already present on the wall. These details provide a concrete glimpse of the real work behind a residential HVAC installation: you have to work with what exists, protect surfaces, respect clearances, choose an effective location, and deliver a clean result.

In this Sainte-Dorothée residence, the goal was to create independent comfort in three distinct zones of the house, while maintaining acceptable interior integration in an already furnished space. The choice of a GREE FREE MATCH R32 system was consistent with this need: a single outdoor unit can supply multiple wall units, which reduces outdoor clutter and allows occupants to manage the temperature room by room.

Why a TripleZone heat pump was suitable for this house in Laval

Houses in Sainte-Dorothée often have varied layouts: open rooms, extensions, living rooms with large windows, floors, narrow corridors, areas less well served by the existing system, and spaces that react differently depending on sunlight. A single wall unit is not always enough to ensure uniform comfort. In some cases, it makes one room too cool while another remains too warm. In other cases, it forces occupants to keep doors open to try to balance the temperature.

The TripleZone heat pump – 3 zones – 3 heads avoids this type of compromise. Each indoor head serves a specific zone, with its own control. Occupants can thus adjust the temperature according to the actual use of each space: living area, bedroom, office, basement, or family room.

This multi-zone approach is highly appreciated in residential projects in Laval, but also in Montreal, Longueuil, on the North Shore and on the South Shore, where houses were not all originally designed to receive a modern central system. A multi-zone wall solution often improves comfort without undertaking major ductwork.

The GREE FREE MATCH R32 model: a flexible solution for three zones

The GREE FREE MATCH R32 system is designed to connect multiple indoor units to a single outdoor unit. In this installation in Sainte-Dorothée, the configuration was designed to meet the needs of three comfort zones. The BTU capacities are determined according to the thermal load of each space, area, ceiling height, insulation, house orientation, and daily use of the rooms.

The refrigerant R32 used in this range is part of current technologies in the sector of wall-mounted heat pumps and multi-zone systems. It allows the design of efficient, compact equipment adapted to modern comfort expectations. However, its handling requires professional installation: precise refrigeration connections, leak testing, vacuuming, line insulation, adherence to commissioning procedures, and validation of each zone's operation.

For homeowners, the benefits of a GREE FREE MATCH R32 TripleZone system are tangible:

• independent control of three spaces;
• reduction of temperature differences between rooms;
• a single outdoor unit for multiple heads;
• better adaptation to life schedules;
• more targeted operation according to occupied zones;
• improved comfort in cooling and heating;
• installation more discreet than an accumulation of simple zone systems.

In a project like this, the choice of the machine is important, but success mainly depends on the quality of the design and installation. A good device poorly positioned can give a disappointing result. A well-chosen, well-installed device that is well explained to the client offers a much more satisfying experience.

Image reading: a demanding location above the electrical panel

One of the most interesting elements of this installation is the location visible in the photo. The wall unit is installed high up, in an area where several constraints intersect: an electrical panel, a door on the left, a large window with curtains on the right, a limited available wall section, existing ducts, and a nearby ceiling.

This kind of location requires a very thorough analysis. A wall unit must be able to take in air from the top, blow air into the room, allow the opening of its front panel for HVAC maintenance, and remain accessible without creating a dangerous obstacle. In this case, the unit also had to be positioned so as not to interfere with the electrical panel or access to existing elements.

Installation near a window also requires careful consideration. Windows can be a significant source of heat gain in summer and heat loss in winter. Placing a wall unit near this area can help better treat the space, but curtains must not obstruct air circulation. Positioning the unit slightly above and beside the opening allows for effective diffusion in the room while respecting the wall constraints.

A high installation in an already finished residential environment

The presence of the ladder and the protective film on the unit clearly shows that the installation is taking place in an inhabited and already furnished space. In this type of context, our team must work very carefully. Walls, moldings, switches, door frames, curtains, the electrical panel, and finished surfaces must be protected or carefully bypassed.

An heat pump installation in an existing house is not automatic. Every decision influences the final result:

• the location of the wall plate;
• the drilling for the passage of the lines;
• the drain slope;
• discretion of the ducts;
• clearance around the unit;
• accessibility for filters;
• the blowing direction;
• the final appearance of the room.

In this residence in Sainte-Dorothée, wall space was precious. The unit had to be installed high enough not to interfere with the use of the panel and passage, but not so high as to make maintenance impossible. It is precisely this kind of detail that distinguishes a quick installation from a well-planned CVAC installation.

An AirGreen execution focused on reliability, comfort, and cleanliness of the result

For a TripleZone system, installing a single unit is only part of the project. The three indoor units must be connected to the same outdoor unit, with well-organized refrigerant line and drain routes. Everything must operate in a coordinated way, without abnormal noise, leaks, obstructions, and with a clear response to each zone’s controls.

At AirGreen, we approach multizone systems with a structured method. Before finalizing locations, we evaluate the house as a whole. A wall unit may seem well placed visually but be ineffective if the air does not circulate properly. Conversely, a technically favorable location may need to be adjusted to respect the room’s aesthetics or access to other equipment.

The particular challenges of this installation in Sainte-Dorothée

The wall visible in the photo contains several technical elements. The electrical panel, ducts, and existing wall devices required a more delicate installation. It was necessary to avoid any interference, maintain access to the equipment, and ensure that the installation of the wall unit did not compromise safety or future maintenance.

Our team therefore worked taking several priorities into account:

Preserve access to existing equipment

An electrical panel must remain accessible. Even if the wall unit is above, the installation had to respect the normal use of the area. The ladder visible in the image also shows the need to work precisely in a confined space without damaging the surrounding elements.

Maintain good air diffusion

The proximity of the curtains and the window could influence air circulation. We therefore paid attention to the blowing direction, the installation height, and the lateral clearances. The goal was to prevent the air from being blocked or concentrating too close to the window.

Integrating the unit into an already occupied room

A wall head becomes visible daily. The installation therefore had to be straight, clean, and proportionate to the wall. The plastic protection left on the device during the work helps preserve its appearance until final delivery.

Coordinating the three zones

In a 3-head system, each indoor unit must be considered in relation to the other two. Line lengths, connections, and commissioning must be consistent with the overall configuration of the GREE FREE MATCH R32 heat pump.

The importance of drainage in a multizone installation

Drainage is one of the most underestimated aspects by homeowners when comparing quotes. Yet, each wall head produces condensation in cooling mode. If the water is not properly drained, problems can appear quickly: leaks, marks on the wall, odors, pump noise, more frequent maintenance, or discomfort.

In an existing house, drainage must be carefully planned. When gravity allows natural drainage, we favor this option. When the configuration requires a pump, it must be placed in an accessible location and installed neatly. In an installation like the one in Sainte-Dorothée, where the wall location is constrained by several existing elements, the drainage path is one of the most important decisions.

Refrigerant lines: the invisible work behind performance

The photo mainly shows the indoor unit, but the system's real performance also depends on the work done behind and outside. The refrigerant lines connect each head to the outdoor unit. They must be installed carefully, properly insulated, protected, and connected according to best practices.

On a TripleZone heat pump, three indoor circuits must be coordinated. The connections must be clean, the lengths must respect the allowed limits, the system must be vacuumed, then tested to confirm its tightness and operation. This step is essential to ensure the equipment's lifespan and maintain its efficiency.

At AirGreen, we never consider this part secondary. A beautiful indoor installation must be supported by rigorous technical work. This is what allows the customer to enjoy stable comfort, season after season.

Commissioning: check each zone before handing over to the client

Once the system is installed, we test each wall unit. In a project like this, it is not enough to check that the visible unit works. The three zones must respond correctly, communicate with the outdoor unit, and provide adequate air distribution.

Commissioning includes notably:

• Starting each indoor unit;
• Verification of air conditioning, heating, ventilation, and dehumidification modes according to conditions;
• Airflow control;
• Checking motorized vents;
• Inspection of drainage;
• Listening for unusual noises;
• Validation of remote controls;
• Explanation of basic settings;
• HVAC maintenance tips for filters.

This step also allows adapting recommendations to the client. A multizone heat pump offers great flexibility, but it works best when users understand how to adjust the zones without making them work unnecessarily against each other.

Practical advice for Laval homeowners considering a 3-zone heat pump

Before choosing a TripleZone heat pump, it is important not to limit yourself to price or brand. The building configuration strongly influences the result. A house in Sainte-Dorothée with large windows, an electrical panel near the desired location, and several distinct zones is not treated like a compact condo or a new house with clear walls.

We recommend paying attention to the following points:

The location of each unit

A wall unit must be placed to treat the targeted area, not just to simplify the opening. Comfort depends greatly on the direction of the airflow and the natural circulation of air.

BTU capacity compatibility

Each zone must receive an appropriate capacity. An oversized head can create short cycles and less stable comfort. An undersized head may run too long without achieving the desired result.

Interior and exterior aesthetics

Ducts, protections, openings, and locations must be planned before work begins. A clean installation is planned, especially in an existing house.

Access for maintenance

Filters must be easy to clean. The front panel must open properly. Drainage elements must be accessible when necessary.

Documentation for grants

Financial aid programs may vary depending on the exact combination installed. For a GREE FREE MATCH R32 system, eligibility must be verified according to the precise models of indoor and outdoor units, current criteria, and required documents. We support our clients so they have the necessary information after installation.

AirGreen in Sainte-Dorothée, Laval, and Greater Montreal

This installation in Sainte-Dorothée reflects well the type of project we regularly carry out in Laval, but also in Montreal, Longueuil, on the North Shore and on the South Shore. Each area has its particularities. In Laval, we often encounter family homes where needs are spread across several zones. In Montreal, space and condominium constraints are common. On the South Shore and North Shore, more open houses often require precise consideration of volumes and sunlight.

Our role is to help the client choose a realistic, durable solution well adapted to the building. We don’t just aim to install a machine. We aim to design a comfort solution that takes into account the actual use of the house.

An installation that shows the importance of custom work

This installation of a GREE FREE MATCH R32 TripleZone heat pump in Sainte-Dorothée perfectly demonstrates why every multi-zone project deserves a personalized analysis. The unit visible in the photo had to be installed in a complex space, above an electrical panel, near a window and a passageway, with a wall already occupied by several elements. The result relies on precise installation, good planning, and a complete commissioning.

For the occupants, the benefit is measured daily: three independently controllable zones, a temperature better suited to each space, and a discreet solution despite the building constraints. For AirGreen, this type of project perfectly represents our approach to HVAC: serious technical work, a clean finish, and clear advice so the client can fully enjoy their system.
