Installation of a wall-mounted Tosot heat pump on Nuns' Island

A discreet HVAC installation on a condo balcony — performance, silence and compliance with co-ownership rules

Project context and comfort objectives

In a modern condo on Nuns' Island , the owner wants to achieve a stable temperature in the summer and efficient supplemental heat in the shoulder seasons, without cluttering the interior or disturbing the neighborhood. We recommend aTosot wall-mounted heat pump (residential range from the Gree group), known for its inverter modulation, low noise level and excellent value for money. The challenge of the site: installation on a balcony with metal railing, plastered facade and aluminum joinery - a typical condo context where it is necessary to optimize clearances, acoustics and condensate management while respecting the requirements of the syndicate.

Why this solution is suitable for condos

• Compact and quiet : the outdoor condenser remains discreet at low speed; the indoor unit blows continuously, without jolts, for uniform comfort in the living area.

• Inverter modulation : the compressor speed adjusts to the actual load; result: energy savings and reduced wear.

• Air quality : multiple filtration on the evaporator side, easy maintenance for regular HVAC maintenance .

• Flexible installation : the wall-mounted heat pump allows for a short cooling path between the indoor head and the condenser, ideal for co-ownerships.

Depending on the versions and powers, some recent Tosot ranges offer new generation refrigerants and high seasonal efficiencies; we guide the choice to ensure compliance and possible eligibility for assistance programs available in Greater Montreal .

Technical installation details (condo balcony)

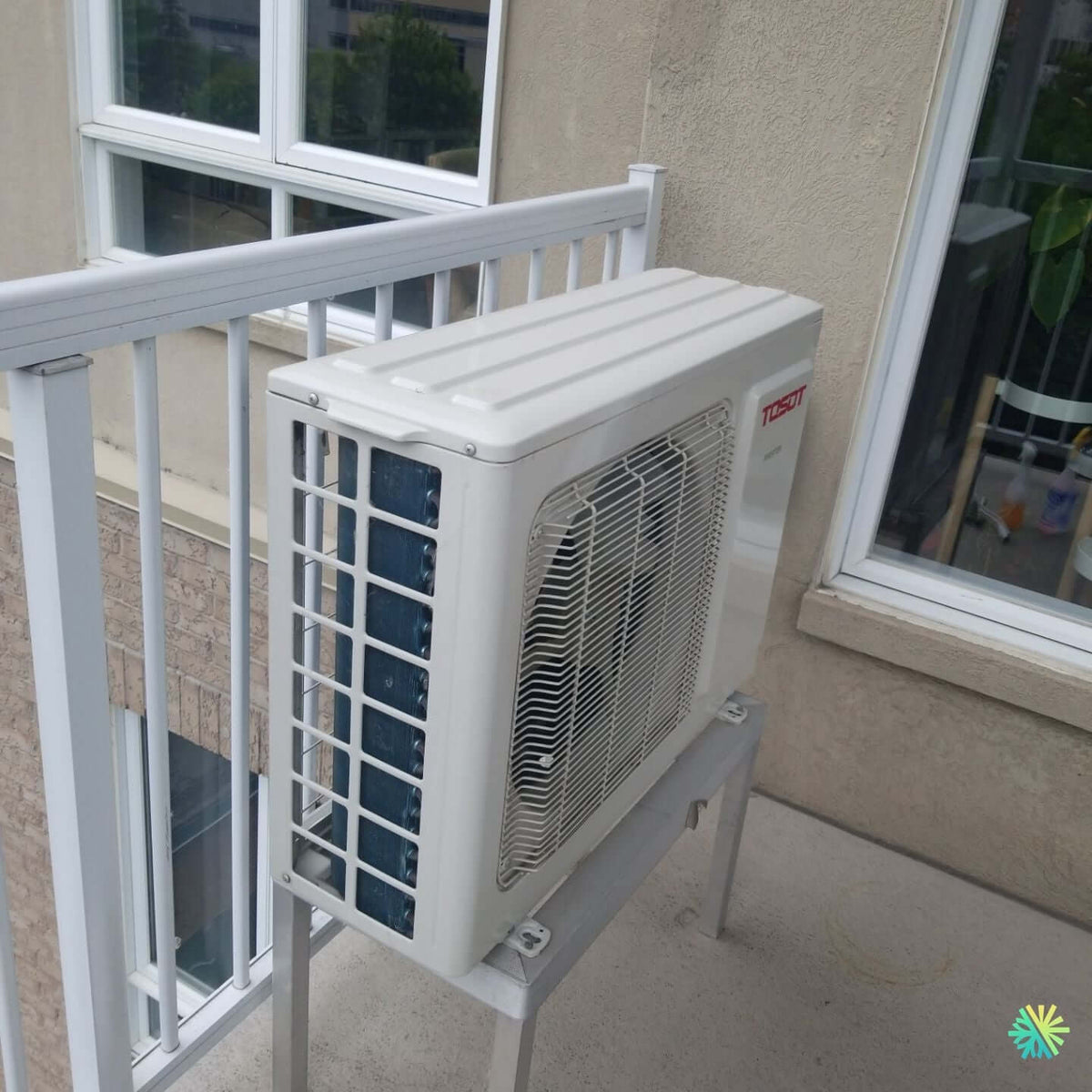

Aluminum raised support - stability and drainage

We place the condenser on a raised aluminum support mechanically fixed to the balcony floor (sheet metal/structure), with:

• Neoprene anti-vibration pads under the legs to limit structural transmission to the slab and the railing;

• Clearance under the appliance to keep the drain pan accessible, prevent water accumulation and facilitate cleaning;

• Orientation of the fins towards the open area of ​​the balcony in order to promote air exchange and avoid recirculation against the facade.

This configuration ensures wind stability , noise dilution and comfortable maintenance, without sacrificing circulation space on the balcony.

Clearances, airflow and positioning

• Rear/side clearance respected to take into account the guardrail and the facade wall; the suction remains free, the discharged air does not directly hit the window.

• Installation outside the runoff areas of the upper gutters.

• Sufficient height to avoid hot air swirling towards the balcony floor, which is annoying during a heatwave.

Drilling, refrigeration lines and supply

• Single opening through the wall of the living room; finished with a light technical cover matching the joinery for aesthetic integration .

• Insulated copper refrigeration lines (gas/liquid) in continuous sheath ; service loop left behind the unit to allow future interventions without pulling on the connections.

• Estimated length 2 to 4 m between units: excellent basis for minimal pressure losses.

• Communication and power cable grouped in the duct, service disconnection compliant and accessible in the condenser area.

Nuisance-free condensate management

• Preferred gravity drain with continuous slope and controlled discharge point to avoid traces on the balcony and lower facade;

• Quiet condensate pump option available if the interior configuration does not allow for a natural slope — particularly useful for condos where the indoor unit is not attached to the exterior wall.

Commissioning and quality controls

• Nitrogen test and deep vacuum to ensure watertightness.

• Voltage/current validation, superheat/subcooling , blowing/return temperatures.

• Acoustic test at different levels (low/nominal) on the balcony to check that no parasitic vibrations propagate to the railings.

Result obtained on Nuns' Island

• Rapid cooling of the main space even on sunny afternoons, without aggressive drafts.

• Silence outside: the condenser remains discreet, no resonance from the guardrail thanks to the anti-vibration pads.

• Clean aesthetics : white cladding, stainless steel screws, straight alignments - an installation that enhances the balcony rather than cluttering it up.

AirGreen Best Practices for a Condominium Balcony

1) Compliance with the regulations and communication with the union

• Technical file (dimensions, weight, clearances, nominal noise level ).

• Location validated to preserve the aesthetics of the facade and the right of enjoyment of neighbors.

2) Silence and anti-vibration

• Silent blocks calibrated to the weight of the device;

• Controlled tightening to avoid short-circuiting the insulation;

• Checking for possible resonances of the guardrail.

3) Water management

• Drain slope confirmed, discharge controlled (no drips at the neighbor below);

• Periodic cleaning of the drain pan in spring.

4) Safety and maintenance

• Free access to electrical disconnection ;

• Clearance around the condenser for gentle fin washing ;

• Clearly labeled circuits for fast service.

Sizing and efficiency: how we choose power

Sizing is not limited to square meters. We consider:

• Orientation and glazing of the living area (solar gain);

• Infiltrations (sliding patio doors, sealing of joints);

• Permissible noise from balcony and bedroom side;

• Owner's thermal tolerance (desired day/night setting).

This approach avoids over-sizing (short cycles, noise, additional costs) as well as under-sizing (insufficient comfort during heat waves).

HVAC maintenance: maintaining performance over time

To maintain performance and longevity:

1. Indoor unit filters : clean every 4 to 8 weeks during periods of heavy use.

2. External battery : gentle rinse with low-pressure jet; no high-pressure cleaner.

3. Clearance around the condenser: avoid the accumulation of objects on the balcony.

4. Annual AirGreen inspection : electrical tightening, refrigeration parameter check, turbine and evaporator cleaning, drain check.

Grants and energy compliance

Depending on the models and their seasonal efficiency, a wall-mounted heat pump may be eligible for assistance programs in Quebec. Our team validates the chosen equipment, prepares the documents and supports the client to optimize the request throughout Greater Montreal : Montreal , Laval , Longueuil , North Shore , South Shore . When the co-ownership requires proof of acoustic attenuation or electrical compliance , we provide the necessary technical data sheets.

AirGreen added value

• On-site study : balcony constraints, air circulation, immediate neighborhood.

• Custom installation plan : cover , fixing, refrigeration path, water management.

• Meticulous execution : careful finishing, alignments, controlled tightening torque.

• Responsive after-sales service : fast parts and diagnostics thanks to our Tosot/Gree experience and our regional network.

Instructions for use for maximum comfort

• Use Auto/Cooling mode with a stable setpoint (do not vary by more than 2°C from one hour to the next).

• Pre-cool slightly in the late afternoon on very hot days to smooth the load .

• Keep interior doors open to extend comfort to the hallway and bedroom.

• Activate the dehumidification function in humid weather to relieve discomfort without lowering the setting too much.

Want a similar project?

We work daily in condos in Île-des-Sœurs , Le Sud-Ouest , Ville-Marie , but also in Laval and on the South Shore . Contact us: we size and install your Tosot, Gree, Fujitsu, Midea or Sharp wall-mounted heat pump with a durable, aesthetic HVAC installation that complies with co-ownership rules.
