Installation of a Sharp ZU1 Mini Split in Town of Mount Royal
Experience the cutting-edge Sharp ZU1 mini split heat pump, offering exceptional air purification and energy efficiency. See why it's the perfect choice for your home in Town of Mount Royal!
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.

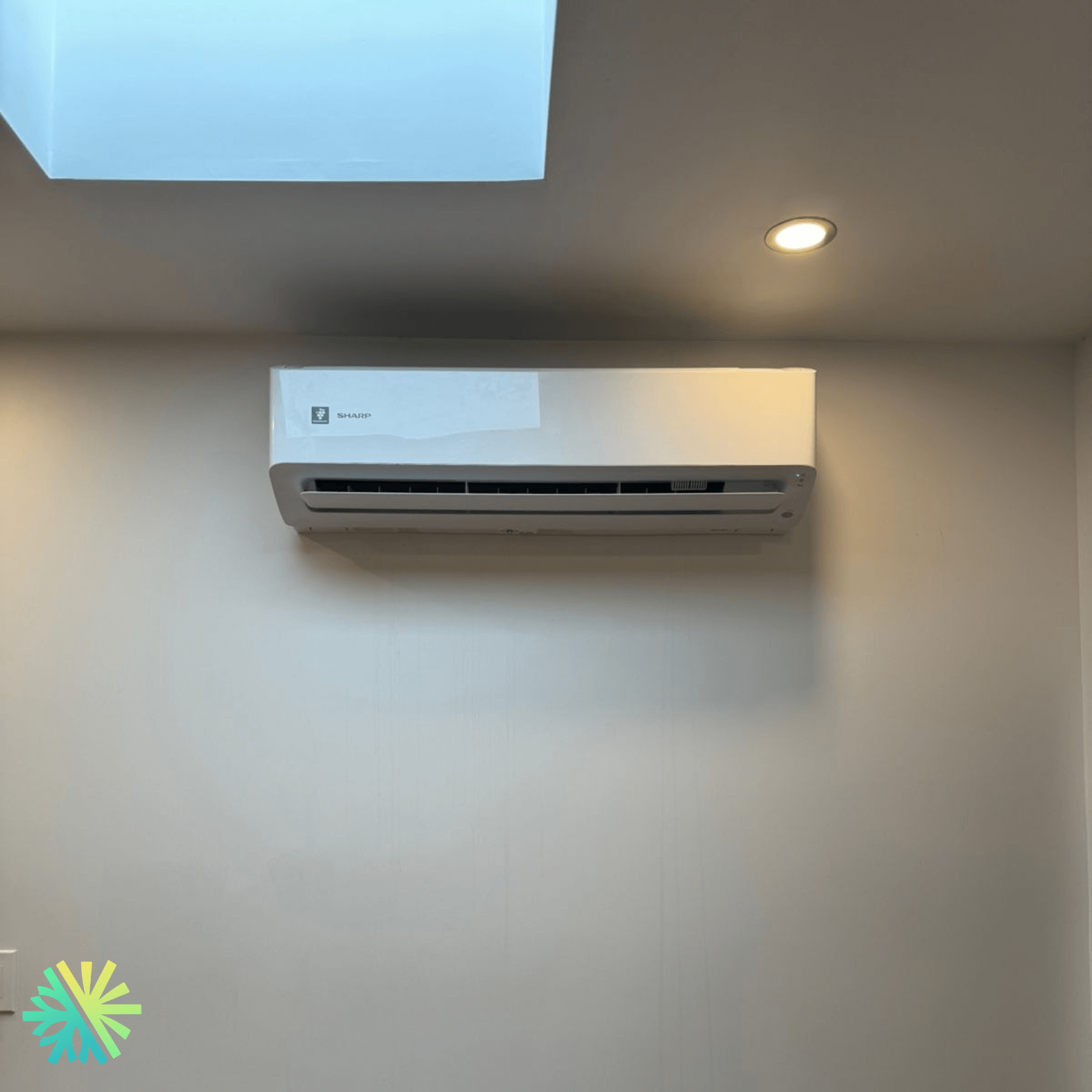

A Breath of Fresh Air: Introducing the Sharp ZU1 Mini Split in Ville Mont-Royal
In the heart of Ville Mont-Royal, AirGreen proudly installed a Sharp ZU1 mini split heat pump, offering unparalleled comfort and energy efficiency at our client’s home. This installation not only brings advanced climate control technology but also improves indoor air quality, making it an ideal choice for environmentally conscious homeowners.
Outstanding Features of the Sharp ZU1 Mini Split
The Sharp ZU1 mini split is a powerful 18,000 BTU unit equipped with cutting-edge features that set it apart from traditional HVAC systems. Let’s explore what makes this system so special:
1. High Efficiency and Eco-Friendly Design
The Sharp ZU1 boasts an impressive SEER rating of 24.0, ensuring maximum energy efficiency. It uses the latest generation refrigerant R-32, known for its low global warming potential, thereby reducing the system’s environmental footprint. This eco-friendly feature aligns perfectly with the new Quebec government energy efficiency standards set for 2025.
2. Advanced Air Purification with Plasmacluster Technology
What truly sets the Sharp ZU1 apart is its unique Plasmacluster technology. This feature releases ions that neutralize airborne viruses, bacteria, and mold, providing a healthier living environment. It’s not just a heat pump; it’s a complete air purification system that combats allergens and unpleasant odors, ensuring fresh air throughout the home.
3. Innovative Airflow Control with the Coanda Effect
The Coanda airflow control is an engineering marvel that uses the natural tendency of air to adhere to surfaces. This technology ensures even temperature distribution in rooms, eliminating hot or cold spots. The long diffuser vane further enhances air distribution, capable of directing airflow up to 15 meters, making it ideal for open spaces or homes with high ceilings.
4. Quiet and Comfortable Operation
Noise levels are a crucial factor for any HVAC system. The Sharp ZU1 operates quietly, with an indoor sound pressure level ranging from 25 to 49 dB(A) and an outdoor level of 52 dB(A). This low noise level ensures comfort is not compromised by disruptive sounds, providing a peaceful indoor environment.
Comprehensive Warranty and Reliability
A remarkable feature of the Sharp ZU1 is its extended warranty coverage—10 years for the compressor, parts, and labor, all provided directly by the manufacturer. This warranty highlights the product’s durability and Sharp’s confidence in its performance.
Smart Connectivity for Modern Living
The Sharp ZU1 is equipped with smart connectivity features, including WiFi control. Homeowners can manage the system remotely via a smartphone app, adjust settings, monitor energy consumption, and even receive notifications about maintenance needs or system status. This level of control ensures optimal efficiency and enhanced convenience.
Installation Overview
During the installation in Ville Mont-Royal, our AirGreen team faced a unique challenge: integrating the new system into a home with existing architectural constraints, such as a skylight. Our experienced technicians expertly navigated these challenges, ensuring a smooth and efficient Sharp ZU1 installation.
The system’s sleek design and compact dimensions (41.42 x 9.80 x 12.44 inches for the indoor unit) make it an ideal space-saving choice, enhancing aesthetics without overpowering the room’s decor. The use of high-quality materials and precise installation techniques guarantees the system will operate optimally for many years.
Eco-Friendly and Energy-Efficient Solutions
At AirGreen, we are committed to providing solutions that are both energy-efficient and environmentally friendly. The Sharp ZU1, with its use of R-32 refrigerant and advanced inverter technology, consumes less energy and delivers superior performance compared to conventional systems. This makes it a smart choice not only for the environment but also for homeowners looking to reduce their energy bills.
The AirGreen Difference
Choosing AirGreen for your HVAC needs is more than just installing a system; it’s investing in a partnership with a company that values quality, reliability, and customer satisfaction. Our team of experts ensures every installation is tailored to the specific needs of the home and its residents, providing a personalized solution that maximizes comfort and efficiency.
Why Choose the Sharp ZU1?
For homeowners in Ville Mont-Royal and beyond, the Sharp ZU1 mini split offers a unique combination of advanced technology, energy efficiency, and superior air quality. It’s a perfect choice for those who want to invest in a system that not only keeps them comfortable but also cares for the environment.
Whether you’re looking to upgrade your current system or install a new one, the Sharp ZU1 is an excellent choice offering long-term benefits. From its energy-saving features to its comprehensive air purification capabilities, this mini split is designed to meet the demands of modern living.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
