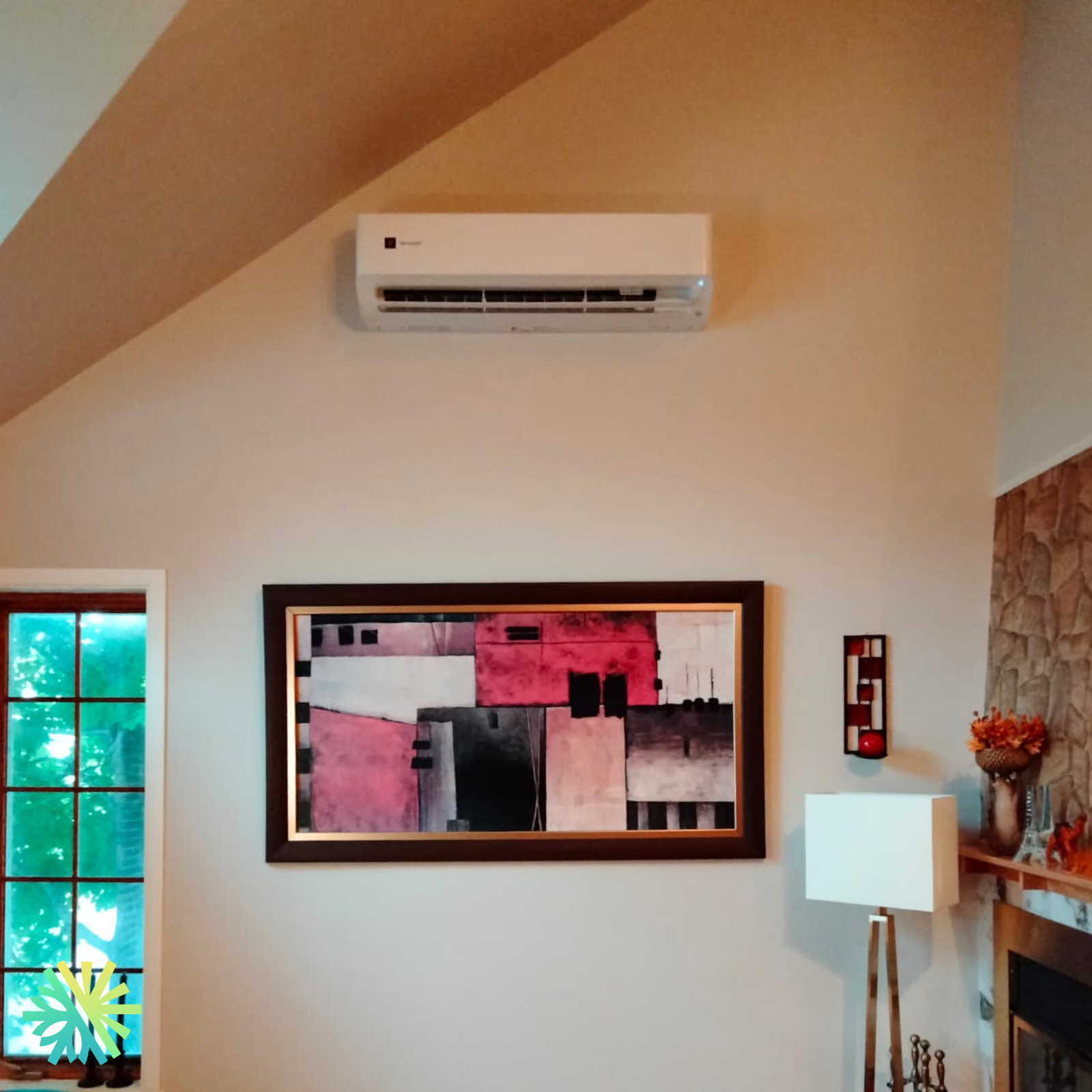

Installation of a SHARP ZU1 24,000 BTU Wall-Mounted Mini Split Heat Pump in Lorraine
Discover our latest installation in Lorraine: a SHARP ZU1 mini split heat pump with advanced air purification, eco-friendly refrigerant, and impressive cold-weather performance.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
SHARP ZU1 24,000 BTU Mini Split Heat Pump Installation in Lorraine
Energy Efficiency Meets Elegance: A Cool Comfort Solution for Lorraine
In the scenic town of Lorraine, our latest HVAC project perfectly marries powerful performance with elegant design. We installed a SHARP ZU1 24,000 BTU wall-mounted mini split heat pump, a model known for its durability and efficiency, ideal for keeping a home comfortable in Quebec's extreme temperatures. Not only does this installation add value to the home, but it also brings substantial energy savings through advanced features, including its impressive 22.0 SEER efficiency and R-32 refrigerant.
Project Overview: Cutting-Edge Comfort
This project presented a unique challenge with its high ceilings and specific comfort needs. Our team installed the SHARP ZU1 mini split, selected for its ability to handle intense cold—down to a chilling -27°C—ensuring that our client stays warm during the coldest winter days without breaking the bank on energy costs. The unit also operates quietly, with a sound pressure level of 25 dB(A) indoors, making it virtually silent.
Key Features of the SHARP ZU1 Heat Pump
- Power and Efficiency: With a cooling capacity of 24,000 BTU and a heating capacity that remains effective even in severe winter conditions, this model is built to handle Quebec's fluctuating climate.
- Energy Star Certified: Designed to meet high energy efficiency standards, saving the client money and helping the environment.
- Wi-Fi Control: The integrated Wi-Fi allows remote control, enabling the client to adjust settings from a smartphone.
- Plasmacluster Ion Technology: Purifies the air by neutralizing bacteria, viruses, and allergens, ensuring the indoor air quality remains high.
- Quiet Operation: Exterior unit sound level is at 53 dB(A), with indoor noise reaching as low as 25 dB(A) on low settings.
Seamless Installation for Long-Lasting Comfort
Our team carefully planned the installation to optimize airflow and ensure even distribution throughout the room. By positioning the unit high on the wall, we maximized coverage while keeping the unit unobtrusive. The dimensions of the interior unit (41.42" x 9.80" x 12.44") allowed for an easy fit that didn’t disrupt the room's aesthetic. The compact exterior unit (33.47" x 13" x 27.94") blends seamlessly with the home’s exterior while providing efficient heat exchange.
Grant Eligibility: Financial Benefits Through Hydro-Québec’s LogisVert Program
This SHARP ZU1 model qualifies for the highest LogisVert grant from Hydro-Québec, amounting to $2,688. As the client was thrilled to learn, this grant significantly offsets the initial cost, making high-quality heating and cooling solutions more accessible and affordable. We guided our client through the grant application process, ensuring they received the maximum benefit.
Why the SHARP ZU1 Mini Split?
The SHARP ZU1 isn't just another heat pump—it’s an investment in year-round comfort. Its plasmacluster ion technology offers air purification that goes beyond conventional filters, tackling airborne bacteria, viruses, mold, and allergens. This feature is particularly beneficial for families with members sensitive to airborne irritants. Plus, the R-32 refrigerant it uses is eco-friendly, boasting a lower global warming potential than older refrigerants like R-410A.
Additional Technical Specifications
- Voltage: 220V
- AHRI Certified: Yes (Certification Number: 213246054)
- Piping Size: 1/4 - 3/8 inches, ensuring efficient refrigerant flow.
- Warranty: 10 years on compressor, parts, and labor—providing peace of mind for years to come.
Plasmacluster Technology: A Healthier Home Environment
SHARP's Plasmacluster technology releases positive and negative ions into the air, mimicking the natural process that occurs in forests. These ions eliminate odors, deactivate harmful particles, and reduce static electricity, which can attract dust and allergens. After installation, our client immediately noticed a fresher indoor environment—a significant plus for homes in densely forested Lorraine, where pollen and outdoor pollutants can enter the home.
Installation Challenges and Solutions
Lorraine's unique architectural style meant that we had to be mindful of both function and aesthetics. Our team tackled high ceilings and angled walls to achieve an optimal setup. We also ensured that the piping and wiring were neatly concealed, maintaining the room’s clean appearance. Despite these challenges, we completed the installation efficiently, leaving the client extremely satisfied with the end result.
Maintenance and Care
To keep this unit performing optimally, we recommended a regular maintenance schedule, including annual cleanings of the indoor and outdoor units, ensuring the heat pump operates efficiently and prolonging its lifespan. SHARP’s units are known for their low-maintenance needs, but proactive care will further enhance its longevity and performance.
Why Choose AirGreen for Your HVAC Needs?
At AirGreen, we bring years of expertise and an unmatched commitment to quality. Our skilled technicians are not only certified but also undergo continuous training to stay updated on the latest HVAC technologies. We work closely with clients to understand their unique needs, offering solutions that blend performance with cost-effectiveness. Our installations, as showcased in this Lorraine project, are performed with attention to detail, ensuring satisfaction and comfort.
Benefits Recap for the SHARP ZU1 Mini Split Heat Pump
- Ultra-Efficient: 22.0 SEER ensures energy savings.
- Quiet Operation: Perfect for peaceful indoor environments.
- Extreme Climate Performance: Operates effectively even at -27°C.
- Eco-Friendly Refrigerant: R-32 refrigerant helps reduce environmental impact.
- Advanced Air Purification: Plasmacluster technology enhances indoor air quality.
Conclusion: A Modern Solution for Comfortable Living in Lorraine
This installation in Lorraine showcases the superior performance and efficiency of the SHARP ZU1 24,000 BTU mini split heat pump. Equipped with advanced features, eco-friendly refrigerant, and a robust warranty, this model is a great investment for any homeowner. Our client in Lorraine can now enjoy a comfortable home year-round, with peace of mind that they are equipped with one of the most efficient HVAC systems available. At AirGreen, we take pride in transforming living spaces into havens of comfort and sustainability. We’re honored to bring our services to Lorraine and beyond.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
