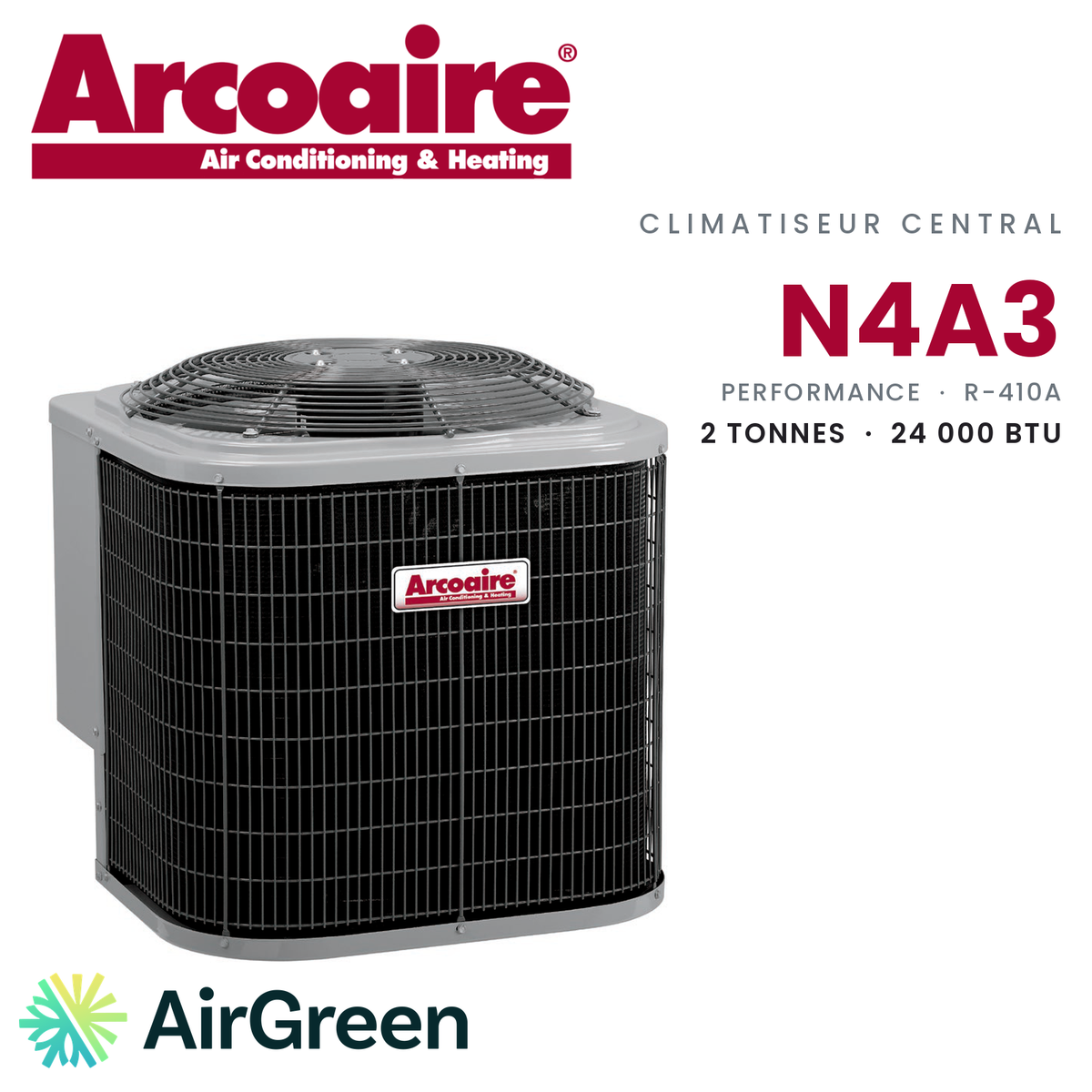

ARCOAIRE N4A3 Economy Central Air Conditioner | 2 Tons - 24000 BTU - R410A
Arcoaire’s 2-ton N4A3 central air conditioner: a compact, entry-level R-410A outdoor unit with a scroll compressor.
Model numberN4A324GKG
514 316-2973 · sales@airgreen.ca
Quick facts
A simple, compact 2-ton central air conditioner for narrow yards
A no-frills unit
The N4A324GKG is the outdoor unit of Arcoaire’s N4A3 central air conditioner, the manufacturer’s entry-level line. Everything is designed to cover the essentials: a scroll compressor, single-stage cooling, a single-speed fan and a coil made of copper tubes and aluminum fins, protected by a grille (the G right after the 24 in the model number). It runs on R-410A and its nominal size is 2 tons (24,000 BTU/h).
Arcoaire presents it as a 13 SEER air conditioner. This nominal rating, which predates the SEER2 standard, depends on the matched coil: with an EN(A,D)4X24L14** coil and a TXV, the manufacturer publishes 23,000 BTU/h, 13.00 SEER and 11.00 EER. Its published sound power is 74 dBA, with or without a sound shield.
Compact, for city lots
On a townhouse or semi-detached lot, every foot counts. The N4A324GKG stands 25-5/16 in high on a 23-1/8 in square base (643 x 587 mm) and weighs 107 lb in operation. It fits easily in a side yard or behind a hedge, as long as the manufacturer’s line lengths are respected: a TXV is required beyond 50 ft (15.2 m) of total length or 20 ft (6.1 m) of vertical separation.
Indoors, it connects to a coil set on your electric furnace or housed in an air handler, not included. The heating does not change: this air conditioner only cools.
Conditions to know
- It is available while supplies last.
- Sold alone, it does not qualify for the LogisVert grant.
- Arcoaire’s limited warranty covers the compressor for 5 years and parts for 5 years, compressor and coil included, plus 5 years with timely registration; the certificate states that registration is not required in Quebec.
- This warranty is for owner-occupied residential applications: for a rental dwelling, let’s talk before you buy.

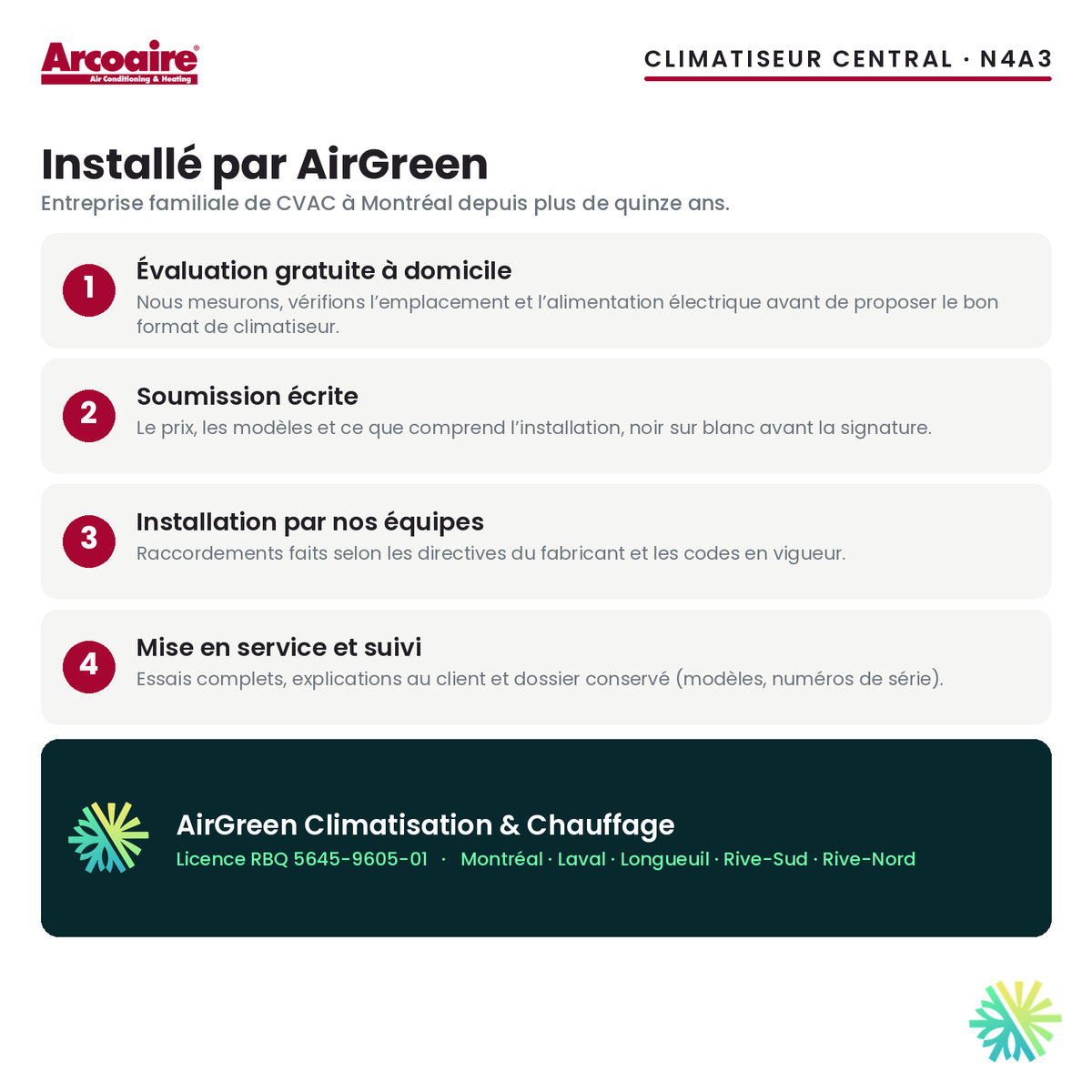

Installation by AirGreen
A family business established in Montreal for more than fifteen years, AirGreen holds RBQ licence 5645-9605-01 in ventilation, refrigeration and electrical work. We start with a free on-site estimate to confirm the size, choose the unit’s location and the coil to match. You then receive a written quote. On the day, our technicians set the unit and the coil, install the refrigerant lines, connect the unit to a 208/230 V circuit protected at 25 A maximum, then commission everything.
We install in Montreal, Longueuil, on the South Shore, in Laval and on the North Shore.
Ask for your free on-site estimate: the quote is in writing and financing is available.
Simple central air conditioning for city lots
The N4A324GKG is the outdoor unit of a 2-ton central air conditioner. It is matched with a coil set on an electric furnace or housed in an air handler, and the cooled air then flows through the home’s ductwork.
- Townhouses and semi-detached homes with a narrow yard
- Adding air conditioning to an existing electric furnace
- Replacing a 2-ton central air conditioner
- Owner-occupied homes

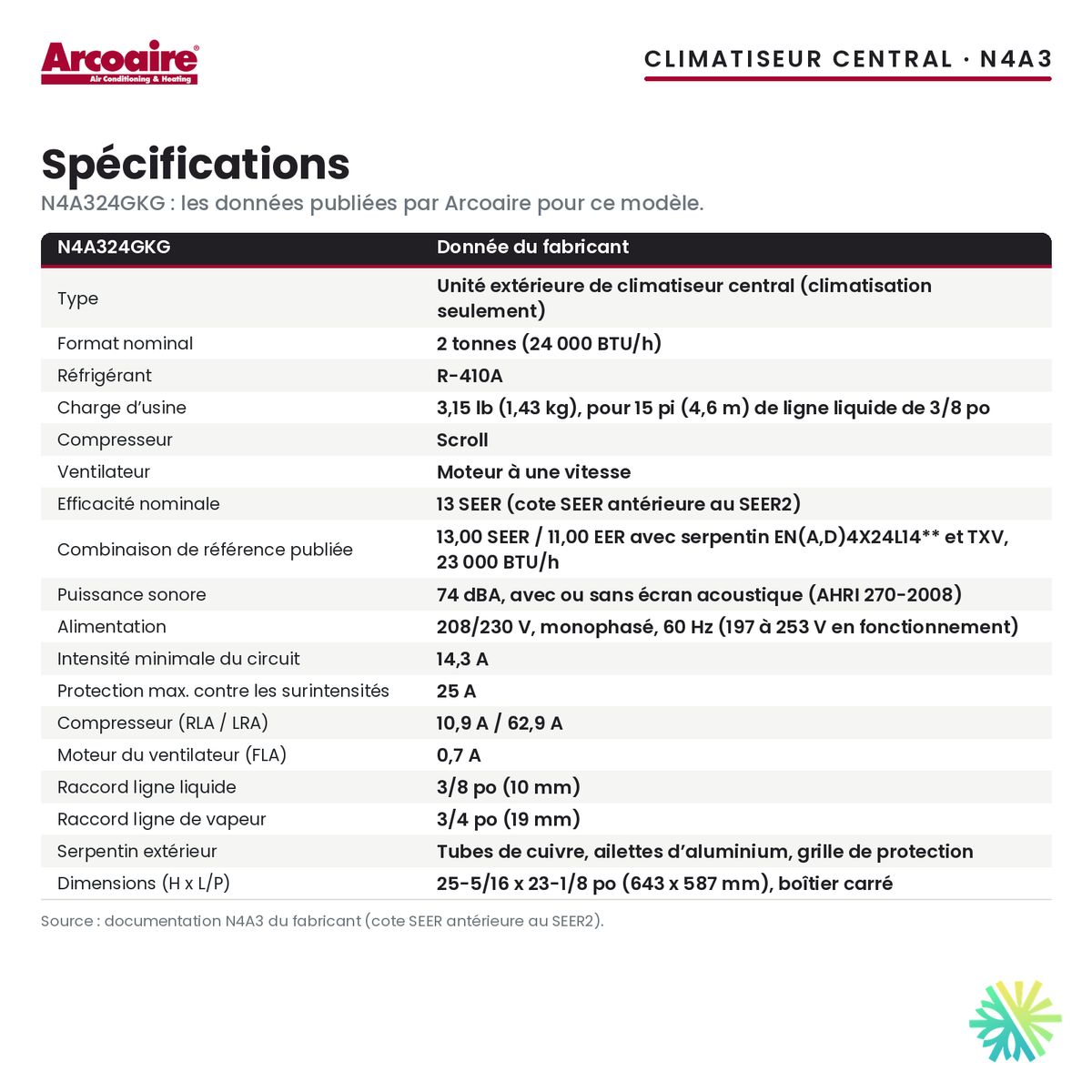

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

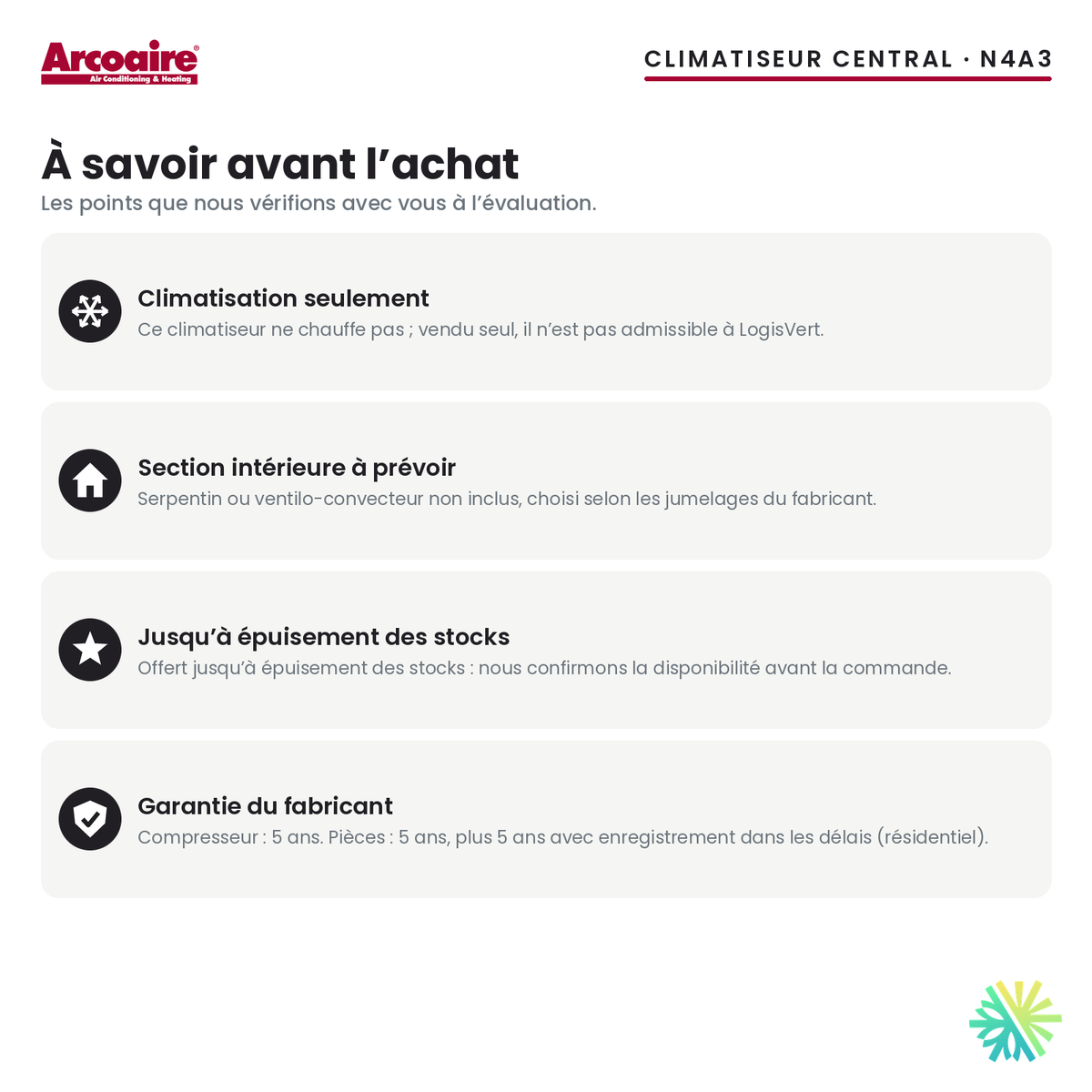

What to know before installing
- Available while supplies last.
- Cooling only. Sold alone, the unit does not qualify for the LogisVert grant.
- The manufacturer’s warranty is for owner-occupied residential applications.
- 208/230 V single-phase circuit: 14.3 A minimum circuit ampacity, 25 A maximum overcurrent protection.
- TXV required beyond 20 ft (6.1 m) of vertical separation or 50 ft (15.2 m) of total length; with a 3/8 in liquid line and TXV, 80 ft (24.4 m) total.
- Below 55°F (13°C), cooling requires a low-ambient kit (pressure switch). Indoor coil not included.
Manufacturer documents
Explore the range
Central air conditionersSee allSame brand
ARCOAIRESee all
Frequently asked questions
Why a 13 SEER rating and not a SEER2 rating?
The N4A3 documentation predates the SEER2 standard: Arcoaire publishes 13 SEER nominal. For the combination with an EN(A,D)4X24L14** coil and a TXV, the manufacturer lists 23,000 BTU/h, 13.00 SEER and 11.00 EER.
Does the warranty cover a unit I rent out?
The manufacturer states that its warranty is for owner-occupied residential applications. If the unit is meant for a rental dwelling, talk to us about it before buying.
How much room is needed outside?
The square cabinet is 25-5/16 in high and 23-1/8 in per side (643 x 587 mm). It weighs 107 lb in operation, which makes it easy to fit in a narrow yard.
Does it qualify for the LogisVert grant?
No. It is cooling only and, sold alone, it does not qualify for Hydro-Québec’s LogisVert grant.
What is the manufacturer’s warranty?
Arcoaire provides 5 years on the compressor and 5 years on parts, compressor and coil included, plus 5 years with timely registration. According to the certificate, registration is not required in Quebec. Labour is not part of the manufacturer’s warranty.
A 2-ton Arcoaire N4A3 central air conditioner, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
