Air Exchanger VENMAR AVS® N SERIES A130E65RS Greater Montreal

• Energy Star®: Non
• Warranty (Core-Motor-Parts): ∞-5-5
• Voltage: 115 V
• PCM/CFM - @ 0.2”: 130.0
• Maximum sensible recovery efficiency: 65.0
• Defrost cycle: Recirculation

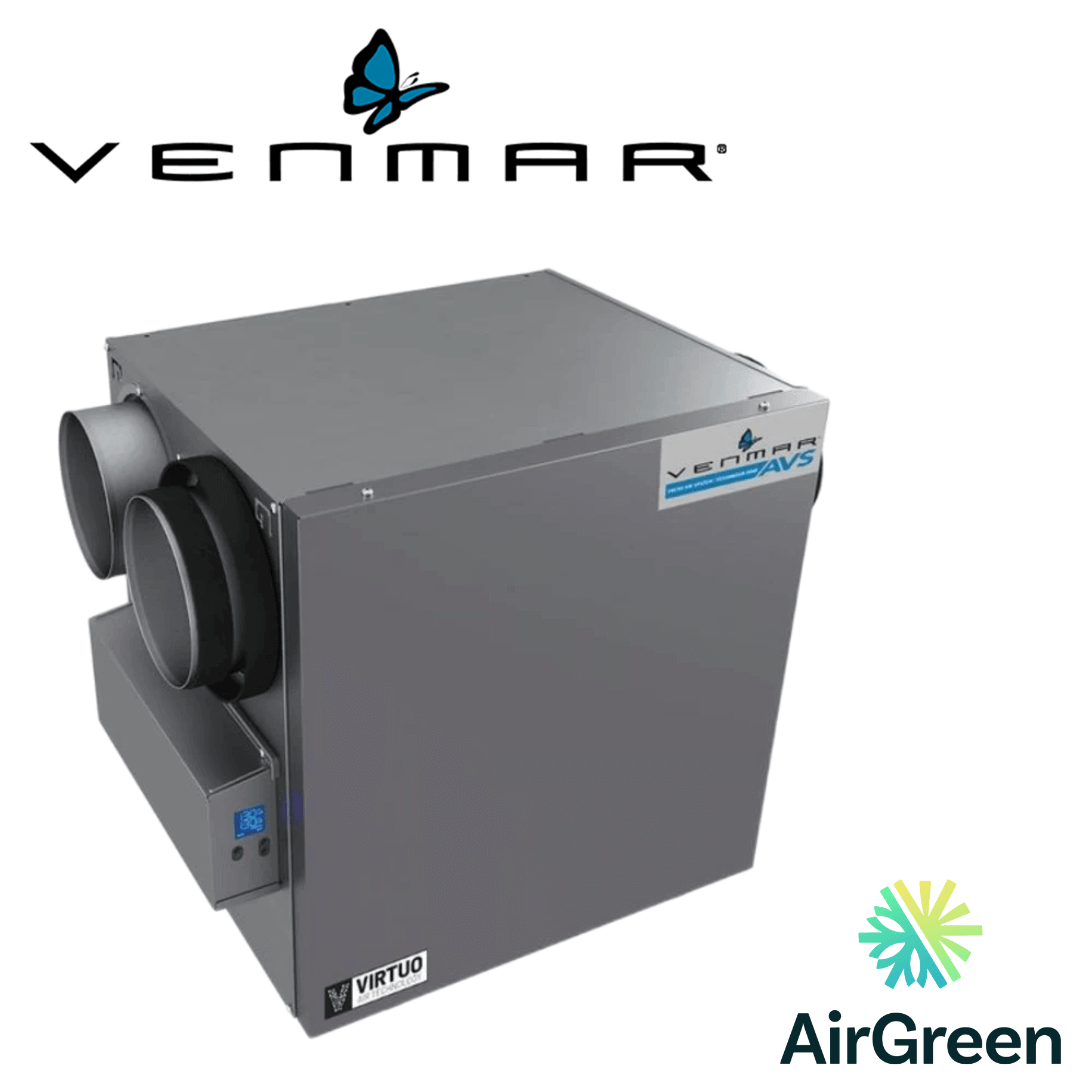

Introducing the VENMAR AVS® N SERIES™ERV 130 CFM 65% SRE with Virtuo Air Technology™ Side Ports A130E65RS

Welcome to AirGreen, a leading HVAC company based in Montreal. With our vast services covering HVAC sales and installation across Greater Montreal, Laval, Longueuil, South Shore, and North Shore, we are committed to enhancing your indoor environments. On our website, we have a dedicated Air Exchanger section where we offer an extensive range of Venmar Air Exchangers. One such standout product is the VENMAR AVS® N SERIES™ERV 130 CFM 65% SRE with Virtuo Air Technology™ Side Ports A130E65RS.

At the forefront of the industry’s most advanced residential fresh air systems, the VENMAR AVS® N SERIES™ERV A130E65RS is explicitly engineered and refined to simplify contractor operations, increase profitability, and ensure constant superior air quality.

The Power of Virtuo Air Technology™

Thanks to the groundbreaking Virtuo Air Technology™, the unit achieves airflow calibration and auto-balancing swiftly and maintains it throughout the product's life.

• Integrated LCD screen: Set your desired CFM (from 35 to 130 CFM) using the first-ever integrated LCD screen. Once set, the airflow is automatically configured.
• Real-Time LCD: It features an integrated electronic airflow measurement device giving real-time LCD readings.
• Diagnostic Tool: This air exchanger is equipped with an integrated diagnostic tool, simplifying the unit's maintenance and troubleshooting.

Energy-Efficiency

Fitted with PMSM ECM motors, this model guarantees minimal energy consumption. This attribute not only makes it environmentally friendly but also translates to significant cost savings for users over time.

Installation Flexibility

Flexibility is at the heart of the VENMAR AVS® N SERIES™ERV A130E65RS's design. It supports both suspended installation (chains included) and wall-mount installation. The universal brackets included in the package offer a choice of 2 or 4 brackets installation.

Unit Description and Performance

The VENMAR AVS® N SERIES™ERV A130E65RS packs impressive specifications that guarantee optimal performance.

• SRE Performance: The unit achieves an impressive SRE of 67% at 0°C and 56% at -25°C (66 CFM, 31 L/s), ensuring optimal energy conservation.
• Port Size: With a port size of 5", the unit accommodates standard installations.
• Recirculation Defrost: This approach utilizes existing heat, reducing energy costs.
• Durable Construction: The corrosion-resistant galvanized steel door and cabinet ensure the unit's longevity.
• Air Leakage Prevention: The one-piece molded insulation shell (expanded polystyrene; UL 94 HF-1 certified) prevents air leakage.
• Virtuo Constant Airflow and Auto-Balancing Device: Our advanced unit incorporates a patent-pending Virtuo constant airflow and auto-balancing device. Paired with motorized dampers, the unit ensures efficient and balanced ventilation at all times.
• Maintenance: The unit operates without a drain, simplifying the installation process and reducing maintenance requirements. It can recirculate air within the dwelling with the recirculation mode using a main wall control.
• Power Cord: The unit comes with a 6' power cord for your convenience.
• Electrical Specifications: The unit's electrical specs include 120 volts, 60 Hz, 2.4 A, and 110 W.

Core, Filters, and Options

• Core: The unit features a polypropylene crossflow core with a polymeric membrane and aluminum covers, which are impact-resistant and non-washable.
• Filters: The unit comes with a standard washable MERV 8 grade filter. An optional MERV13 grade filter (part no. V24285) and an optional HEPA media type filter (part no. V25000) are available.
• Options: The unit is compatible with the Tandem transition (part no. 14690) and is recommended for installations producing up to 110 CFM only.

Homeshield™ Defrosting System

Our unique Homeshield™ defrosting system ensures no negative pressure is created by air exhausted outdoors as the air is recirculated into the house, helping prevent any backdraft.

Fan Curves with Virtuo Air Technology™

Thanks to Virtuo Air Technology™, there is no need to manually balance the unit. Both PMSM motors are controlled by an artificial intelligence performing 120 readings per minute, then processing this information to maintain the requested airflow. For typical installation, Virtuo will ensure a balanced ventilation at every selected speed, regardless of weather conditions, type of connection, variable speed furnace/AHU, stack effect, filter clogging, and so on.

Compliance with Requirements and Standards

The VENMAR AVS® N SERIES™ERV 130 CFM 65% SRE with Virtuo Air Technology™ Side Ports A130E65RS is UL 1812 compliant (safety), CSA C22.2 No. 113 compliant (safety), can be installed in compliance with CSA F326, performance-tested in accordance with CSA C439 Standard, complies with ROHS 2015/863 directive, and is compliant with Prop 65.

At AirGreen, we are committed to offering a broad range of HVAC products designed for our customers' comfort and wellbeing. Choose AirGreen for an unparalleled HVAC experience.
