Thermostat Guard HONEYWELL Versaguard TG511A1000/U | Montreal, Laval, Longueuil, South Shore & North Shore

In stock
SKU: TG511A1000/U

In an office, a school, a store, a community hall or a rental unit, the thermostat is often adjusted by too many hands.

Thermostat accessoryproduct type
Simpleno app
1 yearmanufacturer warranty
Get my installed price 514 316-2973

Quick facts

Model numberTG511A1000/U
ProgrammableNo
Wi-FiNo
Touch screenNo
ENERGY STARNo
Warranty1 year

In an office, a school, a store, a community hall or a rental unit, the thermostat is often adjusted by too many hands. The setpoint climbs in the middle of winter, the air conditioning is pushed to the max in summer, and the energy bill feels it. The Honeywell Versaguard TG511A1000/U thermostat guard puts an end to these unauthorized adjustments by covering the thermostat with a lockable clear cover, while keeping the display visible.

Protect the setting, keep the reading

The Versaguard protects the wall thermostat against tampering, damage and unauthorized adjustments. Its double-wall construction makes it sturdy in high-traffic areas, such as a school hallway or a commercial space. The tamper-proof lock opens with the key provided, so only the person in charge of the building can get to the thermostat.

The clear acrylic cover leaves the thermostat fully visible. Occupants can see the temperature and the setpoint, but cannot change them. The ventilated base lets room air circulate around the thermostat, which is essential for it to keep measuring the room temperature accurately.

Compatibility

The TG511A1000/U is a medium-size guard, designed for Honeywell TH3000, TH4000, TH5000, TH6000 and TH8000 series thermostats, as well as thermostats of similar size. Its interior space measures 129 x 154 mm, and its exterior dimensions are 165 x 191 x 75 mm. Before recommending it, we check that your thermostat fits inside the guard with enough clearance.

Flexible mounting

The guard mounts vertically or horizontally, directly on the wall or on a junction box. It suits new and existing installations alike: it can be added to a thermostat that is already in place without replacing it. Its clear cover and opaque wall plate blend discreetly into the decor.

Installation by AirGreen

Installing a guard looks simple, but it has to respect the proper operation of the thermostat. Our technicians:

  1. check that the thermostat is compatible with the medium size;
  2. make sure the thermostat is level and securely mounted;
  3. install the wall plate around the thermostat, on the wall or on the junction box;
  4. make sure the base ventilation is not blocked;
  5. install the cover, check the lock and hand you the key.

We often take advantage of this visit to program the thermostat according to the building's occupancy hours, so the setpoint is right before it gets locked.

Real savings

In a shared building, a setpoint changed for no reason can run the heating or air conditioning well beyond what is needed. During a Québec winter, a setpoint that is too high in a space left empty in the evening and on weekends is a considerable waste. By locking the setting, you keep control of consumption and you also protect the thermostat from knocks, which avoids premature replacements.

Maintenance

Clean the cover with a soft cloth and a mild, ammonia-free cleaner to keep the acrylic clear. Store the key in a safe place known to the person in charge of the building. Check now and then that the ventilated base is not blocked by dust or a poster.

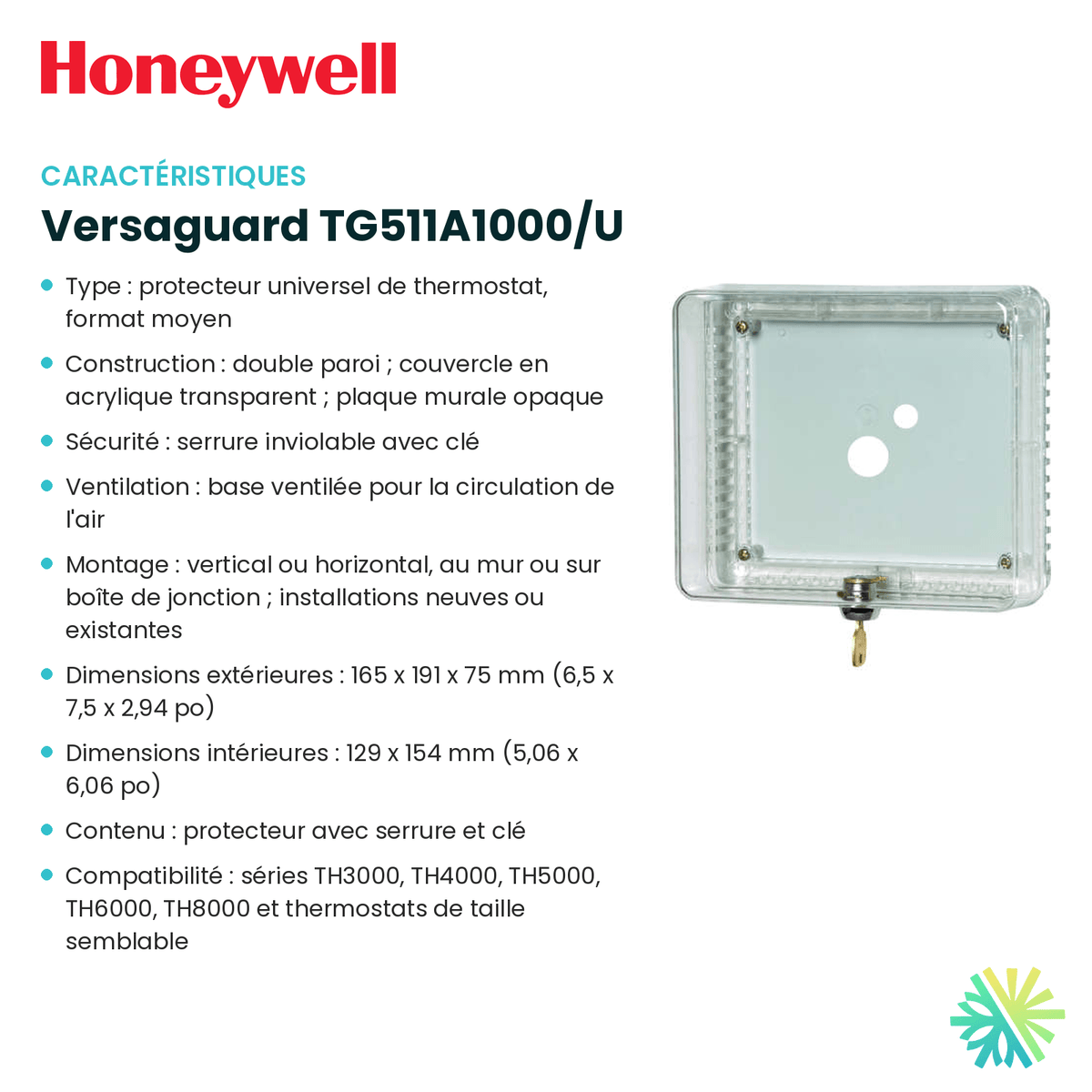

Technical specifications

  • Type: universal thermostat guard, medium size
  • Construction: double wall; clear acrylic cover; opaque wall plate
  • Security: tamper-proof lock with key
  • Ventilation: ventilated base for air circulation
  • Mounting: vertical or horizontal, on the wall or on a junction box; new or existing installations
  • Exterior dimensions: 165 x 191 x 75 mm (6.5 x 7.5 x 2.94 in.)
  • Interior dimensions: 129 x 154 mm (5.06 x 6.06 in.)
  • Contents: guard with lock and key
  • Compatibility: TH3000, TH4000, TH5000, TH6000, TH8000 series and thermostats of similar size

Why AirGreen

AirGreen is a family HVAC business holding an RBQ licence that has served homes, businesses and buildings in the Montréal area for more than 15 years. Our showroom is in Boucherville.

To buy the Honeywell Versaguard TG511A1000/U guard and have it installed, contact AirGreen. We work in Montréal, Laval, Longueuil, the North Shore and the South Shore.

01 · Key facts

Key facts: HONEYWELL Versaguard TG511A1000/U

Four things to know, then its ID card in twelve answers. “—” means the manufacturer does not publish it.

TypeThermostat accessoryHONEYWELL Versaguard TG511A1000/U
ForTH3000, TH4000, TH5000, TH6000, TH8000 series and…Compatibility
Wi-FiNoconnection
Warranty1 yearmanufacturer
02 · Head to head

The HONEYWELL Versaguard TG511A1000/U or its closest sibling?

The most useful comparison: the model right next to it in our catalogue.

03 · Installation

Installed and set up by our technicians, in five steps

What we do at your place, in order. The on-site estimate is free.

  1. 01CompatibilityExisting system and thermostat checked before ordering.
  2. 02MountingInstalled in the most representative spot.
  3. 03ConnectionWiring or wireless pairing, depending on the model.
  4. 04SettingsSet-up in the thermostat or the app.
  5. 05TestOperation checked with you.
04 · Specifications

HONEYWELL Versaguard TG511A1000/U specifications

From the manufacturer’s sheet. Type a word: the list filters as you write.

GeneralTypeuniversal thermostat guard, medium size
GeneralConstructiondouble wall; clear acrylic cover; opaque wall plate
GeneralSecuritytamper-proof lock with key
GeneralVentilationvented base for air circulation
Format and contentsMountingvertical or horizontal, wall or junction box; new or existing installations
Format and contentsOutside dimensions165 x 191 x 75 mm (6.5 x 7.5 x 2.94 in.)
Format and contentsInside dimensions129 x 154 mm (5.06 x 6.06 in.)
Format and contentsContentsguard with lock and key
GeneralCompatibilityTH3000, TH4000, TH5000, TH6000, TH8000 series and similarly sized thermostats
05 · Questions

Frequently asked questions about the HONEYWELL Versaguard TG511A1000/U

Short answers, no detours.

What does the HONEYWELL Versaguard TG511A1000/U work with?

According to the manufacturer’s sheet: TH3000, TH4000, TH5000, TH6000, TH8000 series and similarly sized thermostats.

What is the warranty?

1 year, per the manufacturer’s information.

Does AirGreen install it?

Yes. We sell and install this product in Montréal, Laval, Longueuil, the South Shore and the North Shore. The on-site estimate is free.

AirGreen · Montréal, Laval, Longueuil, South Shore, North Shore

Your thermostat, installed and set up by our technicians

We check your system and wiring, install the thermostat, connect it and program it with you. One visit, one installed price.

RBQ 5645-9605-01Ventilation, refrigeration and electrical
Free estimateon site, before any purchase
Quote in 24 hinstalled price, no surprises
Bouchervilleshowroom

Sources checked on October 5, 2026.

  • Manufacturer’s spec sheet for this product (summarized in the description and specifications above)
  • Natural Resources Canada, “Keeping the Heat In”, section 9 (modified September 29, 2025)
  • Hydro-Québec, electricity rates in effect April 1, 2026; Rate Flex D and Winter Credit Option pages (consulted October 5, 2026)
  • Énergir, smart thermostat grant (consulted October 5, 2026)

Savings shown are estimates; only Hydro-Québec and Énergir confirm a rate or a rebate.
