A warm ceramic floor when you get up, in the bathroom or the kitchen, is one of the small luxuries that change a Québec winter.
Quick facts
A warm ceramic floor when you get up, in the bathroom or the kitchen, is one of the small luxuries that change a Québec winter. To enjoy it without hassle, you need a reliable, safe thermostat. The Honeywell TH114-AF-GA/U is a non-programmable thermostat for electric floor heating with a built-in Class A 5 mA ground fault circuit interrupter (GFCI) with a test light. It comes with its 15 ft (4.6 m) AC112-01 floor sensor. It is designed for people who want a comfortable floor all the time, set once and for all, with no schedule to manage.
A warm floor, with no programming to manage
The TH114-AF-GA controls electric floor heating powered at 120 V or 240 V, with a maximum load of 15 A resistive: 3,600 W at 240 V or 1,800 W at 120 V. Switching is double-pole (DPST relay). The thermostat is permanently wired and needs no batteries. It carries CSA approval (CAN/CSA-C828-06).
Three control modes
The TH114-AF-GA offers three modes. In ambient (A) mode, it controls the air temperature in the room. In floor (F) mode, it controls the floor temperature using the sensor, with a setpoint from 5 to 40°C. In ambient with floor limits (AF) mode, it controls the room air while keeping the floor between minimum and maximum limits. This last mode is often the most comfortable: the room stays at the right temperature and the floor never gets cold or too hot. The ambient setpoint ranges from 5 to 30°C.
Built-in safety
The built-in Class A 5 mA GFCI cuts power to the heating element if current leaks to ground. A test light lets you check that it is working properly. In a bathroom or a kitchen, where water and electricity are close together, this built-in protection is an important part of the installation. The backlit screen, the heating power indicator and the ON/STANDBY switch complete the package.
Technical specifications
- Stage: 1 heating, electric floor heating
- Voltage: 120/240 VAC, 60 Hz
- Maximum load: 15 A resistive (3,600 W at 240 V, 1,800 W at 120 V); DPST double-pole relay
- Protection: built-in Class A 5 mA GFCI with test light
- 3 modes: ambient (A), floor (F) or ambient with floor limits (AF)
- Floor setpoint: 5 to 40°C (40 to 104°F); ambient setpoint: 5 to 30°C (40 to 86°F)
- Non-programmable; unoccupied mode and temporary override
- Display: backlit LCD; heating power indicator
- ON/STANDBY switch
- 15 ft (4.6 m) AC112-01 floor sensor included
- Hardwired, no batteries; CSA approval (CAN/CSA-C828-06); connectivity: none
- Dimensions: 124 x 70 x 23 mm (4.9 x 2.8 x 0.9 in.)
- Colour: white
- Contents: thermostat and 15 ft (4.6 m) AC112-01 floor sensor
Installing a floor heating thermostat
An electric floor heating thermostat connects to line voltage, 120 V or 240 V depending on the heating element. Our technicians switch off the breaker, check that no voltage is present and confirm the voltage and wattage of the heating element installed under the floor covering. The floor sensor is normally placed in the floor, between the heating elements, when the system is installed; its cable runs up to the thermostat box. We connect it, then configure the control mode and the temperature limits suited to your floor covering. A heating test and a test of the built-in protection complete the commissioning.
Day to day
Once the setpoint is set, the TH114-AF-GA keeps the floor or the room at the chosen temperature, with no schedule. Unoccupied mode lets you lower the setpoint when the room is not used for a while, and temporary override gives a one-time boost of heat. The backlit screen is easy to read, even in a windowless bathroom. In spring, the ON/STANDBY switch puts the floor to rest until fall. For a bathroom used at all hours, or a room where you want a constantly warm floor, this simplicity is an advantage.
Comfort at the right degree
During a Québec winter, the difference between a comfortable house and an overheated one often comes down to one or two degrees. A thermostat that reads the temperature accurately and holds it steadily avoids the overshoots that drive up the bill. To go further, adopt a simple routine: a normal setpoint when you are home and a lower setpoint at night or while you are away. This manual adjustment takes a few seconds and gives concrete results over a full season.
The TH114-AF-GA among our floor thermostats

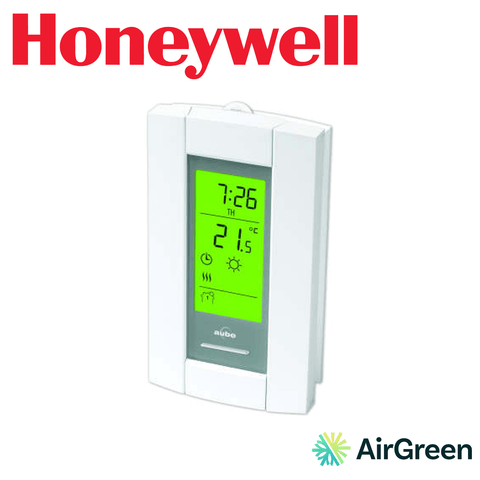

Our Honeywell floor heating selection includes non-programmable and programmable models. The TH114-AF-GA/U is the non-programmable version with a Class A 5 mA GFCI. The TH115-AF-GA/U offers the same protection with 7-day programming. The TH115-AF-GB/U, also programmable, instead has 15 mA EGFPD-type protection. The TH115-AF-120S/U, programmable at 120 V, has no built-in protection. If you prefer a floor that is set once and for all, the TH114-AF-GA is the simplest choice.
Maintenance and safety
An electric heated floor needs no routine maintenance, and neither does its thermostat, apart from a wipe of the housing with a dry cloth. The built-in ground fault protection should, however, be checked regularly using the test button and the indicator light provided for this purpose. If the protection trips for no apparent reason, do not reset it over and over: contact us to have the heating element and the connection checked. Also avoid covering the floor with thick rugs or furniture without legs, which trap heat.
AirGreen, your heating and air conditioning contractor
AirGreen Inc. is a family-owned air conditioning and heating business active in Montréal for more than 15 years. Holding an RBQ licence, our team installs, replaces and services HVAC systems throughout Montréal, Laval, Longueuil, the North Shore and the South Shore. The thermostat is the part you touch every day: we treat it as seriously as the equipment it controls. Before recommending a model, we look at what is actually behind your wall, meaning the number of wires, the voltage and the type of equipment, so that the chosen control works properly from the first start-up. Our showroom in Boucherville also lets you see several thermostats in person and talk them over with an advisor.
To order this thermostat and have it installed correctly the first time, contact AirGreen. Our team serves Montréal, Laval, Longueuil, the North Shore and the South Shore, and every installation ends with complete tests and a short demonstration of the settings.
