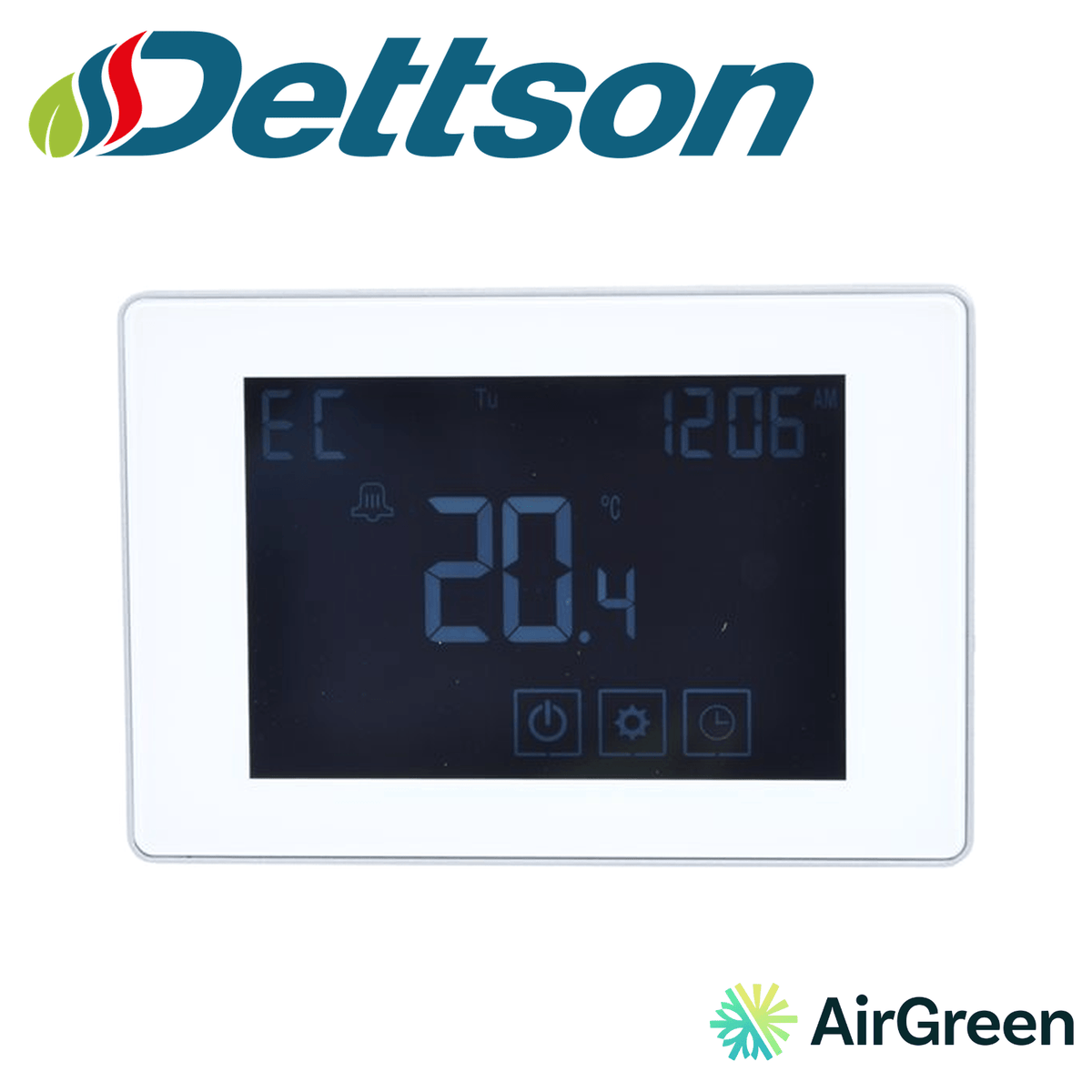

Thermostat DETTSON ClimateTalk R02P034 | Montreal, Laval, Longueuil, South Shore & North Shore
When a home is equipped with communicating Dettson equipment, the thermostat becomes the centre of a true system.
Quick facts
When a home is equipped with communicating Dettson equipment, the thermostat becomes the centre of a true system. The Dettson R02P034 is a ClimateTalk communicating thermostat: rather than sending simple on and off signals, it exchanges information with the furnace, the heat pump or the air conditioner. It recognizes the equipment, configures itself automatically and displays advanced diagnostics.
It is meant for owners of a Chinook gas furnace, a Supreme electric furnace, an Alizé heat pump or a ClimateTalk-compatible central air conditioner who want a touch-screen control that is simple to use and fully integrated.
A communicating installation on four wires
The ClimateTalk 24 VAC architecture relies on a connection of only four wires: R, C, 1 and 2, over a maximum distance of 100 ft to the furnace. This reduced wiring carries all the information needed between the thermostat and the equipment. For an existing home, that is often good news: a four-conductor cable is frequently already in place.
Automatic system configuration
When powered up, the thermostat detects the connected equipment and configures itself accordingly. This automatic configuration reduces the risk of a setup error and lets the system run according to its actual specifications from the start.
Advanced diagnostics and automatic changeover
The R02P034 offers advanced diagnostics that help the technician quickly pinpoint the source of a fault. Automatic changeover between heating and cooling keeps you comfortable in the shoulder seasons, when nights are cool and days are warm.
Humidity under control
The thermostat handles humidification control and dehumidification. In winter, heated air becomes dry; a well-controlled humidifier improves comfort. In summer, dehumidification helps keep the house cool and pleasant. A filter replacement indicator also reminds you when to change the furnace filter.
Schedules for every family
Programming offers several formats: off, 1 day, 5 + 2, 5 + 1 + 1 or 7 days, with 2 or 4 periods per day. The set point adjusts from 5 to 35 °C (41 to 95 °F). Whether you work from home, keep regular hours or work changing shifts, you will find the format that suits you.

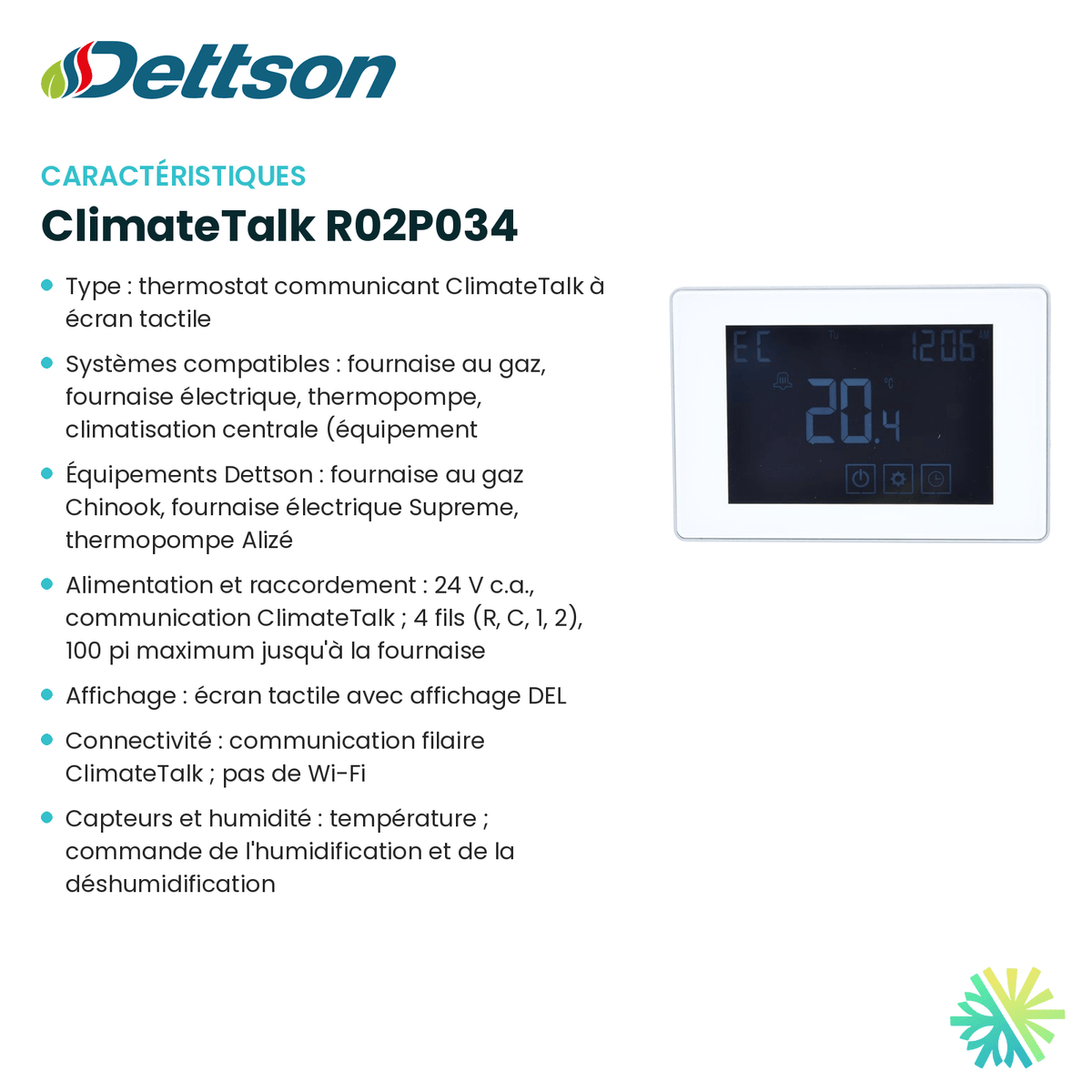

Technical specifications
- Type: ClimateTalk communicating touch-screen thermostat
- Compatible systems: gas furnace, electric furnace, heat pump, central air conditioning (ClimateTalk communicating equipment)
- Dettson equipment: Chinook gas furnace, Supreme electric furnace, Alizé heat pump
- Power and connection: 24 VAC, ClimateTalk communication; 4 wires (R, C, 1, 2), 100 ft maximum to the furnace
- Display: touch screen with LED display
- Connectivity: wired ClimateTalk communication; no Wi-Fi
- Sensors and humidity: temperature; humidification and dehumidification control
- Functions: automatic system configuration, automatic changeover, advanced diagnostics, filter replacement indicator
- Programming: off, 1 day, 5 + 2, 5 + 1 + 1 or 7 days; 2 or 4 periods per day
- Set point range: 5 to 35 °C (41 to 95 °F)
- Included: thermostat base, 2 mounting screws, installation instructions
Installation by AirGreen
Our technicians first check that your equipment is ClimateTalk compatible, then inspect the existing cable between the thermostat and the furnace. They connect the four conductors R, C, 1 and 2, staying within the 100 ft maximum length, mount the base on the wall and power up the system. The thermostat then runs its automatic configuration, which we validate step by step: heating, cooling, ventilation and, where applicable, humidification.
We then program the schedule with you and set the humidity set points for the season. Before leaving, we explain the filter indicator and how to read the diagnostic messages.
The R02P034 in the Dettson family
The R02P034 shares the ClimateTalk architecture of the R02P032, which adds a VGA colour screen, reminders for the UV lamp and the humidifier pad, and detailed dual-energy settings. The R02P033, for its part, is not communicating: it relies on Wi-Fi, the Smart Life app and voice control. The R02P034 offers no Wi-Fi connection or mobile app; it is meant for owners who want full integration with their communicating Dettson equipment and a simple wall control.
Who it is for
This thermostat suits homes equipped with a Chinook or Supreme furnace, an Alizé heat pump or a ClimateTalk central air conditioner. It is especially well suited to a complete system replacement, where the furnace, the heat pump and the thermostat can be installed and configured together.
What communication brings day to day
With a conventional thermostat, each equipment function must be wired and set up separately. With ClimateTalk, the thermostat and the equipment share their information over the same four-wire link. The thermostat knows which unit it controls, and the equipment receives commands suited to its capabilities. For the homeowner, this means a tidier installation, consistent operation between units and more useful diagnostic messages during a service visit. For the technician, reading the diagnostics on the thermostat makes the job easier and shortens the call.
Savings and comfort in winter
A communicating system runs according to the actual specifications of the equipment, which helps provide steady heating. Program temperature setbacks at night and during absences, keep humidity comfortable and follow the filter reminders. These simple habits help keep energy use under control through the long heating months.
Why AirGreen
AirGreen is a family-owned HVAC company with more than 15 years of experience, licensed by the RBQ, with a showroom in Boucherville. We install furnaces and heat pumps from several manufacturers, including Dettson, and we know how to commission communicating systems.
To buy the Dettson ClimateTalk R02P034 communicating thermostat and have it professionally installed, contact AirGreen. We work in Montreal, Laval, Longueuil, on the North Shore and on the South Shore.
Key facts: DETTSON ClimateTalk R02P034
Four things to know, then its ID card in twelve answers. “—” means the manufacturer does not publish it.
Is the DETTSON ClimateTalk R02P034 compatible with your heating?
Two steps, thirty seconds. The verdict takes your system and your wiring into account.
Full compatibility table
The terminals behind the thermostat
Tap an element to see what it does. A working diagram, not a substitute for the manufacturer’s installation guide.
Try the DETTSON ClimateTalk R02P034 before you buy
Raise the setpoint, change the mode: see how it responds.
How much good programming can save you
Set up your typical week. The math follows the rule published by Natural Resources Canada.
Winter, Rate Flex D and rebates: what this thermostat changes
With Hydro-Québec’s Rate Flex D, electricity costs less most of the winter and more during a few peak hours. A programmable thermostat does the work for you.
The DETTSON ClimateTalk R02P034 or its closest sibling?
The most useful comparison: the model right next to it in our catalogue.
The right thermostat in three questions
If this model is not the right one for you, the page says so and shows you which one is.
Installed and set up by our technicians, in five steps
What we do at your place, in order. The on-site estimate is free.
- 01InspectionEquipment, stages to control and existing wiring.
- 02C wireCommon wire added if the model needs it and it is missing.
- 03MountingWall base, terminal wiring, cover plate if needed.
- 04SettingsEquipment type, stages, dual energy and accessories.
- 05Start-upConnection, app, schedule and tests with you.
DETTSON ClimateTalk R02P034 specifications
From the manufacturer’s sheet. Type a word: the list filters as you write.
No line matches. Try another word.
Frequently asked questions about the DETTSON ClimateTalk R02P034
Short answers, no detours.
What does the DETTSON ClimateTalk R02P034 work with?
According to the manufacturer’s sheet: gas furnace, electric furnace, heat pump, central air conditioning (ClimateTalk communicating equipment).
Can it control electric baseboards?
No. It is a low-voltage (24 V) thermostat. 120/240 V baseboards need a line-voltage electronic thermostat.
Can it be controlled remotely?
Not directly: it has no built-in Wi-Fi.
What is the warranty?
1 year, per the manufacturer’s information.
Does AirGreen install it?
Yes. We sell and install this product in Montréal, Laval, Longueuil, the South Shore and the North Shore. The on-site estimate is free.
