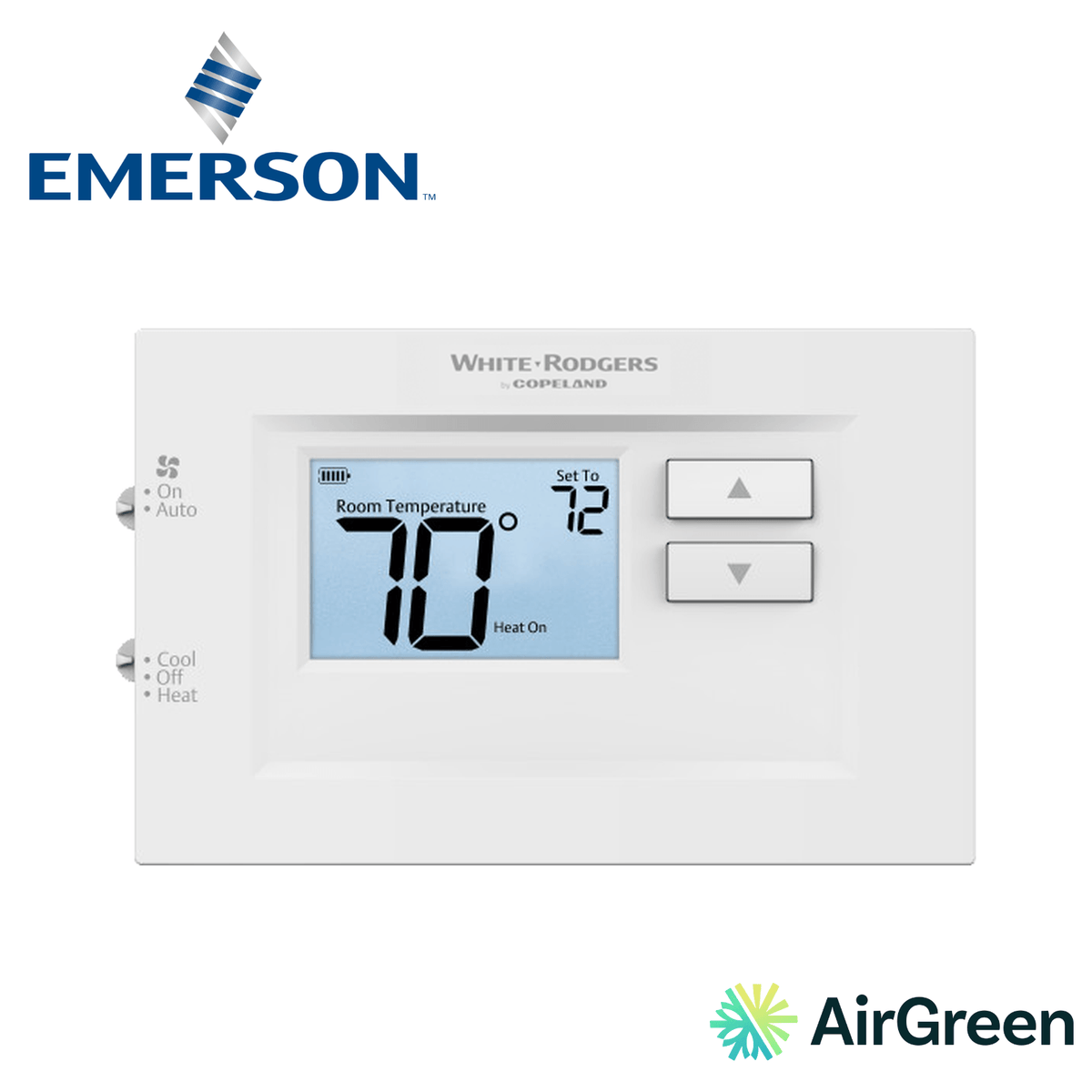

EMERSON 70 Series 1F75C-11NP Thermostat | Montreal, Laval, Longueuil, South Shore & North Shore
No schedule for your tenants to learn: one setpoint set by hand and a filter reminder on the display, for a furnace or central air.
Quick facts
Own a duplex and need a new thermostat in every unit? Or home most of the day, so a schedule would never get used? The 1F75C-11NP (EMERSON’s White-Rodgers line) holds the temperature you pick, with no periods or days to set.
One setpoint, set by hand
- Non-programmable: nothing to learn; raise or lower the temperature and that’s it.
- Filter reminder: the display reminds occupants to change the filter.
- Power of your choice: 2 AA batteries, for systems from millivolt up to 30 VAC, or hardwired at 20 to 30 VAC with a C wire.
- Lighting: large backlit display; continuous backlight is an option with a C wire.
- Setpoint: 7 to 37 °C (45 to 99 °F).
Compatibility
The 1F75C-11NP runs a conventional millivolt or 24 V system, gas, oil or electric, whether heat only, cool only or both. It also handles a central heat pump without backup heat (1 heat, 1 cool). It cannot run dual fuel, which needs a backup stage. Baseboards, convectors, fan-forced heaters, electric floor heating and wall or ducted heat pumps are outside its scope as well. As for hot water or steam systems, its spec sheet does not name them.
Programmable or not, 70 or 80 Series
If a schedule appeals to you after all, look at the EMERSON 70 Series 1F75C-11PR: 7-day or 5-1-1 programmable, 4 periods per day, and identical otherwise. The EMERSON 80 Series 1F83C-11NP, also non-programmable, runs the same systems with the same load rating; its sheet lists a high-contrast backlit display, while the 1F75C-11NP sheet lists the filter reminder, the built-in level and continuous backlight as an option with a C wire. In its 2025 cross-reference table, the brand lists the 1F75C-11NP to replace the EMERSON Classic 70 Series 1F78-144.
Installed by AirGreen
In a plex, putting the same model in every unit gives all tenants the same control. At the free in-home estimate, we check for a C wire: without one, the thermostat runs on 2 AA batteries; with one, it can be hardwired and keep the display lit continuously, as an option. We set it for one heating and one cooling stage and, if the old thermostat marked the wall, suggest the F61-2663 wall plate, sold as an option.
Manufacturer document: 1F75C-11NP installation instructions (37-7840). Sold and installed by AirGreen. We serve Montréal, Laval, Longueuil, the North Shore and the South Shore.
Key facts: EMERSON 70 Series 1F75C-11NP
Four things to know, then its ID card in twelve answers. “—” means the manufacturer does not publish it.
Is the EMERSON 70 Series 1F75C-11NP compatible with your heating?
Two steps, thirty seconds. The verdict takes your system and your wiring into account.
Full compatibility table
The terminals behind the thermostat
Tap an element to see what it does. A working diagram, not a substitute for the manufacturer’s installation guide.
Try the EMERSON 70 Series 1F75C-11NP before you buy
Raise the setpoint, change the mode: see how it responds.
Winter, Rate Flex D and rebates: what this thermostat changes
With Hydro-Québec’s Rate Flex D, electricity costs less most of the winter and more during a few peak hours. Turning the setpoint down a few degrees during those hours is what counts.
The EMERSON 70 Series 1F75C-11NP or its closest sibling?
The most useful comparison: the model right next to it in our catalogue.
The right thermostat in three questions
If this model is not the right one for you, the page says so and shows you which one is.
Products that go with the EMERSON 70 Series 1F75C-11NP
Parts named in its spec sheet that we sell and install.
Installed and set up by our technicians, in five steps
What we do at your place, in order. The on-site estimate is free.
- 01InspectionEquipment, stages to control and existing wiring.
- 02C wireCommon wire added if the model needs it and it is missing.
- 03MountingWall base, terminal wiring, cover plate if needed.
- 04SettingsEquipment type, stages, dual energy and accessories.
- 05Start-upConnection, app, schedule and tests with you.
EMERSON 70 Series 1F75C-11NP specifications
From the manufacturer’s sheet. Type a word: the list filters as you write.
No line matches. Try another word.
Frequently asked questions about the EMERSON 70 Series 1F75C-11NP
Short answers, no detours.
What does the EMERSON 70 Series 1F75C-11NP work with?
According to the manufacturer’s sheet: conventional gas, oil or electric (millivolt and 24 V): heat only, cool only or both; heat pump with no backup heat.
Does it need a C wire?
Per the spec sheet, it can run on batteries; a common wire is still recommended when available.
Can it control electric baseboards?
No. It is a low-voltage (24 V) thermostat. 120/240 V baseboards need a line-voltage electronic thermostat.
Can it be controlled remotely?
Not directly: it has no built-in Wi-Fi.
What is the warranty?
5 years, per the manufacturer’s information.
Does AirGreen install it?
Yes. We sell and install this product in Montréal, Laval, Longueuil, the South Shore and the North Shore. The on-site estimate is free.
No question matches. Call us at 514 316-2973.
Your thermostat, installed and set up by our technicians
We check your system and wiring, install the thermostat, connect it and program it with you. One visit, one installed price.
