Smart Thermostat HONEYWELL T6 Pro Smart TH6220WF2006/U | Montreal, Laval, Longueuil, South Shore & North Shore

The Honeywell T6 Pro Smart TH6220WF2006/U fills a very specific place in the line: that of the versatile connected thermostat, simple enough for the whole family and complete enough for most heating systems in Québec. It controls a gas, oil or electric furnace, a hot-water coil, a hydronic system, steam or gravity heat, as well as a central heat pump. And for households already living in the Apple world, it works with Apple HomeKit.

A Wi-Fi thermostat for the widest range of systems

Many consumer smart thermostats are designed first for forced air. The T6 Pro Smart also covers hot-water installations, whether gas, oil or electric, as well as steam and gravity systems, still found in many older Montréal homes and plexes. It's a smart choice when you want to add remote control without changing your heating equipment.

On the staging side, it handles up to 2 heating stages and 1 cooling stage (2H/1C) on a heat pump, and up to 2H/2C on a conventional system. A two-stage furnace paired with a central air conditioner, or a heat pump with one stage of backup heat, is therefore well supported. Changeover between heating and cooling can be automatic or manual.

The T6 Pro Smart runs on 24 VAC, so it does not control electric baseboard heaters at 120/240 V, which require line-voltage electronic thermostats.

Scheduling and geofencing

The schedule can be set up directly on the thermostat or in the Resideo app. You can choose between 7-day, 5-2, 5-1-1, one-week or non-programmable options. Geofencing uses your phone's location to switch to away mode when you leave home and return to comfort when you come back. Contractors also have the Resideo Pro app, which makes remote support easier when you give us access.

Apple HomeKit and Amazon Alexa

The T6 Pro Smart works with Apple HomeKit and Amazon Alexa. You can ask for a temperature by voice, or include it in a scene or automation in your smart home, for example lowering the heat when you turn on “night” mode.

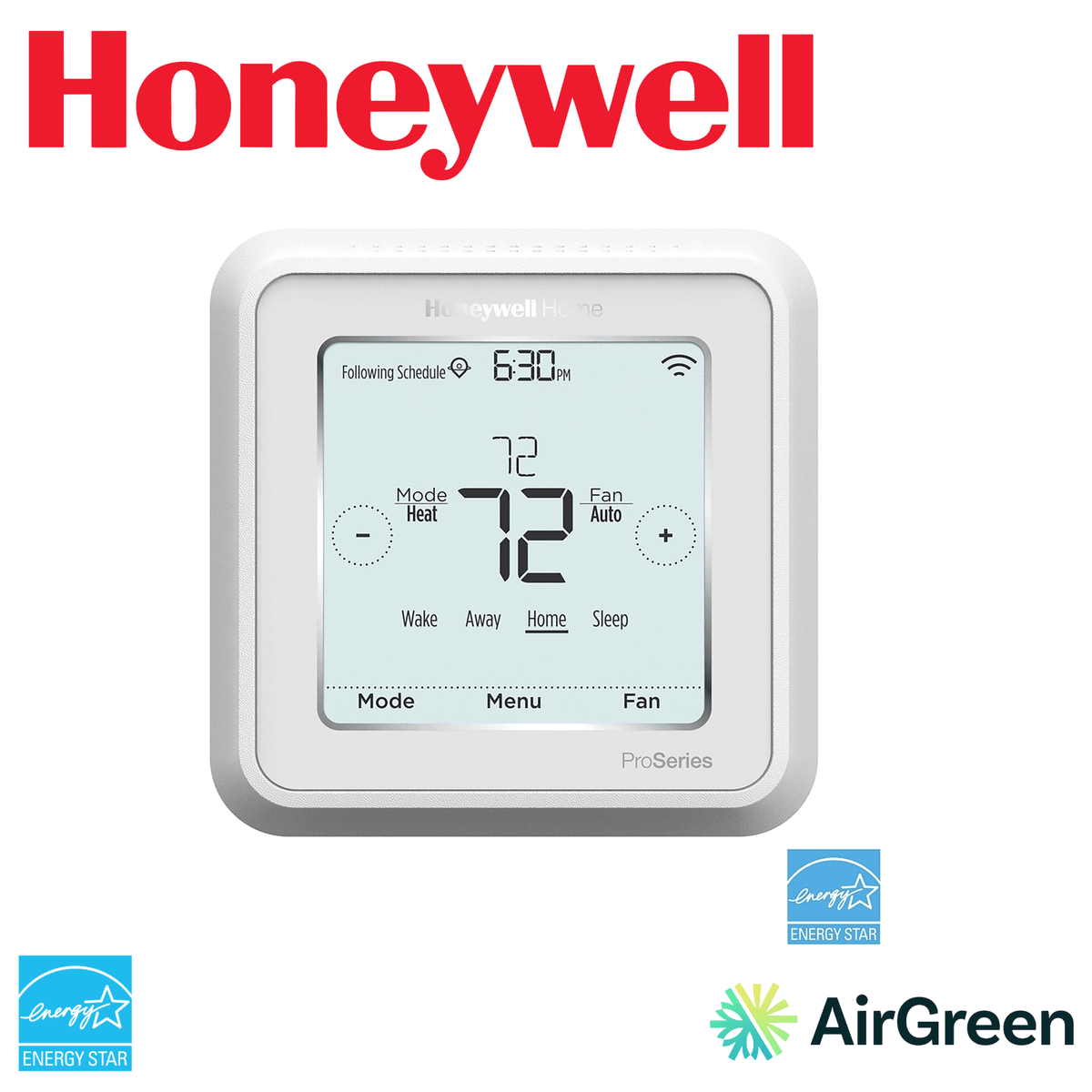

A clear touchscreen

The 6.89 sq in. backlit touchscreen shows the room temperature, the setpoint and the current mode. The thermostat's compact square format (103.6 x 103.6 x 28 mm) blends well with most decors, and the included cover plate hides the marks left by the old thermostat.

Optional wired sensors

Two wired sensors can complete the installation: the C7089U1006 outdoor sensor and the C7189U1005 remote indoor sensor. The indoor sensor is useful when the thermostat sits in a spot that isn't representative, like a hallway exposed to a front door. The outdoor sensor gives the thermostat the outdoor temperature.

Accuracy and setting ranges

Stated accuracy is ±0.5 °C (1 °F). The heating setpoint ranges from 4.5 to 32 °C and the cooling setpoint from 10 to 37 °C. A heating range that goes this low is handy for a house left empty in winter, a cottage or a rarely used space: the system holds a minimum temperature without heating for nothing.

Energy savings in winter

The T6 Pro Smart is ENERGY STAR certified according to Resideo. In practice, the savings come from scheduling and geofencing: lowering the setpoint by a few degrees during work hours and at night, then bringing the heat back up just before you wake up or get home. For a hot-water system, which reacts more slowly than a forced-air furnace, a well-set schedule lets you anticipate needs and avoid overheating.

Mounting on the UWP universal plate

The thermostat mounts on the UWP mounting system, standard across the Honeywell T series. The box includes the thermostat, the UWP mount, an installation adapter for an electrical box, the cover plate, screws and anchors, and the installation and user guides.

The T6 Pro Smart requires 20 to 30 VAC hardwired power with a common wire (C wire). Our technicians check the existing wiring; if there's no C wire, they add one or adapt the installation. They then configure the equipment type, stages and changeover mode, connect the thermostat to Wi-Fi and the Resideo app, and test heating and cooling with you.

Where the T6 Pro Smart fits in the line

For a quick comparison:

1. The T6 Pro programmable without Wi-Fi offers similar logic, with buttons instead of a touchscreen and the option of battery power.
2. The T6 Pro Smart shown here adds Wi-Fi, the touchscreen, geofencing, HomeKit and Alexa.
3. The T10+ Pro goes further with RedLINK, wireless room sensors and humidity and ventilation management.

The T6 Pro Smart is therefore the ideal balance for anyone who wants remote control without paying for features they don't need.

Maintenance tips

Clean the screen with a soft, dry cloth. Keep the app up to date and check your schedule when the seasons change. On the system side, change the furnace filter regularly and have your heating equipment inspected every fall, before the first cold snap.

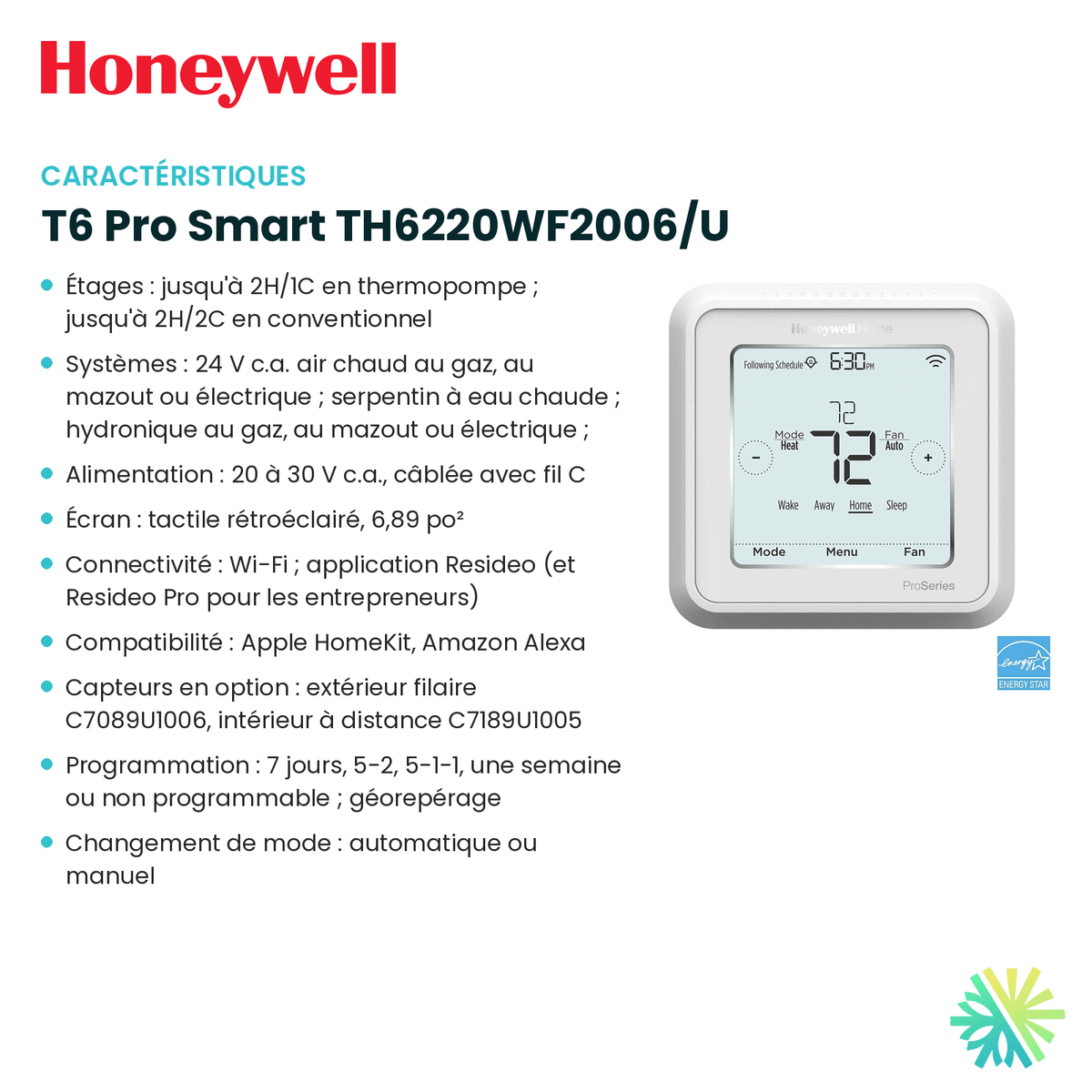

Technical specifications

• Stages: up to 2H/1C on a heat pump; up to 2H/2C on a conventional system
• Systems: 24 VAC gas, oil or electric warm air; hot-water coil; gas, oil or electric hydronic; steam or gravity
• Power: 20 to 30 VAC, hardwired with C wire
• Screen: backlit touchscreen, 6.89 sq in.
• Connectivity: Wi-Fi; Resideo app (and Resideo Pro for contractors)
• Compatibility: Apple HomeKit, Amazon Alexa
• Optional sensors: C7089U1006 wired outdoor, C7189U1005 remote indoor
• Programming: 7-day, 5-2, 5-1-1, one-week or non-programmable; geofencing
• Changeover: automatic or manual
• Accuracy: ±0.5 °C (1 °F); setpoints: heating 4.5 to 32 °C, cooling 10 to 37 °C
• Dimensions: 103.6 x 103.6 x 28 mm
• Colour: white
• Contents: thermostat, UWP mount, installation adapter, cover plate, screws and anchors, guides
• Certification: ENERGY STAR

AirGreen installs your T6 Pro Smart

AirGreen Inc. is a family HVAC business established for more than 15 years, holding an RBQ licence, with a showroom in Boucherville. For the sale and professional installation of the T6 Pro Smart on your furnace, hot-water system or heat pump, contact us. We serve Montréal, Laval, Longueuil, the North Shore and the South Shore.
