Dual energy is part of the Québec landscape: a central heat pump heats the house as long as the cold allows, then a furnace takes over on the coldest days.
Quick facts
Dual energy is part of the Québec landscape: a central heat pump heats the house as long as the cold allows, then a furnace takes over on the coldest days. For this hand-off to happen at the right time, the thermostat needs to know the outdoor temperature, control each stage of each appliance and know where the occupants are. The Honeywell T10+ Pro YTHM1004R3001/U kit brings all of that together: the T10+ Pro smart thermostat, the equipment interface module (EIM), a wireless room sensor and a wireless outdoor sensor.
The kit designed for dual energy
Compared with the YTHM1004R3000/U kit, this one adds the C7089R3013 wireless outdoor sensor. It measures outdoor temperature and humidity, which are shown on the thermostat screen. For a dual energy system, this is the data that determines when the heat pump hands over to the furnace. Because the sensor communicates wirelessly, no wire has to be run between the outdoors and the thermostat.
Controlling every stage with the EIM
Dual energy systems often have several stages: a two-stage compressor, a two-stage furnace, backup heat. The EIM is installed near the equipment and connects to each of these stages. The thermostat communicates with it over RedLINK 3.0 (900 MHz, about 200 ft in a typical home). With the EIM, the kit controls up to 4 heating and 2 cooling stages on a heat pump, or 3 heating and 2 cooling stages in conventional mode. Without the EIM, the thermostat alone would be limited to 3H/2C on a heat pump and 2H/2C on a conventional system. Above all, the EIM saves you from running a new thermostat wire through the walls.
Priority to occupied rooms
The wireless indoor sensor measures temperature, humidity and motion. It lets the thermostat prioritize the rooms you choose, for example the bedroom at night and the living room in the evening. Return and supply air sensors, installed in the ducts, round out the kit and provide system diagnostic data.
The T10+ Pro thermostat
The T10+ Pro offers a 7.27 sq in. touchscreen, 7-day programming, geofencing and a priority schedule. It connects over Wi-Fi for remote control with the Resideo app. Automatic or manual changeover makes it easy to switch between heating and cooling in spring and fall. According to the manufacturer, the thermostat is ENERGY STAR qualified.
How we install a dual energy system
The kit is designed for 24 VAC gas, oil, electric, steam or gravity systems, heat pumps and dual energy. The thermostat is hardwired on 20 to 30 VAC. During an AirGreen installation:
- we note the configuration of the heat pump and the furnace, and the number of stages on each;
- we install the EIM in the mechanical room and connect each stage;
- we install the return and supply sensors in the ducts;
- we mount the outdoor sensor on a shaded wall, away from the outdoor unit;
- we install the thermostat with the UWP mounting system and the cover plate, followed by the room sensor;
- we set up dual energy, Wi-Fi, the Resideo app and a first schedule with you.

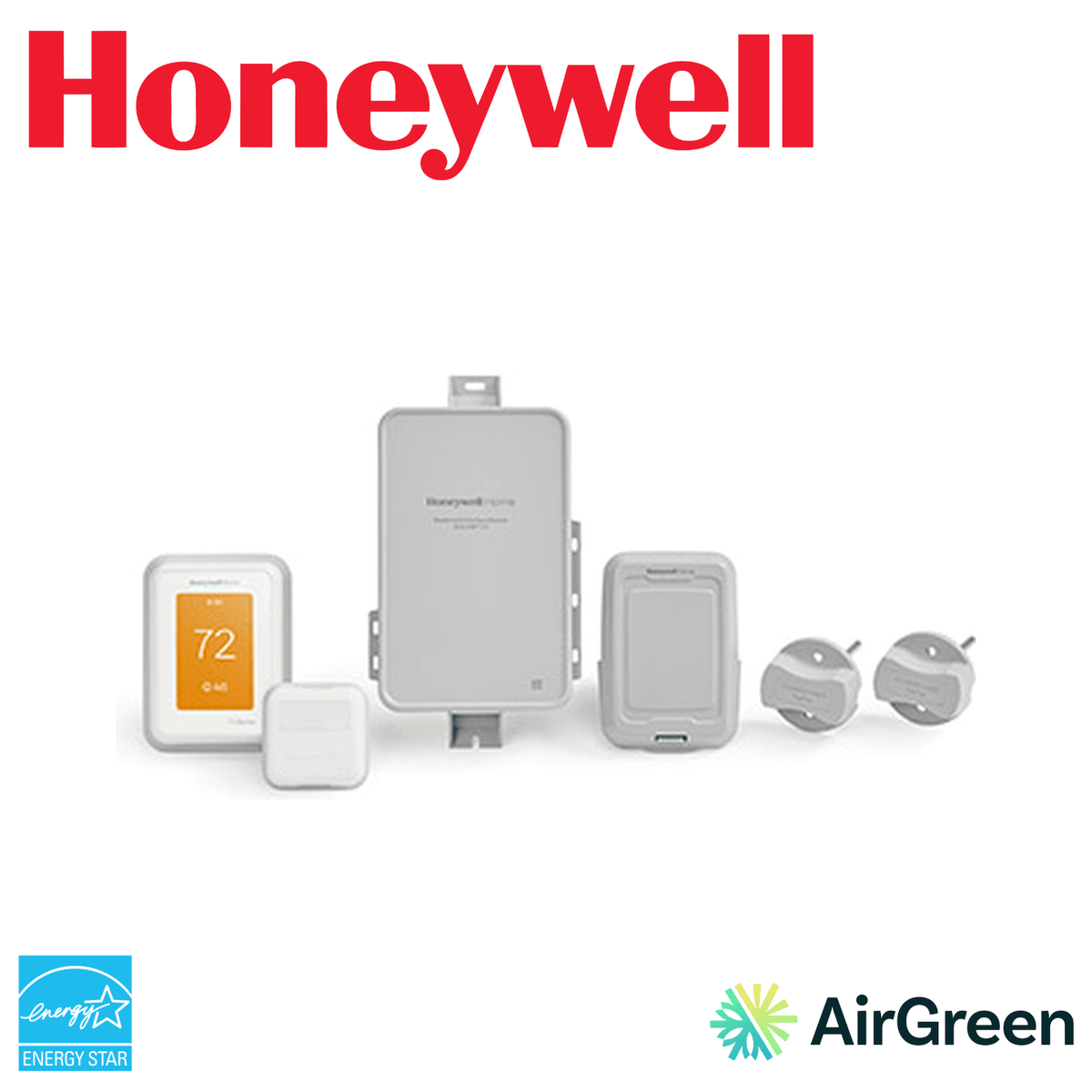

The white thermostat measures 124 x 94 x 24 mm, and the grey EIM mounts near the equipment.
Energy savings through the winter
During the long shoulder seasons, the heat pump can handle almost all of the heating. When the temperature drops in January, the furnace takes over. Thanks to the outdoor sensor, the thermostat follows this shift without you having to step in. The room sensor avoids overheating the house for a single cold room, geofencing cuts back the heat while you're away, and 7-day programming does the rest. Each heat source is used when it's most appropriate.
Day to day
The touchscreen shows the indoor temperature, the setpoint and outdoor conditions. In the app, you adjust the setpoint, change the schedule or check the system status remotely, whether you're at the office or travelling. The priority schedule lets you choose which room matters most at each time of day.
Maintenance
Replace the wireless sensor batteries when the thermostat signals it. Keep snow clear of the outdoor heat pump and change the equipment filter regularly. During the annual maintenance, we check the dual energy settings and the air sensor data.
Technical specifications

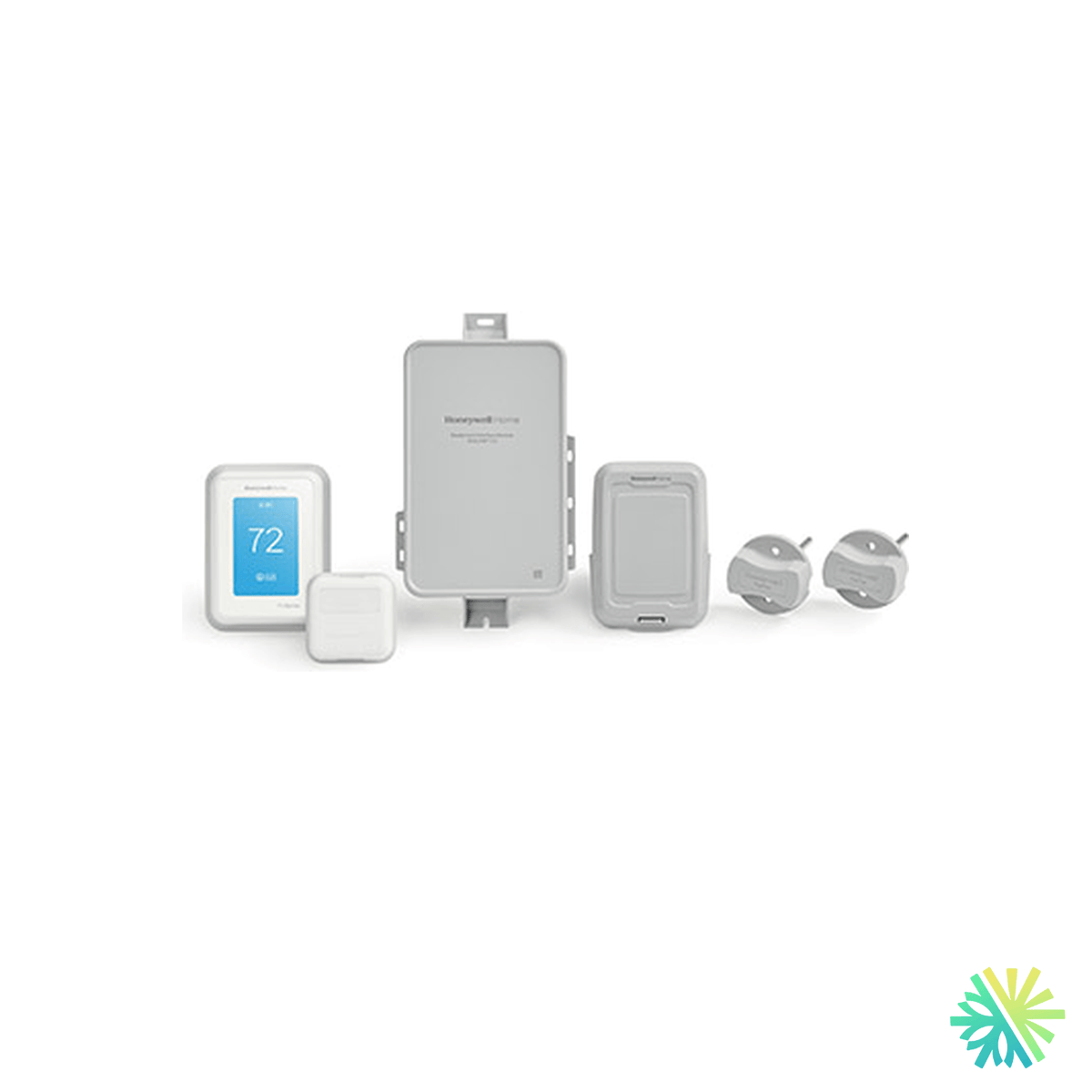

- Contents: T10+ Pro thermostat, EIM, wireless indoor sensor, wireless outdoor sensor, return and supply air sensors, UWP mounting system, cover plate, hardware
- Stages with EIM: up to 4 heating / 2 cooling on a heat pump; 3 heating / 2 cooling conventional
- Stages without EIM: 3 heating / 2 cooling on a heat pump; 2 heating / 2 cooling conventional
- Systems: 24 VAC — gas, oil, electric, steam/gravity, heat pump, dual energy
- Power: 20 to 30 VAC, hardwired
- Display: 7.27 sq in. touchscreen; outdoor temperature and humidity on screen
- Connectivity: Wi-Fi + RedLINK 3.0 (900 MHz, about 200 ft in a typical home)
- App: Resideo
- Scheduling: 7-day, geofencing, priority schedule
- Sensors: wireless room sensor, wireless outdoor sensor (C7089R3013), return and supply air sensors
- Changeover: automatic or manual
- Thermostat dimensions: 124 x 94 x 24 mm (4.9 x 3.7 x 0.93 in.)
- Colour: white thermostat; grey EIM
- Certification: ENERGY STAR (according to the manufacturer)
Why AirGreen
For more than 15 years, AirGreen has been installing central heat pumps, furnaces and dual energy systems in the Montréal area. As a family HVAC business holding an RBQ licence, we set up dual energy based on your actual equipment and habits. Our Boucherville showroom lets you see the T10+ Pro before you decide.
To buy the Honeywell T10+ Pro YTHM1004R3001/U kit and have it professionally installed, contact AirGreen. We serve Montréal, Laval, Longueuil, the North Shore and the South Shore.
Key facts: HONEYWELL T10+ Pro Smart with EIM, Indoor and Outdoor Sensors YTHM1004R3001/U
Four things to know, then its ID card in twelve answers. “—” means the manufacturer does not publish it.
Is the HONEYWELL T10+ Pro Smart with EIM, Indoor and Outdoor Sensors YTHM1004R3001/U compatible with your heating?
Two steps, thirty seconds. The verdict takes your system and your wiring into account.
Full compatibility table
The terminals behind the thermostat
Tap an element to see what it does. A working diagram, not a substitute for the manufacturer’s installation guide.
Try the HONEYWELL T10+ Pro Smart with EIM, Indoor and Outdoor Sensors YTHM1004R3001/U before you buy
Raise the setpoint, change the mode: see how it responds.
How much good programming can save you
Set up your typical week. The math follows the rule published by Natural Resources Canada.
Winter, Rate Flex D and rebates: what this thermostat changes
With Hydro-Québec’s Rate Flex D, electricity costs less most of the winter and more during a few peak hours. A programmable thermostat does the work for you.
The sensor decides which room counts
An interactive drawing of what this kind of control does day to day.
The HONEYWELL T10+ Pro Smart with EIM, Indoor and Outdoor Sensors YTHM1004R3001/U or its closest sibling?
The most useful comparison: the model right next to it in our catalogue.
The right thermostat in three questions
If this model is not the right one for you, the page says so and shows you which one is.
Products that go with the HONEYWELL T10+ Pro Smart with EIM, Indoor and Outdoor Sensors YTHM1004R3001/U
Parts named in its spec sheet that we sell and install.
Installed and set up by our technicians, in five steps
What we do at your place, in order. The on-site estimate is free.
- 01InspectionEquipment, stages to control and existing wiring.
- 02C wireCommon wire added if the model needs it and it is missing.
- 03MountingWall base, terminal wiring, cover plate if needed.
- 04SettingsEquipment type, stages, dual energy and accessories.
- 05Start-upConnection, app, schedule and tests with you.
HONEYWELL T10+ Pro Smart with EIM, Indoor and Outdoor Sensors YTHM1004R3001/U specifications
From the manufacturer’s sheet. Type a word: the list filters as you write.
No line matches. Try another word.
Frequently asked questions about the HONEYWELL T10+ Pro Smart with EIM, Indoor and Outdoor Sensors YTHM1004R3001/U
Short answers, no detours.
What does the HONEYWELL T10+ Pro Smart with EIM, Indoor and Outdoor Sensors YTHM1004R3001/U work with?
According to the manufacturer’s sheet: 24 VAC — gas, oil, electric, steam/gravity, heat pump, dual energy.
Does it need a C wire?
Yes. It needs wired 24 V power with a common wire. If the wire is missing, our technicians add a conductor during installation.
Can it control electric baseboards?
No. It is a low-voltage (24 V) thermostat. 120/240 V baseboards need a line-voltage electronic thermostat.
Can it be controlled remotely?
Yes, over Wi-Fi with the Resideo app.
Does it qualify for a rebate?
If you heat with natural gas from Énergir, an ENERGY STAR smart thermostat on Énergir’s list can qualify for $100 (up to 75% of the price). Have Énergir confirm the model before buying.
What is the warranty?
5 years, per the manufacturer’s information.
Does AirGreen install it?
Yes. We sell and install this product in Montréal, Laval, Longueuil, the South Shore and the North Shore. The on-site estimate is free.
