Kit HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 6" YTH8321WF1036/U | Montreal, Laval, Longueuil, South Shore & North Shore
Today's homes are more airtight than ever.
Quick facts
Today's homes are more airtight than ever. That's great for the heating bill, but indoor air still needs to be renewed. The Honeywell Wi-Fi VisionPRO 8000 with 6 in. TrueZONE fresh air damper kit YTH8321WF1036/U hands this job to the thermostat: it controls your heating, your cooling and the fresh air intake in your ductwork, all from a single touchscreen and an app.
The thermostat that also manages fresh air

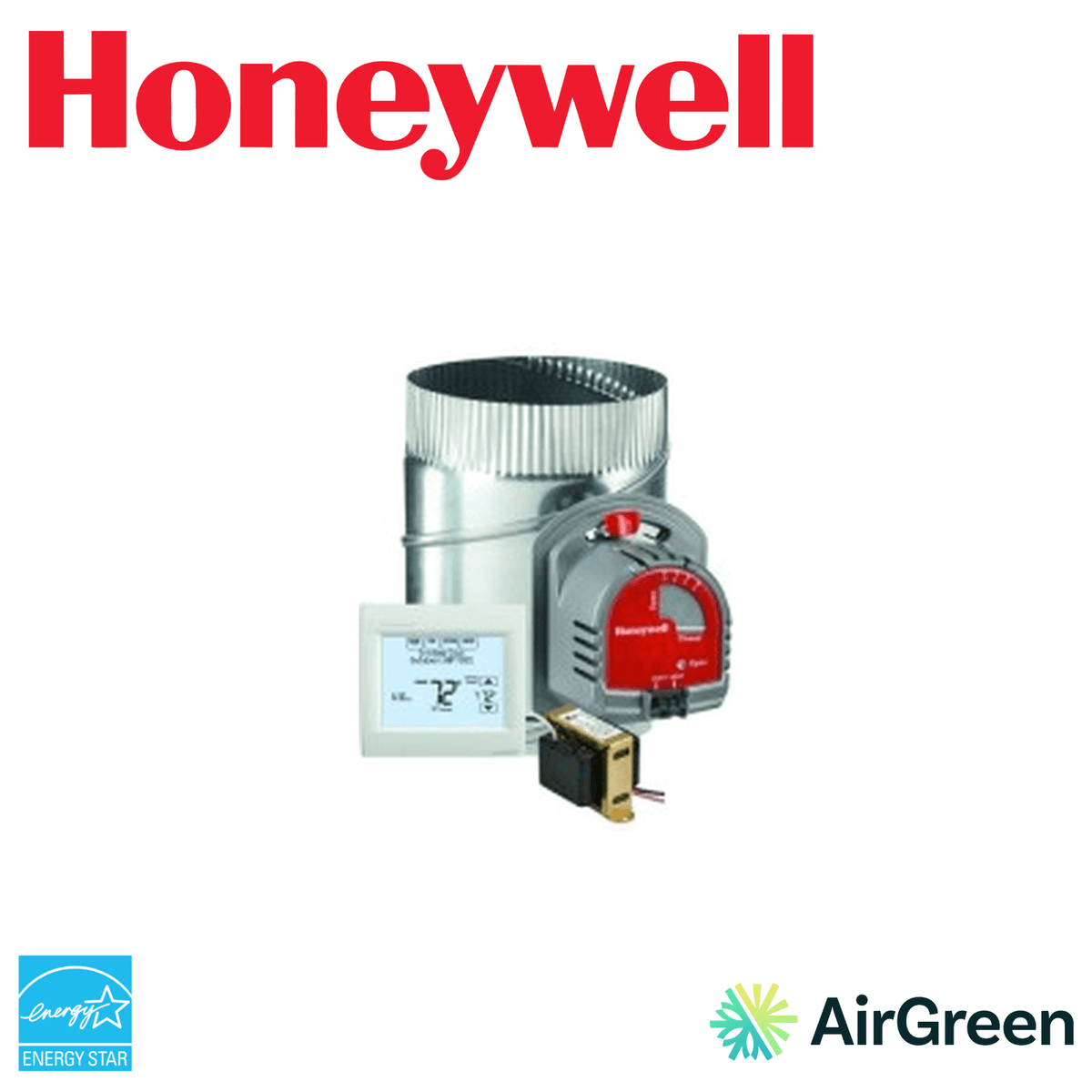

The kit has three components: the Wi-Fi VisionPRO 8000 TH8321WF thermostat, the TrueZONE EARD6TZ fresh air damper, 6 in. (152 mm) in diameter, and the AT140B transformer that powers the damper. Installed on the outdoor air intake duct, the damper is power-open, spring-close, which means it opens when the thermostat calls for fresh air and closes on its own the rest of the time. The thermostat thus controls ventilation along with thermal comfort.
For a home heated by a forced-air furnace or central heat pump, this approach brings fresh air into the existing system, instead of relying only on opening the windows, which isn't very practical in January.
The 6 in. damper
The damper diameter must match the fresh air duct. This kit includes the 6 in. version, and an equivalent kit with an 8 in. damper exists for larger ducts. During the visit, our technicians measure the existing duct or determine the diameter required for a new connection, so they can suggest the right kit. The damper motor has a powered opening time of 30 seconds and a 10-second spring return, and it connects to terminals M1 (power) and M6 (common).
A connected VisionPRO 8000 thermostat
The thermostat connects to Wi-Fi and is managed with the Total Connect Comfort app, from a computer, tablet or smartphone. Its large 10 sq in. touchscreen makes adjustments at the wall easy. Intuitive programming simplifies setup, and the thermostat can be 7-day programmable or non-programmable. Changeover between heating and cooling is automatic or manual, and equipment check and replacement reminders help you keep up with maintenance.
Stages and compatibility
The thermostat handles up to 3 heating and 2 cooling stages (3H/2C) on a heat pump and up to 2H/2C on a conventional system. It applies to 24 VAC heating and cooling systems with fresh air ventilation, and Honeywell presents it as suitable for a wide variety of systems. It does not control 120/240 V electric baseboard heaters.
Power
The thermostat requires hardwired 18 to 30 VAC, 50/60 Hz power. The included AT140B transformer powers the damper. Our technicians check the existing wiring and add the conductors needed between the equipment, the thermostat and the damper.
Savings and comfort in winter
The thermostat in the kit carries ENERGY STAR certification. Its programming delivers annual savings by lowering the setpoint while you're away and at night. For fresh air, the benefit of thermostat control is being able to meter the intake, opening the damper when it's useful rather than letting cold air in nonstop during the deep cold.
Installation by AirGreen
- Assessment of your ductwork and the location of the outdoor air intake duct.
- Installation of the 6 in. TrueZONE damper on the fresh air duct and of the AT140B transformer.
- Installation of the thermostat, connection to the equipment and the damper, configuration of the stages.
- Adjustment of fresh air ventilation to suit your home and habits.
- Connection to Wi-Fi and Total Connect Comfort, followed by full testing.
Why fresh air matters in Québec
During the heating months, windows stay shut and humidity, cooking odours and indoor pollutants build up. In a renovated home with new windows and better insulation, the building envelope lets through much less air than before. A controlled fresh air supply, managed by the thermostat and distributed through the furnace or heat pump ducts, helps keep indoor air healthier without giving up heating efficiency. Our technicians adjust this supply to suit your home's layout.
Choosing the right kit
The 6 in. version shown here and the 8 in. version (YTH8321WF1044/U) share the same thermostat and the same transformer; only the damper changes. If you don't need fresh air control, a thermostat on its own may be enough, and if your home has an air exchanger, other thermostats can control it directly. We advise you based on your installation.
Maintenance
Clean the screen with a soft, dry cloth. Make sure the outdoor air intake stays clear of snow, leaves and debris. Follow the thermostat's maintenance reminders and have your heating system and ductwork inspected every year.
Technical specifications
- Contents: Wi-Fi VisionPRO 8000 TH8321WF thermostat, TrueZONE EARD6TZ fresh air damper (6 in.), AT140B transformer
- Stages: up to 3H/2C on a heat pump; up to 2H/2C on a conventional system
- Systems: 24 VAC heating and cooling with fresh air ventilation
- Power: 18 to 30 VAC, 50/60 Hz, hardwired; AT140B transformer for the damper
- Display: touchscreen, 10 sq in.
- Connectivity: Wi-Fi; Total Connect Comfort app
- Programming: 7-day or non-programmable
- Damper: powered open, spring close; 30 s powered, 10 s spring return; terminals M1 (power) and M6 (common)
- Changeover: automatic or manual; equipment maintenance reminders
- Dimensions: thermostat 118 x 126 x 29 mm; damper 6 in. (152 mm) in diameter
- Colour: Arctic White
- Certification: ENERGY STAR thermostat
Well-managed fresh air with AirGreen
AirGreen Inc. is a family business in air conditioning and heating with more than 15 years of experience. It holds an RBQ licence and welcomes customers at its showroom in Boucherville. For the sale and professional installation of the VisionPRO 8000 kit with 6 in. fresh air damper, contact AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
Key facts: HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 6" YTH8321WF1036/U
Four things to know, then its ID card in twelve answers. “—” means the manufacturer does not publish it.
Is the HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 6" YTH8321WF1036/U compatible with your heating?
Two steps, thirty seconds. The verdict takes your system and your wiring into account.
Full compatibility table
The terminals behind the thermostat
Tap an element to see what it does. A working diagram, not a substitute for the manufacturer’s installation guide.
Try the HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 6" YTH8321WF1036/U before you buy
Raise the setpoint, change the mode: see how it responds.
How much good programming can save you
Set up your typical week. The math follows the rule published by Natural Resources Canada.
Winter, Rate Flex D and rebates: what this thermostat changes
With Hydro-Québec’s Rate Flex D, electricity costs less most of the winter and more during a few peak hours. A programmable thermostat does the work for you.
The HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 6" YTH8321WF1036/U or its closest sibling?
The most useful comparison: the model right next to it in our catalogue.
The right thermostat in three questions
If this model is not the right one for you, the page says so and shows you which one is.
Installed and set up by our technicians, in five steps
What we do at your place, in order. The on-site estimate is free.
- 01InspectionEquipment, stages to control and existing wiring.
- 02C wireCommon wire added if the model needs it and it is missing.
- 03MountingWall base, terminal wiring, cover plate if needed.
- 04SettingsEquipment type, stages, dual energy and accessories.
- 05Start-upConnection, app, schedule and tests with you.
HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 6" YTH8321WF1036/U specifications
From the manufacturer’s sheet. Type a word: the list filters as you write.
No line matches. Try another word.
Frequently asked questions about the HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 6" YTH8321WF1036/U
Short answers, no detours.
What does the HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 6" YTH8321WF1036/U work with?
According to the manufacturer’s sheet: 24 V AC heating and cooling with fresh air ventilation.
Can it control electric baseboards?
No. It is a low-voltage (24 V) thermostat. 120/240 V baseboards need a line-voltage electronic thermostat.
Can it be controlled remotely?
Yes, over Wi-Fi.
Does it qualify for a rebate?
If you heat with natural gas from Énergir, an ENERGY STAR smart thermostat on Énergir’s list can qualify for $100 (up to 75% of the price). Have Énergir confirm the model before buying.
What is the warranty?
5 years, per the manufacturer’s information.
Does AirGreen install it?
Yes. We sell and install this product in Montréal, Laval, Longueuil, the South Shore and the North Shore. The on-site estimate is free.
