Kit HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 8" YTH8321WF1044/U | Montreal, Laval, Longueuil, South Shore & North Shore
When a home or small commercial space already has an 8 in. outdoor air intake duct, or when the ventilation project calls for that diameter, you need a damper that connects to it without a reducer.
Quick facts
Fresh-air ventilation for 8 in. ducts

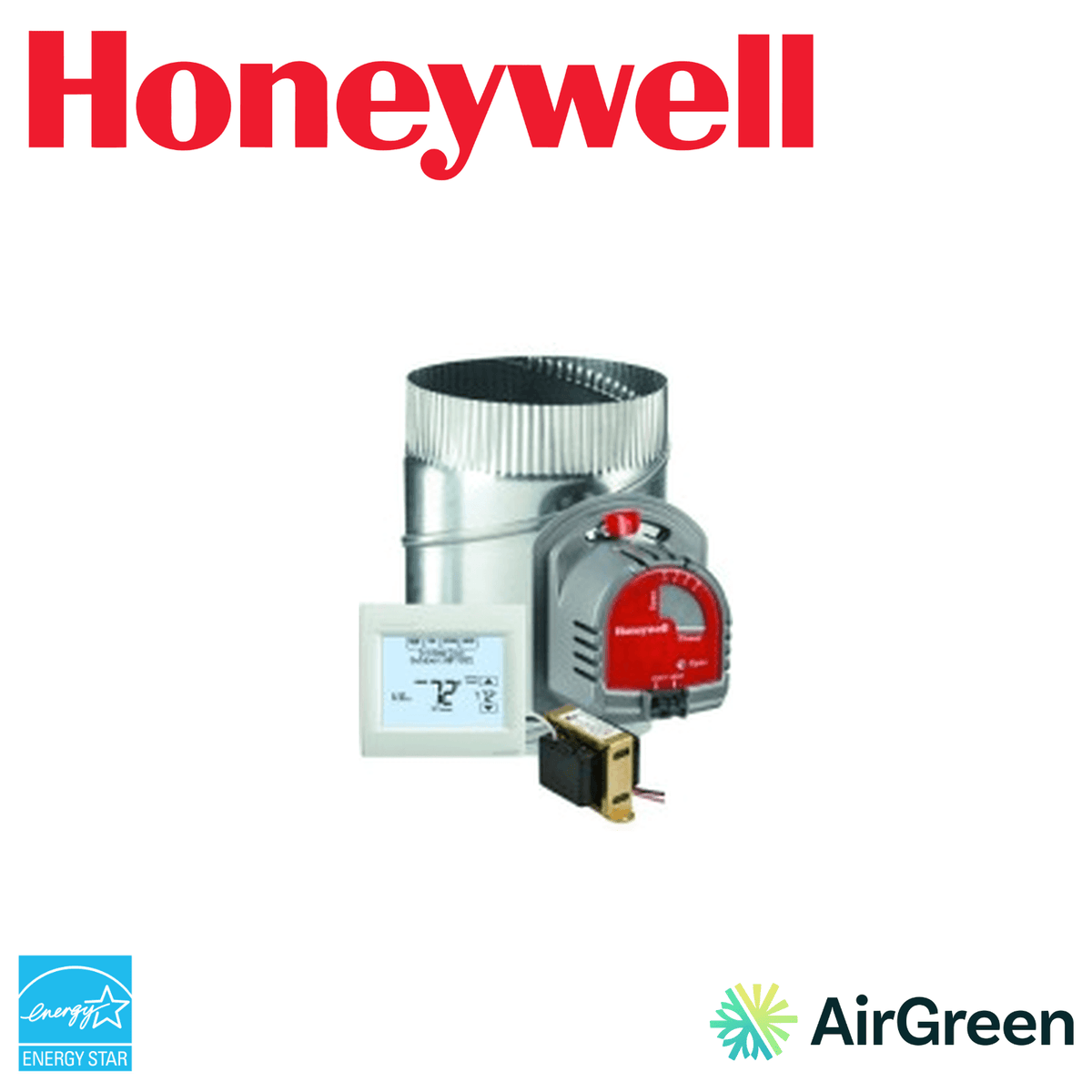

When a home or small commercial space already has an 8 in. outdoor air intake duct, or when the ventilation project calls for that diameter, you need a damper that connects to it without a reducer. The Honeywell Wi-Fi VisionPRO 8000 kit with 8 in. TrueZONE fresh-air damper YTH8321WF1044/U meets that need: it combines a connected touchscreen thermostat, an 8 in. (203 mm) EARD8TZ fresh-air damper and the AT140B transformer that powers it. The thermostat thus controls heating, cooling and the intake of fresh air into your ductwork.
How the TrueZONE damper works
The damper mounts on the fresh-air duct. It is opened by a motor and closed by a spring. When the thermostat calls for ventilation, the motor opens the damper and outdoor air can enter the forced-air system; when the call ends, the spring closes it. Motorized opening takes 30 seconds and the spring return 10 seconds. The motor connects to terminals M1 (power) and M6 (common), and the included AT140B transformer supplies its power.
This approach suits buildings heated by a forced-air furnace or central heat pump. The fresh air then comes in through the existing ductwork, under the thermostat's control.
The Wi-Fi VisionPRO 8000 thermostat
The kit's TH8321WF thermostat connects to Wi-Fi. With the Total Connect Comfort app, you manage your comfort from a computer, tablet or smartphone: setpoint, schedule, mode. On the wall, the large 10 sq in. touchscreen makes reading and adjusting easy. Intuitive programming speeds up setup; the thermostat can be 7-day programmable or non-programmable. Changeover is automatic or manual, and equipment check and replacement reminders help you plan maintenance.
Equipment it controls
The thermostat handles up to 3H/2C on a heat pump and up to 2H/2C on a conventional system, so a two-stage heat pump with backup heat, a two-stage furnace with an air conditioner or a dual energy installation all fall within that range. It's meant for 24 VAC systems with fresh-air ventilation, and Honeywell presents it as suitable for a wide variety of systems. 120/240 V electric baseboard heaters are not compatible.
Power and wiring
The thermostat requires 18 to 30 VAC, 50/60 Hz hardwired power. The damper is powered by the supplied AT140B transformer. Our technicians plan the wiring between the heating unit, the thermostat, the transformer and the damper, and add any missing conductors as needed.
Metering fresh air in winter
In the depths of a Québec winter, bringing in outdoor air continuously cools the system for nothing. The advantage of a damper controlled by the thermostat is being able to meter the fresh air according to the home's needs. The kit's thermostat is ENERGY STAR certified, and its programming contributes to yearly savings by lowering the setpoint during absences and at night.
How the installation goes
We start by assessing the ductwork and the existing or planned fresh-air duct, to make sure 8 in. is the right diameter. The damper is then installed and connected, along with the transformer. The thermostat is installed, connected to the equipment and the damper, then configured for your system's stages. We set the ventilation to suit your home's layout, connect the thermostat to Wi-Fi and Total Connect Comfort, and test heating, cooling and ventilation.
6 in. or 8 in.
Both kits share the same Wi-Fi VisionPRO 8000 thermostat and the same transformer. The choice depends only on the fresh-air duct diameter: the 8 in. version shown here for 8 in. ducts, the 6 in. version (YTH8321WF1036/U) for 6 in. ducts. Our technicians measure before ordering, to avoid any makeshift fittings.
Who it's for
This kit is for homeowners who want to bring fresh air into their forced-air system, renovated homes that have become more airtight and small commercial spaces where ventilation needs to be managed simply. If your home already has an air exchanger, we'll look at the most consistent solution with you.
In a small commercial space
An office, clinic or neighbourhood store heated by a forced-air unit often needs fresh air during occupied hours. With this kit, fresh-air intake follows the thermostat's control, and remote access through Total Connect Comfort lets the owner check the temperature on site without travelling, for example on a bitterly cold Sunday.
Maintenance
Keep the outdoor air intake clear of snow, ice and leaves. Clean the thermostat screen with a soft, dry cloth. Follow the maintenance reminders and have the system, ducts and damper inspected during the annual maintenance.

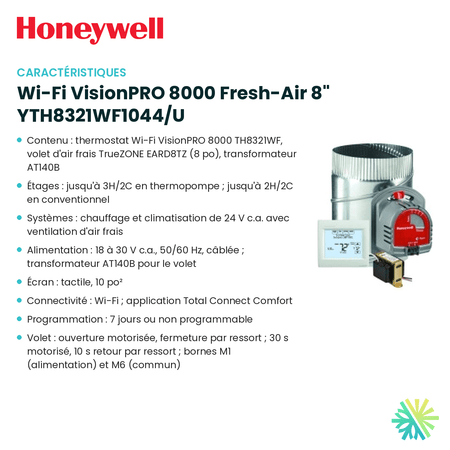

Technical specifications
- Contents: Wi-Fi VisionPRO 8000 TH8321WF thermostat, TrueZONE EARD8TZ fresh-air damper (8 in.), AT140B transformer
- Stages: up to 3H/2C on a heat pump; up to 2H/2C conventional
- Systems: 24 VAC heating and cooling with fresh-air ventilation
- Power: 18 to 30 VAC, 50/60 Hz, hardwired; AT140B transformer for the damper
- Screen: touchscreen, 10 sq in.
- Connectivity: Wi-Fi; Total Connect Comfort app
- Programming: 7-day or non-programmable
- Damper: motorized opening, spring closing; 30 s motorized, 10 s spring return; M1 (power) and M6 (common) terminals
- Changeover: automatic or manual; equipment maintenance reminders
- Dimensions: thermostat 118 x 126 x 29 mm; 8 in. (203 mm) diameter damper
- Colour: arctic white
- Certification: ENERGY STAR thermostat
AirGreen, ventilation and heating together
AirGreen Inc. is a family HVAC business that has been active for more than 15 years, holds an RBQ licence and has a showroom in Boucherville. For the sale and professional installation of the VisionPRO 8000 kit with 8 in. fresh-air damper, contact AirGreen anywhere in Montréal, Laval, Longueuil, the North Shore and the South Shore.
Key facts: HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 8" YTH8321WF1044/U
Four things to know, then its ID card in twelve answers. “—” means the manufacturer does not publish it.
Is the HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 8" YTH8321WF1044/U compatible with your heating?
Two steps, thirty seconds. The verdict takes your system and your wiring into account.
Full compatibility table
The terminals behind the thermostat
Tap an element to see what it does. A working diagram, not a substitute for the manufacturer’s installation guide.
Try the HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 8" YTH8321WF1044/U before you buy
Raise the setpoint, change the mode: see how it responds.
How much good programming can save you
Set up your typical week. The math follows the rule published by Natural Resources Canada.
Winter, Rate Flex D and rebates: what this thermostat changes
With Hydro-Québec’s Rate Flex D, electricity costs less most of the winter and more during a few peak hours. A programmable thermostat does the work for you.
The HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 8" YTH8321WF1044/U or its closest sibling?
The most useful comparison: the model right next to it in our catalogue.
The right thermostat in three questions
If this model is not the right one for you, the page says so and shows you which one is.
Installed and set up by our technicians, in five steps
What we do at your place, in order. The on-site estimate is free.
- 01InspectionEquipment, stages to control and existing wiring.
- 02C wireCommon wire added if the model needs it and it is missing.
- 03MountingWall base, terminal wiring, cover plate if needed.
- 04SettingsEquipment type, stages, dual energy and accessories.
- 05Start-upConnection, app, schedule and tests with you.
HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 8" YTH8321WF1044/U specifications
From the manufacturer’s sheet. Type a word: the list filters as you write.
No line matches. Try another word.
Frequently asked questions about the HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 8" YTH8321WF1044/U
Short answers, no detours.
What does the HONEYWELL Wi-Fi VisionPRO 8000 Fresh-Air 8" YTH8321WF1044/U work with?
According to the manufacturer’s sheet: 24 V AC heating and cooling with fresh air ventilation.
Can it control electric baseboards?
No. It is a low-voltage (24 V) thermostat. 120/240 V baseboards need a line-voltage electronic thermostat.
Can it be controlled remotely?
Yes, over Wi-Fi.
Does it qualify for a rebate?
If you heat with natural gas from Énergir, an ENERGY STAR smart thermostat on Énergir’s list can qualify for $100 (up to 75% of the price). Have Énergir confirm the model before buying.
What is the warranty?
5 years, per the manufacturer’s information.
Does AirGreen install it?
Yes. We sell and install this product in Montréal, Laval, Longueuil, the South Shore and the North Shore. The on-site estimate is free.
No question matches. Call us at 514 316-2973.
Your thermostat, installed and set up by our technicians
We check your system and wiring, install the thermostat, connect it and program it with you. One visit, one installed price.
