An electric furnace that heats but no longer distributes air properly
In a residence in LaSalle, our AirGreen team responded to a service call regarding a residential electric furnace connected to a metal duct network. The customer noticed a problem that seemed simple at first but required a thorough HVAC analysis: the furnace was still producing heat, but the comfort in the house was no longer stable. Some rooms received less air, the temperature rose slowly, and the system seemed to work longer than before to reach the requested setting.
On site, the installation showed the typical characteristics of a central system: an electric furnace cabinet connected to a galvanized sheet metal plenum, an existing duct network, harder-to-access areas, and a relatively tight mechanical space. In this kind of setup, a heating problem can come from several sources: electrical element, ventilation motor, relay, control board, thermostat, clogged filter, poorly sealed duct, lack of return air, restriction in the network, or air leak in the plenum.
Our priority was therefore not just to look at the furnace as an isolated device, but as the heart of a complete central HVAC heating system.
Symptoms observed before our diagnosis
The customer had noticed several revealing signs:
- heat present at the outlet of some ducts, but uneven distribution;
- longer cycles than usual;
- louder air noise near the furnace;
- feeling that the ventilation was working harder;
- areas of the house colder despite a normal thermostat setting;
- dust traces around certain duct junctions;
- more noticeable discomfort during cold periods.
These symptoms can easily be mistaken for a "tired" furnace or a faulty electrical element. However, in many cases, the real source lies elsewhere: in the airflow. An electric furnace can heat properly, but if the air doesn't circulate well, the customer will experience a significant drop in performance.
Inspection of the furnace and duct network

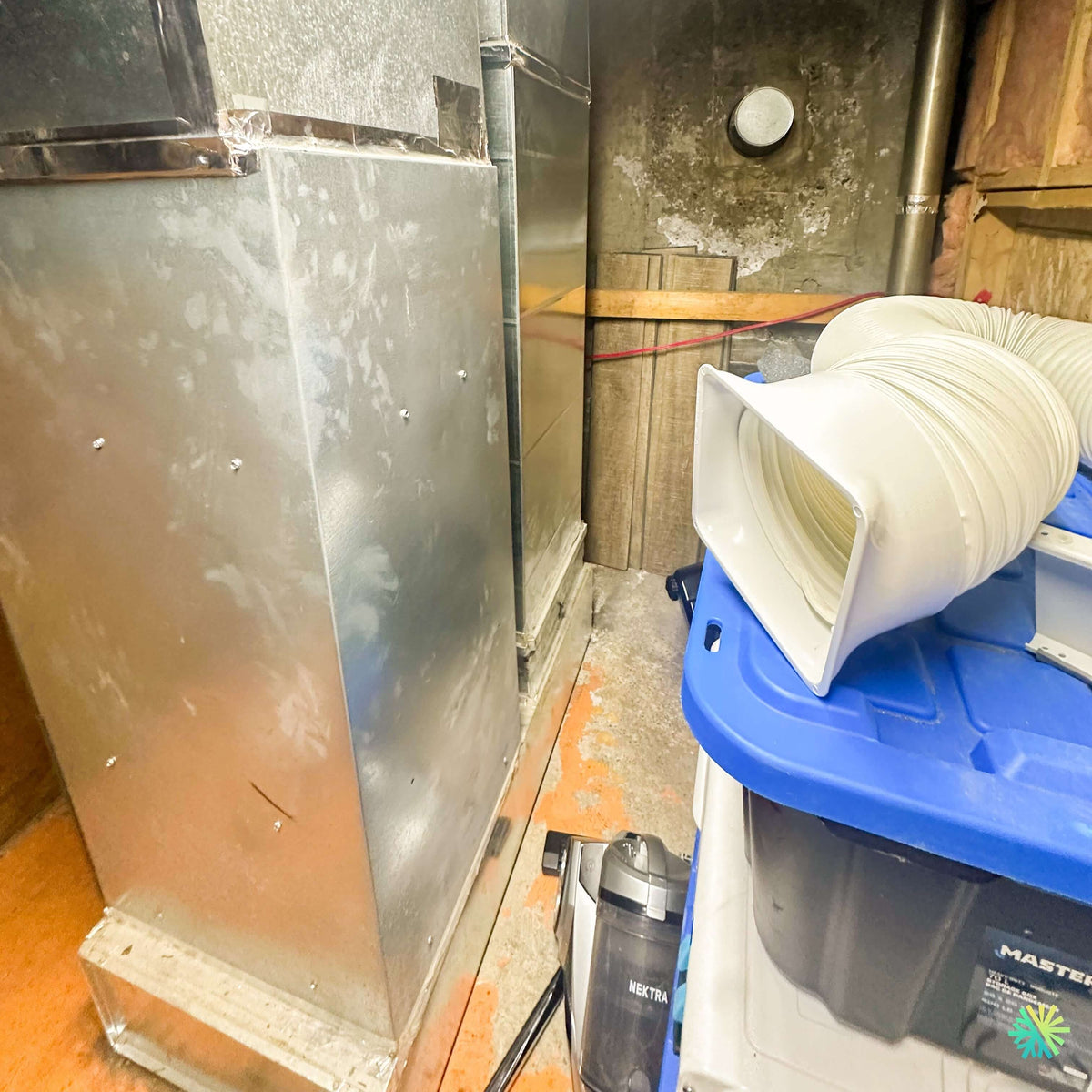

Upon arrival, we began with a complete visual inspection of the mechanical room. The system image clearly showed a set of metal ducts connected to the furnace, with galvanized sheet metal sections, visible joints, and a space where access had to be done carefully.
We checked:
- the general condition of the furnace casing;
- the access panels;
- the joints between the plenum and the ducts;
- the presence of possible air leaks;
- the condition of the filter;
- the fan’s reaction;
- the behavior of the thermostat;
- vibration or turbulence noises;
- the quality of the air return;
- the presence of dust or obstruction in accessible sections.
In a central system, a small air leak or restriction can have a disproportionate impact. Heated air must be pushed with enough pressure to travel through the duct network, reach distant rooms, then return to the furnace through the air returns. If this loop is disrupted, heating efficiency quickly decreases.
Electrical check: elements, sequence, and safety
Since it was an electric furnace, we also carried out a check of the electrical components. This type of unit generally contains heating elements controlled by relays or sequencers, a blower motor, thermal protections, and a low-voltage control connected to the thermostat.
Our diagnosis included:
- validating the power supply;
- checking the heating demand from the thermostat;
- observing the startup sequence;
- checking the operation of the fan;
- checking for signs of overheating;
- inspection of accessible connections;
- analysis of the behavior of electrical components.
The goal was to confirm that the furnace was receiving the request, that the components were functioning correctly, and that the fan was distributing air at the right time. A poor sequence can cause significant discomfort: ventilation starting too late, lukewarm air output, element cutting off too soon, or motor not pushing enough air.
The main problem: a combination of air circulation and sealing
The diagnosis identified that the problem was not due to a complete furnace failure. The unit was working, but the system was losing efficiency because of a combination of factors related to air circulation and certain network joints.
We observed signs consistent with:
- partial airflow restriction;
- air leaks around certain duct sections;
- turbulence in the plenum;
- a need to tighten and seal joints;
- less efficient airflow to certain areas of the house.
This type of situation is common in residences in LaSalle, Montreal, Laval, Longueuil, on the North Shore and the South Shore, especially when ducts have been modified over the years or when various works have been done around the system without a complete HVAC rebalancing.
Intervention carried out: correction of airflow and system optimization
After clearly explaining the observations to the customer, we proceeded with a targeted intervention. The goal was not to unnecessarily replace the furnace but to fix what was preventing the system from delivering its full performance.
Adjustment of duct joints
We inspected the accessible sheet metal sections and fixed points where air could escape or cause vibrations. Duct joints are often underestimated. Yet, when they are not well fitted, they can cause pressure loss, noise, and uneven distribution.
An air leak near the furnace is particularly problematic: heated air is lost before even being sent into the rooms. The customer pays to heat, but part of the energy remains in the mechanical room instead of being distributed throughout the house.
Filter and air return check
We then checked the condition of the filter and the air return path. An electric furnace heavily depends on the air return. If the air returns poorly, the fan operates under poor conditions, the components can heat up more, and comfort decreases.
An overly clogged, too restrictive, or poorly installed filter can cause a significant pressure drop. We therefore recommended a maintenance routine suited to the home's use, with special attention during periods of intensive heating.
Fan test and observation of heating behavior
Once the adjustments were made, we restarted the system and observed a full heating cycle. The airflow was more stable, the noise near the furnace was less noticeable, and the distribution to the outlets seemed more consistent. The system responded better to the thermostat’s demand.
The client mainly noticed an improvement in comfort: less waiting to feel the heat, less variation between zones, and more consistent operation.
What to remember from an electric furnace repair with ducts
An electric furnace is often seen as a simple device: a heating demand, electric elements, a fan, then warm air. In reality, performance depends as much on the device as on the distribution network. A furnace in good condition can give poor results if the ducts, air return, or airflow are problematic.
Mistakes to avoid with an electric furnace
Replacing parts without a full diagnosis
It’s tempting to quickly replace a thermostat, a relay, or even a ventilation motor as soon as a comfort issue appears. However, without a complete diagnosis, this approach can be costly without solving the real cause.
In this case in LaSalle, the system was still heating. The key was to identify why the heat was not properly reaching where it needed to go.
Neglecting the ducts
Ducts are an integral part of the HVAC system. A poorly sealed plenum, a loose joint, insufficient air return, or a blocked section can reduce the efficiency of the entire installation. The furnace may be powerful, but if the ductwork doesn’t keep up, comfort will remain disappointing.
Ignoring air noises
A blowing, vibrating, or turbulent noise can indicate a restriction, a leak, or inadequate pressure. These noises should not be normalized too quickly. They often provide useful clues about what is happening inside the ductwork.
Using an overly restrictive filter
Some very dense filters can reduce airflow if the furnace and ductwork are not designed for this resistance. A good filter should protect the equipment and improve air quality, but it must also allow sufficient circulation.
Why call AirGreen for this type of HVAC service
At AirGreen, we approach every service call with a comprehensive view of the system. An electric furnace is not limited to its front panel. We look at ventilation, ducts, controls, electricity, air pressure, symptoms reported by the client, and the actual conditions of the home.
This approach helps avoid hasty conclusions. In many cases, the right service involves adjusting, cleaning, sealing, testing, and optimizing rather than immediate replacement. This is exactly what makes HVAC diagnosis important.
Our teams regularly work on central systems and electric furnaces in Montreal, Laval, Longueuil, LaSalle, on the North Shore and the South Shore. Each residence has its particularities: age of ducts, insulation, room layout, network length, furnace location, thermostat type, and usage habits.
Final result: better heat distribution and a reassured client
At the end of the intervention, the electric furnace was operating more consistently. The system distributed air better, the circulation noise had decreased, and the client clearly understood the source of the problem. No major replacement was recommended without necessity.
This service in LaSalle shows that a central heating problem is not always a dramatic breakdown. Sometimes, the system keeps running but with reduced performance. That’s where an accurate diagnosis makes all the difference.
A well-maintained, well-powered, well-ventilated electric furnace properly connected to its ducts can provide reliable comfort for many years. AirGreen's role is to ensure that every part of the system works in the right direction: producing heat, distributing it efficiently, reducing losses, and maintaining stable comfort throughout the home.
