An outdoor space too tight that complicated the operation of a Fujitsu heat pump in Laval
A Fujitsu wall-mounted heat pump can provide excellent comfort for many years, but its efficiency strongly depends on two often underestimated elements: the quality of the outdoor installation and the free airflow around the condenser. During a recent HVAC service call in Laval, our AirGreen team was called to inspect a Fujitsu outdoor unit installed in a very tight space, on a wooden balcony structure, between the residence wall and a metal fence.
The client contacted us because the heat pump no longer seemed to operate consistently. The system would start, but its behavior was irregular: reduced efficiency, longer cycles, noticeable vibrations on the structure, and the impression that the outdoor unit was working harder than before. It wasn’t a total breakdown, but rather a typical situation where several small factors end up affecting the overall system performance.

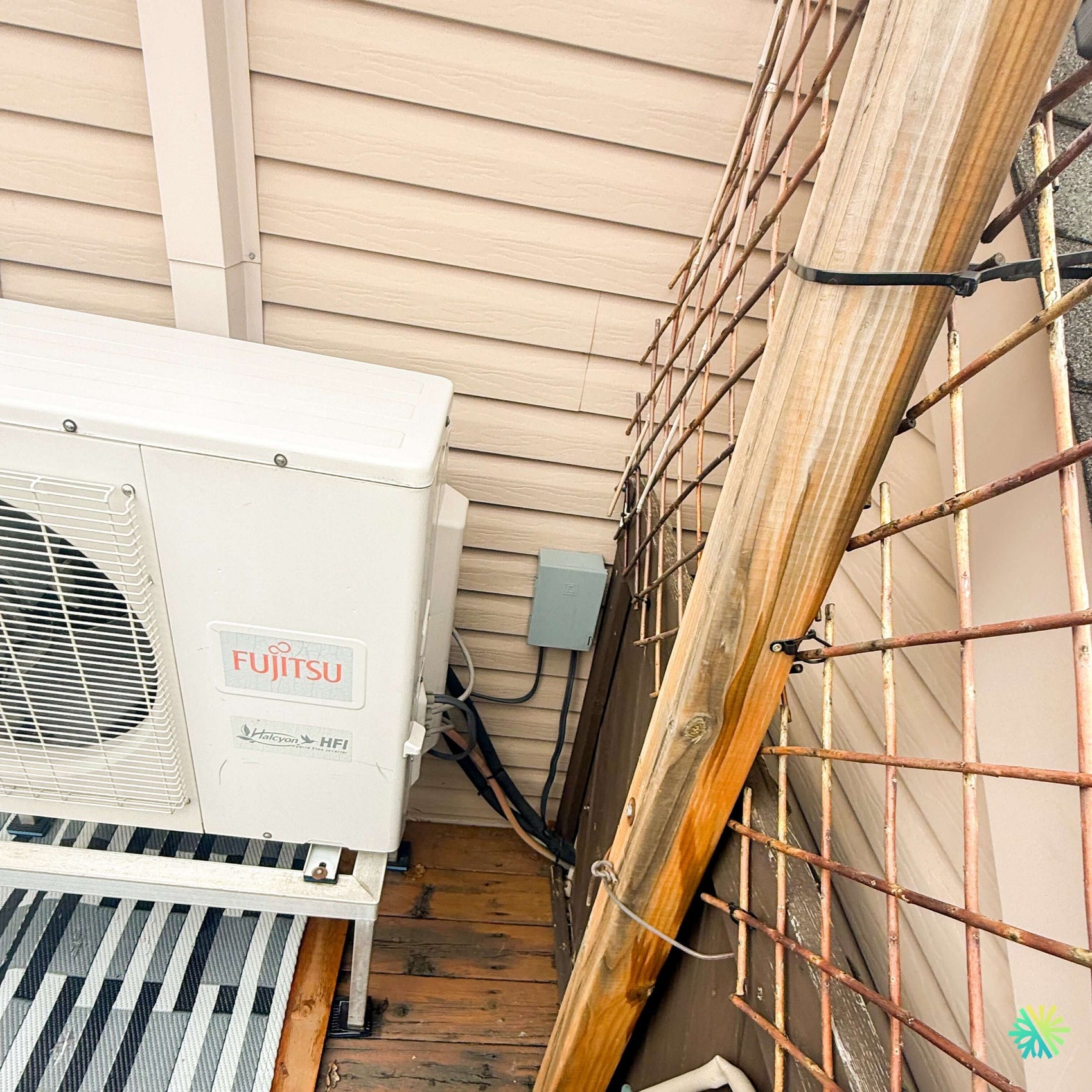

On site, our technician immediately noticed a Fujitsu Halcyon HFI outdoor unit connected to an indoor wall-mounted heat pump. The device was installed on a metal bracket, which itself rested on a wooden surface. The environment was tight, with a fence very close on the right side, a wooden post, cables attached nearby, limited clearance at the back, and difficult technical access to the refrigeration and electrical connections.
This type of setup requires a thorough inspection, as a heat pump may seem well installed at first glance, while being affected by air restriction, vibration transmitted to the balcony, moisture buildup under the unit, or maintenance difficulties that increase over time.
A Fujitsu wall-mounted heat pump designed to perform, but dependent on its environment
The heat pump in question was a Fujitsu Halcyon HFI, a range known in residential settings for its efficient heating and cooling performance. This type of wall-mounted system is often installed in houses, condos, and multiplexes in Laval, Montreal, Longueuil, on the North Shore and the South Shore, because it allows heating and cooling of a main area without requiring ducts.
In this specific case, the outdoor unit was located in a narrow balcony corridor. The device was relatively compact, but the space around it left little room for air circulation and technical intervention. The outdoor fan had to expel air forward, while the back and sides of the unit had to allow sufficient intake. When this circulation is limited, the heat pump can continue to operate but with reduced efficiency.
The symptoms reported by the client were consistent with this type of situation:
- heating slower than before;
- longer operating cycles;
- vibration felt in the balcony structure;
- more noticeable external noise;
- irregular performance during temperature changes;
- concern about the proximity of the fence and cables.
Our role was therefore to determine whether the performance drop was due to a mechanical, electrical, refrigerant issue, or simply an outdoor environment that had become unfavorable to the proper functioning of the system.
Initial diagnosis: difficult access, limited air circulation, and possible vibrations
The analysis of a Fujitsu wall-mounted heat pump always starts with the basics: visual inspection, environment check, electrical control, fan behavior, condition of refrigerant lines, compressor noise, and system response to thermostat demand.
In this service call in Laval, the environment of the outdoor unit was particularly important. The device was installed near a metal fence and a wooden post, with limited side clearance. This proximity can cause several problems.
Air restriction around the condenser
An outdoor unit needs to breathe. Even if the fan seems to be running normally, a space that is too tight can cause recirculation of expelled air. In cooling mode, this can increase operating pressure. In heating mode, it can reduce heat exchange efficiency. In both cases, the compressor works harder.
Our technician assessed the airflow around the device and observed that the setup did not allow perfectly free ventilation, especially on the fence side. The space was not completely blocked but was tight enough to warrant a technical recommendation.
Vibration transmitted to the wooden structure
The unit was placed on a metal support installed on a wooden surface. Wood can amplify certain vibrations, especially when the support feet are not perfectly isolated or when the compressor runs at certain speeds. A slight vibration at the unit can become much more noticeable inside or on the balcony.
We checked the stability of the support, the contact points, the fastenings, the condition of the vibration dampers, and the presence of contact between the refrigerant lines, cables, and structural elements around the unit.
Refrigerant and electrical connections to inspect carefully
In the photo, the refrigerant lines and wiring near the outdoor unit and electrical box are clearly visible. When a device is installed in a tight space, these elements can be subjected to mechanical stress, sharp bends, or rubbing against the structure.
Our technician verified that the lines were not pinched, the insulation was intact, the cables were not in contact with abrasive surfaces, and the disconnect box was in good condition. Even a minor detail can cause intermittent failure or irregular behavior in a wall-mounted heat pump.
Electrical and communication check between the indoor and outdoor units
On Fujitsu wall-mounted systems, several issues can stem from poor communication between the indoor and outdoor units, unstable power supply, or weakened connections. Before concluding a compressor or electronic board problem, basic electrical components must be checked.
During this HVAC service call in Laval, our technician conducted a thorough inspection:
- voltage at the outdoor disconnect switch;
- condition of the connections to the control box;
- power supply of the outdoor unit;
- Fan behavior;
- Compressor start-up;
- Response to heating or cooling demand;
- No obvious signs of electrical overheating;
- Check of visible connections between units.
This step ruled out a major electrical failure. The system was receiving power and responding to demand. The problem was therefore more related to operating conditions and performance than to a clear component failure.
Inspection of the outdoor coil and the unit’s general condition
The outdoor coil is at the heart of a heat pump’s performance. If the fins are blocked by dust, leaves, pollen, balcony dirt, or debris stuck between the unit and the structure, heat exchange decreases.
In this case, access to the back and sides of the unit was limited, making maintenance more difficult. Our technician inspected accessible areas, removed visible debris, and recommended a more thorough cleaning when access conditions allow. In such a tight installation, neglected maintenance can quickly become a factor in performance loss.
An important point was also explained to the customer: an outdoor unit should not only be clean in the front. The intake areas must also remain clear. A heat pump that looks clean on the visible side can be partially blocked at the back or on a less accessible side.
Intervention performed: stabilization, clearance, and optimization of operation
After the diagnosis, our team carried out a targeted intervention to improve the operating conditions of the Fujitsu heat pump.
Clearing critical areas
Items that could obstruct airflow were moved or repositioned when possible. The goal was to create better clearance around the outdoor unit, especially near the fence and wooden post. In such a tight space, every inch of clearance counts.
Support and vibration check
The metal support was inspected to ensure the unit was stable. Contact points were checked, and our technician paid special attention to vibrations transmitted to the balcony. When necessary, minor adjustments in positioning and support can significantly reduce the noise experienced by the customer.
Securing lines and cables.
The refrigerant lines and cables were inspected and slightly repositioned to avoid unnecessary contact with the structure. This step is important because a cable or line rubbing against a fence or post can deteriorate with repeated vibrations.
Complete operational test.
Once the checks were completed, the heat pump was tested in operation. The start was stable, the outdoor fan ran properly, noise was better controlled, and the system responded normally to demand. No major parts had to be replaced during this intervention. The main problem came from a set of installation and maintenance conditions that affected performance and comfort.
Technical lessons from this Fujitsu repair in Laval.
A good unit does not always compensate for poor clearance.
A Fujitsu wall-mounted heat pump can be reliable and efficient, but it cannot operate at full potential if the outdoor unit is too confined. In Laval, Montreal, Longueuil, on the North Shore and South Shore, many residential installations are found in narrow yards, on balconies, between two walls, or near fences and decorative structures.
This type of location can be acceptable if minimum clearances are respected and maintenance is easy. However, when access becomes too tight, risks increase:
- Decreased heating performance;
- Reduced cooling efficiency;
- Amplified noise;
- Vibrations in the structure;
- More difficult maintenance;
- Accumulation of debris around the coil;
- Longer diagnosis during a breakdown.
Mistakes to avoid around a Fujitsu outdoor unit.
During this call in Laval, several practical recommendations were given to the client to preserve the system's performance.
Do not place objects against the outdoor unit.
A fence, patio furniture, storage, planter, or decorative panel may seem far from the unit but can become problematic if air no longer circulates freely.
Do not attach cables or accessories to the structure near the refrigerant lines.
Cables attached too close to the lines can create friction points. Over time, vibrations can damage the insulation or put stress on the connections.
Don’t ignore vibrations
A vibration that suddenly appears deserves an inspection. It can come from the support, fan, compressor, refrigerant lines, or an external element touching the unit.
Don’t wait for a complete breakdown
A system that is underperforming often shows signs before breaking down. A quick service call often helps avoid more expensive repairs.
Why AirGreen approaches this type of HVAC service differently
At AirGreen, we don’t just check if the machine starts. A heat pump can start and still perform poorly. Our approach is to analyze the entire context: device, installation, clearance, support, wiring, refrigerant lines, noise, vibration, maintenance, and actual comfort in the home.
In this case in Laval, the diagnosis reassured the client, improved operating conditions, and prevented unnecessary system wear. The intervention did not require costly replacement but corrected the elements that were harming performance.
Expertise useful for wall-mounted heat pumps in Laval and Greater Montreal
AirGreen offers wall-mounted heat pump repair, HVAC maintenance, diagnostics, replacement, and installation services throughout Greater Montreal, including Laval, Montreal, Longueuil, on the North Shore and the South Shore. We work on brands like Fujitsu, Gree, Sharp, Midea, Goodman, Lennox, York, Panasonic, LG, and many other residential systems.
This intervention on a Fujitsu wall-mounted heat pump in Laval clearly illustrates the importance of an accurate diagnosis. The problem wasn’t dramatic, but it was real: limited space, restricted air circulation, possible vibration, and difficult technical access. By correcting the conditions around the unit and validating the system’s operation, we helped the client regain better comfort and peace of mind.
