A well-designed installation to face Quebec winters
At AirGreen , we place the utmost importance on the durability and winter performance of every HVAC installation. This service call in Sainte-Julie , on Montreal's South Shore , perfectly illustrates how a careful, climate-adapted installation can ensure optimal performance all year round.
Our client had just renovated his garden level and wanted to install a Midea wall-mounted heat pump to benefit from economical heating and stable comfort , even in periods of extreme cold.
Site context and challenges

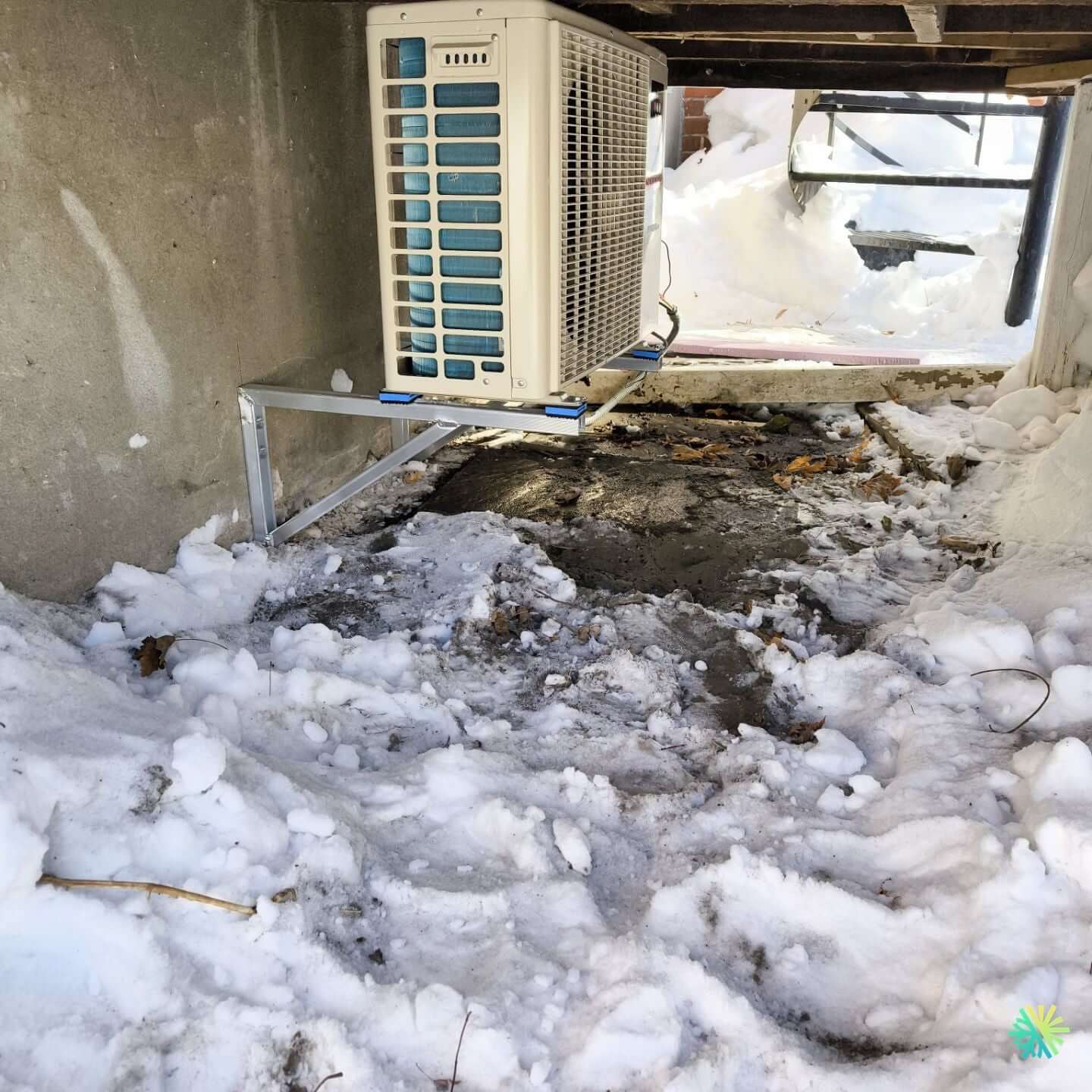

The outdoor unit was to be placed under a wooden deck , a semi-open space exposed to snow and frost.
This type of environment presents several technical challenges :
-
Risk of snow and ice accumulation under the unit .
-
Poor condensate drainage , which can freeze on the floor.
-
Restricted airflow if the unit is positioned incorrectly.
To ensure the longevity of the system and avoid any obstruction, our team designed an installation on a raised wall bracket in galvanized aluminum , allowing:
-
Optimal air circulation around the condenser.
-
Protection against water splashes and ice .
-
Enhanced mechanical stability , even during defrost cycles.
Step 1: Preparing the wall and fixing the support
Before any fixing, our technicians inspected the exterior wall structure to ensure it could support the load of the device.
We then have:
-
Drilled and securely anchored the wall bracket using stainless steel expansion bolts.
-
Level the base perfectly to avoid any stress on the refrigeration pipes.
-
Install anti-vibration dampers to minimize noise and vibration transmitted to the building.
This type of mounting also facilitates the natural drainage of condensation while keeping the unit away from the snow-covered ground.
Step 2: Passage of pipes and connections
The wall-mounted indoor unit was installed in the living room, in a strategic location allowing even distribution of hot and cold air throughout the space.
We then have:
-
Drilled a watertight hole through the foundation for the passage of the copper pipes and the condensate drain.
-
Thermally insulated all refrigeration lines with high density sheathing.
-
Connected and welded the lines according to Midea pressure standards, before carrying out a nitrogen test at 350 psi to ensure leak-tightness.
Step 3: Commissioning and Performance Testing
Once the connections were complete, we evacuated the system to remove any moisture and then charged it with R-410A refrigerant according to the manufacturer's exact specifications.
Performance tests showed:
-
Stable and perfectly compliant pressures .
-
Automatic defrosting effective even at -15°C.
-
Minimal noise thanks to good insulation and rigid mounting.
The unit was then calibrated to optimize heating mode in winter and cooling mode for the warm season .
Step 4: Final result and maintenance recommendations
The customer now benefits from a discreet, efficient installation protected from the elements .
The choice of a wall mount under the terrace proved to be a wise one:
-
No snow accumulation under the unit ,
-
No vibration felt inside ,
-
Easy access for future interviews .
Our technicians advised to:
-
Check clearance under unit after each storm,
-
Clean the coils at the end of winter,
-
And perform annual AirGreen maintenance to maintain energy efficiency.
AirGreen Expertise: the art of intelligent installation
Each wall-mounted heat pump installation project is unique.
At AirGreen , we always analyze the site configuration to adapt the assembly , optimize air circulation and protect the system against Quebec conditions .
Our installations are built to the highest industry standards, guaranteeing performance, silence and durability .
Whether you are in Sainte-Julie , Brossard , Montreal , Laval or on the North Shore , our certified experts will assist you in the choice, installation and maintenance of your Midea, Fujitsu, Gree or Zephyr heat pump .
AirGreen is more than an installer: it's a trusted partner for your HVAC comfort, summer and winter.
Technical summary of the intervention:
-
Device type: Wall-mounted heat pump (mini-split)
-
Brand: Midea
-
Location: Sainte-Julie (South Shore)
-
Special feature: Installation under terrace with raised wall support
-
Solution: Galvanized support, complete insulation, winter calibration
-
Result: Stable performance, efficient drainage, snow protection
