An HVAC service call where the problem was not just the furnace, but everything around it
In Charlemagne, our AirGreen team was called for an electric furnace repair in a residential mechanical room where the central heating system was connected to a heavily loaded duct network: metal ducts, flexible ducts, distribution fittings, limited access around the unit, and several plumbing and storage elements nearby. From the moment we arrived, one thing was clear: this type of intervention requires more than just a simple part replacement. You have to understand the entire HVAC system, from the electrical supply to the airflow in the ducts.
The client noticed uneven heating in the house. Some rooms became comfortable quickly, while others remained colder, even when the thermostat called for heat for long periods. The furnace was running, but its performance seemed unstable. We were also told about a louder-than-usual noise when the fan started, as well as a feeling of weak air circulation at the registers.
In a house equipped with an electric furnace, this kind of symptom can come from several causes: weakened heating element, faulty relay or sequencer, struggling fan motor, overly restrictive filter, insufficient air return, partially blocked duct, air leak in the plenum, or poor balance in the distribution network. Our role is therefore to proceed methodically, without jumping to conclusions too quickly.
An electric furnace integrated into an existing duct network

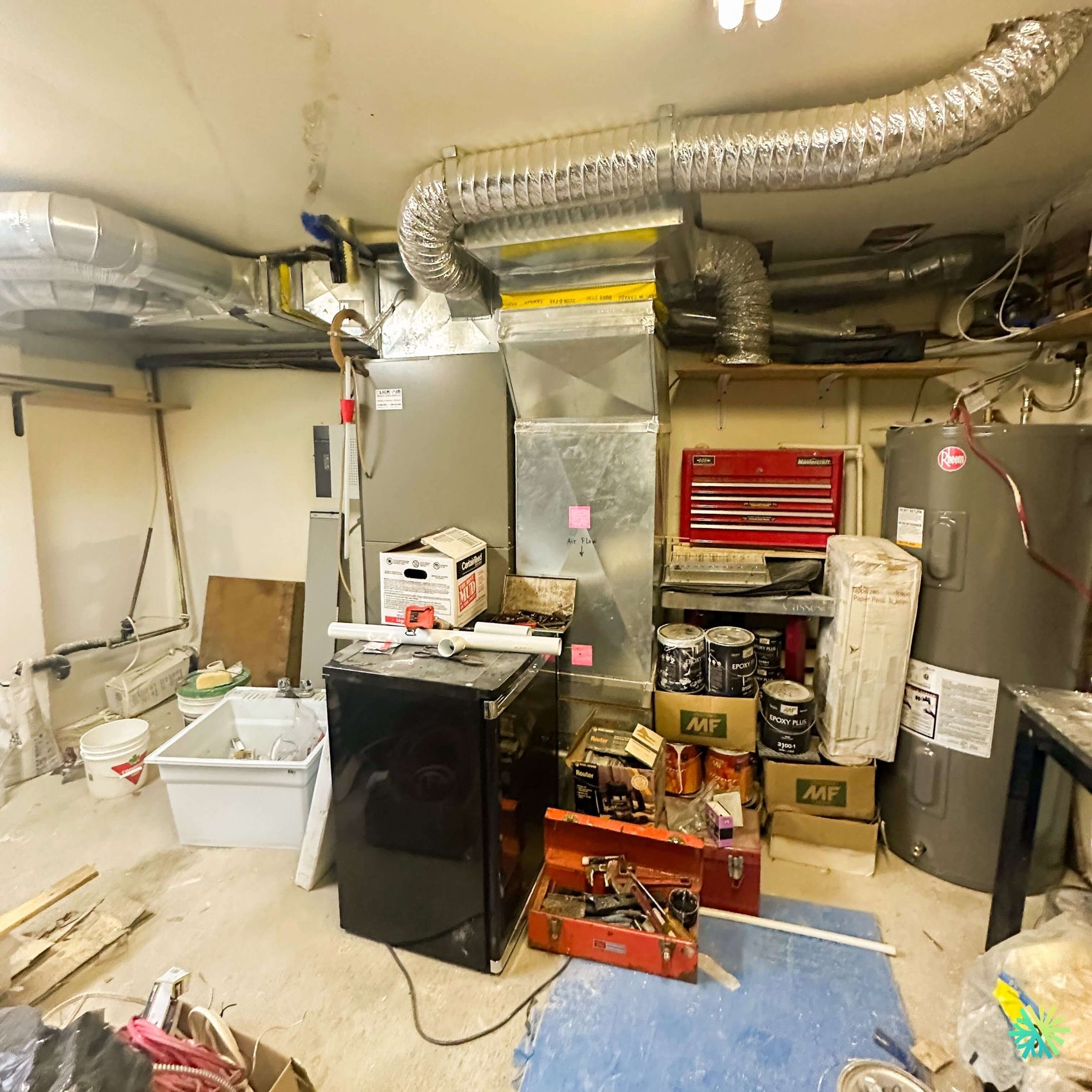

The installation observed in Charlemagne included an indoor cabinet connected to a main galvanized sheet metal plenum, with several flexible and rigid ducts serving different areas of the residence. This type of configuration is common in the greater Montreal area, but each mechanical room has its own particularities. In this specific case, access around the furnace was limited, which made the diagnosis more challenging.
We first checked the general condition of the unit: cleanliness of the compartment, solidity of the connections, condition of access panels, signs of overheating, unusual odors, condensation marks, or signs of excessive vibration. An electric furnace may seem simple, but its proper operation depends on a precise balance between heating power, ventilation speed, and the ducts' capacity to carry air.
The system did not have a total failure. It was rather a case of reduced performance, which is often more complex to diagnose. A furnace that does not start at all usually leads to a fairly straightforward series of checks. A furnace that starts, heats partially, then poorly distributes air requires a more detailed analysis.
Symptoms observed during our diagnosis
On site, our technician reproduced the heating demand from the thermostat to observe the complete operating sequence. This step is essential: it is not enough to hear the fan running. It is necessary to confirm that the components activate in the correct order and that the furnace actually produces the expected heat.
We paid attention to the following elements:
- The thermostat's response during a heating demand.
- The delay between the heat call and the fan activation.
- The behavior of the internal relays and the sequencer.
- The current drawn by the heating elements.
- The air temperature at the plenum outlet.
- The airflow felt at the registers.
- The presence of noise or vibration at startup.
- The visible condition of the ducts and connections near the furnace.
The diagnosis revealed that the furnace was responding properly to the thermostat's demand, but the air distribution was not optimal. Part of the problem was due to reduced airflow caused by internal clogging and some losses at the duct connections. We also noticed wear on a control component related to the heating sequence, which contributed to a less stable startup.
Why airflow is as important as heating power
In an electric furnace, the heating elements produce heat, but it is the fan that carries this heat to the rooms. If the air circulates poorly, the house remains uncomfortable even if the heating elements work. Worse, low airflow can cause local overheating in the device, reduce component lifespan, and create shorter or noisier cycles.
In Charlemagne, the mechanical room environment played an important role. Several ducts crossed near the ceiling, some flexible connections had tight bends, and the space around the furnace limited access for maintenance. This is not uncommon in residential basements on the North Shore, where HVAC installations have sometimes been modified over the years: adding a duct, replacing a device, moving a connection, modifying an air return.
At AirGreen, we pay special attention to these details because a lasting repair is not just about getting the device running again. It must also improve system stability and reduce the risk of the customer calling us back a few weeks later for the same issue.
A precise intervention to stabilize the furnace and improve air circulation
After identifying the main causes, we proceeded with a multi-step intervention. The goal was to correct the furnace's behavior, improve airflow, and secure the most sensitive connections around the plenum.
Complete electrical inspection of the furnace
The first part of the repair focused on the electrical section. In an electric furnace, control components must be carefully checked because they manage the gradual activation of the heating elements. Poorly synchronized activation can give the impression that the furnace is heating weakly, even if part of the system is working.
We checked the power supply, connections, terminals, relays, thermal safeties, and the sequencer's response. The readings confirmed that a control component showed signs of wear and no longer responded with the expected consistency. After replacement and adjustment, the startup sequence became more stable.
This step is important because replacing a heating element without checking the control would have been a mistake. In several service calls in Laval, Longueuil, Montreal, on the South Shore or the North Shore, we observe the same trap: heating elements are immediately suspected, while the problem sometimes comes from the relay, sequencer, thermostat, or even an air restriction.
Inspection of the ventilation motor and blower compartment
We then inspected the fan compartment. Accumulated dust, vibrations, and poor airflow can create extra pressure on the motor. The fan must push air through the filter, heat exchanger, plenum, and ducts. If any one of these elements is restrictive, the whole system suffers.
Targeted cleaning of the compartment and checking the motor helped reduce startup noise. We also confirmed that the fan reached an adequate speed and that air circulation was more consistent after the intervention. In a central system, noise is never a detail to ignore. Unusual noise can indicate imbalance, panel vibration, a worn motor, or a restriction in the network.
Fixing air leaks near the plenum
Part of the intervention focused on the visible connections around the furnace. In a mechanical room like this, there are many metal and flexible ducts, and each joint can become a source of air loss. Even a small leak near the plenum can reduce the available pressure to more distant rooms.
We tightened some connections, stabilized duct sections, and paid attention to areas where air could escape before even reaching the registers. This work may seem secondary, but it directly affects comfort. A furnace can produce enough heat, but if that heat stays in the mechanical room or is lost through poorly sealed connections, the customer does not benefit from the actual performance of their system.
Checking the output temperature and comfort at the registers
After the repair, we restarted the furnace in heating mode and measured the system's behavior. The air coming out of the plenum was more stable, the startup smoother, and the airflow perceived at the registers had improved. The client immediately noticed a difference in the consistency of the ventilation.
We also explained the points to monitor in the following days: cycle duration, startup noise, air sensation at the registers, temperature of distant rooms, filter condition, and replacement frequency. A well-done repair always includes a clear explanation. The client must understand what was corrected and how to avoid a recurrence of the problem.
Common mistakes to avoid with an electric furnace
Several problems with the electric furnace become more costly simply because they are ignored for too long. When a system continues to operate partially, it is tempting to wait. However, irregular heating, new noise, or low airflow can indicate that some components are working harder than expected.
The most common mistakes are:
- Leaving a very dirty filter in place throughout the heating season.
- Closing too many registers in the house thinking it will save energy.
- Blocking air returns with furniture or objects.
- Ignoring a vibration noise at startup.
- Assuming the furnace is defective without checking the ducts.
- Replacing a part at random without a complete electrical diagnosis.
- Neglecting air leaks around the plenum.
In the case of Charlemagne, the problem was precisely multifactorial. It was not a single defective part, but a set of small anomalies that reduced overall performance. It is often this type of diagnosis that distinguishes a temporary repair from a true system HVAC overhaul.
An intervention tailored to the houses of Charlemagne and the greater Montreal area
The houses in Charlemagne, like several residences in the northern crown of Montreal, often have central systems modified over time. An electric furnace can be connected to an older duct network, ventilation additions, a humidifier, a central air conditioner, or a central heat pump. Each modification affects the overall behavior.
That’s why our interventions never stop at the visible device. We also observe the mechanical space, clearances, duct condition, air distribution logic, and maintenance conditions. Whether the call comes from Laval, Longueuil, the North Shore, the South Shore, or the island of Montreal, the same approach applies: understand before replacing.
Final result: a more stable furnace, better heat distribution
At the end of the service call, the electric furnace operated with a more regular sequence, improved airflow, and reduced noise level. The client experienced more even heating and greater confidence in their system. We also left simple recommendations for future maintenance, including how often to replace the filter and the importance of keeping the area around the furnace accessible.
This type of repair perfectly illustrates how we work at AirGreen: precise diagnosis, clean intervention, attention to visible and invisible details, followed by real validation of the result. A successful HVAC repair is not just a machine that restarts. It’s a system that heats better, distributes air more effectively, and reassures the client for the rest of the season.
