When heat becomes irregular: an HVAC service call that required a full diagnosis
In Charlemagne, our AirGreen team was called for a residential electric furnace installed in a compact mechanical room, connected to a duct network and a central system with an indoor coil. The customer contacted us because the heating was no longer properly following the thermostat’s demand. The house was not completely without heat, but comfort was becoming unstable: some heating periods seemed normal, then the blown air became lukewarm, the fan kept running, and the room temperature rose very slowly.
This type of situation is particularly tricky because an electric furnace can seem to be working even when some of its internal components are no longer responding properly. The fan may blow, the thermostat may show a heat call, the breaker may stay on, but one or more heating elements may not be powered. The result: the customer hears the machine running, but the actual output is no longer sufficient.
In this specific case, the unit was installed in a tight technical space, with metal ducts, visible insulation, visible electrical supply, refrigeration piping nearby, a filter drier on the refrigerant line, and a condensate drain at the bottom of the unit. The setup suggested a residential central system configuration, where the electric furnace acts as the main or auxiliary heat source, combined with a central heat pump or an indoor coil.
Our goal was not just to “get the unit running again.” We needed to understand why the heat had become irregular, check if the problem came from the electrical supply, the thermostat, the heating relays, the sequencers, the electrical elements, the ventilation motor, the airflow, or poor control between HVAC components.
An electric furnace installed in a demanding mechanical space

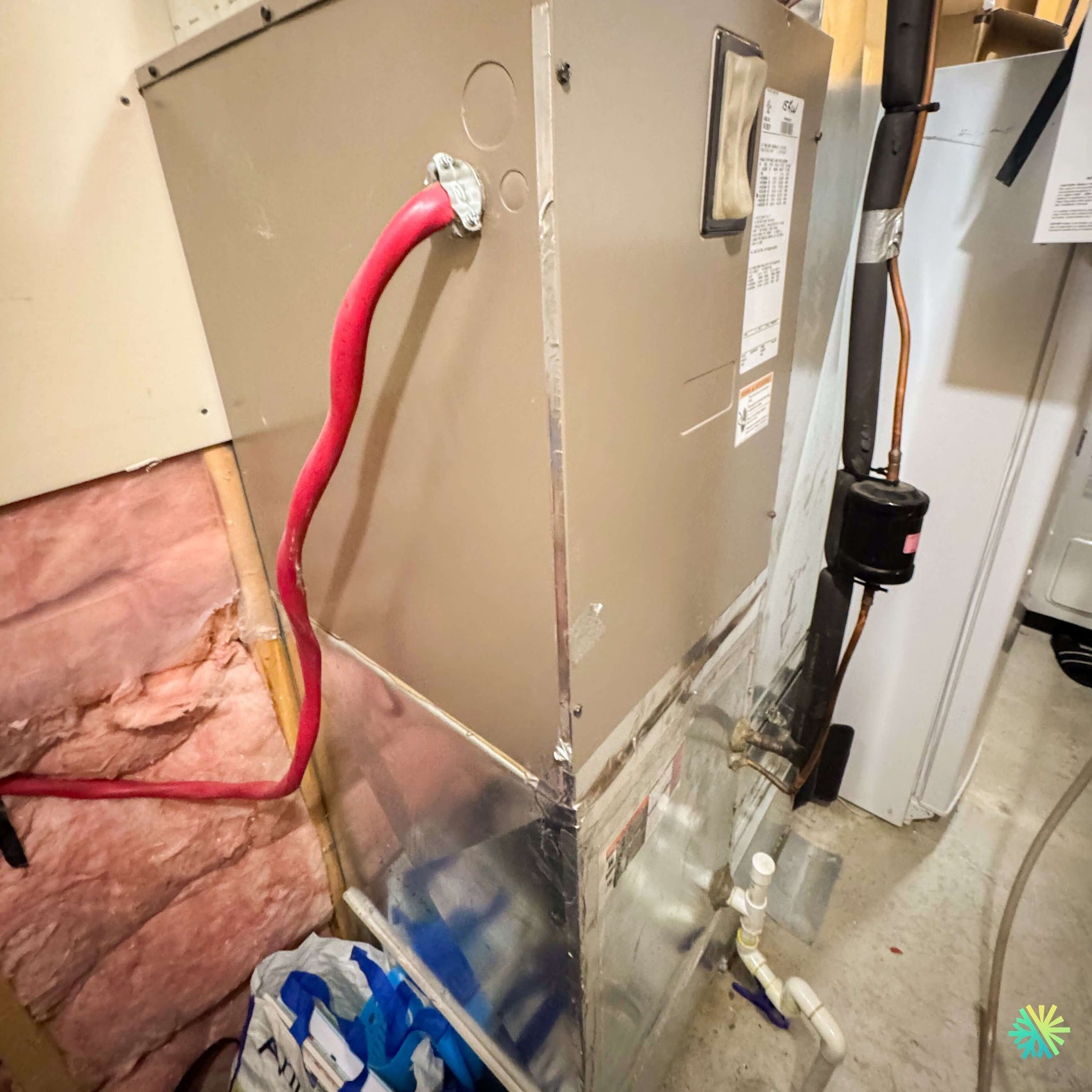

The furnace observed in Charlemagne was a vertical indoor cabinet, integrated into the home's air distribution network. It had several typical features of a central installation:
- a metal furnace cabinet with a service panel;
- a connection to a plenum and ducts;
- a high-capacity electrical supply;
- an indoor coil or a section associated with the air conditioning / heat pump system;
- an insulated refrigerant line;
- a condensate drain connected to the bottom of the equipment;
- a compact mechanical room where access to panels must be done methodically.
This context greatly changes the way of diagnosing. An electric furnace is not checked only from the thermostat. We must confirm the behavior of each step: heat call, low voltage control, activation sequence, element power supply, blowing temperature, airflow, return air, and thermal safety.
In Charlemagne, as in many homes on the North Shore, central systems often show modifications over the years: addition of a heat pump, partial replacement of old equipment, duct adjustments, drainage repairs, or thermostat changes. These successive interventions can work for a long time, then reveal a weakness when heating demand increases.
Symptoms reported by the customer
The customer described a very concrete situation: the temperature set on the thermostat was no longer reached quickly. The fan started, air circulated through the ducts, but the heat felt at the air outlets was insufficient. At times, the furnace seemed to regain strength, then dropped back to weaker operation.
The main symptoms were as follows:
- intermittent heating ;
- air sometimes blown lukewarm rather than hot;
- longer operating cycles than before;
- discomfort in distant rooms;
- feeling that the furnace is “struggling” without producing enough heat;
- no apparent total failure at the thermostat;
- no obvious code accessible to the customer.
This type of problem can come from several sources. An electric furnace can lose part of its capacity if a heating element is open, if a sequencer no longer closes properly, if a thermal protection cuts off too early, if a relay sticks, if the filter is too restrictive, or if the airflow is not suited to the required power.
Our diagnosis: do not confuse ventilation with actual heating
The first step was to confirm the heating demand at the thermostat. The thermostat was indeed sending a command. The fan started, which confirmed part of the control chain. However, the fan starting does not prove that all heating elements are active. This is a common mistake: when you feel air at the vents, you think the furnace is heating normally. In an electric system, you need to check the actual power engaged.
Electrical power supply check
We first inspected the furnace power supply, accessible connections, and the general condition of the wiring. On an electric furnace, the loads are significant. A weakened connection, a worn circuit breaker, or an imperfect contact can cause performance loss, local overheating, or intermittent operation.
Our technician checked the supply voltage, connection points, and the condition of the power components. The inspection did not reveal any major failure at the main electrical supply, but it confirmed that the device needed to be tested stage by stage to identify the heating part that was not responding.
Low voltage circuit check
The low voltage control circuit was then checked. This section is essential because it allows the thermostat to activate the relays, sequencers, and heating stages. A loose wire, an oxidized terminal, or an unstable command can prevent an element from engaging even if the rest of the furnace seems to be working.
In this case, the command was arriving correctly, but a heating stage did not respond consistently. This observation directed the diagnosis towards the sequencer and the relays associated with the electrical elements.
Heating elements check
We then measured the continuity and behavior of the heating elements. An electric furnace can be equipped with several elements that activate in stages to avoid a sudden electrical demand and better control the blowing temperature.
The diagnosis showed that a heating stage was not activating reliably. The element itself was not necessarily the only cause: the problem mainly came from a weakened sequencer, which no longer controlled the heating stage steadily. This part is discreet, but its role is crucial. It allows the progressive activation of elements and protects the system against poorly managed current surges.
Airflow and filter check
Poor airflow can also cause safety shutdowns. We therefore checked the air return, the filter, the general cleanliness of the compartment, and the response of the ventilation motor. An overly restrictive filter or a partially blocked return can cause the furnace's internal temperature to rise too quickly, leading to protection shutdowns.
In this installation, the airflow was acceptable, but some elements around the unit made access and maintenance more difficult. We recommended keeping sufficient clearance around the service panel to facilitate future inspections and prevent objects or materials from obstructing airflow or technical interventions.
Repair performed: sequencer replacement and restoration of operation
After confirming the diagnosis, we proceeded with the replacement of the defective heating sequencer. This intervention requires working carefully, as the electric furnace combines low-voltage control and power supply. The device was secured before fully opening the service compartment, then the faulty part was removed and replaced with a compatible component.
Replacement of the defective part
The weakened sequencer was replaced to restore the correct activation of the heating stages. Once the new part was installed, we tightened the necessary connections, checked the wire positioning, and confirmed that the controls responded according to the expected sequence.
The goal was twofold: restore heating capacity and avoid unstable cycles. A malfunctioning sequencer can cause irregular symptoms, difficult for the client to understand, because the failure is not always permanent. This is precisely what makes professional diagnosis essential.
Condensate drain inspection
Since the system included a section related to air conditioning or the central heat pump, we also inspected the condensate drain visible at the bottom of the unit. Even though the main issue concerned heating, a poorly configured or partially clogged drain can cause other problems: humidity, water stains, odors, operational interruptions if a safety device is installed.
The drain was checked, and we confirmed that it needed to remain accessible and clean. In a tight mechanical room, it is common for the drain to be neglected until a leak appears. We therefore took advantage of the service call to raise the client's awareness of this point.
Blowing temperature tests
After repair, we restarted the furnace on heating demand. The heating stages activated correctly, and the blowing temperature became more stable. The system no longer gave the impression of just circulating air: it produced consistent, measurable, and better-distributed heat.
We also observed the behavior of the fan, the cycle duration, and the thermostat response. The house began to regain temperature more normally, confirming that the heating capacity had been restored.
Result: stable heat, more reliable operation, and reassured customer
At the end of the intervention, the electric furnace operated more regularly. The customer noticed a clear difference in the temperature of the blown air. The appliance no longer just ventilated: it heated effectively.
This repair allowed to:
- restore a heating stage that was no longer activating properly;
- replace a defective sequencer;
- check the general condition of the connections;
- confirm the proper operation of the fan;
- inspect the condensate drain;
- validate the blowing temperature;
- avoid a complete furnace replacement;
- restore customer confidence before a period of high heating demand.
For AirGreen, a successful intervention is not about replacing as many parts as possible. It is about identifying the right part, confirming the diagnosis, and proving the result through concrete tests.
Electric furnace repair: what this intervention in Charlemagne teaches homeowners
An electric furnace is a sturdy appliance, but it requires maintenance. The power components work hard, especially during cold periods. In Charlemagne, Repentigny, Terrebonne, Mascouche, Laval, Montreal, Longueuil, on the North Shore and the South Shore, we regularly see furnaces that still operate but with reduced capacity.
Signs to watch for before a complete breakdown
Several symptoms warrant professional inspection:
- air blown less hot than before;
- house that takes much longer to reach the requested temperature;
- fan that runs for a long time;
- breaker heating up or tripping;
- unusual smell at startup;
- short or irregular cycles;
- repeated relay noise;
- rooms in the house colder than others;
- thermostat calling for heat without sufficient result.
These signs do not always mean the furnace needs to be replaced. Often, a targeted repair is enough: sequencer, relay, heating element, transformer, low voltage fuse, fan motor, capacitor, or airflow correction.
Common mistakes to avoid
The first mistake is constantly raising the thermostat temperature. If the furnace does not engage all its stages, setting it to 24 °C instead of 21 °C won’t fix anything. The system will run longer without regaining full capacity.
The second mistake is assuming the fan confirms the heating is working properly. An electric furnace can blow air even if not all elements are active.
The third mistake is neglecting the filter. Even if Charlemagne’s problem was mainly due to a sequencer, a dirty filter can cause similar symptoms: overheating, safety shutoff, low airflow, and discomfort.
The fourth mistake is postponing an electrical inspection. The internal components of an electric furnace should not be handled without technical expertise. A loose power connection or an overheated part can become a safety issue.
Why AirGreen uses a structured method
Our technicians do not replace a part based on intuition alone. When servicing an electric furnace, we follow a clear method:
Demand analysis
We confirm what the thermostat is actually requesting from the furnace.
Control verification
We test the low voltage circuit and signals sent to components.
Power verification
We confirm the power supply and activation of heating stages.
Airflow inspection
We inspect the filter, fan, ducts, and possible restrictions.
Result validation
We measure the supply air temperature and observe the cycling behavior after repair.
This method helps avoid jumping to conclusions. It is especially useful for central systems combined with a heat pump, where heating can come from multiple sources depending on the outside temperature, thermostat settings, and installation configuration.
HVAC expertise tailored to the homes of Charlemagne and Greater Montreal
Charlemagne is one of those areas with many homes featuring central systems, electric furnaces, central heat pumps, and compact mechanical installations. Our experience on the North Shore allows us to quickly recognize typical configurations, but every home deserves its own diagnosis.
AirGreen also operates in Montreal, Laval, Longueuil, and on the South Shore for similar issues: furnace not heating, burnt electric element, misconfigured thermostat, faulty relay, noisy ventilation motor, problematic condensate drain, or central system not switching properly between heat pump and auxiliary heating.
A repair that extends the equipment’s lifespan
In this case in Charlemagne, replacing the sequencer allowed the furnace to be used longer without requiring the client to replace it entirely. This is an important point: an electric furnace can remain reliable for a long time when its critical components are inspected and replaced at the right time.
A well-done repair also improves daily comfort. The heat becomes more stable, cycles are more consistent, the thermostat responds better, and the client finally understands why the house was no longer as comfortable as before.
AirGreen: precise service for residential heating systems
Whether it is an electric furnace repair, a wall-mounted heat pump, a central heat pump, a wall air conditioner, an air exchanger, or a MultiZone system, our approach remains the same: observe, measure, diagnose, repair, and validate.
The intervention carried out in Charlemagne demonstrates the importance of a complete HVAC diagnosis. A device that blows air is not necessarily a device that heats properly. By replacing the right component and checking the entire system, we restored comfort, improved reliability, and reassured the client about the condition of their installation.
