Repair of an Electric Furnace in Côte-des-Neiges–Notre-Dame-de-Grâce

An electric furnace embedded in a tight space: an HVAC service call where every detail mattered

In a residential unit in Côte-des-Neiges–Notre-Dame-de-Grâce, in Montreal, our AirGreen team was called for an irregular comfort issue related to an electric furnace installed in a very compact mechanical space. Upon arrival, the device’s configuration immediately indicated that this was not a simple routine maintenance: the furnace was installed horizontally, connected to a duct network, with a visible condensate drain, insulated flexible ducts, and refrigerant lines entering the unit.

This type of installation is common in condos, multiplexes, and renovated housing in Montreal, especially in neighborhoods like Côte-des-Neiges, Notre-Dame-de-Grâce, Outremont, Rosemont, Villeray, or Plateau-Mont-Royal, where mechanical space is often limited. The particular challenge of this service was precisely that: to intervene effectively on a hard-to-access residential electric furnace without damaging the ducts, drain, electrical connections, or internal components.

The client contacted us because the system was no longer consistently distributing warm air. Some rooms remained uncomfortable, the airflow seemed weak, and the device had started operating in unusual cycles. In this kind of situation, it is essential not to jump to conclusions about a major failure. An electric furnace can show similar symptoms for several reasons: filter blockage, weakened ventilation motor, faulty relay, unstable electrical sequencer, activated temperature limit, poorly configured condensate drain, duct restrictions, or even thermostat issues.

Visual reading of the installation: what the configuration revealed to us

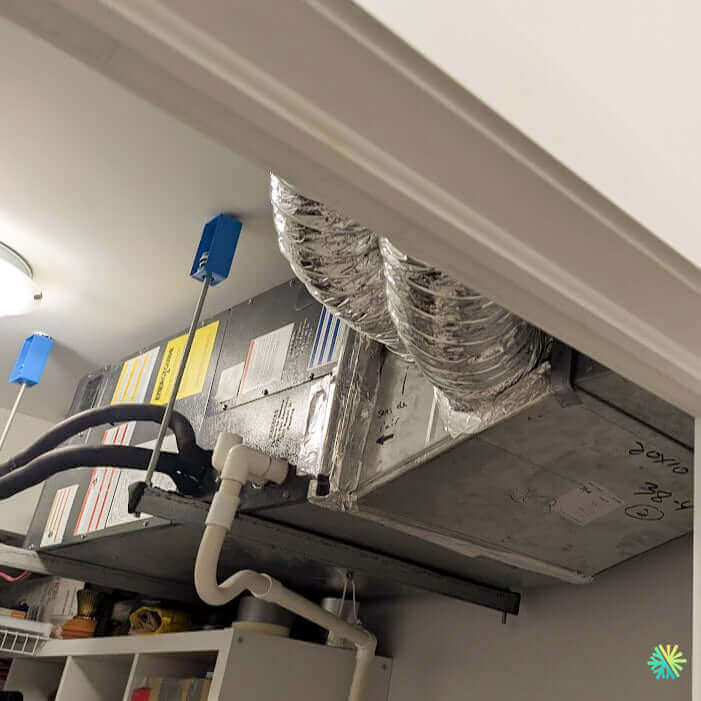

The device observed on site was a central electric furnace / indoor unit connected to an air distribution network. Its horizontal position, connection to metal and flexible ducts, and the presence of a condensate drain indicated that it was likely a unit used both for electric heating and for central air conditioning or a central heat pump, depending on the complete system configuration.

We paid special attention to several visible elements:

• the duct connections on the side of the furnace;
• the general condition of the insulation around flexible ducts;
• the presence of a condensate drain with a trap;
• the insulated refrigerant line entries;
• access to service panels;
• the proximity of the ceiling, walls, and storage elements;
• the visible electrical connections and their clearance.

In such a tight space, a poor diagnosis can quickly lead to unnecessary work. For example, a client might think the furnace is no longer heating, when the problem is actually a low airflow caused by a clogged filter, a blocked air return, or a blower motor losing performance. Conversely, normal airflow does not guarantee that the heating elements are working properly.

Symptoms reported by the client

The client described a typical progressive failure: at first, the unit just seemed less effective. Then, some parts started to stay cold despite a normal thermostat setting. Next, the operation became irregular: sometimes the ventilation would start, sometimes the heating seemed slow to engage, and the indoor temperature rose more slowly than usual.

This type of complaint is very common during an HVAC service call for an electric furnace. Unlike a complete breakdown, where the unit won’t start at all, intermittent failures require a more rigorous diagnostic method. The system may work properly for ten minutes, then shut off due to thermal protection, an unstable relay, or an incorrect reading at the control.

At AirGreen, we always proceed step by step, especially when dealing with central equipment installed in a hard-to-reach space. Our goal is not just to get the heating running again, but to understand why the unit lost its performance to prevent the same problem from recurring a few days later.

HVAC diagnosis: electrical control, ventilation, and thermal safety

The first step was to check the electrical supply and the demand signal from the thermostat. An electric furnace relies on a precise sequence: the thermostat calls for heat, the control panel receives the signal, the blower starts according to the planned logic, then the electric elements activate in stages. If any link in this chain becomes unstable, comfort can be affected.

So we checked:

• the power supply to the unit;
• the communication between the thermostat and the furnace;
• the relays and sequencers;
• the blower response;
• the stability of the ventilation motor;
• the condition of the filter and the air return;
• the blowing temperature;
• thermal safety limits;
• the unit’s behavior during a full cycle.

One of the important points in this type of installation is the airflow. An electric furnace produces very direct heat. If air does not circulate properly through the unit, the internal temperature rises too quickly, which can trigger a safety shutdown. The customer then experiences uneven heating, even if the heating elements are not necessarily burned out.

In this specific case, we found that the system had a partial airflow restriction combined with unstable heating control behavior. The filter was dirty and the air return area lacked clearance. The unit had to work harder to maintain the required airflow. This situation increased the internal temperature and caused premature heating shutdowns.

Intervention performed on the electric furnace

After securing the unit and cutting power when necessary, we carried out a complete intervention on accessible components. Cleaning and inspection were not limited to simply replacing the filter. We inspected the blower, connections, panels, visible ducts, and control components.

The intervention included:

• replacement or recommendation for immediate replacement of the filter according to the appropriate dimensions;
• clearing the air return area;
• checking the blower motor;
• inspection of internal electrical connections;
• checking the heating relays;
• verification of the activation sequence of the elements;
• temperature test at the blower;
• inspection of the visible condensate drain;
• inspection of flexible ducts to spot any restriction or sagging;
• controlled restart with observation of the full cycle.

The condensate drain was an important point to check, even though the call mainly concerned heating. In several central systems combined with air conditioning or heat pumps, the drain can cause indirect problems: excessive moisture around the unit, triggering a safety switch, water accumulation, or partial blockage. Here, we confirmed that the drain should be monitored during future maintenance, as its configuration in a tight space makes any accumulation harder to detect quickly.

Result: stabilized heating and improved airflow

After the intervention, the electric furnace returned to more stable operation. The heating cycle proceeded normally, the blower maintained a more consistent airflow, and the blowing temperature was controlled to confirm that the unit no longer unnecessarily increased its internal temperature. The customer immediately noticed better air distribution in the home.

This outcome is especially important in a neighborhood like Côte-des-Neiges–Notre-Dame-de-Grâce, where many residences consist of divided apartments, condos, and mechanical units installed in technical closets. Under these conditions, the quality of airflow is as important as heating power. An electric furnace can be perfectly sized but lose much of its efficiency if the ducts, filter, or blower do not allow adequate circulation.

Why this type of failure is common on electric furnaces

Electric furnaces are robust, but they heavily depend on three elements: electrical supply, ventilation, and system cleanliness. When one of these elements is neglected, symptoms can appear gradually.

The most common problems we encounter during an electric furnace repair in Montreal, Laval, Longueuil, on the North Shore and the South Shore are as follows:

• Filter that is too dirty or poorly suited;
• Noisy or weakened blower motor;
• Defective electrical sequencer;
• Partially functional heating element;
• Relay that sticks or activates irregularly;
• Thermal limit that triggers too often;
• Crushed or poorly supported flexible duct;
• Blocked return air;
• Poorly configured thermostat;
• Neglected condensate drain on combined systems.

In the case observed in Côte-des-Neiges–Notre-Dame-de-Grâce, the main issue was the accumulation of small constraints: tight space, limited access, reduced airflow, and the need for a complete electrical check. These are precisely the situations that require field expertise because a simple part replacement would not necessarily have solved the problem permanently.

Mistakes to avoid with a central electric furnace

Several customers wait for the device to stop working completely before calling a specialist. However, a decrease in airflow, less consistent heat, or cycles that are too short are already signals to take seriously. On an electric furnace, letting the system run under restriction can increase motor wear, cause heating components to work under poor conditions, and trigger repeated safety shutdowns.

Another common mistake is using a filter that is too restrictive. Some very thick or dense filters may seem beneficial for air quality, but they can reduce airflow if the furnace and ducts are not designed for that level of resistance. The right filter is not just the one that traps the most dust, but the one that protects the unit while allowing sufficient air circulation.

It is also important to avoid blocking return or storage grilles too close to the unit. In many apartments in Montreal, the mechanical unit is located in a closet or a small utility room. Over time, boxes, household products, or various objects can reduce the space around the equipment. This situation may seem trivial, but it can directly affect the performance of the HVAC system.

The importance of HVAC maintenance adapted to confined spaces

An electric furnace installed in an open space is generally easier to inspect. In a space like this, each intervention requires more precision. Panels must be removed carefully, ducts should not be moved unnecessarily, and drains must be checked without putting stress on the connections.

At AirGreen, we adapt our intervention method to the reality of the building. A system installed in a condo in Côte-des-Neiges–Notre-Dame-de-Grâce does not have the same constraints as a furnace installed in the basement of a single-family home in Laval, Longueuil, on the North Shore, or on the South Shore. Access, ducts, noise, ventilation, and client expectations are different.

That is why we take the time to check not only the machine but also its environment. A successful repair is not just about getting the unit running again. It must also improve system reliability, prevent recurrences, and help the client better understand the signs to watch for.

What the client took away from our visit

At the end of the service call, we clearly explained to the client the probable causes of the performance loss and the best practices to adopt. We recommended regular filter monitoring, constant clearance around the unit, as well as periodic maintenance of the central system, especially before periods of high heating or cooling demand.

The client appreciated that the intervention was not aimed at an unnecessary replacement. In this case, the electric furnace could still operate properly, provided restrictions were corrected and control components responded normally. This approach is at the heart of our work: diagnose accurately, repair what needs to be fixed, and recommend replacement only when the equipment is no longer reliable, safe, or economically sensible.

AirGreen expertise for electric furnaces in Montreal and Greater Montreal

AirGreen regularly handles electric furnace repairs, HVAC maintenance, central system checks, ventilation issues, electrical failures, condensate drains, blower motors, and combined systems with air conditioning or central heat pumps.

Our team serves Montreal, Laval, Longueuil, the North Shore, and the South Shore, with concrete knowledge of local residential installations: condos, duplexes, triplexes, single-family homes, units in mechanical closets, compact central systems, and older equipment requiring special attention.

For an electric furnace that heats less effectively, blows weakly, starts and stops too often, makes noise, or seems to operate irregularly, a professional diagnosis often prevents a complete breakdown. A quick intervention can also extend the system's lifespan and improve comfort without major work.

Conclusion: a precise repair for lasting comfort

This service call in Côte-des-Neiges–Notre-Dame-de-Grâce perfectly illustrates the importance of a complete diagnosis on an electric furnace. The problem did not come from a single dramatic element, but from a combination of factors that reduced the system's performance: weakened airflow, restricted access, components to check, and a demanding mechanical environment.

Thanks to a structured method, our team was able to stabilize the device's operation, improve air distribution, and reassure the client about the overall condition of their system. This is exactly what we aim for in every AirGreen intervention: a concrete, lasting solution tailored to the building's reality.
