An electric furnace that heats, but not enough: a complete diagnosis of a central forced-air system in Kirkland
In a residence in Kirkland, our AirGreen team was called for a common problem that is rarely simple to diagnose correctly: a central electric furnace that was still running but no longer delivering the expected comfort in the home. The client noticed that the system started, the fan blew, but the air distributed through the ducts seemed too lukewarm, sometimes inconsistent, with periods when the indoor temperature struggled to rise despite a clear demand from the thermostat.
This type of situation calls for a methodical analysis. An electric furnace is not just a metal cabinet with heating elements. It is a complete system made up of a central fan, heating stages, relays, safety limits, a low-voltage control, a high-power electrical connection, and a duct network that must be clean, airtight, and properly sized. A failure can therefore come from the unit itself, the thermostat, the airflow, a heating element, a power relay, thermal protection, or even significant duct leakage.
A central ducted installation: a system that requires more than a simple on/off test

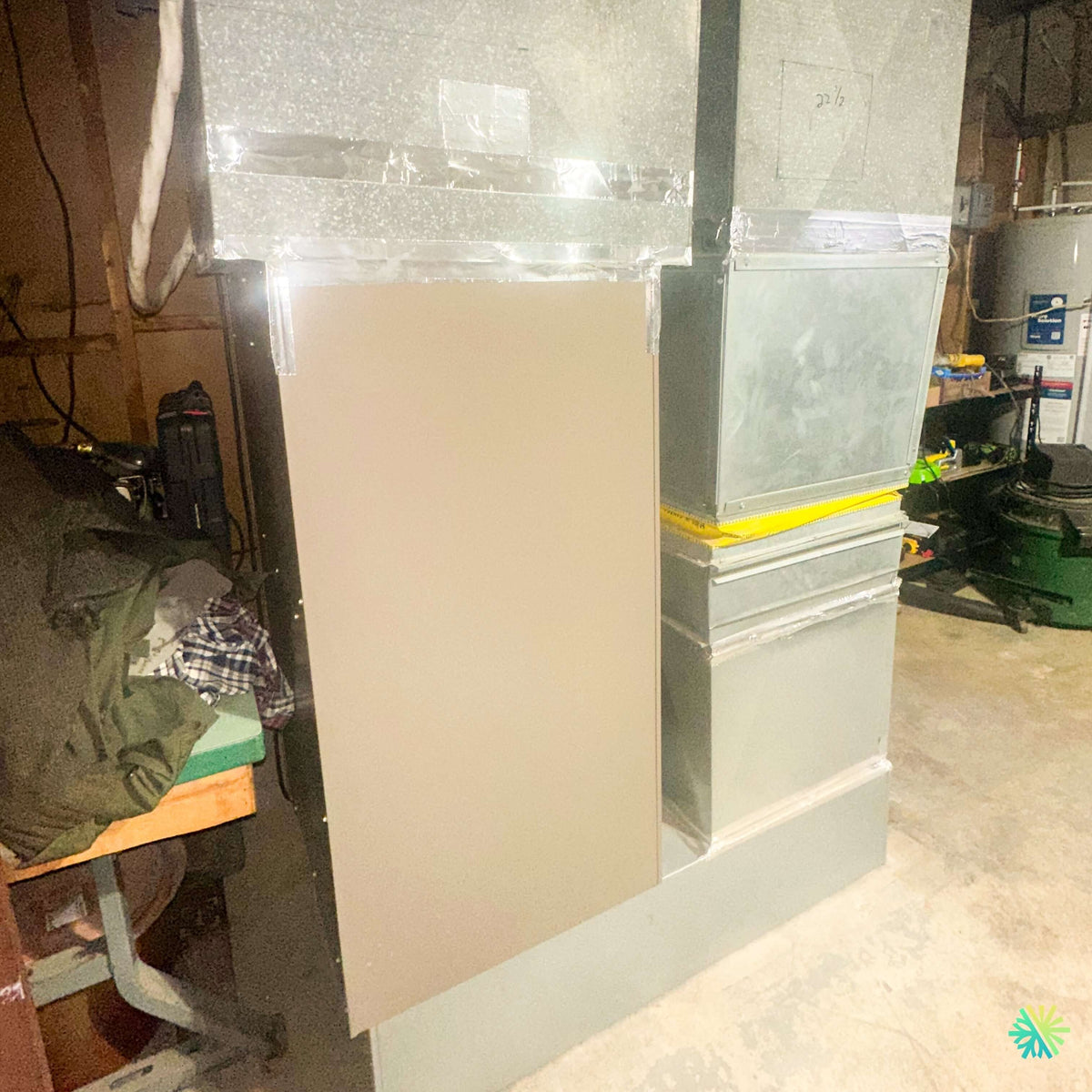

On site, the device was installed in a mechanical room in the basement, connected to a network of metal ducts. The visible setup indicated a forced-air electric furnace, used to distribute heat to several rooms in the house. The ducts had transitions, metal joints, insulated sections, and connections that needed to be inspected just as thoroughly as the unit itself.
The client wanted a clear answer: was the furnace at the end of its life, was an element burnt out, or was the problem coming from another component? Our role was to avoid assumptions and confirm the real cause through technical tests.
Symptoms reported by the client
The problem was not a total failure. That was precisely what made the diagnosis more delicate. The device seemed to operate, but the result was not consistent.
The observed symptoms were as follows:
- Air blown warmer than usual at the ventilation outlets.
- Longer cycles, without a rapid increase in ambient temperature.
- Functional fan, but incomplete heating.
- Comfort difference between certain rooms, especially at the ends of the network.
- Feeling that the furnace is working harder to reach the setpoint.
- No permanent burnt smell, but a slight odor at startup after a shutdown period.
In an electric furnace, these signs may indicate a heating element out of service, a faulty sequencer, a contactor that does not close properly, a thermostat problem, an airflow restriction, or a safety limit that cuts part of the heating.
First step: secure the electrical analysis
Before opening the panels and testing internal components, our technician first validated the safety elements. An electric furnace can operate with significant loads. Tests must therefore be done rigorously, especially when several heating elements are controlled in sequence.
We checked:
- Power supply to the device.
- Apparent condition of the furnace service panel.
- Presence of a heating call at the thermostat.
- Fan response.
- Low voltage connections.
- Internal protections.
- Signs of overheating on wires and terminals.
This step is essential. A system that seems “just less warm” may hide a weakened electrical contact, a loose connection, or a relay that no longer properly transmits power to the elements.
Thermostat and low voltage control diagnosis
We then confirmed that the thermostat was indeed sending the heating request. The thermostat was functional and communicating properly with the furnace. The problem was therefore not due to a misprogrammed setting, an incorrect mode, or a simple command delay.
The heating signal was reaching the unit. The furnace was receiving the instruction to heat. So the issue had to be within the internal heating sequence and the power sent to the elements.
Verification of heating elements
An electric furnace can have several elements that activate progressively. This sequence helps avoid a sudden electrical demand and controls the heat produced. When a single element or stage stops working, the unit often continues to blow air, but the output temperature becomes insufficient.
Our technician tested the heating stages one by one. The fan started normally, but part of the heating capacity did not activate properly. The behavior indicated a problem in controlling one heating stage rather than a general power shortage.
Problem identified: irregular heating sequence
The diagnosis identified an intermittent failure in the heating sequence. One stage did not engage reliably, which reduced the furnace’s actual capacity. The system could therefore seem to be running while heating at only a fraction of its normal power.
In a Kirkland home, especially when the outside temperature drops quickly, a capacity reduction becomes immediately noticeable. The furnace runs longer, comfort becomes uneven, and some rooms receive air that feels almost neutral rather than clearly warm.
Replacement and correction completed
After validation, we proceeded to correct the faulty section. The service included replacing the defective control component responsible for the irregular heating stage, as well as a complete check of the associated connections.
We also tightened and inspected accessible electrical connections, as poor contact can cause excessive heat, unstable cycles, or premature component wear.
The service included:
- Replacement of the faulty heating sequence component / relay.
- Verification of heating elements.
- Safety limit checks.
- Inspection of the fan and its startup.
- Thermostat signal verification.
- Temperature rise test at the air outlet.
- Checking behavior after several cycles.
Airflow inspection: a often underestimated element
Even with functional heating elements, an electric furnace cannot perform well if the air circulation is poor. We therefore paid special attention to the airflow. In this type of system, the fan must move enough air through the heat exchanger and ducts. A clogged filter, insufficient air return, or poorly sealed duct can harm comfort.
We checked the filter condition, air returns, visible duct joints, and metal transitions around the unit. Some sections showed joints that deserved better sealing to reduce air loss in the mechanical space.
Sealing ducts and improving distribution
Part of the intervention involved fixing visible leaks around the connections. On a central furnace, every air leak in the mechanical room represents lost energy before the air even reaches the living spaces. This can increase the impression that the furnace is not heating well, even when the internal components are working.
We reinforced certain joints with aluminum tape suitable for HVAC ducts and checked the stability of transitions. The goal was not only to fix the electrical fault but also to ensure that the heat produced was actually delivered to the house.
Result after intervention
After the repair, the electric furnace was tested over several cycles. The blown air was warmer, the heating sequence was more stable, and the fan operated regularly. The client noticed a clear difference in the warmth felt at the vents.
The system no longer had that ambiguous behavior where it seemed to run without actually heating the house. The furnace responded better to the thermostat's demand, and the air distribution was more consistent.
What this repair in Kirkland shows about central electric furnaces
An electric furnace may seem simple, but diagnosing it requires a true understanding of HVAC systems. Unlike a wall-mounted heat pump or air conditioner, a central furnace depends as much on its internal electrical components as on its distribution network.
Why a furnace may blow without heating enough
One of the most common traps is to believe that if the fan runs, the furnace is working. In reality, the fan can blow even if a significant part of the heating is not activated.
Common causes include:
Burnt heating element
An element may be open or damaged. The unit then heats partially but does not reach its normal capacity.
Defective relay or sequencer
The component may no longer activate a heating stage. This is often intermittent at first, then more frequent over time.
Safety limit triggered
If airflow is insufficient or a section overheats, a safety device may cut off part of the heating.
Clogged filter
A very dirty filter reduces airflow and can cause internal overheating, reduced comfort, and premature shutdowns.
Poorly sealed ducts
Heat is produced but lost in a basement, garage, or mechanical room instead of reaching the rooms.
Incorrectly configured thermostat
An incompatible or poorly configured thermostat can prevent proper control of heating stages.
Mistakes to avoid before calling a technician
Some actions can complicate the diagnosis or worsen the situation. We recommend avoiding modifying the thermostat wiring, resetting circuit breakers multiple times without understanding the cause, or running the unit for hours if an unusual smell, electrical noise, or excessive heat is noticeable near the unit.
Before calling for service, the customer can still check a few simple points:
- Replace or clean the filter if it is clogged.
- Make sure the return and supply vents are open.
- Confirm that the thermostat is in heating mode.
- Note if the problem is constant or intermittent.
- Check if some rooms are more affected than others.
This information helps the technician guide the diagnosis, but it does not replace a complete electrical check.
Why the duct network is part of the diagnosis
In several homes in Kirkland, Montreal, Laval, Longueuil, on the North Shore and the South Shore, central furnaces are installed in mechanical rooms where the ducts have been modified over the years. Adding a humidifier, replacing a furnace, modifying an air return, renovating the basement: each change can affect the system's performance.
A new or repaired unit can still deliver disappointing results if the ducts leak, if returns are insufficient, or if the static pressure is too high. That’s why our intervention doesn’t stop at the furnace’s front panel. We look at the system as a whole.
Repair rather than replace when the situation allows
In this specific case, a complete furnace replacement was not necessary. The unit’s structure was still usable, the fan worked properly, and the main problem was in the control of a heating stage. A targeted repair restored performance without undertaking a full replacement project.
This approach is important. A good diagnosis can avoid a major expense when a specific component is responsible for the problem. Conversely, if several major elements are defective, if the electrical panel is inadequate, or if the unit is too old, we clearly explain this to the customer.
An AirGreen intervention tailored to central systems
At AirGreen, we regularly service residential central systems: electric furnaces, central heat pumps, ducted systems, air quality accessories, humidifiers, air exchangers, and hybrid configurations. Every service call is handled with a comprehensive approach: comfort, safety, performance, and durability.
For this Kirkland residence, the result was clear: a more reliable furnace, better heat distribution, and a customer reassured about the overall condition of their system. The problem was not just a subjective feeling of comfort, but a heating stage that was not working properly.
When to schedule a service call for an electric furnace?
It is best to have an electric furnace checked as soon as any of the following signs appear:
- The blown air is less warm than before.
- The house takes much longer to reach the requested temperature.
- The fan runs, but the heating seems weak.
- Some vents blow much less than others.
- The circuit breaker trips.
- An electrical or overheating smell appears.
- The system starts and stops too often.
- The thermostat calls for heat, but the temperature does not rise.
A quick intervention often prevents a complete breakdown during a period of intense cold.
