An HVAC service call for a central electric furnace that was no longer heating properly
In La Prairie, AirGreen was called for a central electric furnace repair installed in a residential mechanical room, connected to a network of metal ducts supplying the different zones of the house. Upon arrival, the equipment showed the typical characteristics of a central electric furnace: vertical indoor cabinet, front access panel, integrated circuit breakers, connection to distribution ducts, piping and low-voltage wiring associated with the control system.
The client reported a clear problem: the ventilation was working, air was circulating in the house, but the heat produced was no longer sufficient to reach the temperature set on the thermostat. The system seemed to start, then blow only lukewarm air, with prolonged cycles and a feeling of discomfort in some rooms. This type of situation is common with electric furnaces when one of the heating stages does not engage, when a sequencing relay becomes defective, when a heating element is out of service, or when the airflow is disrupted.
For a residence in La Prairie, where winter temperature variations heavily stress the heating system, this kind of failure should not be treated as a simple temporary discomfort. A partially functioning electric furnace can consume more energy, heat less efficiently, and unnecessarily strain certain components. Our intervention aimed to precisely identify the cause of the performance loss, secure the equipment, and restore reliable heating.
A central electric furnace connected to the duct network

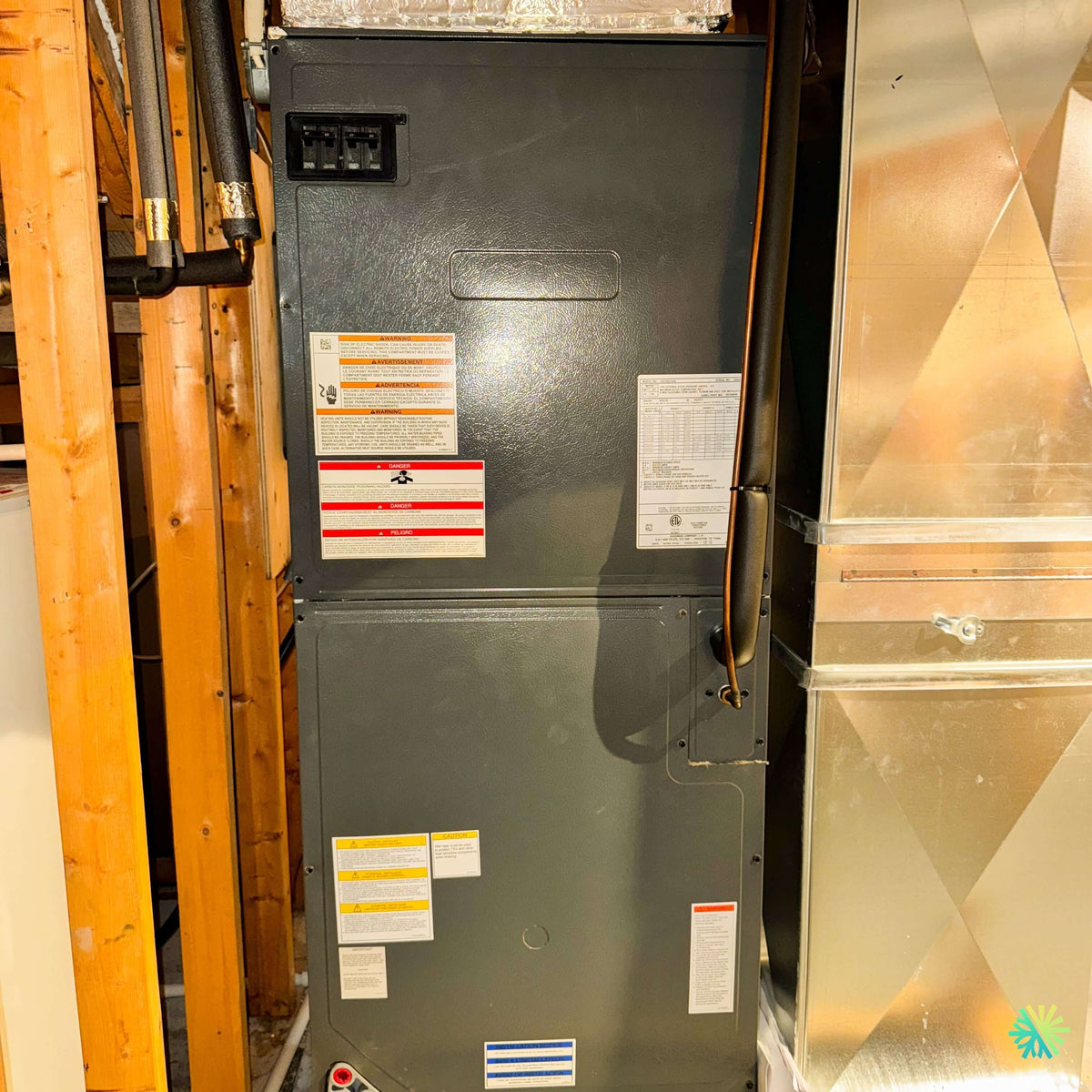

The installation image shows an electric furnace installed very close to ventilation ducts. This type of setup is very common in homes in La Prairie, but also in Montreal, Laval, Longueuil, on the North Shore and the South Shore, especially in properties equipped with a central air distribution network.
A central electric furnace is distinguished by its ability to distribute heat throughout the house from a single unit. It generally includes:
- a circulation fan;
- one or more electric heating elements;
- heating relays or sequencers;
- thermal protections;
- an integrated electrical panel;
- a control board or circuit;
- a connection to the thermostat;
- air supply and return ducts.
In this case, the exact brand name and precise model were not sufficiently readable from the photographed equipment. We therefore treated the intervention according to the actual technical category: residential central electric furnace connected to ducts.
Symptoms observed before our diagnosis
The problem described by the client was typical of a partial heating failure. The furnace was not completely stopped, which made the situation more subtle. When a unit does not start at all, the diagnosis is often more straightforward: power supply, thermostat, fuse, circuit breaker, or control board. Here, the system was working but not at full capacity.
Reported and observed signs included:
- air blown less hot than usual;
- abnormally long heating time;
- indoor temperature difficult to stabilize;
- extended cycles on the thermostat;
- feeling that the furnace "runs without really heating";
- more noticeable discomfort in distant rooms;
- absence of major mechanical noise, but reduced performance.
This type of failure can easily be misinterpreted. Some owners first think of a thermostat problem, while the cause is sometimes in the sequencer, heating element, airflow, filter, thermal protection, or a weakened electrical connection.
First step: securing and visual inspection
Before opening the panels and performing tests, we secured the intervention. An electric furnace contains high-voltage components. It is therefore essential to follow a rigorous method to avoid electrical risks and protect the equipment.
Our initial inspection focused on:
- the overall condition of the cabinet;
- the access panels;
- the built-in circuit breakers;
- the manufacturer's warnings;
- the visible connections;
- the condition of adjacent ducts;
- the presence of obstructions around the unit;
- the low-voltage wiring near the thermostat;
- the general condition of the installation.
The furnace was installed in a relatively confined technical space, with wooden studs, nearby ducts, and several connections around the unit. In this type of environment, access to panels, air circulation around the equipment, and cleanliness of the return compartment are important factors. A central installation can be mechanically functional but lose efficiency if the airflow is poorly balanced or maintenance has been neglected.
HVAC Diagnosis: Understanding Why the Air Was Only Lukewarm
Our diagnosis took place in several stages. The goal was not to replace parts randomly, but to isolate the real cause of the lack of heat.
Checking the thermostat and heating demand
We first confirmed that the thermostat was correctly sending a heating demand. A misconfigured thermostat, weak battery, poor programming, or intermittent signal can create symptoms similar to a furnace failure.
The checks included:
- thermostat operating mode;
- requested setpoint;
- heating signal;
- furnace response;
- fan start;
- delay between demand and element activation.
In this case, the heating demand was properly transmitted. The thermostat was therefore not the main cause of the problem.
Checking electric heating stages
An electric furnace can operate in stages. Depending on the device’s capacity, several heating elements activate progressively to produce the required heat without causing a sudden electrical demand. If a stage does not start, the furnace may blow lukewarm air instead of truly hot air.
We therefore checked:
- activation of stages;
- sequence relays;
- power supply to the elements;
- ampere readings;
- continuity of heating elements;
- the device’s response under prolonged demand.
The diagnosis identified that a heating stage was not activating properly. The fan was running, some heating was present, but the furnace’s full capacity was not available. This situation perfectly explained the long cycles and insufficiently warm air.
Checking airflow and ducts
An electric heating problem is not always limited to electrical components. Airflow plays a crucial role. If the filter is clogged, if the air return is limited, or if the static pressure is too high, the elements can overheat, trigger a protection, or operate under poor conditions.
We therefore inspected:
- the filter;
- air return;
- distribution to the ducts;
- cleanliness of accessible compartments;
- presence of obvious restrictions;
- fan stability;
- vibration or friction noises.
In this case, the airflow was not the main cause of the failure, but some maintenance recommendations were given to prevent the problem from recurring or worsening during very cold periods.
The repair: targeted replacement of the defective component and complete testing
After confirming that the furnace was not delivering its full heating power, we proceeded with a targeted repair. The intervention involved correcting the control circuit of the faulty heating stage, including replacing the component responsible for the intermittent activation of the electric element.
In this type of device, an electric furnace sequencer or a power relay can become imprecise over time. It may stick, delay activation, fail to close the circuit properly, or cause partial operation. Such a defect can be hard to notice without electrical tests because the device continues to blow air and appears to be working.
Repair steps
The repair was carried out according to a methodical sequence:
- safe power cut-off;
- access to the control compartment;
- identification of the circuit associated with the problematic stage;
- checking connections;
- replacement of the defective component;
- tightening of necessary connections;
- power restoration;
- start-up test;
- validation of heating stages;
- measurement of the airflow temperature;
- observation of the complete cycle.
Once the component was replaced, the furnace returned to a normal heating sequence. The air blown was noticeably warmer, and the device responded better to the thermostat’s demand.
Result: heat restored and more stable operation
The most important result for the customer was immediate: the house started heating properly again. But for us, a successful service call is not just about noticing warm air for a few minutes. We must confirm that the device operates stably, that safety features do not trigger, that the fan follows the correct sequence, and that electrical components show no signs of overheating.
After the repair, we validated:
- correct heating activation;
- normal stage sequencing;
- warmer airflow;
- stable fan operation;
- no premature shutdown;
- absence of abnormal noise;
- proper thermostat response;
- gradual return to indoor comfort.
The customer was thus able to resume normal use of their electric furnace, with a better understanding of what caused the breakdown.
What this electric furnace repair in La Prairie reveals about residential HVAC maintenance
A central electric furnace is often seen as a simple device because it does not involve gas or oil combustion. However, it still requires serious maintenance. Relays, components, thermal protections, fans, filters, electrical connections, and controls must all work together precisely.
Common mistakes to avoid
In this type of breakdown, certain actions can worsen the situation. We recommend avoiding the following gestures:
- constantly raising the thermostat setting hoping to force heat;
- ignoring lukewarm air blowing for several days;
- repeatedly resetting a breaker without diagnosis;
- using portable heaters as a permanent solution;
- opening panels without electrical knowledge;
- replacing the thermostat without checking the furnace;
- neglecting the filter or return air;
- waiting for a complete breakdown before calling a specialist.
An electric furnace that heats partially can run for a long time in an inefficient state. It then consumes energy without providing the expected comfort. For a residence located in La Prairie, Longueuil, Montreal, Laval, on the North Shore or the South Shore, a quick check often helps avoid an emergency during a cold snap.
Why professional diagnosis is essential
Diagnosing an electric furnace requires more than a visual inspection. Several components can produce similar symptoms. Lukewarm air can be caused by:
- a burned heating element;
- a faulty sequencer;
- a worn power relay;
- an open thermal limit;
- a clogged filter;
- a fan problem;
- a thermostat misconfiguration;
- an incomplete power supply;
- a loose connection;
- a control board problem.
At AirGreen, we always seek to confirm the cause before recommending a part. This approach protects the customer from unnecessary replacements and ensures a lasting repair.
Recommended maintenance for a central electric furnace
To keep an electric furnace in good condition, certain checks must be done regularly. Preventive maintenance is not just about cleaning the unit: it helps spot signs of wear before they become breakdowns.
We especially recommend:
- replace or clean the filter as needed;
- check the airflow;
- inspect electrical connections;
- check the heating sequences;
- listen to the fan noises;
- watch for unusual odors;
- check the thermostat stability;
- keep access to the unit clear;
- schedule an inspection before winter.
In homes with older ducts, it can also be useful to check the air balancing. A furnace may produce enough heat, but some rooms will remain cold if the distribution is poorly adjusted or if the ducts have significant leaks.
Repair, replacement, or upgrade?
When an electric furnace starts to show signs of weakness, the question often arises: should it be repaired or replaced? The answer depends on the age of the unit, the availability of parts, the condition of internal components, overall performance, and the owner's needs.
When repair makes sense
Repair is generally appropriate when:
- the device is structurally in good condition;
- the breakdown is localized;
- the parts are accessible;
- the fan works well;
- the ducts are in good condition;
- the repair cost remains reasonable.
In the case of this intervention in La Prairie, targeted repair was the best solution because the problem was isolated and the equipment could return to normal operation without a full replacement.
When to consider an upgrade
An upgrade can be worthwhile if the furnace is aging, if the home experiences recurring comfort issues, or if the owner wants to improve energy efficiency. In some cases, a central heat pump paired with an electric furnace can offer a better balance between comfort, performance, and operating costs.
AirGreen often helps owners with this reflection, especially when the central system is already connected to a duct network. A home equipped with an electric furnace can sometimes be an excellent candidate for a hybrid solution with a central heat pump, depending on the electrical setup, ducts, and comfort goals.
Local HVAC expertise in La Prairie and Greater Montreal
This intervention in La Prairie clearly illustrates our approach: understand the symptom, test the device, isolate the cause, repair precisely, and validate the result. A central electric furnace is not just a metal box connected to ducts. It’s a complete HVAC system that must produce, move, and distribute heat safely and consistently.
AirGreen works on heating, air conditioning, and ventilation systems throughout Greater Montreal, including Montreal, Laval, Longueuil, the North Shore, and the South Shore. Our service calls cover electric furnaces, central heat pumps, central air conditioners, wall-mounted heat pumps, multi-zone systems, air exchangers, humidifiers, dehumidifiers, and HVAC accessories.
For this client in La Prairie, the repair restored comfort without unnecessarily replacing the equipment. The heating became stable again, the furnace responded properly to the thermostat, and the client received practical advice to monitor the device during the upcoming cold weeks.
A good HVAC repair is not just about getting a system running again. It’s about restoring confidence in the equipment, reducing the risk of repeated breakdowns, and enabling the owner to make better decisions for the future of their heating.
