An electric heating failure that required a precise diagnosis, not a simple replacement
During a service call on the South Shore, our AirGreen team worked on a residential electric furnace connected to a duct network. The unit, installed in a tight mechanical space, showed several typical symptoms of a central heating system operating unstably: insufficient heat, irregular starts, ventilation sometimes active without real temperature rise, and noticeable discomfort in the farthest rooms.
At first glance, the furnace appeared to be operational. The cabinet was in place, the ducts were connected, and the installation had the classic elements of a central system: supply plenum, return air, electrical wiring, insulated ducts, and access to internal components. Yet, the client noticed that the temperature requested on the thermostat was no longer being reached properly. The house warmed up slowly, then the system seemed to stop before stabilizing comfort.
In this type of situation, immediately replacing the furnace is not always the right decision. An electric furnace can lose efficiency for several reasons: defective heating element, weakened sequencer, unstable relay, triggered thermal limiter, worn fan motor, clogged filter, poor airflow, or loose electrical connection. Our intervention therefore consisted of isolating the real cause of the failure, fixing the problem, and then validating the overall system performance.
Initial inspection of the furnace and duct network

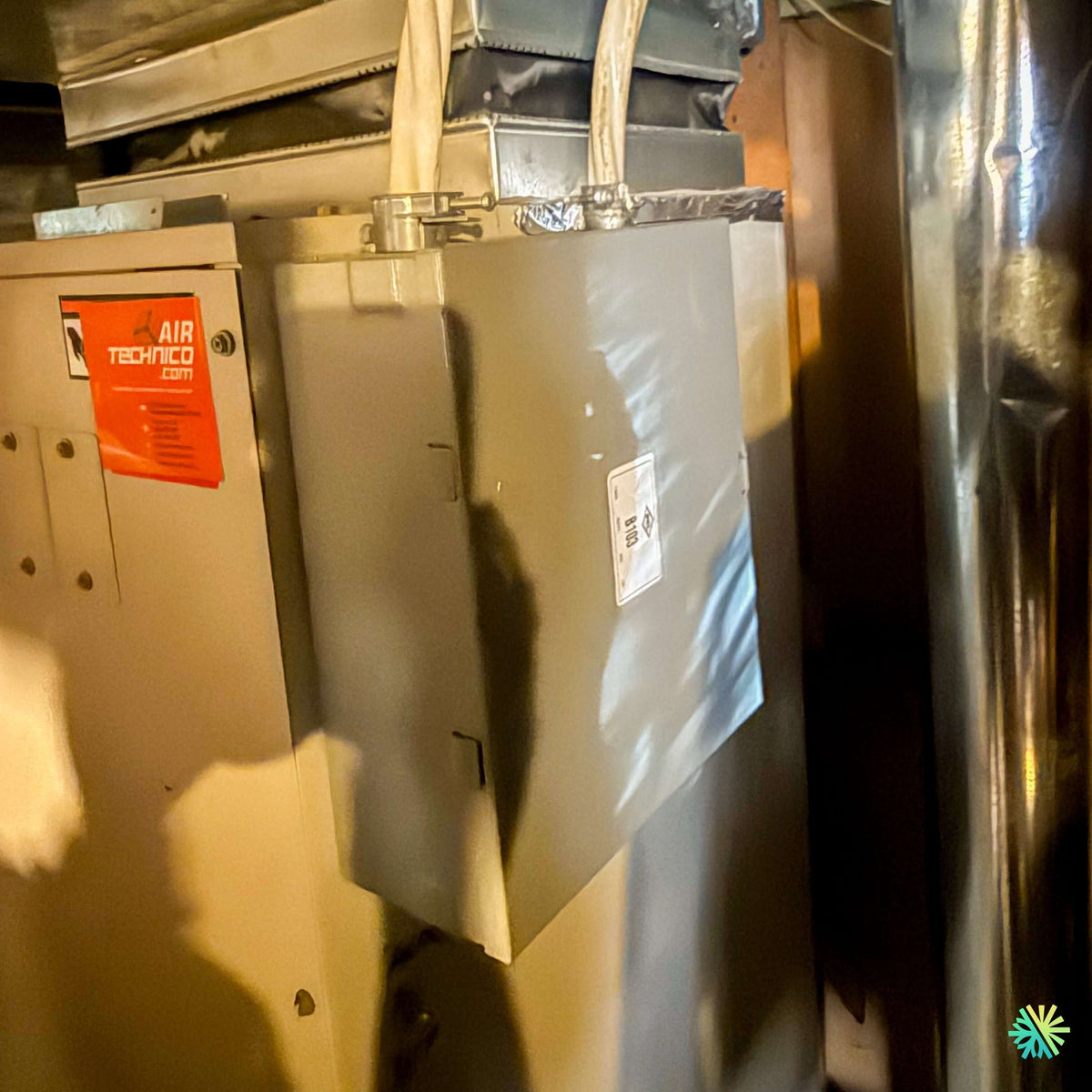

Upon our arrival, we began with a complete visual inspection of the electric furnace. The unit was installed in a confined space, which made access to the panels, connections, and ducts more delicate. In many homes on the South Shore, especially when a central system has been added or modified over the years, mechanical rooms do not always leave much space to work. This forces the technician to proceed methodically to avoid damaging the ducts or cables in place.
We checked:
- The general condition of the furnace cabinet.
- The presence of signs of overheating or deformation.
- The junctions between the plenum and the ducts.
- Power and control cables.
- The filter and air return.
- The behavior of the fan.
- The thermostat response.
- The startup sequence of the heating elements.
An important initial observation concerned the airflow. The ventilation was working, but the system was not delivering consistent heat. The air coming out of the vents was lukewarm rather than truly hot, and the temperature rise varied according to the cycles. This instability indicated that it was necessary to look beyond the simple thermostat.
Symptoms noted during the service call
The customer had described a very concrete situation: some rooms remained cold, the furnace seemed to start normally, but the air blown was not hot enough. Occasionally, the fan continued to run even when the heat seemed absent. This kind of behavior can give the impression that the furnace is completely defective, whereas a single component can prevent the heating sequence from working properly.
On site, we confirmed several signs:
- Insufficient heating despite an active thermostat demand.
- Abnormal delay before temperature rise.
- Ventilation present, but partial heat.
- Heating cycle interrupted before full stabilization.
- Risk of thermal limiter tripping if the airflow is not optimal.
- Electrical connections to check due to the age and environment of the device.
The goal was to distinguish an electrical failure from an air restriction. These two problems can produce a similar result for the customer, but the repair is not the same.
Electrical diagnosis: elements, relays, sequencer, and thermal safety
An electric furnace does not heat simply because the thermostat requests heat. It operates according to a precise sequence. The thermostat sends a signal, the system activates the ventilation, then the heating elements engage in stages to avoid an immediate electrical overload. This sequence depends notably on the relays, the sequencer, the heating elements, and the safety devices.
During our diagnosis, we checked the power supply voltage, the continuity of the heating elements, and the response of the relays. An anomaly was observed in the activation sequence: one of the heating stages was not responding correctly. Result: the furnace was blowing air, but with reduced heating capacity. In a home, this translates to a system that runs for a long time without ever providing the expected comfort.
We also inspected the thermal limiter. This part protects the furnace against overheating. If the airflow is too low or if an element heats under poor conditions, the limiter can temporarily cut off the heating. The customer then experiences a frustrating cycle: the unit seems to heat, then stops supplying hot air, then starts again.
Airflow check: a step often underestimated
On a central electric furnace, airflow is as important as the electrical components. Even if all heating elements are functional, poor air return or an overly restrictive filter can cause internal overheating, reduce efficiency, and strain the ventilation motor.
We therefore checked the filter, return openings, visible ducts, and connections around the plenum. The system showed some signs of aging and a few joints needed tightening or sealing to limit air leaks. In this case, the main problem was not a major duct break, but a combination of imperfect airflow and an unstable heating stage.
It is precisely this kind of comprehensive diagnosis that prevents incomplete repairs. Replacing a relay without checking the air, or cleaning a filter without testing the components, can leave the customer with a still unstable system after the technician leaves.
Repair performed on the electric furnace
After identifying the main cause, we proceeded to correct the heating sequence. The component responsible for the irregular activation of a stage was replaced or repaired according to the conditions observed on the unit. Electrical connections were tightened, contact points checked, and signs of overheating closely monitored.
We then conducted a series of tests under heating demand. The goal was to confirm that the furnace was not just starting up, but actually delivering stable heat. We measured the air temperature at the return and supply, observed the fan behavior, and then validated that the cycles occurred without abnormal interruptions.
Heating stabilization
Once the sequence was corrected, the temperature difference between the return air and the supply air improved. The furnace produced more consistent heat, without sudden alternation between lukewarm and hot air. The system responded better to the thermostat's demand.
Securing connections
In an electric furnace, connections must be flawless. A loose terminal can create heat, cause premature wear, and become a risk for the unit. We therefore paid special attention to accessible connections, relays, and power points.
Fan inspection
The ventilation motor was observed over several cycles. A weak or dirty fan can mimic a heating failure because it prevents heat from circulating properly. In this case, the fan was functional, but its role was validated as part of the complete diagnosis.
More reliable central heating and restored comfort in the home
After the service, the central system returned to more consistent operation. The heat distributed through the ducts was more regular, the furnace responded better to the thermostat, and the client could once again rely on their electric heating without constantly having to raise the setpoint.
Why electric furnaces require serious maintenance
An electric furnace is often seen as a simple device because it does not burn fuel or produce a flame. However, it requires rigorous technical attention. The heating elements, relays, sequencers, thermal limits, and the ventilation motor work together. A weakness in a single component can affect overall comfort.
In Greater Montreal, we regularly service central systems in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Problems vary from house to house, but the symptoms are often similar: insufficient heating, lukewarm air, ventilation noise, thermostat that seems inaccurate, circuit breaker tripping, or poorly balanced parts.
Mistakes to avoid with an electric furnace that heats poorly
When an electric furnace no longer heats properly, certain reactions can make the situation worse. The first is to turn the thermostat much higher. If a heating stage is not working or if the airflow is limited, increasing the setpoint does not fix the problem. It can simply prolong the cycles and wear out the unit.
Another common mistake is ignoring a dirty filter. A clogged filter can cause internal overheating and trigger safety protections. The client then believes the furnace is defective, while the system is protecting itself against poor air circulation.
It is also important to avoid improvised electrical interventions. An electric furnace can operate with significant loads. Tests on elements, relays, and connections must be done with the right instruments and precautions.
What our AirGreen team checks during a service call
For a service call on an electric furnace, our approach includes both the electrical side and the air circulation side. We do not just note that the fan starts. We seek to understand if the furnace produces the right amount of heat, if that heat is properly distributed, and if the safety devices function normally.
We specifically check:
- Thermostat demand.
- Supply voltage.
- Heating stages.
- Electrical components.
- The sequencer or relays.
- Thermal limits.
- The ventilation motor.
- The filter and air return.
- The visible ducts.
- Signs of overheating.
- The supply air temperature.
- The stability of the complete cycle.
This method allows us to offer a lasting repair rather than a simple temporary fix.
A service call representative of HVAC needs on the South Shore
This intervention on the South Shore clearly illustrates the importance of an accurate diagnosis in central heating systems. An electric furnace may seem old or inefficient, while a targeted problem can sometimes be fixed with professional intervention. Conversely, a unit that restarts after a simple reset may hide a more serious problem if the cause is not identified.
At AirGreen, we prioritize a comprehensive approach: observe, measure, test, correct, then validate. For the client, this means more stable heating, greater peace of mind, and a clear understanding of the actual condition of their system.
