A central heating system that started but could no longer stabilize the house temperature

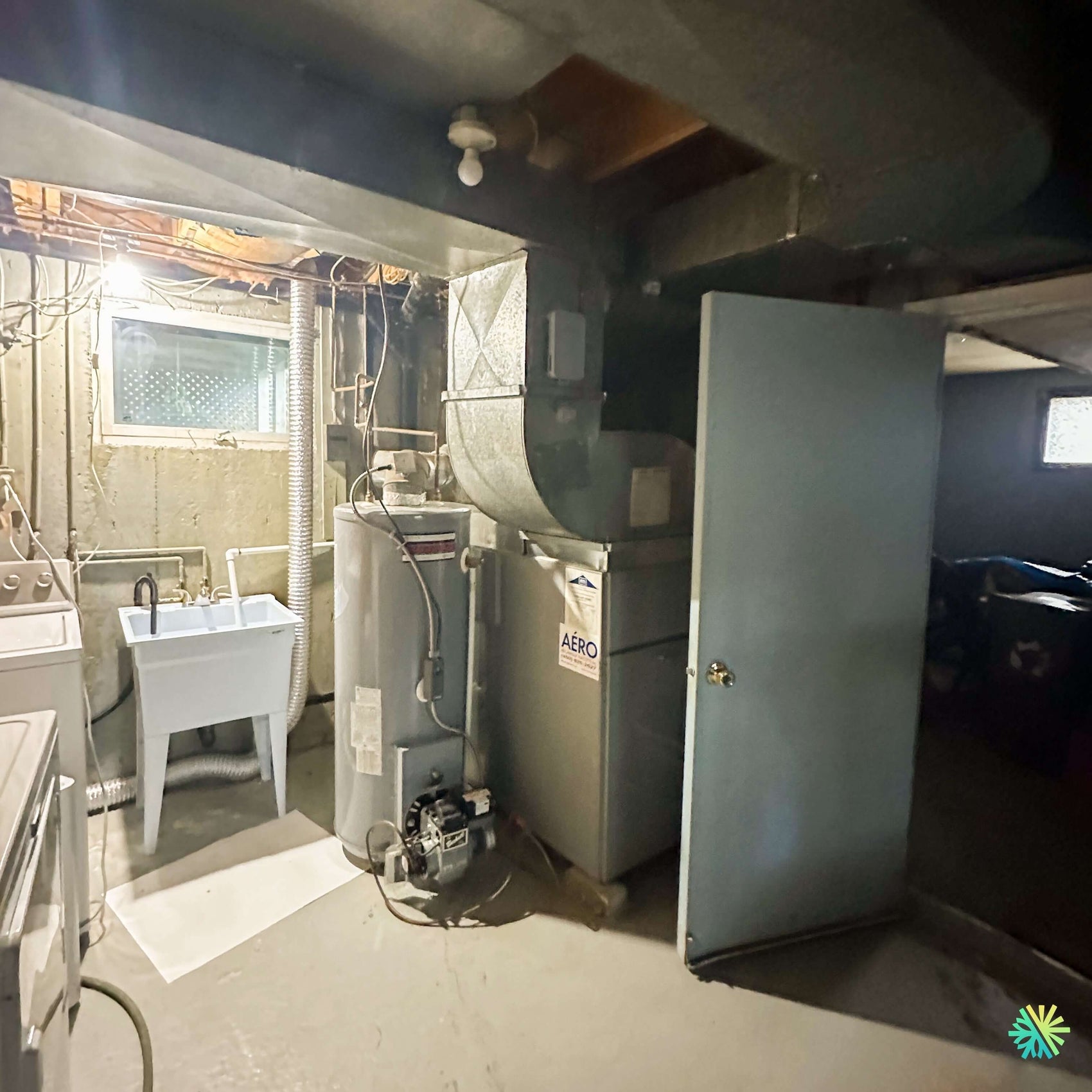

During this service call in Pointe-Calumet, our AirGreen team intervened on a central electric furnace connected to an existing duct network in a residential basement. The installation was located in a mechanical room typical of older houses: metal ducts, partially restricted access, water heater nearby, laundry area, exposed piping, and the main heating device placed against a set of distribution ducts.
The client contacted us because the system was no longer delivering consistent heating. The furnace started, the fan activated, but the air blown into the registers quickly became lukewarm. In some rooms, comfort was acceptable for a few minutes, then the temperature dropped again. In other areas, especially rooms farther from the main network, the warm air seemed to arrive with much less force.
This type of situation requires a complete diagnosis. An electric furnace may seem to be working simply because the fan is running, but that does not confirm that the heating elements, sequencers, relays, safety controls, and airflow are functioning properly. In this particular case, the problem was progressive: no total shutdown, no spectacular noise, but a clear loss of performance.
A central electric furnace installed on an existing duct network
The observed device was a residential electric furnace of the central type, connected to a vertical metal plenum and an air distribution network. The exact model was not clearly readable, but the installation corresponded to a common residential capacity furnace, probably in the range of 15 kW to 20 kW, depending on the heated area, the electrical panel configuration, and the actual needs of the house.
In a house in Pointe-Calumet, where cold periods can be demanding and where many properties have older technical basements, this type of system must be checked precisely. A single defective heating element can reduce overall capacity. An overly restrictive filter can cause internal overheating. A worn sequencer can prevent some heating stages from activating properly.
Our initial inspection of the installation identified several elements to monitor:
- limited technical access around the furnace;
- existing metal ducts with some older sections;
- possible airflow imbalance between different zones;
- device placed in an environment where dust and humidity can affect components;
- need to check both the electrical and the airflow parts.
Symptoms reported by the client
The client described a furnace that no longer responded as before. The symptoms were precise and consistent with a partial failure:
- Air blown too lukewarm at the registers.
- Uneven heating from one room to another.
- Longer cycles without quickly reaching the requested temperature.
- Fan working, but insufficient heat.
- Feeling that the furnace is “struggling” without delivering its full capacity.
- More noticeable discomfort during cold evenings.
These clues pointed the diagnosis towards two main issues: a problem with heat production or a problem with air distribution. In an electric furnace, both can combine. If a heating stage does not work and the airflow is reduced, the system quickly becomes ineffective.
HVAC diagnosis: check every step of the heating cycle
Our intervention began with securing the equipment. In an electric furnace, the electrical loads are significant. It is therefore necessary to work methodically, with precise measurements, before concluding that a part is defective.
Thermostat and heat call verification
We first confirmed that the thermostat was correctly sending the heat call. The low voltage command reached the furnace, and the device responded. This allowed us to rule out a simple thermostat or communication failure.
We then observed the complete sequence: heat demand, component activation, fan start, temperature rise, and cycle maintenance. The fan started, but the heat produced was not proportional to the demand.
Heating stage check
A central electric furnace often uses several heating elements activated in stages. This strategy avoids drawing all the power at once and allows a gradual increase. When one of these stages does not activate, the furnace continues to operate but with reduced power.
Our tests showed that one of the heating stages was intermittent. The furnace was therefore heating partially. In a basement, this type of failure can go unnoticed at first, especially when the outside temperature is not yet very low. But as soon as demand increases, the insufficiency becomes obvious.
Inspection of the sequencer and electrical connections
The inspection of the control compartment identified a weakened heating sequencer. This component controls the progressive activation of the elements. When it becomes unstable, it can leave a stage inactive, create abnormal delays, or cause irregular heat.
We also checked the condition of the connections. In an older installation, vibrations, thermal cycles, and time can cause some terminals to loosen slightly. These points must be corrected because a poor connection can generate heat, oxidation, or a more serious failure.
Airflow check
Once the electrical part was evaluated, we checked the air circulation. The airflow is essential: too little air can cause overheating in the furnace, while uneven airflow can leave some rooms cold.
We inspected:
- the filter;
- the ventilation compartment;
- the main registers;
- the air returns;
- the plenum;
- signs of restriction in the ducts;
- the supply air temperature before correction.
The filter was clogged and contributed to reduced airflow. It was not the only cause of the problem, but it was a significant aggravating factor.
A targeted repair to restore heat and secure operation
Work performed by AirGreen
After confirming the main cause, we proceeded with a structured repair. The goal was to restore the full heating sequence, improve airflow, and validate system stability over a complete cycle.
The intervention included:
- replacement of the defective heating sequencer;
- tightening accessible electrical connections;
- checking the heating elements;
- inspection of the limit control;
- replacement of the clogged filter;
- light cleaning of accessible areas around the ventilation compartment;
- fan test;
- measurement of supply air temperature;
- operation validation over several cycles.
Once the sequencer was replaced, the heating stages responded correctly. The furnace produced more consistent heat, and the air blown to the registers was noticeably warmer.
Result achieved in the home
At the end of the service call, the difference was visible in the system’s behavior. The furnace was no longer just ventilating: it was actually heating with better stability.
The customer noticed:
- a higher supply air temperature;
- more efficient cycles;
- better heat distribution;
- less variation between rooms;
- more consistent operation;
- a more comfortable home after service restoration.
The system was tested long enough to confirm that the furnace maintained its operation without premature shutdown. This step is essential because some intermittent electrical failures may only return after a few minutes of heating.
Why this type of failure must be addressed quickly
An electric furnace that operates partially may seem less urgent than a complete breakdown. However, this type of problem can lead to accelerated wear. If one heating stage is not working, the other components have to compensate. If the airflow is reduced, the unit can overheat. If the connections are weakened, the risk of electrical damage increases.
In this case in Pointe-Calumet, the intervention prevented more costly damage. Replacing the sequencer and correcting the airflow restored performance without replacing the entire furnace.
Mistakes to avoid with a central electric furnace
Waiting for the furnace to stop working completely
A system that heats less effectively is already sending a signal. Lukewarm air, overly long cycles, and cold rooms indicate that a diagnosis is needed.
Neglecting the filter
A dirty filter is a common cause of overheating, low airflow, and discomfort. It should be replaced based on the actual use of the home, ambient dust, presence of pets, and frequency of operation.
Blocking access to the unit
A cluttered mechanical room slows down service and can harm regular maintenance. Access to the service panel, filter, air return, and main ducts must be kept clear.
Confusing ventilation with heating
The fan can operate even if the heating elements are not delivering their full power. That’s why temperature measurement and electrical checks are necessary.
AirGreen’s expertise in electric furnace repair
At AirGreen, we service residential HVAC systems throughout Greater Montreal, including Montreal, Laval, Longueuil, the North Shore, the South Shore, and municipalities like Pointe-Calumet. Electric furnaces require a precise approach because their performance depends as much on electricity as on air distribution.
In this project, the right diagnosis transformed an irregular system into a reliable central heating system. Repairing the sequencer, checking the bearings, replacing the filter, and controlling the airflow restored comfort without excessive intervention.
A well-maintained electric furnace can provide stable heating for many years. When a problem arises, the important thing is to act before a partial failure becomes a complete breakdown.
